Window security bar, window lock, security bar - Security Bar IV stainless steel

Window Bar, Fall Protection, Window Security, Security Bar, Burglary Protection - Security Bar IV made of stainless steel
Effective mechanical burglary protection through a stainless steel window bar. Modern alternative to a window grille.

Made in Germany directly from the manufacturer!

Maximum burglary protection through saw-through protection.
An internal solid rolling steel bar D12mm prevents sawing through by simply rotating the bar away when an attempt is made to saw through it.
Thus, cutting through with a normal saw is not possible.
The special Torx security screws with impact pin reliably prevent disassembly.

Details:
Material: Stainless steel 1.4301 V2A, ground K240
Outer bar diameter: 42.4mm
Internal bar: D 12mm round V2A
Stable wall connection bracket V2A

Length according to customer requirements:
Enter the exact mounting distance, drilling distance in mm in the selection field.

Scope of delivery:
1x main tube
1x internal rolling bar
2x wall connection brackets

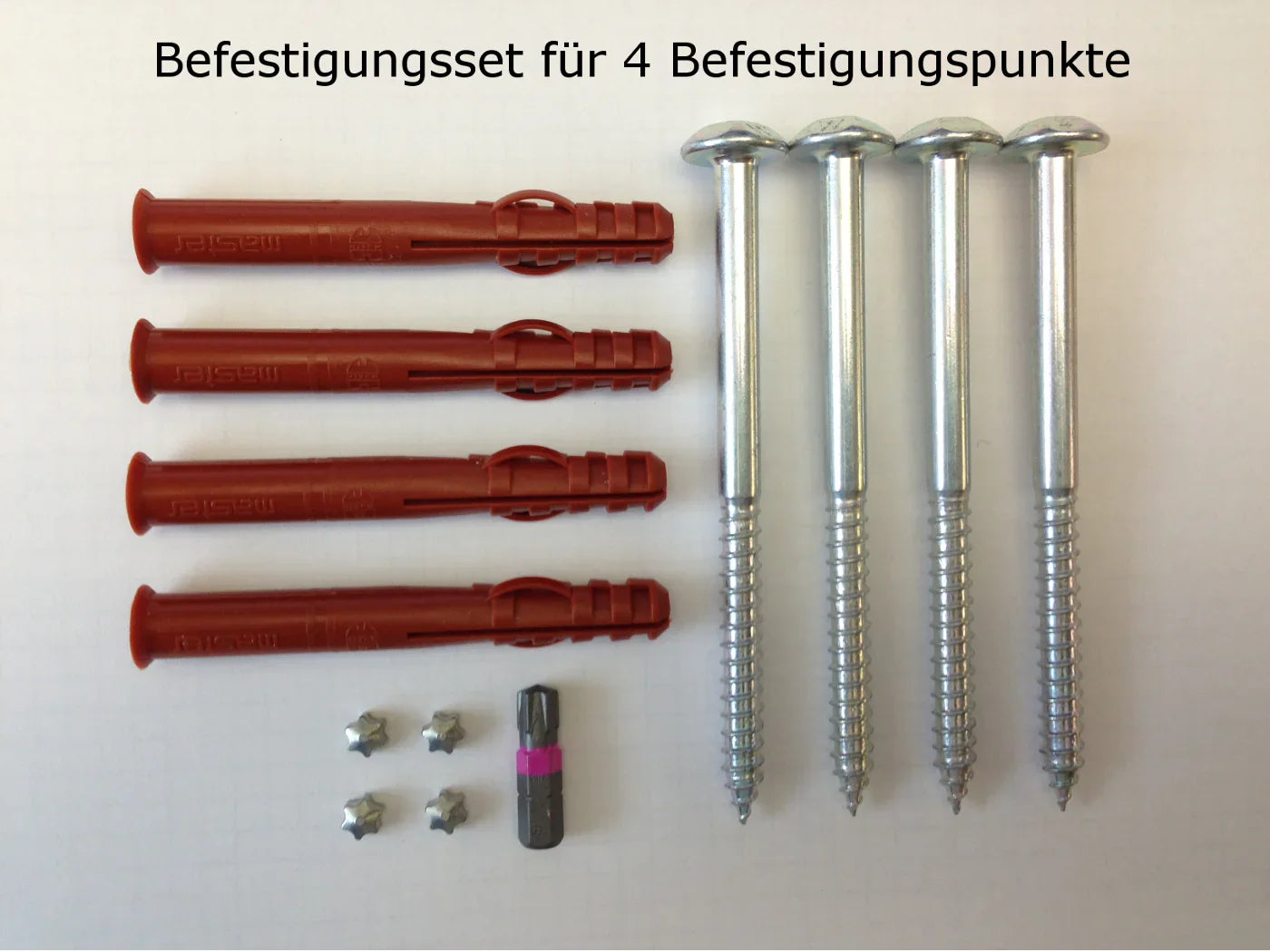

Mounting set for masonry - optionally selectable
4x Torx security screws AW40, galvanized (selectable 7x50mm or 7x105mm length)
4x dowels
4x impact pins for Torx as protection against disassembly
1x insert BIT TX40

Assembly procedure:

1. Slide the main tube and internal rolling bar into the wall connection brackets and screw them together
2. Measure, level, drill holes, insert dowels
3. Screw everything to the wall
4. Drive impact pins into the screw heads

Manufacturer:
Kirchberger Metall Onlinevertrieb GmbH
Neunburger Str. 2c
92431 Neunburg v. W. / Seebarn
Germany

Contact:
Email: shop@kirchberger-metall.de
Telephone: +49 (0) 9672 9269110
