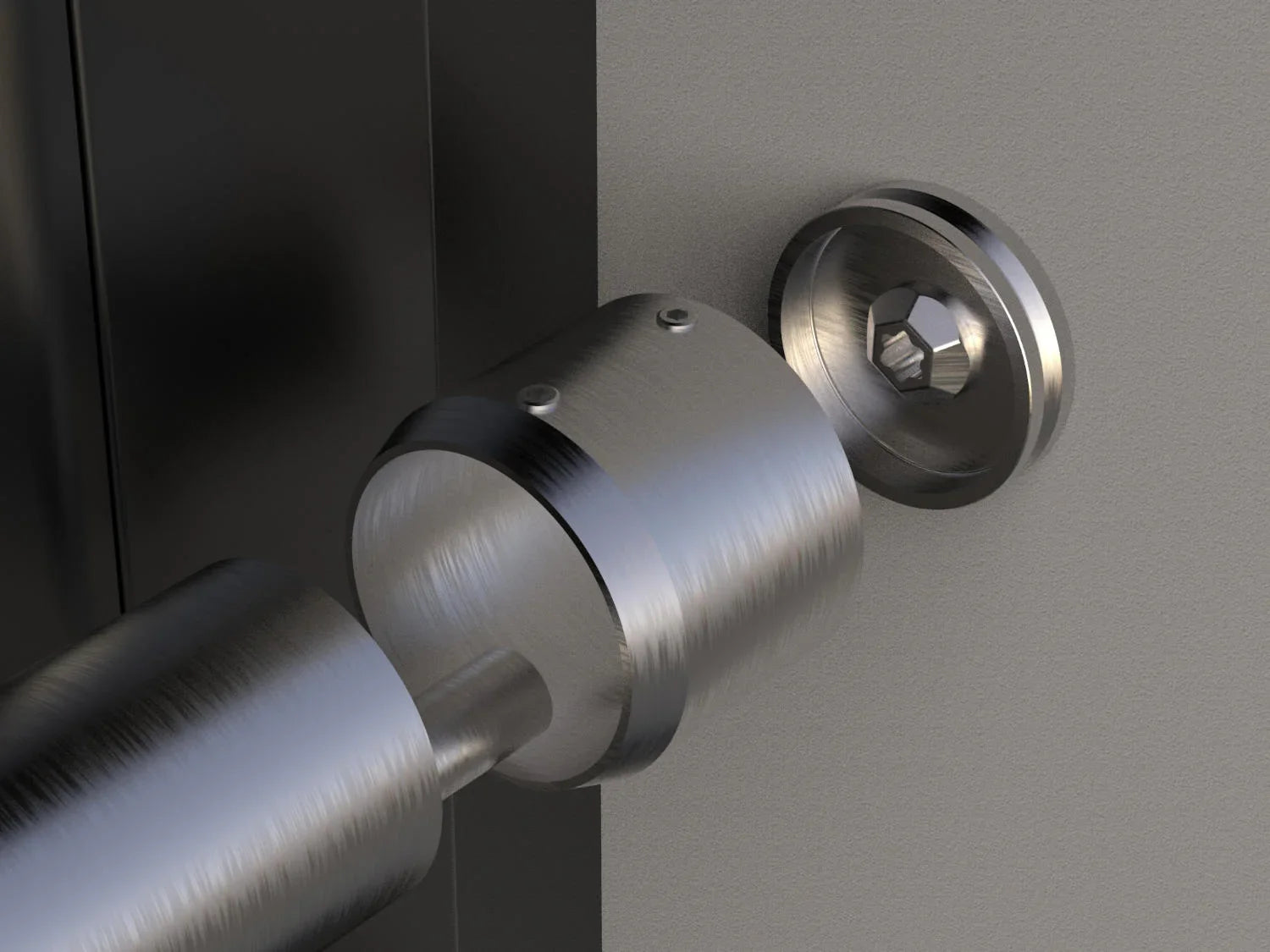

Fenstersicherung Edelstahl mit Laibung Befestigung, Detailansicht Einbruchschutzgitter

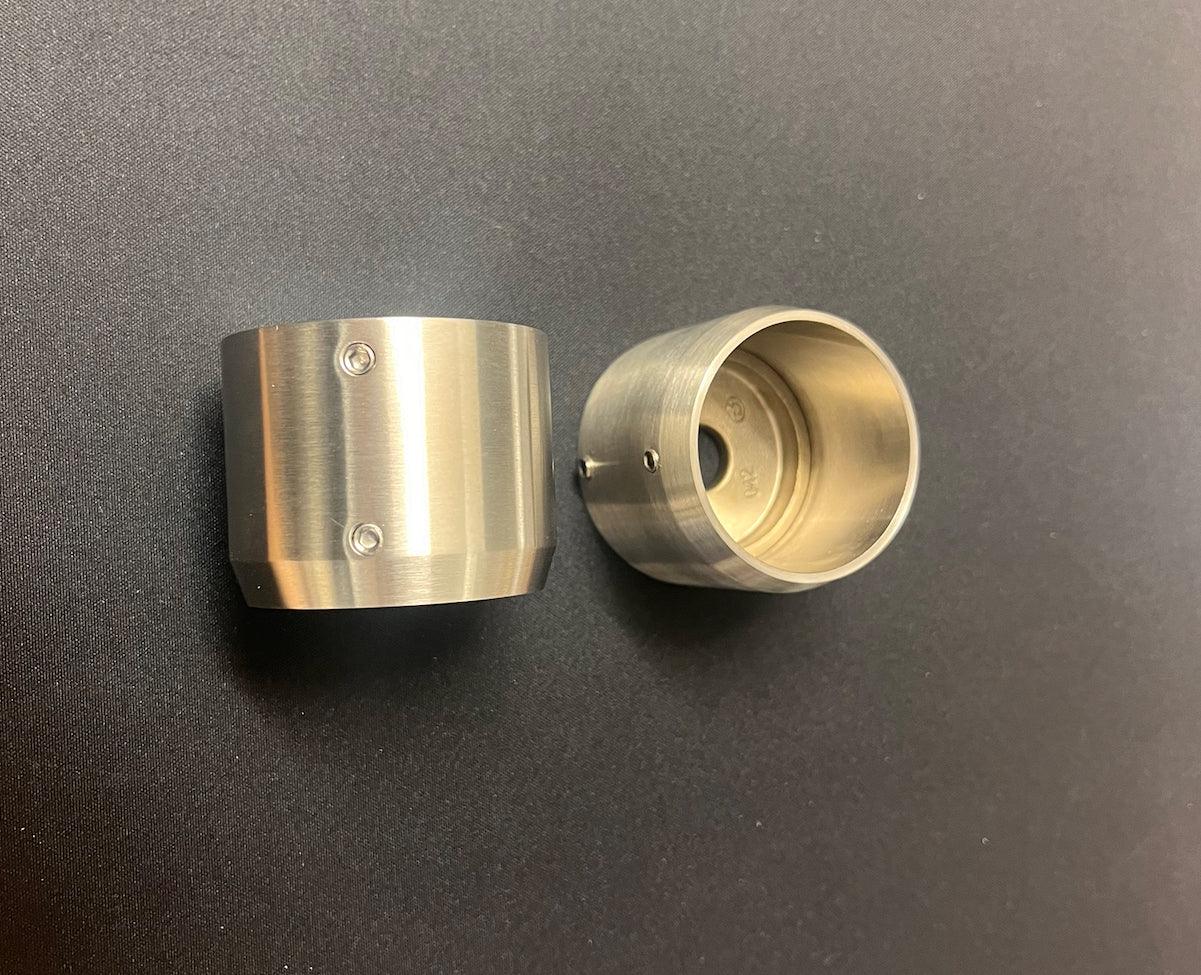

Zwei Edelstahl-Endkappen für Fenster-Sicherungsstange auf schwarzem Untergrund
Fenstersicherung aus Edelstahl mit zwei Stahlkugeln und Klebstoff, Einbruchschutz Zubehör
Querschnitt einer Fenstersicherung mit rotierendem Stahlkern, durchsägen nicht möglich, Abbildung einer Handsäge mit rotem X, Einbruchschutz Illustration.
Security Bar 3 Zeichnung
Zeichnung Schnitt Befestigung Security Bar 3
Befestigungsset für Fensterstange, bestehend aus Schrauben, Dübeln, Bit und Unterlegscheiben

Window burglar protection bar, window security, security bar - Security Bar III stainless steel

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free shipping

✔ Quantity discount from 3 pieces

SKU: 9002
Ab
89,00 €

Tax included. Shipping calculated at checkout

Delivery time: 3 to 8 days

Window Bar, Fall Protection, Window Security, Security Bar, Burglary Protection - Security Bar III made of stainless steel
Effective mechanical burglary protection through a stainless steel window bar. Modern alternative to window grilles.

Manufactured Made in Germany directly from the manufacturer!

Maximum burglary protection through anti-sawing protection.

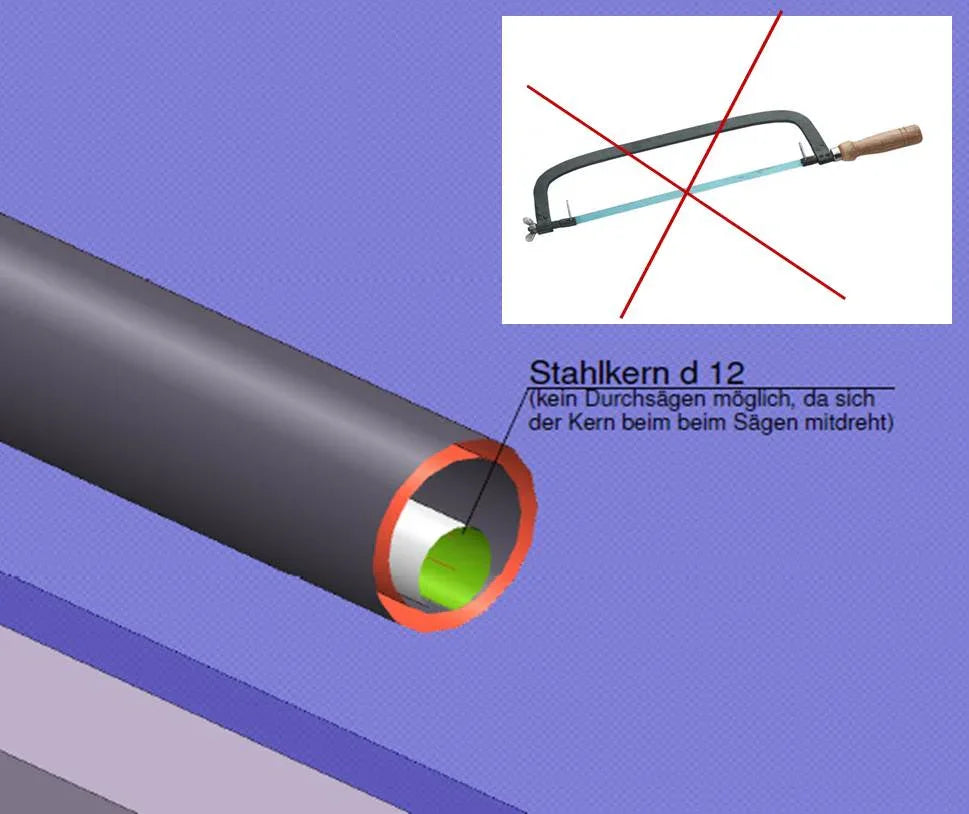

An internal solid D12mm roll-steel bar prevents sawing through by simply rotating away when an attempt is made to saw through it.
Thus, cutting through with a normal saw is not possible.

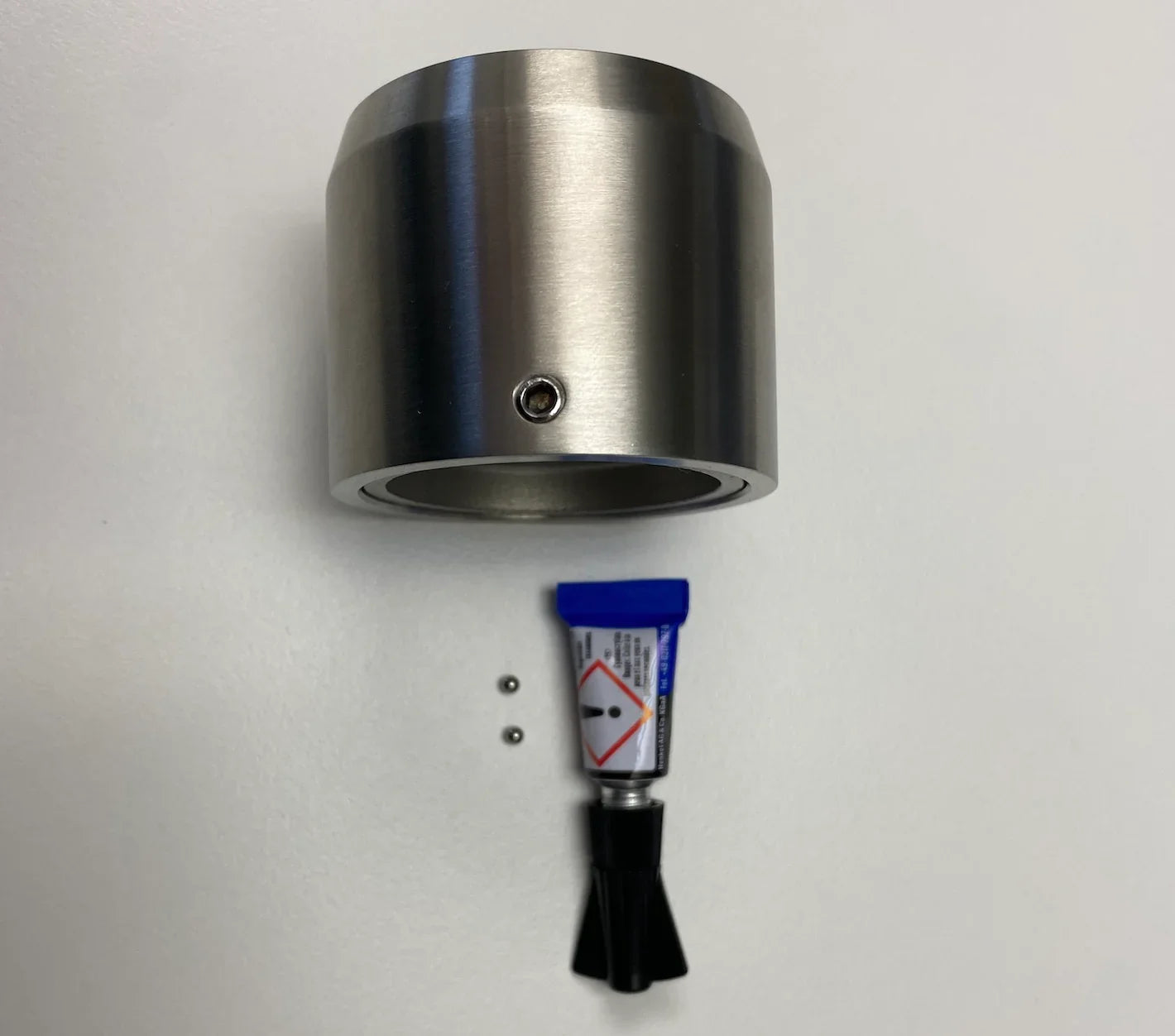

Through hardened steel balls, which are glued into the hex socket, drilling out or dismantling by burglars is no longer possible.

Details:
Material: Stainless steel 1.4301 V2A, ground K240
Outer bar diameter: selectable 33.7mm or 42.4mm
(From 1500mm length we recommend diameter 42.4mm)
Inner bar: D 12mm round V2A

Length according to customer requirements:
Enter the exact actual mounting distance (window width, reveal dimension) in mm in the selection field.
We manufacture with a -5mm tolerance, which can be compensated with the slip-on sleeve.

Scope of delivery:
1x main tube
1x inner roll bar
2x wall connection sleeve
2x slip-on sleeve
4x grub screw
1x adhesive

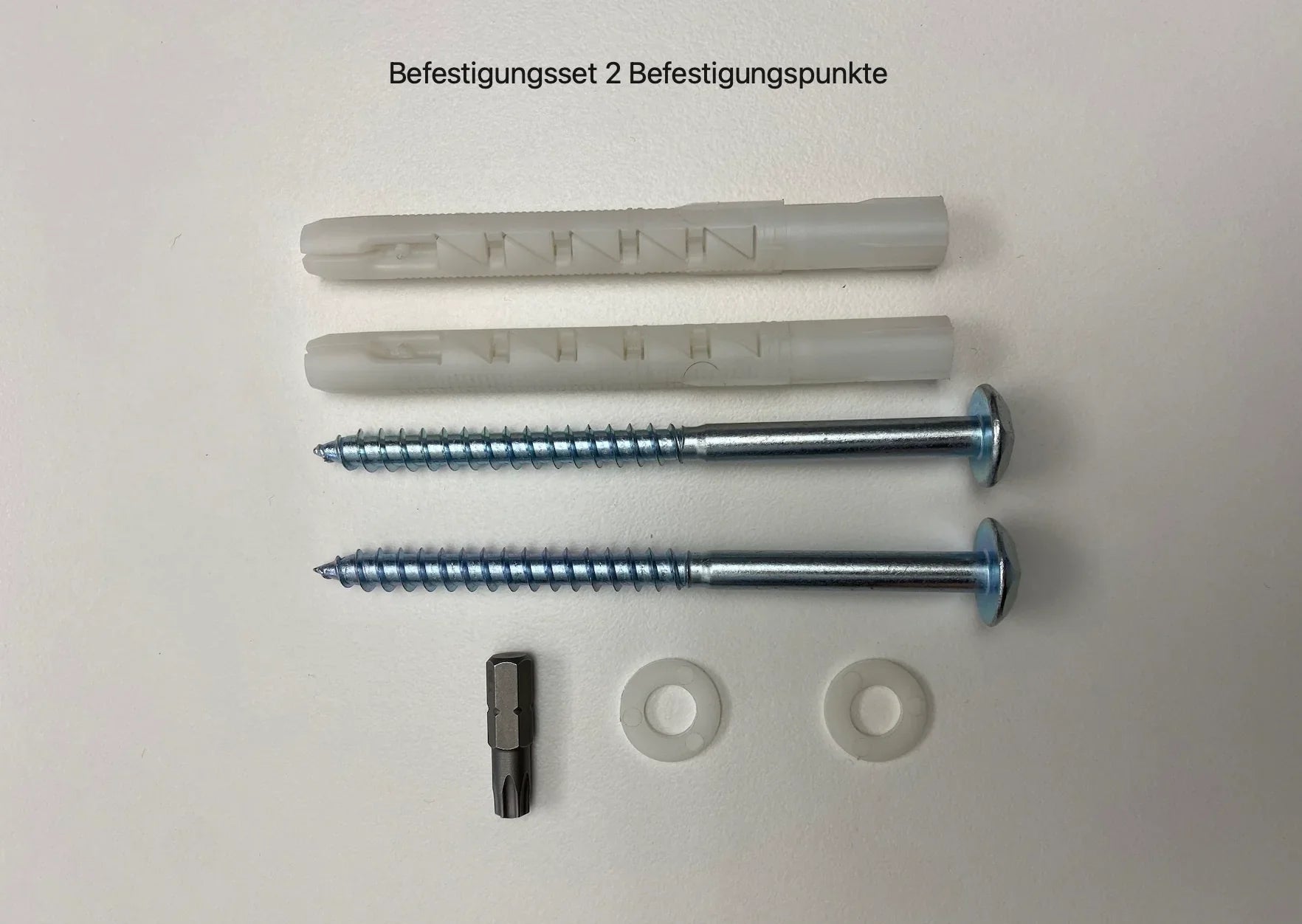

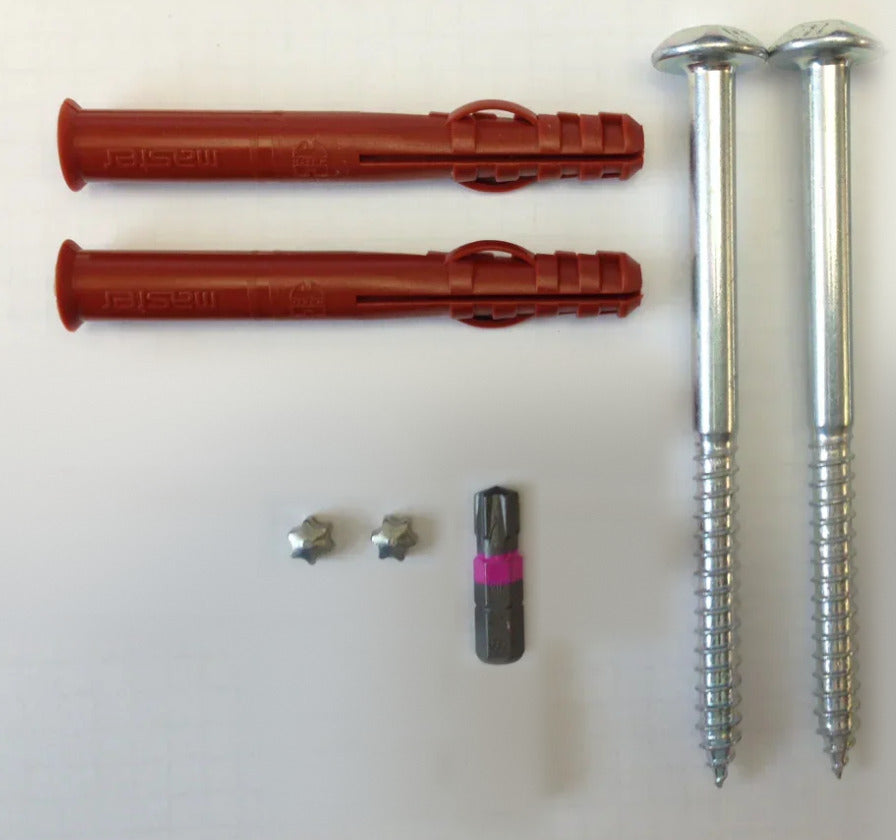

Mounting set for masonry - optionally selectable
2x Torx security screws AW40, galvanized (selectable 7x50mm or 7x105mm length)
2x dowels
2x washers
1x BIT TX40 insert

Assembly procedure:

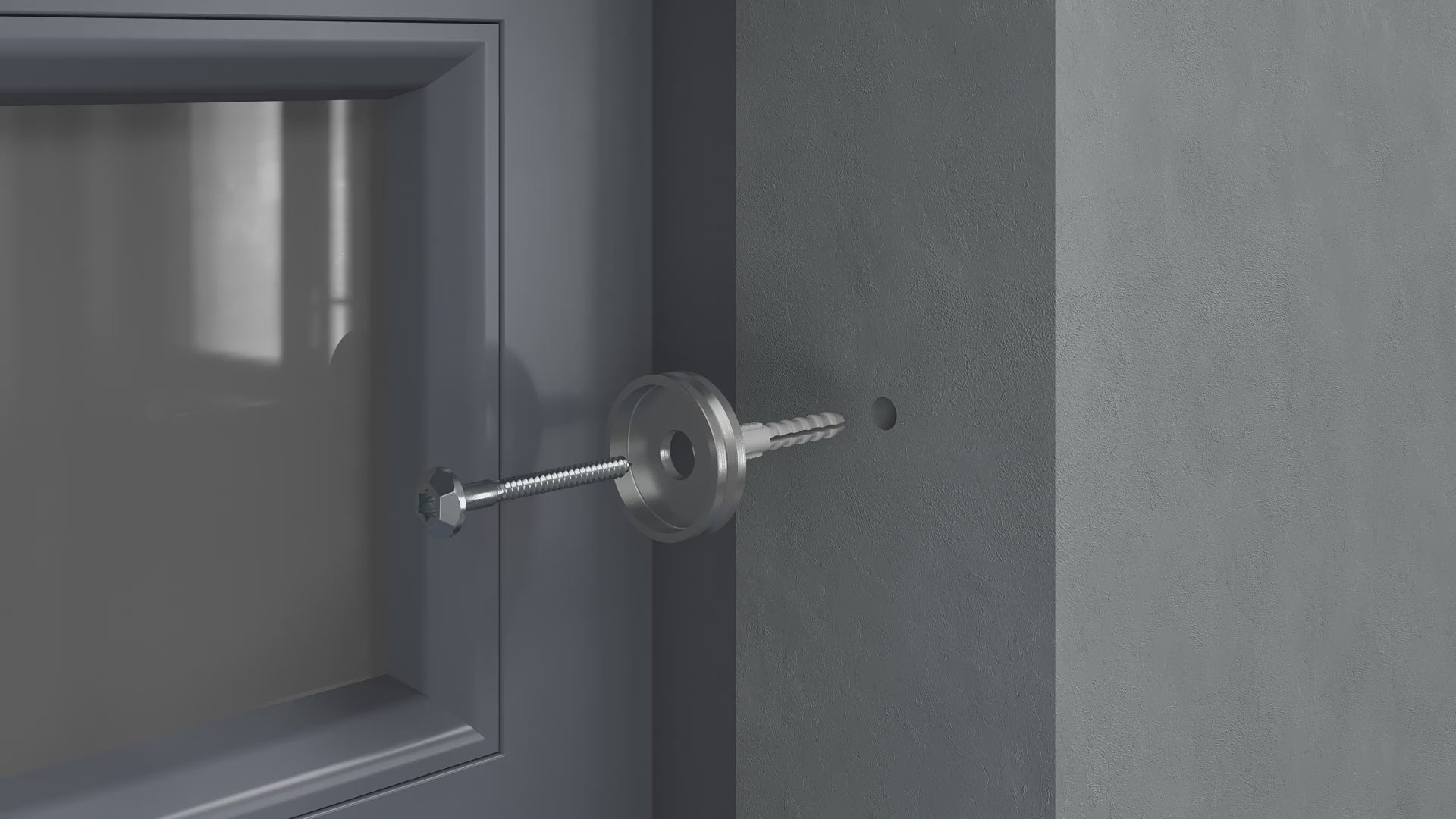

  1. Drill holes, insert dowels
  2. Screw on wall connection sleeve
  3. Slide slip-on sleeves over the main tube
  4. Insert the main tube between the wall connection sleeves
  5. Slide slip-on sleeves over the wall connection sleeves and fix with grub screws.
  6. Glue security balls into the hex socket of the grub screws.
