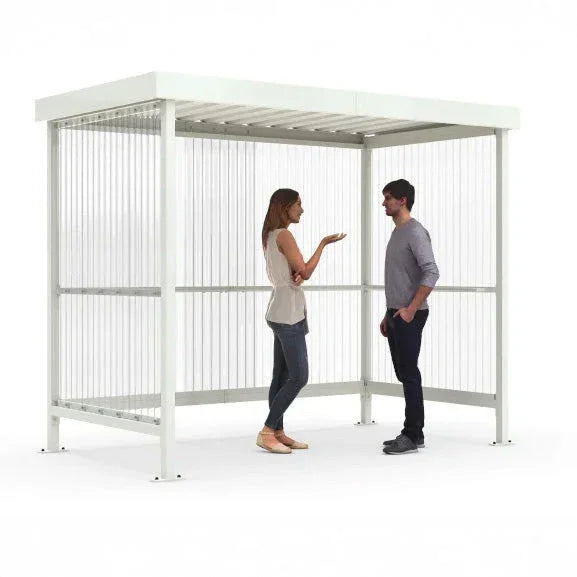

Raucherunterstand Modell Jena

Smoking Shelter Model Jena

A weather-protected smoking area – quickly available and cost-effective.

Flat-roof cabin in galvanized steel with side walls of corrugated polycarbonate and integrated leaning rails – in two sizes, galvanized or in RAL 9002. Choose a size and order online.

  • ab 1510 €
  • Lieferung in 3–8 Tagen
  • Bausatz oder Montage
4 products
Raucherunterstand Jena Maxi feuerverzinkt, 2960 × 1580 mm, Flachdach mit Trapezblech, Rück- und Seitenwand aus transparentem Wellpolycarbonat, Anlehnbügel serienmäßig – Stahlbausatz zur Eigenaufstellung Raucherunterstand Jena Maxi feuerverzinkt in Schrägansicht, 2960 × 1580 mm, Flachdach mit Trapezblech und Wellpolycarbonat-Wänden – Personenüberdachung als Bausatz
Smoking Shelter Jena Maxi 296 × 158 cm – Smoking Cabin, Galvanized
From 2.015,86 €
Raucherunterstand Jena Maxi RAL 9002 grauweiß, 2960 × 1580 mm, Flachdach mit Trapezblech, Rück- und Seitenwand aus transparentem Wellpolycarbonat, Anlehnbügel serienmäßig – Stahlbausatz zur Eigenaufstellung Raucherunterstand Jena Maxi RAL 9002 grauweiß in Schrägansicht, 2960 × 1580 mm, Flachdach mit Trapezblech und Wellpolycarbonat-Wänden – Personenüberdachung als Bausatz
Smoking Shelter Jena Maxi 296 × 158 cm – Smoking Cabin, RAL 9002
From 2.459,73 €
Raucherunterstand Jena feuerverzinkt, 1720 × 1580 mm, Flachdach mit Trapezblech, Rück- und Seitenwand aus transparentem Wellpolycarbonat, Anlehnbügel serienmäßig – Stahlbausatz zur Eigenaufstellung Untersicht der Trapezblech-Dacheindeckung mit verschraubtem Rahmenprofil am Raucherunterstand Jena feuerverzinkt
Smoking Shelter Jena 172 × 158 cm – Smoking Cabin, Galvanized
From 1.517,25 €
Raucherunterstand Jena RAL 9002 grauweiß, 1720 × 1580 mm, Flachdach mit Trapezblech, Rück- und Seitenwand aus transparentem Wellpolycarbonat, Anlehnbügel serienmäßig – Stahlbausatz zur Eigenaufstellung Detailansicht der Dachecke mit umlaufender Dachblende, Trapezblech-Eindeckung und Wellpolycarbonat-Wand am Raucherunterstand Jena RAL 9002 grauweiß
Smoking Shelter Jena 172 × 158 cm – Smoking Cabin, RAL 9002
From 1.931,37 €

Canopy System WSM Jena: Functional Efficiency and Quick Weather Protection

The WSM Jenamodel is the economical solution for companies and public institutions looking for reliable and quickly available canopies. Designed as a classic smoking cabin or weather shelter, this system impresses with an excellent price-performance ratio. The galvanized flat roof steel construction offers durable corrosion protection and is optimized for long-term outdoor use.

Compact Design and Capacities

The Jena system is designed for efficiency and is available in two practical footprints to optimally adapt to the respective number of people:

  • Variant 1:Compact 2.25 m² footprint for locations with limited space.
  • Variant 2:More generous 4.67 m² footprint for high-traffic areas.

Material Properties and Equipment

Despite its cost-effective orientation, the Jena model relies on durable materials and functional details:

  • Wall elements:The side walls are made of high-quality corrugated polycarbonate. This material is shatterproof, weather-resistant, and creates a bright, light-filled atmosphere inside the shelter. Optionally, an additional side wallcan be chosen. This extension allows the cabin to be closed on three sides to increase protection against driving rain and wind.
  • Leaning bars:Integrated, practical leaning bars increase user comfort and promote organized use of the space.
  • Steel construction:The entire frame construction is hot-dip galvanized, which guarantees high resistance to rust formation and minimizes maintenance.

Delivery and Quick Commissioning

The Jena system is designed for quick availability and uncomplicated assembly:

  • Kit delivery:To keep transport costs low and enable access to difficult installation sites, delivery usually takes place as a kit including easy-to-understand assembly instructions.
  • Foundation:As with the Cologne model, fastening can be done on an existing foundation or by means of special ground anchors. For smooth assembly, the subsoil should be stable and evenly prepared.

Questions and Answers

A professional smoking shelter enables clean spatial separation in accordance with non-smoker protection laws without compromising the comfort of employees or guests. It also keeps the company premises clean, as it provides a central gathering point and minimizes uncontrolled littering.

The range extends from simple canopies open on one side to complex smoking pavilions or almost fully enclosed smoking cabins. The choice of the number of side walls directly affects the desired weather protection against wind, rain, or snow.

Yes, thanks to modular construction, the systems can be adapted flexibly. They can be optimally positioned on spacious open areas as well as in confined spaces such as courtyards or on roof terraces.

Functional components are available for the models (such as Modell K, Passau, or R). Combination ashtrays with an integrated waste bin are particularly space-saving and hygienic. To further increase comfort, we also offer weatherproof benches, standing tables, and integrated lighting systems.

From a technical standpoint, a level concrete foundation at the site is mandatory. The smoking shelter is professionally anchored to it using robust base plates to guarantee the necessary stability and structural safety under wind loads.

Yes, we assist you starting with the selection of the right size, taking maintenance and ease of cleaning into account. In addition to detailed documentation for efficient installation, we also offer a professional installation service for a code-compliant setup.

The optimal size depends on your desired site capacity and the required level of protection. In practice, around 0.5 to 1 square meter of space per person is usually calculated for a comfortable standing spot.

Systems such as Modell K, Passau, or R are based on modular constructions and are available in many sizes. The range extends from compact canopies open on one side for small teams to large, almost fully enclosed smoking pavilions or cabins. We are happy to help you select the right capacity for your premises.
