Double wire mesh fences

Your property clearly enclosed – robust, rust-protected, easy to maintain.

Double-rod mesh fences made of hot-dip galvanized bar steel, optionally powder-coated in RAL colors, and can be retrofitted with privacy strips. German fence engineering – choose your model and order online.

  • ab 110 €
  • Lieferung in 14–21 Tagen
  • Bausatz oder Montage
  • Für Privat & Gewerbe
20 products

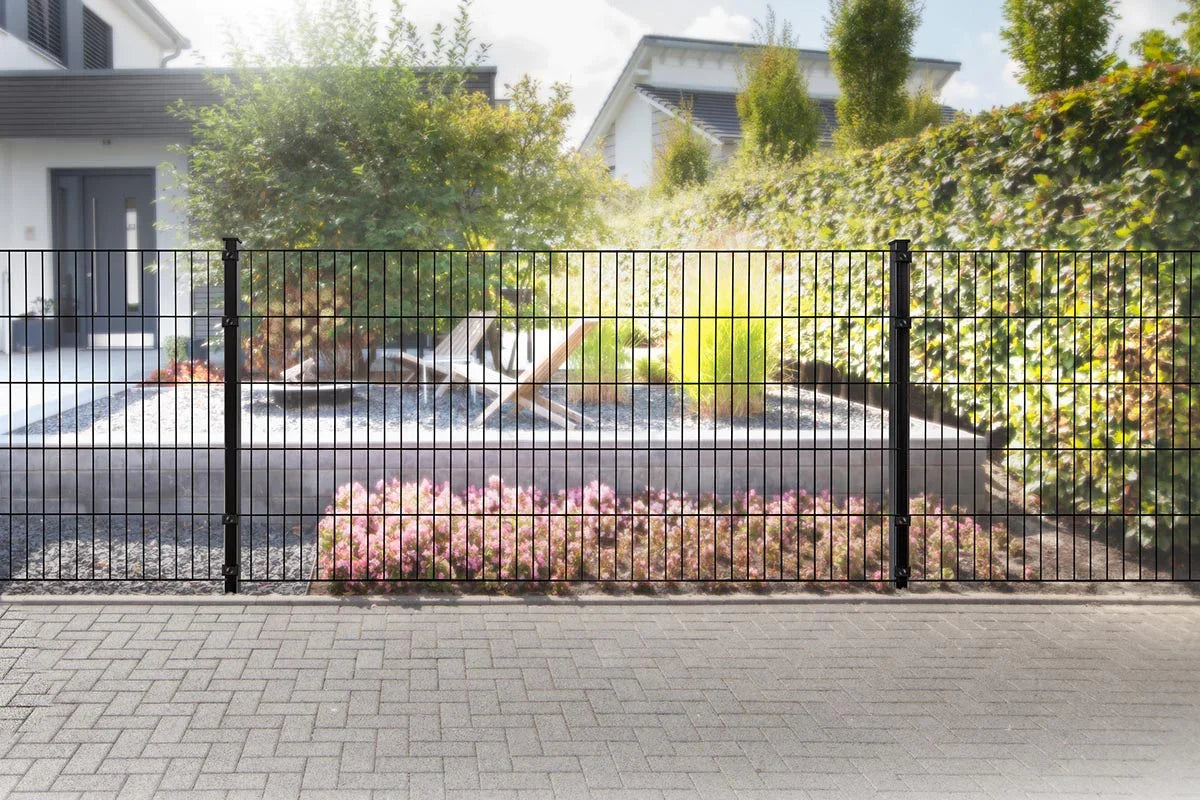

Doppelstabmattenzaun Modell BLACKY mit Pfosten, Stabstärke 5/4/5 mm, Metallzaun Detailansicht Schwarzer Doppelstabmattenzaun mit Pfosten vor modernem Haus und gepflegtem Vorgarten
Double wire fence 5/4/5 with posts, model BLACKY, galvanized and coated RAL 9005
From 124,61 €
Stabmattenzaun aus Metall als Gartenzaun vor modernem Wohnhaus auf Rasenfläche Doppelstabmattenzaun Metallzaun im Garten mit grünen Pflanzen und Kiesrand
Double wire fence 5/4/5 with posts model MICHL in anthracite grey or moss green
From 114,00 €
Doppelstabmattenzaun Modell GIRONA mit Zierornamenten, Stabstärke 6/5/6 mm, grafische Darstellung Doppelstabmattenzaun Modell GIRONA mit Rautenmuster vor modernem Eingangsbereich
Double wire fence 6/5/6 with posts, model GIRONA, galvanized and coated RAL 7016
From 503,37 €
Doppelstabmattenzaun Modell MALAGA mit Rautenmuster und Stabstärke 6/5/6 mm Doppelstabmattenzaun Modell MALAGA mit Rautenmuster, moderner Gartenzaun, Nahaufnahme
Double wire fence 6/5/6 with posts, model MALAGA, galvanized and coated RAL 7016
From 165,01 €
Doppelstabmattenzaun Modell MORITZ, Drahtstärke 6/5/6 mm, Gitterstruktur Detailansicht Doppelstabmattenzaun anthrazit im Garten mit Deko, Steinen und grünen Pflanzen
Double wire fence 6/5/6 with posts model MORITZ in galvanized, anthracite or green
From 346,00 €
Doppelstabmattenzaun Modell PICO mit Stabstärke 6/5/6 mm, stabile Metallgitterzaun-Optik Stabiler Doppelstabmattenzaun aus Metall, Garten mit Spielplatz im Hintergrund
Double wire fence 6/5/6 with posts, model PICO, galvanized and coated RAL 7016
From 121,64 €
Doppelstabmattenzaun BARCELONA in RAL 7016 anthrazit mit Rauten-Ornament vor einem Wohnhaus Rauten-Ornament des Schmuckzauns BARCELONA im Detail, Doppelstab 6/6/6 mm pulverbeschichtet
Double-Rod Mesh Fence 6/6/6 with Posts Model BARCELONA Galvanized + Coated RAL 7016
From 710,00 €

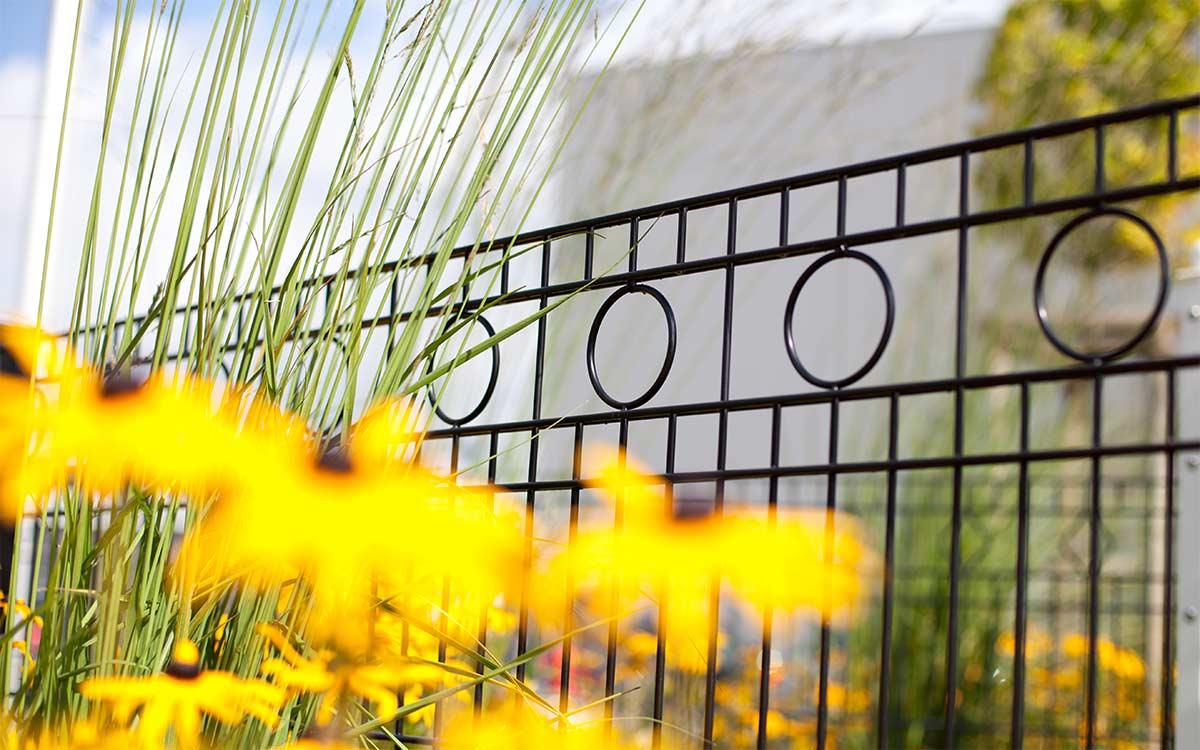

Doppelstabmattenzaun Modell ROM mit Stabstärke 6/6/6 mm, Gitterstruktur aus Metall Doppelstabmattenzaun Modell ROM mit Zierkreisen im Garten, gelbe Blumen im Vordergrund
Double wire fence 6/6/6 with posts model ROM in anthracite or green
From 667,00 €

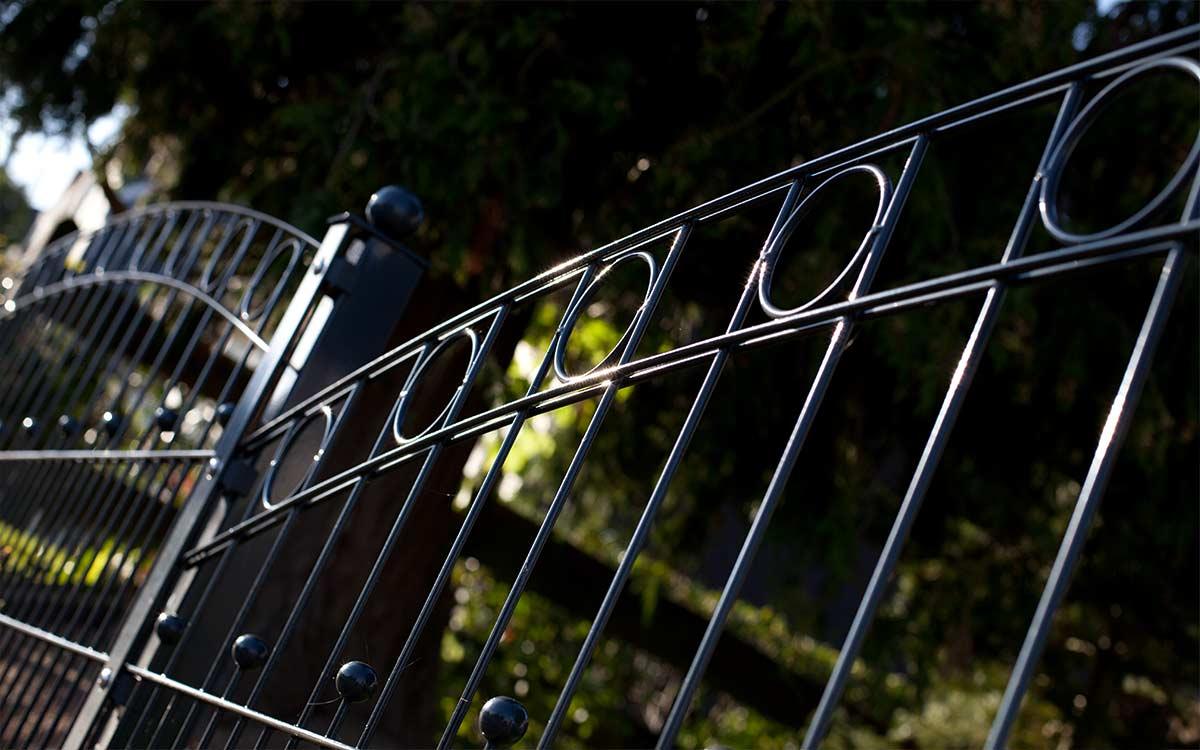

Doppelstabmattenzaun Modell Wien mit Verzierung, Stabstärke 6/6/6 mm, Zaun Detailgrafik Moderner Doppelstabmattenzaun aus Metall, verziert mit Kreiselementen, im Garten
Double wire fence 6/6/6 with posts, model VIENNA, galvanized and coated RAL 7016
From 819,01 €
Doppelstabmattenzaun 8/6/8 mm, Metallzaun mit stabilem Pfosten, Gitterstruktur für Garten oder Grundstück Doppelstabmattenzaun 8/6/8 Modell MILO auf Rasen vor modernem Gebäude
Double wire fence 6/8/6 with posts, model MILO, galvanized and coated RAL 7016
From 153,51 €
Bestseller
Doppelstabmattenzaun Modell MAX mit Stärken 8/6/8 mm, Gitterstruktur und Detailgrafik Doppelstabmattenzaun 8/6/8 vor Industriegebäude mit rotem Tor, Sichtschutzzaun Gewerbe
Double wire fence 8/6/8 with posts model MAX in galvanized, anthracite or green
From 407,00 €
Zweiflügeliges Gartentor aus Metall mit dekorativen Rundornamenten, modernem Design. Anthrazitfarbenes zweiflügeliges Gartentor aus Metall mit Dekorkreisen und Zierbogen, freigestellt
Entrance gate Vario Residenz VIENNA, double-leaf, in anthracite or moss green
From 1.392,30 €

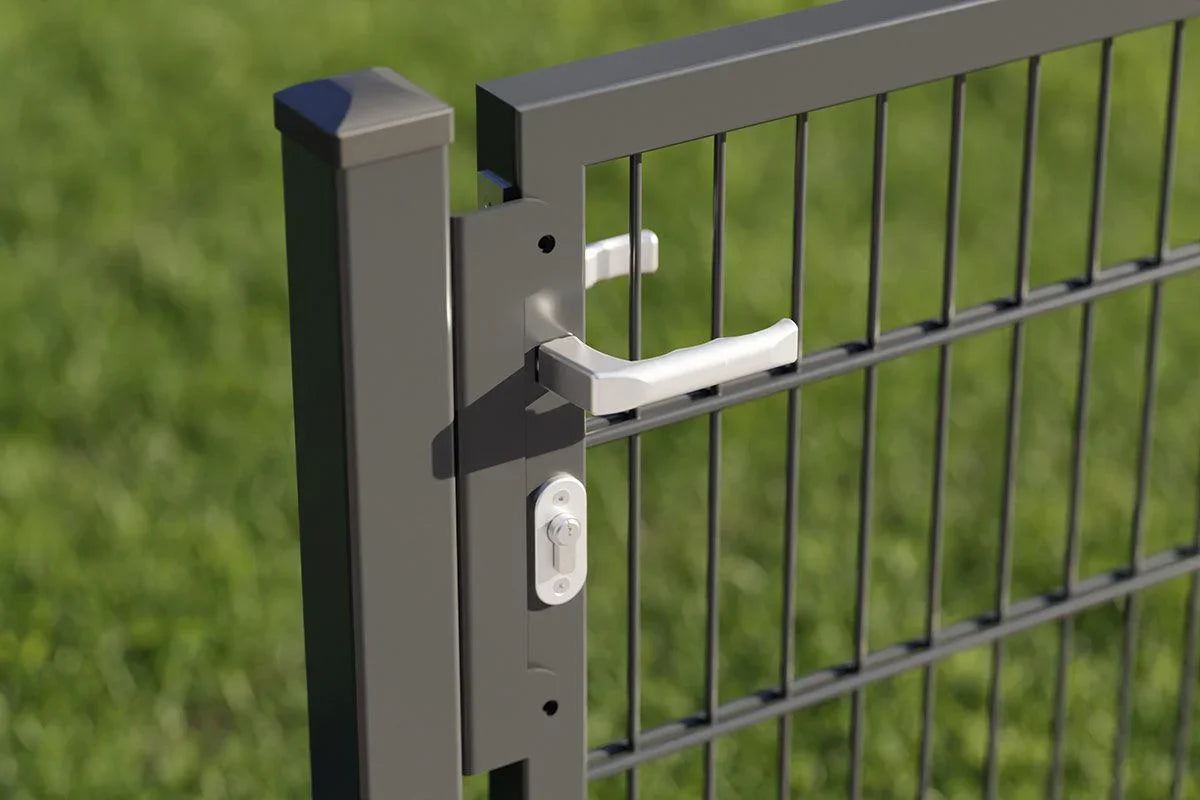

Einflügeliges Gartentor aus Metall mit rechteckigem Gitter und stabilem Rahmen in Anthrazit. Einflügeliges Gartentor aus Metall mit Doppelstab-Gitter und Schloss, Nahaufnahme
VARIO basic DS garden gate, wire mesh gate 6/5/6, single-leaf, in anthracite RAL 7016
From 334,62 €
Modernes Gartentor aus Metall, einflügelig, pulverbeschichtet, mit senkrechten Stäben Detailansicht modernes Gartentor aus Metall mit Schloss und silbernem Griff am Zaun
VARIO basic ST garden gate, single-leaf tubular bar gate in anthracite RAL 7016
From 282,61 €
Schwarzes einflügeliges Metall Gartentor mit modernem Gitterdesign, stabilen Pfosten, Außenbereich Schwarzes Gartentor aus Metall, einflügelig, mit modernem Design auf Rasen vor Hausfassade.
Garden gate Vario light BLACKY single-leaf deep black RAL 9005
300,00 €

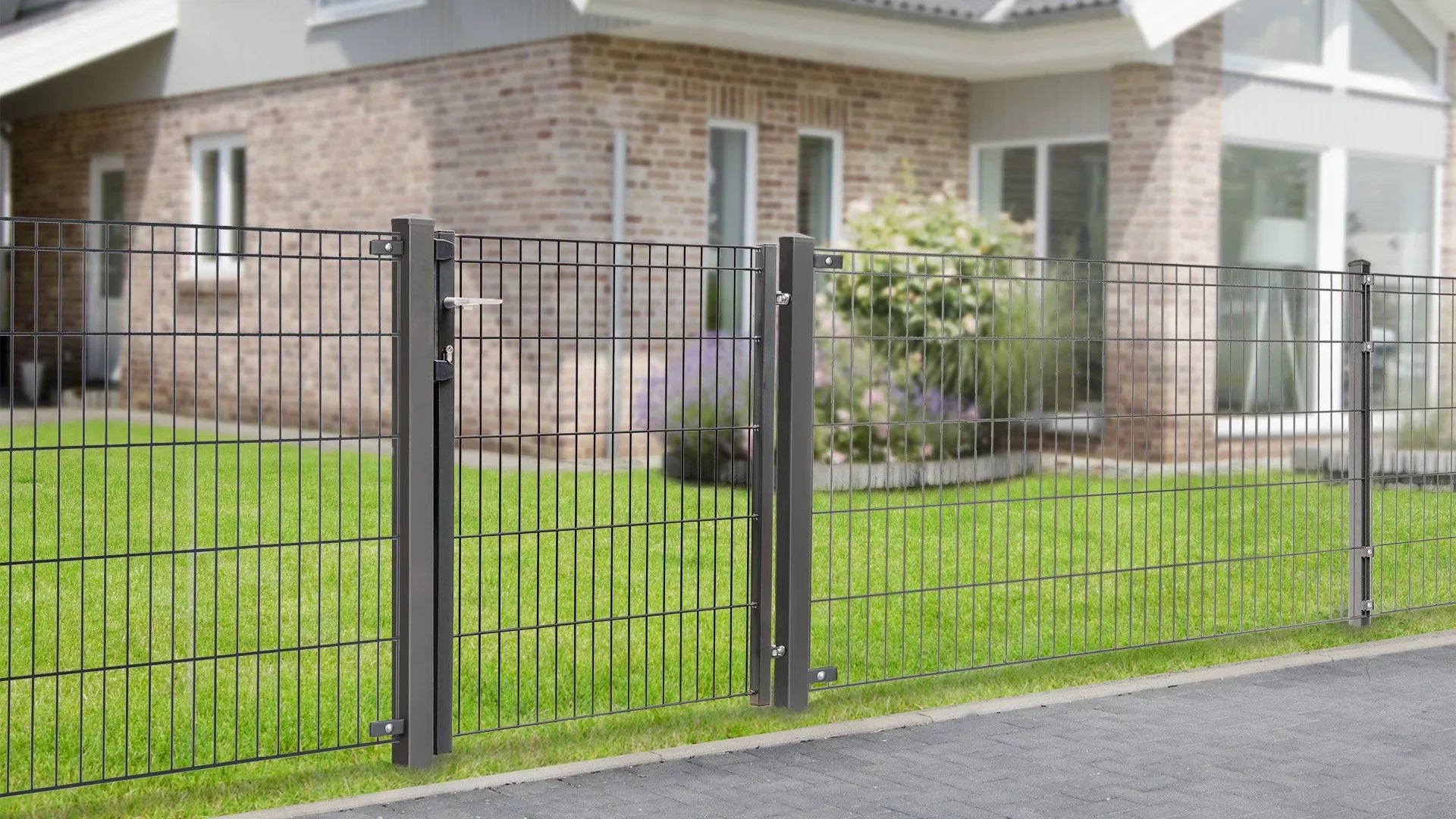

Einflügeliges Gartentor aus Metall mit Gitterdesign und stabilen Pfosten, freistehend Anthrazitfarbenes Gartentor aus Metall, einflügelig, vor modernem Haus und grünem Rasen
Vario light MICHL single-leaf garden gate in anthracite or moss green
From 247,09 €

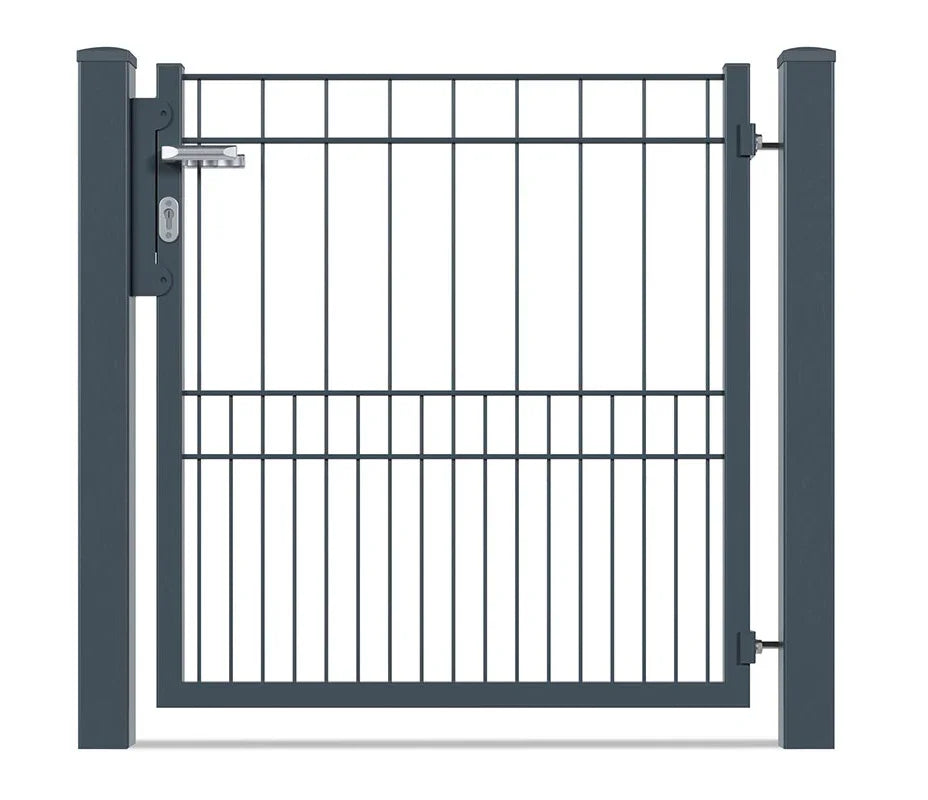

Einflügeliges Gartentor aus Metall, anthrazit, mit waagerechten und senkrechten Streben. Modernes einflügeliges Metall Gartentor Vario MILO, anthrazit, 1008 mm hoch, mit Pfosten
Vario MILO single-leaf garden gate in anthracite RAL 7016
From 474,99 €

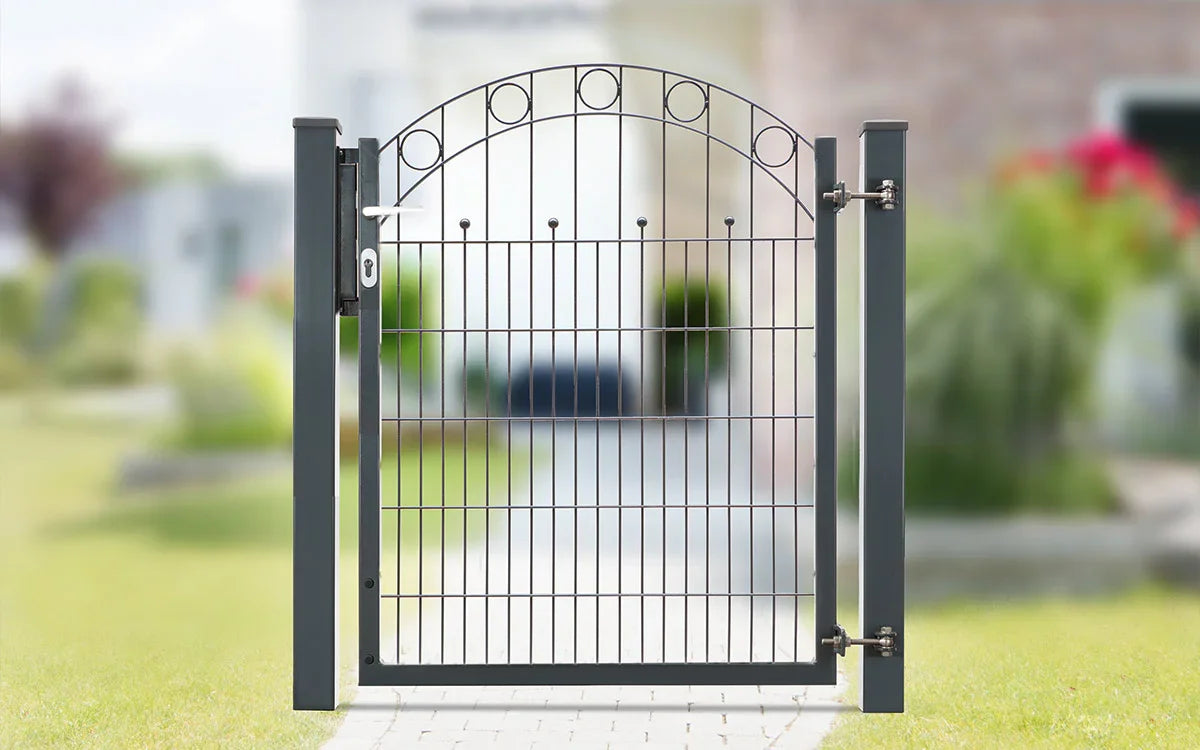

Einflügeliges Gartentor aus Metall mit dekorativem Rundbogen und Kreisen, modern und stabil. Einflügeliges Gartentor aus Metall mit dekorativem Bogen, moderner Look, stabile Ausführung
Garden gate Vario Residenz VIENNA single-leaf in anthracite RAL 7016
From 632,00 €
Schmuckzaun Modell RIMINI mit Zierspitzen, Pfosten und U-Profil 20/9 mm, Rundstab 6 mm Metallzaun Rimini, dekorativ mit Spitzen und Rauten, technische Zeichnung mit Maßen
Decorative fence with posts, model RIMINI, galvanized and coated RAL 7016
From 269,81 €
Schmuckzaun Modell TURIN mit Pfosten, Zierornamente, U-Profil 20/9 mm, Rundstab 6 mm Metallzaun Turin mit Maßangaben, vertikale Streben und Rautenmuster, Höhe 1000 mm
Decorative fence with posts, model TURIN, galvanized and coated RAL 7016
From 224,83 €

Double-Bar Mat Fences: Durability and Functional Property Boundary

Double-bar mat fences represent a technically sophisticated solution for the permanent enclosure of private properties, commercial areas, and public facilities. They are characterized by high static stability and torsional rigidity, making them a preferred choice for property protection. Kirchberger Metall's systems are based on proven fence technology and are designed for a long service life with minimal maintenance. Due to their modular design, these fence systems can be precisely adapted to different terrains and security requirements.

Technical Specifications and Load Capacity: Importance of Wire Gauges

The load capacity and mechanical resistance of a double-bar mat fence are primarily defined by the chosen wire gauges. These are usually indicated in numerical triplets, such as 5:4:5, 6:5:6, 6:6:6, 6:8:6, or 8:6:8. The meaning of these figures is technically defined:

  • The first and third numbersindicate the diameter of the two horizontal bars in millimeters.
  • The middle numberindicates the diameter of the vertical bar in millimeters.

The general impact of these dimensions on the fence system is directly proportional to the material thickness: The higher the selected wire diameters, the higher the static load capacity, form stability, and resistance to mechanical influences.

While lighter variants such as 5:4:5 or 6:5:6 are often used in private areas for classic fencing, heavy-duty versions like 8:6:8 offer maximum stability for industrial applications or locations with increased security needs.

A standard fence element has a width of 2510 mm and a mesh size of 50 x 200 mm. Available heights range from 800 mm to 2400 mm, with increments of 200 mm. A technical detail is the approx. 30 mm long fence spikes, which can be mounted pointing upwards or downwards depending on security requirements or aesthetic preference.

Corrosion Protection and Surface Finishing

To ensure a service life of several decades, all fence components undergo a multi-stage finishing process. The basis is hot-dip galvanizing according to DIN EN ISO 1461, which effectively protects the steel from oxidation and rust. An optional subsequent powder coating further enhances corrosion protection and allows for color integration into the surroundings. Common standard colors include anthracite (RAL 7016) and moss green (RAL 6005). These coated surfaces are maintenance-free, UV-resistant, and resistant to mechanical influences.

Accessories and Extension Options for Privacy Screens

The functionality of a double-bar mat fence can be extended by specific accessories. An essential element is privacy strips made of weather-resistant plastic, which are woven into the meshes of the fence mats. This transforms the transparent mesh fence into an opaque barrier that provides privacy and also functions as a windbreak. Various systems such as cover strips or clamping brackets are available for attaching the fence mats to the posts. Further accessories such as aluminum post caps, base plates for mounting on concrete surfaces, and integrated fence lighting can be configured as required.

Planning and Professional Installation Service

The implementation of a fence project can be done either through pre-configured complete packages or by selecting individual elements. Complete sets already include all necessary fence posts and accessories for the chosen fence length. Regarding installation, two methods are available: embedding the posts in concrete for maximum stability, or bolting them down with base plates on existing foundations or paved areas. In addition to expert advice and planning, Kirchberger Metall offers an installation service by qualified specialists to guarantee the standard-compliant setup and alignment of the fence system.

Questions and Answers

These numbers indicate the wire thicknesses in millimeters. The first and third numbers refer to the diameter of the two horizontal wires, the middle number to that of the vertical wire. Heavy versions such as 8:6:8 offer maximum stability for industry and high security needs, while lighter variants are ideal for private properties.

A standard fence panel has a fixed width of 2510 mm and a mesh size of 50 x 200 mm. The available heights range flexibly from 800 mm to 2400 mm and can be selected in precise increments of 200 mm.

Thanks to high-quality hot-dip galvanizing to DIN EN ISO 1461, the steel is permanently protected against rust. The optional powder coating in anthracite (RAL 7016) or moss green (RAL 6005) also makes the fence UV-resistant and completely maintenance-free.

Yes, that is easily possible. Weather-resistant plastic privacy strips can simply be woven into the mesh of the fence panels afterwards to create an opaque barrier and effective wind protection.

For maximum structural stability in soil, setting the posts in concrete is recommended. On existing concrete foundations, walls, or paved surfaces, the posts can instead be securely bolted down using sturdy base plates.

The approx. 30 mm long fence spikes can be mounted pointing either upward or downward. Pointing upward, they serve as a climb-over deterrent for added security; pointing downward, they minimize the risk of injury for children and pets.

Complete sets already include all necessary components such as fence panels, matching posts, and all fastening material for the chosen fence length. This simplifies planning and guarantees that all parts fit together perfectly.

Systems such as continuous cover strips or individual clamp holders are available for fixing the panels. The fence can also be configured as needed with aluminum post caps, base plates, or integrated fence lighting.

Thanks to the modular design of the systems, the fence can be precisely adapted to different terrain profiles. On slopes or gradients, the individual fence panels are simply mounted on the posts in a stepped arrangement.
