Canopy WSM Cologne K4 b/b (4.2 × 2.2 m)
For smokers, waste bins, bicycles, equipment
High-quality, stable flat-roof canopy. Universally applicable as a waiting shelter, smoking shelter, bicycle garage, equipment shed or waste bin enclosure/canopy.
Dimensions
- Width: 4,195 mm
- Depth: 2,165 mm
- Height: 2,510 mm
- Clearance Height: 2,360 mm
Technical Data
- Roof Type: Trapezoidal sheet metal
- Drainage: Via gargoyle at the rear corner post
- Surface: Hot-dip galvanized and color-coated – RAL color of choice
- Tube Diameter: 60 mm
- Snow Load: 1.90 kN/m² (kit Sk = 1.45 kN/m²)
- Weight: approx. 800 kg
- Wind Load Zone: Zone 1 to 3
- Warranty: 5 years
Corrosion Protection
The entire structure is galvanized, primed, and color-coated or painted with environmentally friendly two-component paint.
- Corrosivity Category: C4 medium (in accordance with DIN EN ISO 12944-2)
- Steel Structure (frame): RAL or DB color of choice
- Roof Panel (underside): RAL 9002 Grey White
Wind and Snow Load
- Snow Loads: Sk = 1.9 kN/m² (kit Sk = 1.45 kN/m²)
- Suitable for wind load zones I–III, approved nationwide
- Type statics available
Cladding (optional)
- ESG glass, clear transparent glass
- ESG glass with ceramic screen print, motif of choice
- Perforated aluminum sheet, in frame color
- Wood cladding made of high-quality Douglas fir (European larch)
Execution
-
Fully assembled:
Fully assembled at the manufacturer's plant, delivery and positioning by crane truck at the installation site. -

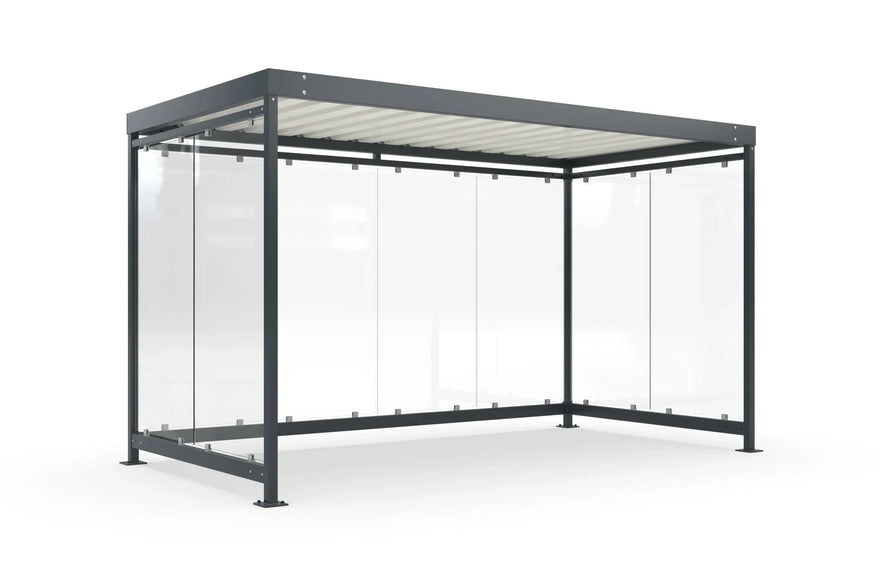

Kit delivery:
Suitable for restricted access or self-assembly. Assembly instructions will be provided.
Delivery, Unloading, Assembly
- Self-collection ex works
- Delivery with self-unloading (forklift or crane provided by customer)
- Delivery and unloading by crane truck, without assembly
- Delivery and unloading by crane truck including assembly and ground anchoring on site
Foundation & Ground Anchoring
- Attachment to existing foundation (OKF ± 0 cm)
- Paved subsurface (OKF –20 cm): Post extension by 20 cm

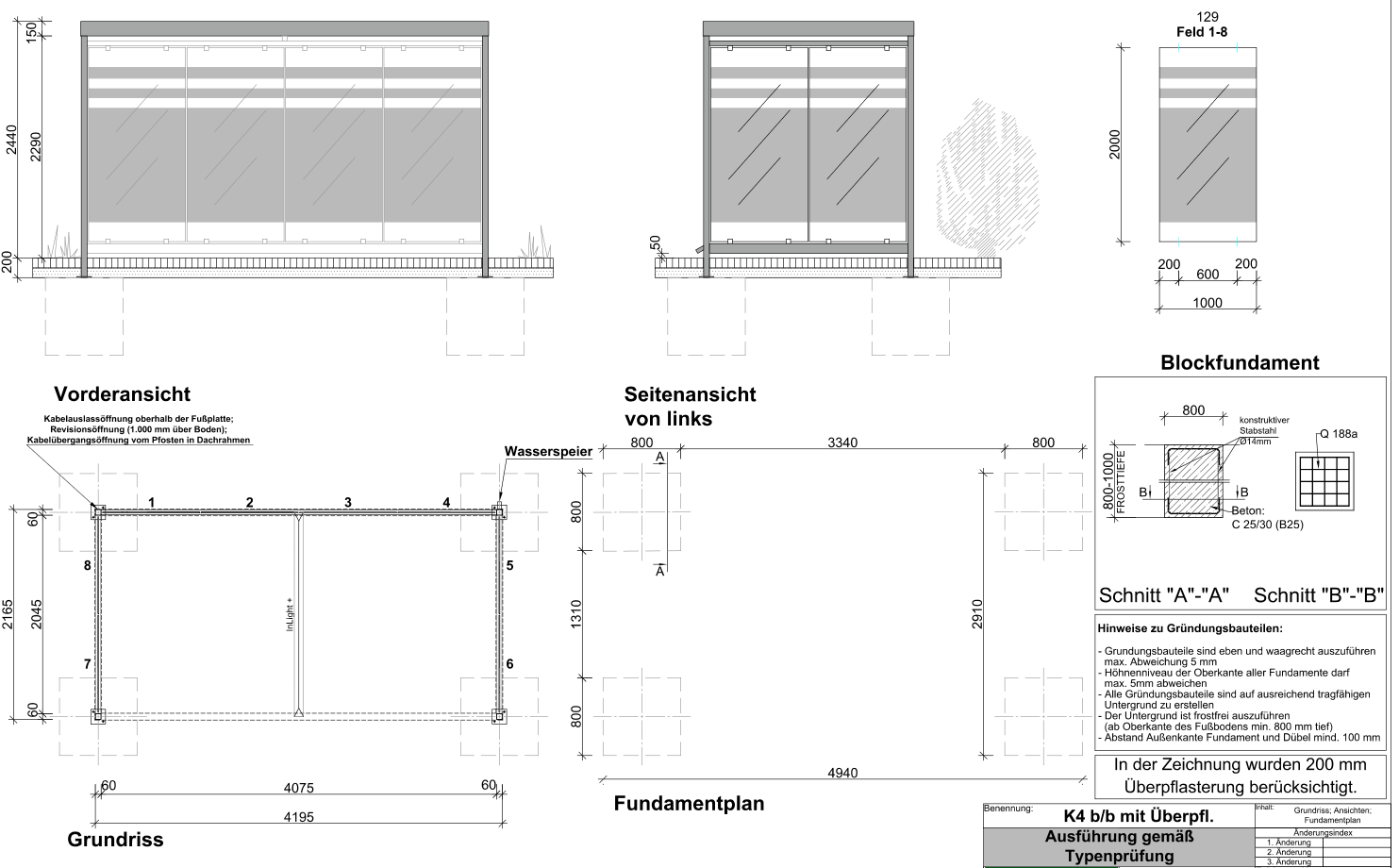

- Optional delivery including precast concrete foundation slab. This eliminates extensive foundation work. The base plate is laid at ground level on a sand or gravel bed prepared by the customer. Structured surface, slip resistance class R13, stone joint grid 300 × 300 mm, smooth formwork front sides, continuous edge breaking, including statically required reinforcement up to 15 kg/m².
Green Roof

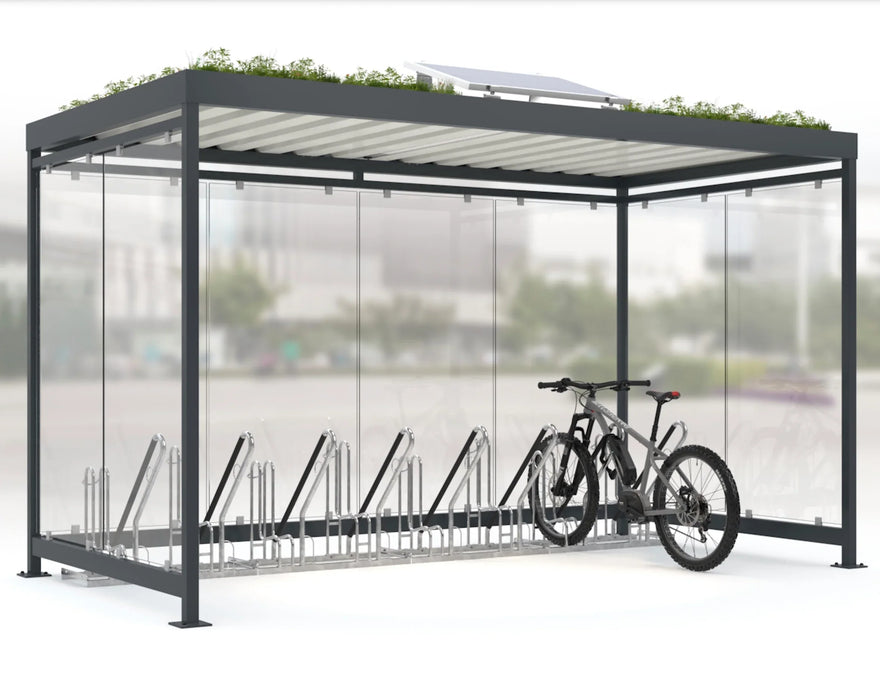

Optional, modular, and sustainable green roof with sedum plants. The modules can be securely integrated into the trapezoidal profile.
Lighting
Standard lighting with InLight, incl. presence detector, vandal-resistant and integrated into the roof structure. Optionally expandable with a VersoVolt photovoltaic system, for self-sufficient power supply without excavation work.
Notes for Assembly by Us
- Foundations must be constructed by the customer according to our specifications
- Foundation plan will be provided with the order confirmation
- Dimensioning for normal soil conditions (2 kg/cm²)
- Drill depth at least 100 mm, unreinforced
- No utility lines in the area of the ground dowelling
- No longitudinal or transverse gradient considered in the offer
- Gradient adjustment possible upon request for an additional charge
- Foundations horizontal, max. height difference ± 5 mm
- No dowelling on paved or asphalt surfaces is permitted
