WSM Cologne K3 f/f shelter (3.2 x 2.2m) - for smokers, garbage cans, bicycles, equipment
Delivery time: 3 - 5 weeks
Choose options
Delivery time: 3 - 5 weeks
Delivery time: 3 - 5 weeks
Canopy WSM Cologne K3 f/f (3.2 × 2.2 m)
For smokers, waste bins, bicycles, equipment

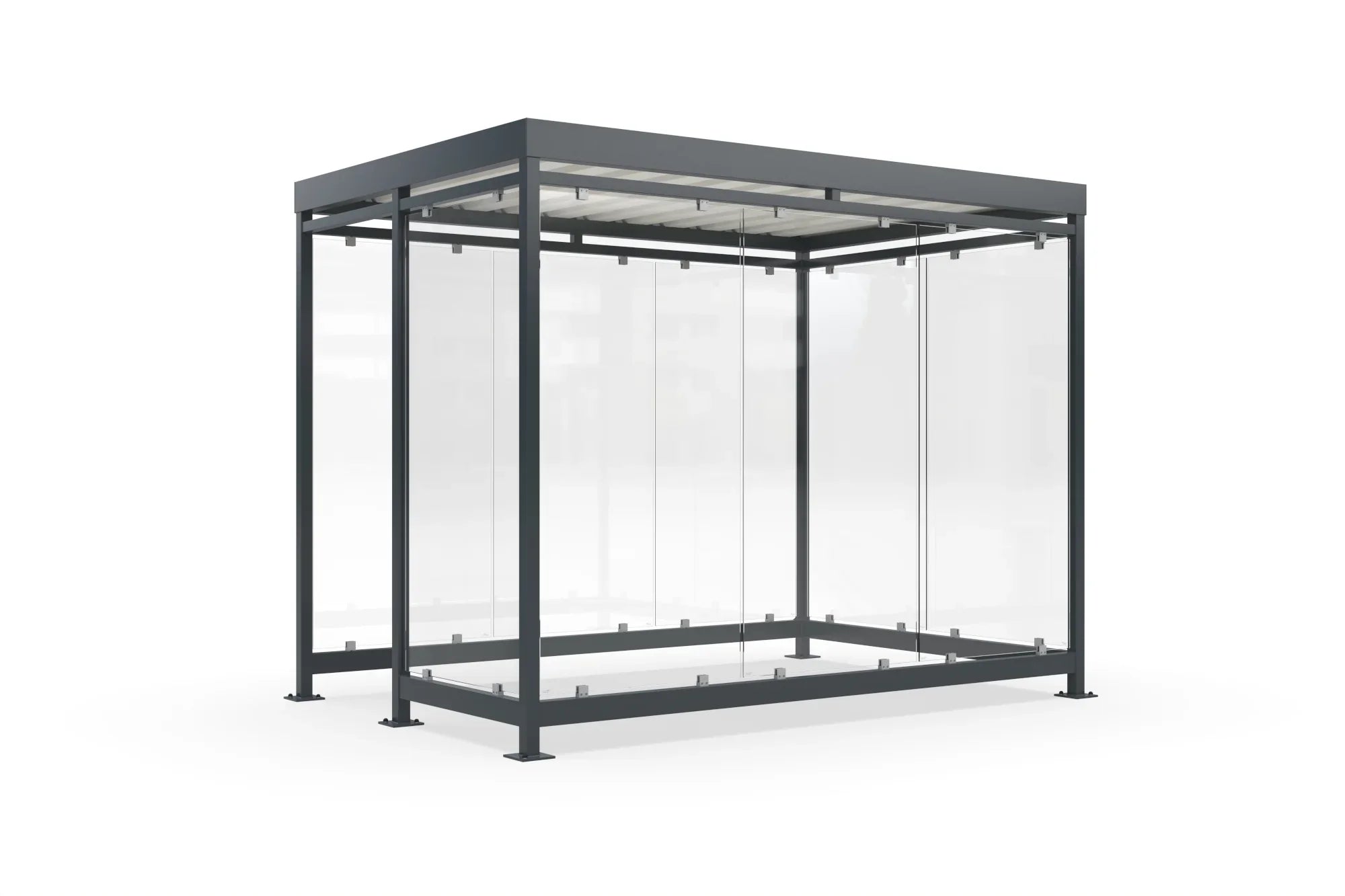

High-quality, stable flat roof canopy. Universally applicable as a waiting area, smoking shelter, bicycle garage, equipment shed or waste bin enclosure/canopy.
Dimensions
- Width: 3,180 mm
- Depth: 2,165 mm
- Height: 2,510 mm
- Clear height: 2,360 mm
Technical Data
- Roof type: Trapezoidal sheet metal
- Drainage: Via water spout at the rear corner post
- Surface: Hot-dip galvanized and powder-coated – RAL color of choice
- Tube diameter: 60 mm
- Snow load: 1.90 kN/m² (kit Sk = 1.45 kN/m²)
- Weight: approx. 600 kg
- Wind load zone: Zone 1 to 3
- Warranty: 5 years
Corrosion Protection
The entire structure is galvanized, primed, and powder-coated or painted with environmentally friendly two-component paint.
- Corrosivity category: C4 medium (in accordance with DIN EN ISO 12944-2)
- Steel structure (frame): RAL or DB color of choice
- Roof sheet (underside): RAL 9002 Grey White
Wind and Snow Load
- Snow loads: Sk = 1.9 kN/m² (kit Sk = 1.45 kN/m²)
- Suitable for wind load zones I–III, approved nationwide
- Type statics available
Cladding (optional)
- ESG glass, clear glass transparent
- ESG glass with ceramic screen print, motif of choice
- Perforated aluminum sheet, in frame color

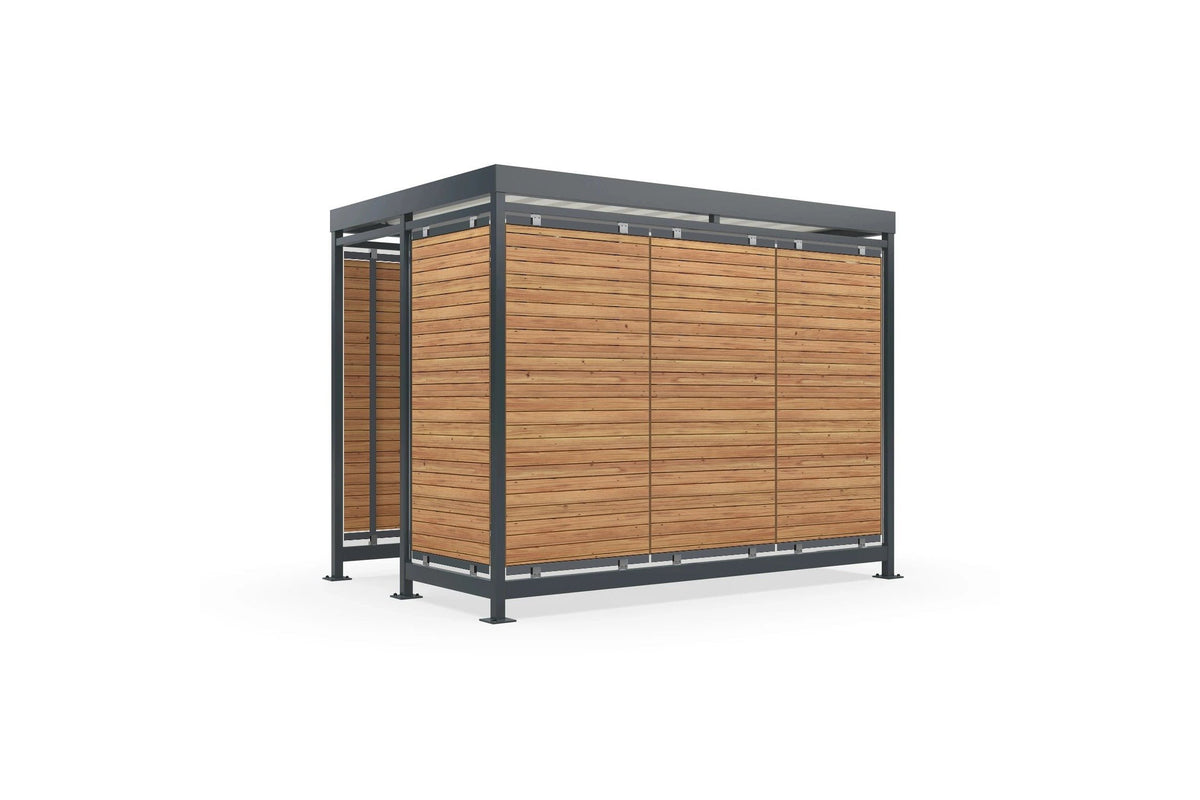

- Wood cladding made of high-quality Douglas fir (European Larch)
Execution
-
Fully assembled:
Completely assembled at the manufacturer's factory, delivery and positioning by crane truck at the installation site. -

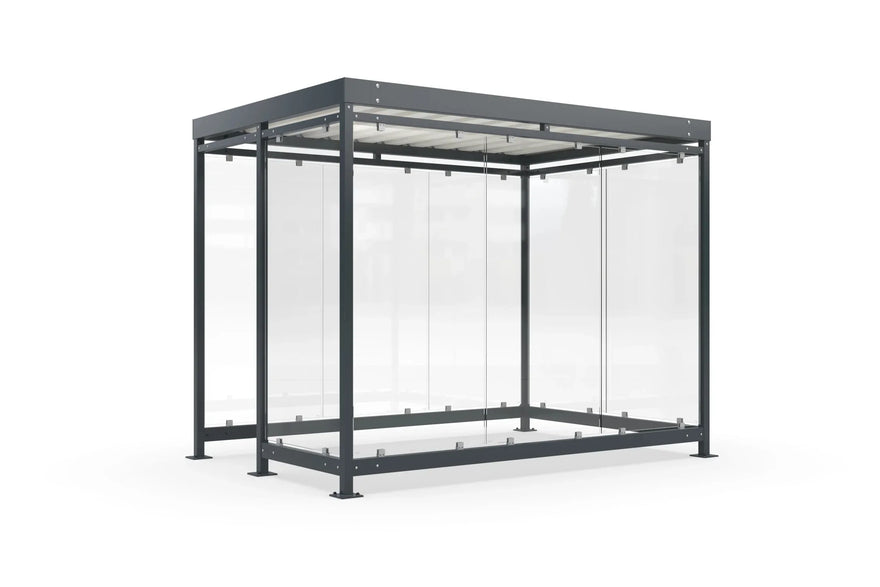

Kit delivery:
Suitable for restricted access or self-assembly. Assembly instructions will be provided.
Delivery, Unloading, Assembly
- Self-collection ex works
- Delivery with self-unloading (forklift or crane on site)
- Delivery and unloading by crane truck, without assembly
- Delivery and unloading by crane truck incl. assembly and ground anchoring on site
Foundation & Ground Anchoring
- Attachment to existing foundation (OKF ± 0 cm)
- Paved surface (OKF –20 cm): Support extension by 20 cm
- Optional delivery incl. pre-fabricated concrete foundation slab. This eliminates the need for extensive foundation work. The base plate is laid at ground level on a sand or gravel bed prepared on site. Structured surface, slip resistance class R13, stone joint grid 300 × 300 mm, smooth formwork end faces, continuous edge break, incl. statically required reinforcement up to 15 kg/m².
Green Roof
Optional, modular, and sustainable green roof with sedum plants. The modules can be securely integrated into the trapezoidal profile.
Lighting
Standard lighting with InLight, incl. presence detector, vandal-resistant and integrated into the roof structure. Optionally expandable with a VersoVolt photovoltaic system, for self-sufficient power supply without excavation work.
Notes for Assembly by Us
- Foundations are to be prepared by the customer according to our specifications
- Foundation plan will be provided with the order confirmation
- Dimensioning for normal soil conditions (2 kg/cm²)
- Drilling depth at least 100 mm, reinforcement-free
- No supply lines in the area of the ground anchoring
- No longitudinal or transverse gradient included in the offer
- Gradient adjustment possible upon request at extra charge
- Foundations horizontal, max. height difference ± 5 mm
- No doweling on paved or asphalt surfaces permitted
