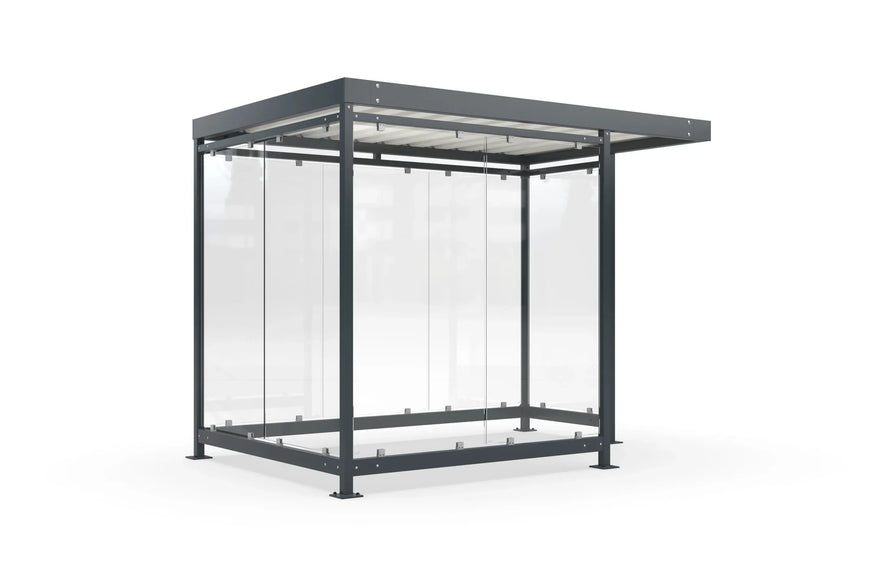

WSM Cologne K3 d/a shelter (3.2 x 2.2m) - for smokers, garbage cans, bicycles, equipment

✔ Universal canopy - waiting shelters, for smokers, waste bins or bicycles

✔ High-quality industrial grade - manufactured according to DIN 1090, type static analysis available

✔ Cladding可选 in glass, perforated sheet or wood

✔ Best Price Guarantee

✔ 5 years extended manufacturer's warranty!

✔ Configure online - get price & offer immediately!

✔ No risk - CAD plan/drawing for fine-tuning before production starts

SKU: 102001325
4.347,00 €

Tax included. Shipping calculated at checkout

Delivery time: 3 - 5 weeks

Roofing WSM Cologne K3 d/a (3.2 × 2.2 m)

For smokers, waste bins, bicycles, equipment

High-quality, stable flat roof canopy. Universally applicable as a waiting area, smoking shelter, bicycle garage, equipment shed or waste bin enclosure.

Dimensions

  • Width: 3,180 mm
  • Depth: 2,165 mm
  • Height: 2,510 mm
  • Clear height: 2,360 mm

Technical Data

  • Roof type: Trapezoidal sheet metal
  • Drainage: Via gargoyle on the rear corner post
  • Surface: Hot-dip galvanized and color-coated – RAL color of choice
  • Pipe diameter: 60 mm
  • Snow load: 1.90 kN/m² (Kit Sk = 1.45 kN/m²)
  • Weight: approx. 600 kg
  • Wind load zone: Zone 1 to 3
  • Warranty: 5 years

Corrosion Protection

The entire construction is galvanized, primed and color-coated or painted with environmentally friendly two-component paint.

  • Corrosivity category: C4 medium (in accordance with DIN EN ISO 12944-2)
  • Steel construction (frame): RAL or DB color of choice
  • Roof sheet (underside): RAL 9002 Grey White

Wind and Snow Load

  • Snow loads: Sk = 1.9 kN/m² (Kit Sk = 1.45 kN/m²)
  • Suitable for wind load zones I–III, approved nationwide
  • Static type approval available

Cladding (optional)

  • ESG glass, clear transparent
  • ESG glass with ceramic screen print, motif of choice
  • Perforated aluminum sheet, in frame color

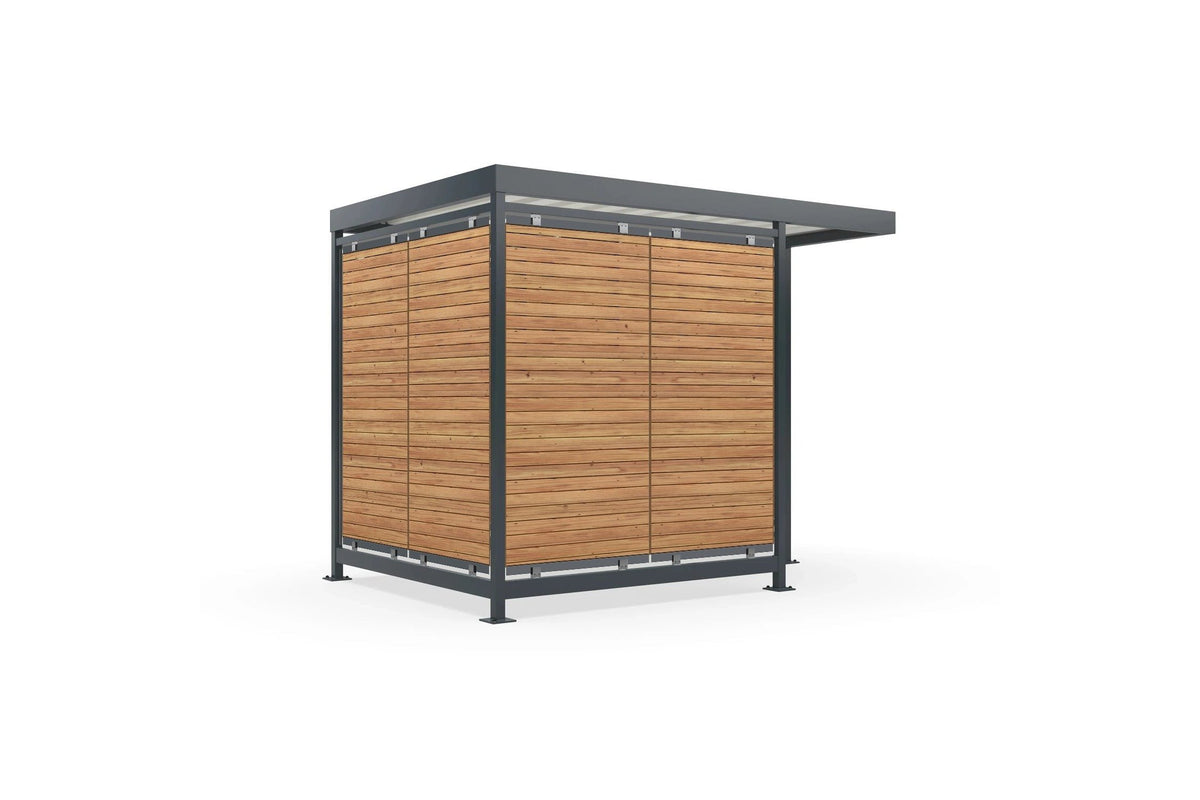

  • Wood cladding made of high-quality Douglas fir (European larch)

Execution

  • Fully assembled:
    Completely assembled at the manufacturer's factory, delivery and positioning by crane truck at the installation site.
  • Kit delivery:
    Suitable for restricted access or self-assembly. Assembly instructions will be provided.

Delivery, Unloading, Installation

  • Self-collection ex works
  • Delivery with self-unloading (forklift or crane provided by customer)
  • Delivery and unloading by crane truck, without installation

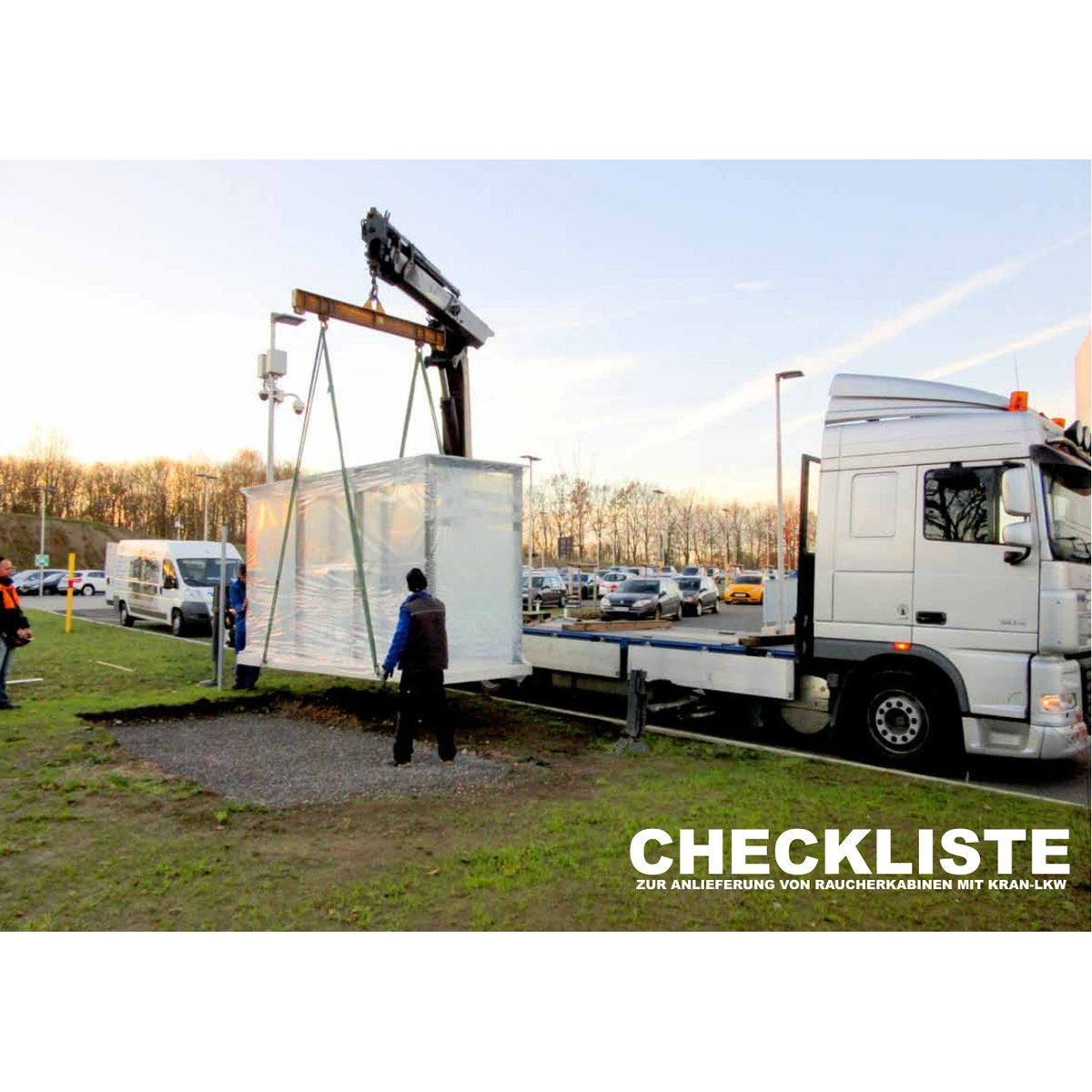

  • Delivery and unloading by crane truck including installation and ground anchoring on site

Foundation & Ground Anchoring

  • Fastening on existing foundation (OKF ± 0 cm)
  • Paved surface (OKF –20 cm): Column extension by 20 cm
  • Optional delivery including pre-fabricated concrete foundation slab. This eliminates elaborate foundation work. The base plate is laid at ground level on a sand or gravel bed prepared by the customer. Structured surface, slip resistance class R13, stone joint grid 300 × 300 mm, smooth formwork end faces, continuous edge break, including statically required reinforcement up to 15 kg/m².

Green Roof

Optional, modular and sustainable green roof with Sedum plants. The modules can be securely integrated into the trapezoidal profile.

Lighting

Standard lighting with InLight, incl. presence detector, vandalism-protected and integrated into the roof construction. Optionally expandable with a VersoVolt photovoltaic system, for autonomous power supply without excavation work.

Notes for Installation by Us

  • Foundations must be prepared by the customer according to our specifications
  • Foundation plan will be provided with the order confirmation
  • Dimensioning for normal soil conditions (2 kg/cm²)
  • Drilling depth at least 100 mm, reinforcement-free
  • No utility lines in the area of the ground anchoring
  • No longitudinal or transverse gradient included in the offer
  • Gradient adjustment possible upon request at extra charge
  • Foundations horizontal, max. height difference ± 5 mm
  • No anchoring on paved or asphalt surfaces permitted
