Smoking Shelter Köln K3 c/c 3.2 × 2.2 m – Steel Waiting Shelter

✔ Universal canopy - waiting shelters, for smokers, waste bins or bicycles

✔ High-quality industrial grade - Manufactured according to DIN 1090, type statics available

✔ Cladding selectable from glass, perforated sheet or wood

✔ Best price guarantee

✔ 5 years extended manufacturer's warranty!

✔ Configure online - receive price & offer immediately!

✔ No risk - CAD plan/drawing for fine-tuning before production starts

SKU: 102001777
Ab
4.439,00 €

Tax included. Shipping calculated at checkout

Delivery time: 3 - 5 weeks

5,0 82 Google-Bewertungen

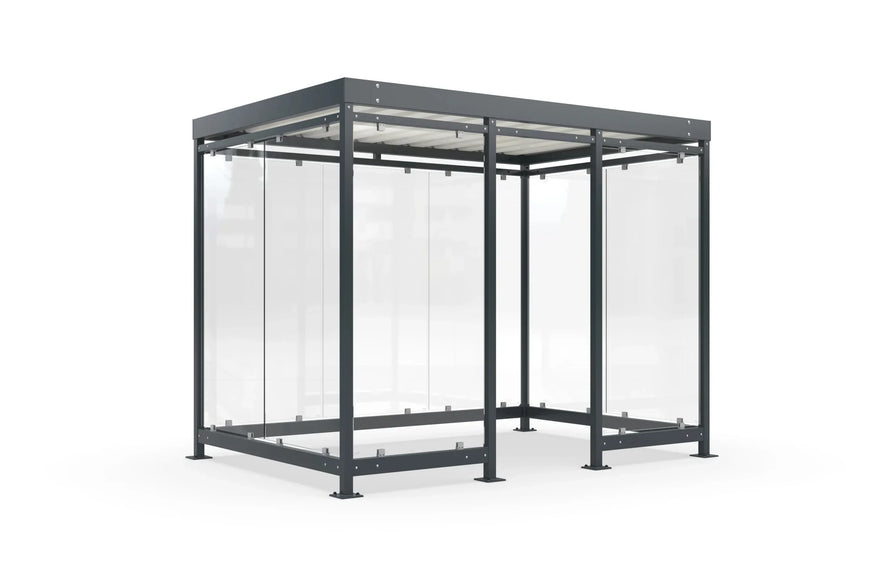

Canopy WSM Cologne K3 c/c (3.2 × 2.2 m)

For smokers, waste bins, bicycles, equipment

High-quality, stable flat-roof canopy. Universally applicable as a waiting shelter, smoking shelter, bicycle garage, equipment shed or waste bin enclosure/canopy.

Dimensions

  • Width: 3,180 mm
  • Depth: 2,165 mm
  • Height: 2,510 mm
  • Clearance Height: 2,360 mm

Technical Data

  • Roof Type: Trapezoidal sheet metal
  • Drainage: Via gargoyle at the rear corner post
  • Surface: Hot-dip galvanized and color-coated – RAL color of choice
  • Tube Diameter: 60 mm
  • Snow Load: 1.90 kN/m² (kit Sk = 1.45 kN/m²)
  • Weight: approx. 600 kg
  • Wind Load Zone: Zone 1 to 3
  • Warranty: 5 years

Corrosion Protection

The entire structure is galvanized, primed, and color-coated or painted with environmentally friendly two-component paint.

  • Corrosivity Category: C4 medium (in accordance with DIN EN ISO 12944-2)
  • Steel Structure (Frame): RAL or DB color of choice
  • Roof Sheet (Underside): RAL 9002 Grey White

Wind and Snow Load

  • Snow Loads: Sk = 1.9 kN/m² (kit Sk = 1.45 kN/m²)
  • Suitable for Wind Load Zones I–III, approved nationwide
  • Standard structural analysis available

Cladding (optional)

  • ESG glass, clear transparent
  • ESG glass with ceramic screen print, motif of choice
  • Perforated aluminum sheet, in frame color

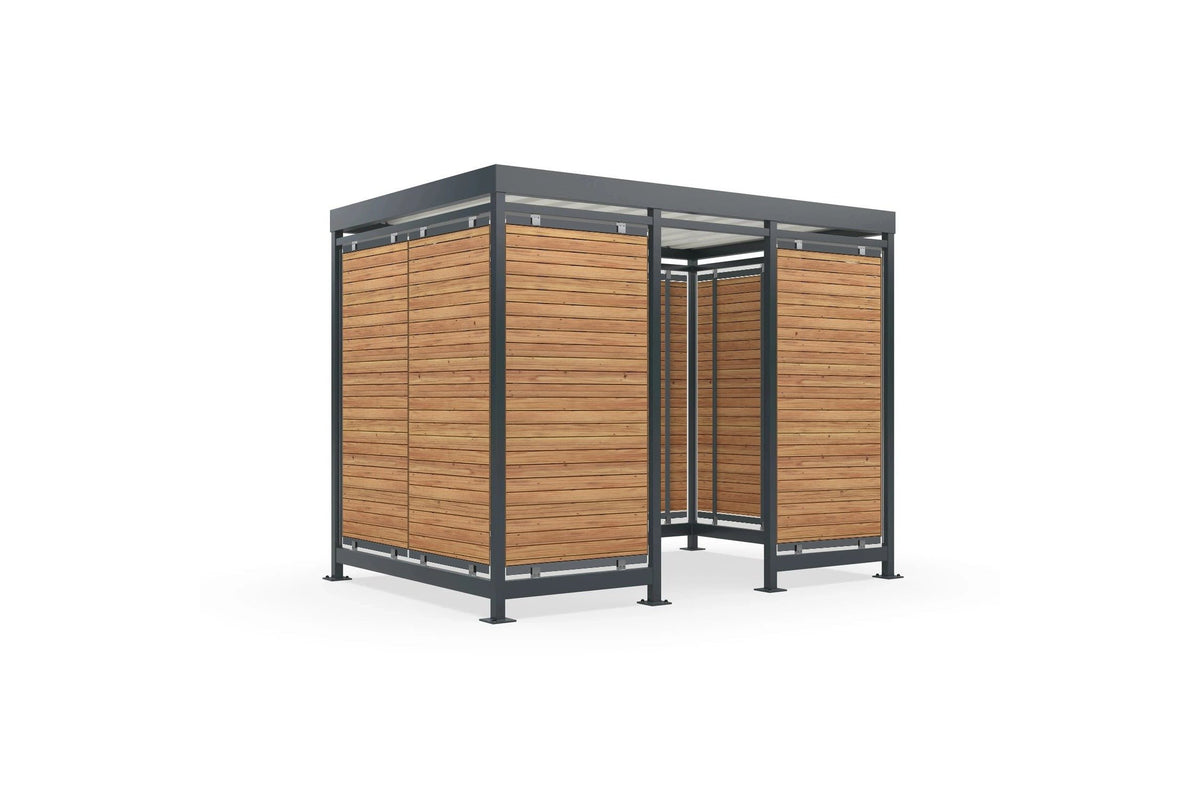

  • Wood cladding made of high-quality Douglas fir (European Larch)

Execution

  • Fully assembled:
    Completely assembled at the factory, delivery and positioning by crane truck at the installation site.
  • Kit delivery:
    Suitable for restricted access or self-assembly. Assembly instructions will be provided.

Delivery, Unloading, Assembly

  • Self-collection ex works
  • Delivery with self-unloading (forklift or crane provided by customer)
  • Delivery and unloading by crane truck, without assembly
  • Delivery and unloading by crane truck including assembly and ground anchoring on site

Foundation & Ground Anchoring

  • Fastening on existing foundation (OKF ± 0 cm)
  • Paved subsurface (OKF –20 cm): Column extension by 20 cm
  • Optional delivery including pre-fabricated concrete foundation slab. This eliminates the need for complex foundation work. The base plate is laid at ground level on a sand or gravel bed prepared by the customer. Structured surface, slip resistance class R13, stone joint grid 300 × 300 mm, formwork-smooth end faces, circumferential edge break, including statical required reinforcement up to 15 kg/m².

Green Roof

Optional, modular and sustainable green roof with sedum plants. The modules can be securely integrated into the trapezoidal profile.

Lighting

Standard lighting with InLight, incl. presence detector, vandal-proof and integrated into the roof structure. Optionally expandable with a VersoVolt photovoltaic system, for autonomous power supply without earthworks.

Notes for Assembly by Us

  • Foundations must be built by the customer according to our specifications
  • Foundation plan will be provided with the order confirmation
  • Dimensioning for normal soil conditions (2 kg/cm²)
  • Drilling depth at least 100 mm, reinforcement-free
  • No supply lines in the area of the floor anchoring
  • No longitudinal or transverse gradient considered in the offer
  • Gradient adjustment possible upon request at an additional cost
  • Foundations horizontal, max. height difference ± 5 mm
  • No anchoring on paved or asphalt surfaces is permitted

Questions and Answers

Footprint approx. 3,200 × 2,200 mm (3.2 × 2.2 m), height 2,510 mm (clear height 2,360 mm).

Universal: as a bike canopy or bike shed, smoking shelter, waiting shelter, bin storage, or tool shed. You choose the cladding to suit the intended use.

A hot-dip galvanized steel construction (60 mm tube), primed and color-coated in the RAL or DB color of your choice, with a trapezoidal sheet metal roof (underside in RAL 9002 gray white). Corrosion protection C4 medium in accordance with DIN EN ISO 12944-2, 5-year warranty.

A choice of clear tempered safety glass (ESG), tempered glass with ceramic screen printing (motif of your choice), aluminum perforated sheet in the frame color, or Douglas fir wood cladding.

Snow load Sk 1.90 kN/m² (1.45 kN/m² as a kit), suitable for wind load zones I–III and approved throughout Germany; type structural analysis is available.

Both are possible: fully pre-assembled at the factory and delivered/positioned by crane truck (on request including assembly and ground anchoring), or as a kit for self-assembly where access is restricted. Drainage is via a water spout on the rear corner post.

Mounting on an existing foundation (top of foundation ±0) or, on paved ground, with a 20 cm post extension (top of foundation −20). Optionally, we supply a precast concrete foundation slab (slip resistance class R13, joint grid 300×300 mm), eliminating extensive foundation work. The foundation plan comes with the order confirmation.

Yes, optionally: integrated InLight LED lighting with presence detector (vandal-protected), a self-sufficient VersoVolt photovoltaic system with no excavation work, and modular sedum green roofing.
