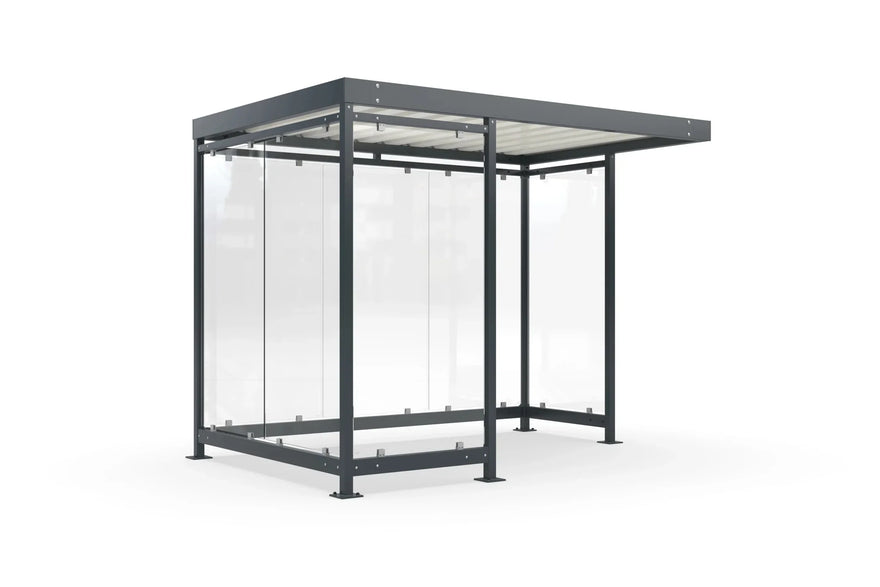

WSM Cologne K3 c/a shelter (3.2 x 2.2m) - for smokers, garbage cans, bicycles, equipment

✔ Universal canopy - waiting shelters, for smokers, waste bins or bicycles

✔ High-quality industrial grade - Manufactured according to DIN 1090, type static available

✔ Cladding selectable from glass, perforated sheet metal or wood

✔ Best Price Guarantee

✔ 5 years extended manufacturer's warranty!

✔ Configure online - get price & offer immediately!

✔ No risk - CAD plan/drawing for fine-tuning before manufacturing begins

SKU: 102001429
4.033,00 €

Tax included. Shipping calculated at checkout

Delivery time: 3 - 5 weeks

Canopy WSM Cologne K3 c/a (3.2 × 2.2 m)

For smokers, waste bins, bicycles, equipment

High-quality, sturdy flat-roof canopy. Universally usable as a waiting shelter, smoking shelter, bicycle garage, equipment shed or waste bin enclosure/canopy.

Dimensions

  • Width: 3,180 mm
  • Depth: 2,165 mm
  • Height: 2,510 mm
  • Clearance Height: 2,360 mm

Technical Data

  • Roof Type: Trapezoidal sheet metal
  • Drainage: Via gargoyle at the rear corner post
  • Surface: Hot-dip galvanized and color-coated – RAL color of choice
  • Pipe Diameter: 60 mm
  • Snow Load: 1.90 kN/m² (Kit Sk = 1.45 kN/m²)
  • Weight: approx. 600 kg
  • Wind Load Zone: Zone 1 to 3
  • Warranty: 5 years

Corrosion Protection

The entire structure is galvanized, primed, and color-coated or painted with environmentally friendly two-component paint.

  • Corrosivity Category: C4 medium (in accordance with DIN EN ISO 12944-2)
  • Steel Structure (Frame): RAL or DB color of choice
  • Roof Sheet (Underside): RAL 9002 Grey White

Wind and Snow Load

  • Snow loads: Sk = 1.9 kN/m² (Kit Sk = 1.45 kN/m²)
  • Suitable for wind load zones I–III, approved nationwide
  • Static type analysis available

Cladding (optional)

  • ESG glass, clear transparent glass
  • ESG glass with ceramic screen print, motif of choice
  • Perforated aluminum sheet, in frame color

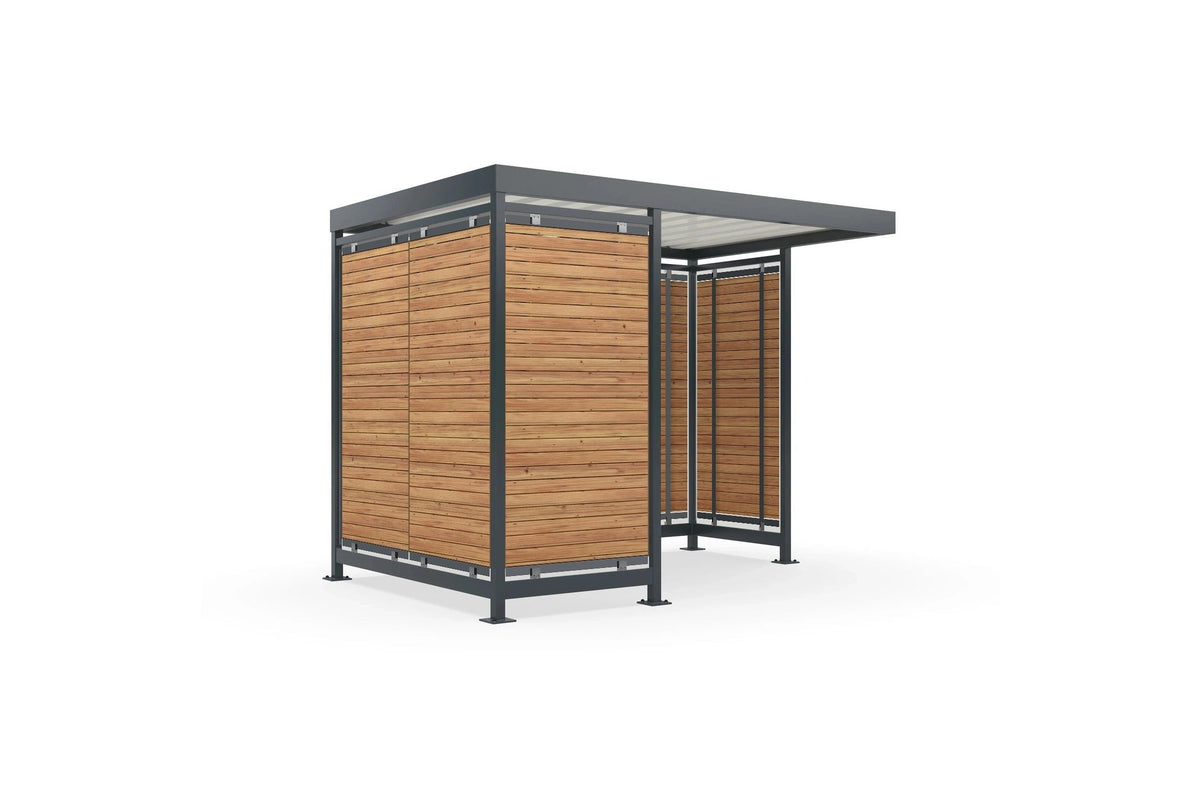

  • Wood cladding made of high-quality Douglas fir (European larch)

Execution

  • Fully assembled:
    Fully assembled at the manufacturer's plant, delivery and positioning by crane truck at the installation site.
  • Kit delivery:
    Suitable for restricted access or self-assembly. Assembly instructions will be provided.

Delivery, Unloading, Installation

  • Self-collection ex works
  • Delivery with self-unloading (forklift or crane provided by customer)
  • Delivery and unloading by crane truck, without installation
  • Delivery and unloading by crane truck including installation and ground anchoring on site

Foundation & Ground Anchoring

  • Fastening on existing foundation (OKF ± 0 cm)
  • Paved subgrade (OKF –20 cm): Post extension by 20 cm
  • Optional delivery including pre-fabricated concrete foundation slab. This eliminates complex foundation work. The base plate is laid at ground level on a sand or gravel bed prepared by the customer. Structured surface, slip resistance class R13, joint grid 300 × 300 mm, smooth formwork front sides, continuous edge breaking, incl. statically required reinforcement up to 15 kg/m².

Green Roof

Optional, modular, and sustainable green roof with sedum plants. The modules can be securely integrated into the trapezoidal profile.

Lighting

Standard lighting with InLight, including presence detector, vandal-proof and integrated into the roof structure. Optionally expandable with a VersoVolt photovoltaic system for self-sufficient power supply without earthworks.

Notes for Installation by Us

  • Foundations must be constructed by the customer according to our specifications
  • Foundation plan will be provided with the order confirmation
  • Dimensioning for normal soil conditions (2 kg/cm²)
  • Drilling depth at least 100 mm, reinforcement-free
  • No utility lines in the area of the ground anchoring
  • No longitudinal or transverse slope considered in the offer
  • Slope adjustment possible on request at an additional charge
  • Foundations level, max. height difference ± 5 mm
  • No doweling on paved or asphalt surfaces permitted
