Canopy WSM Cologne K3 a/e (3.2 × 2.2 m)
For smokers, trash cans, bicycles, equipment
High-quality, stable flat-roof canopy. Universally applicable as a waiting area, smoking shelter, bicycle garage, equipment shed, or trash can enclosure/canopy.
Dimensions
- Width: 3,180 mm
- Depth: 2,165 mm
- Height: 2,510 mm
- Clearance height: 2,360 mm
Technical Data
- Roof type: Trapezoidal sheet metal
- Drainage: Via gargoyles on the rear corner post
- Surface: Hot-dip galvanized and color-coated – RAL color of choice
- Tube diameter: 60 mm
- Snow load: 1.90 kN/m² (kit Sk = 1.45 kN/m²)
- Weight: approx. 600 kg
- Wind load zone: Zone 1 to 3
- Warranty: 5 years
Corrosion Protection
The entire construction is galvanized, primed, and color-coated, or painted with environmentally friendly two-component paint.
- Corrosivity category: C4 medium (in accordance with DIN EN ISO 12944-2)
- Steel structure (frame): RAL or DB color of choice
- Roofing sheet (underside): RAL 9002 Grey White
Wind and Snow Load
- Snow loads: Sk = 1.9 kN/m² (kit Sk = 1.45 kN/m²)
- Suitable for wind load zones I–III, approved nationwide
- Static type analysis available
Cladding (optional)

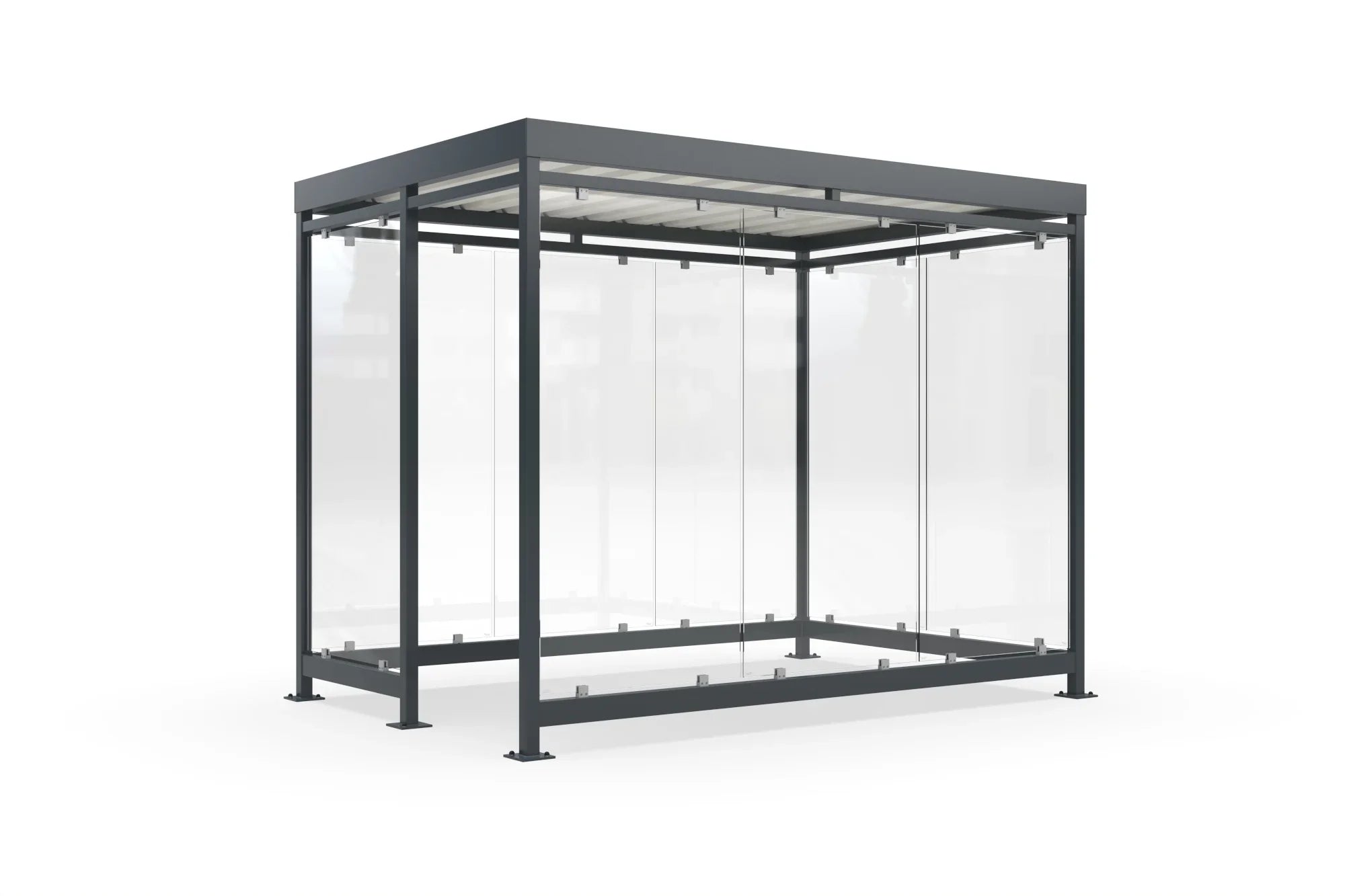

- ESG glass, clear transparent glass
- ESG glass with ceramic screen print, motif of choice
- Perforated aluminum sheet, in frame color

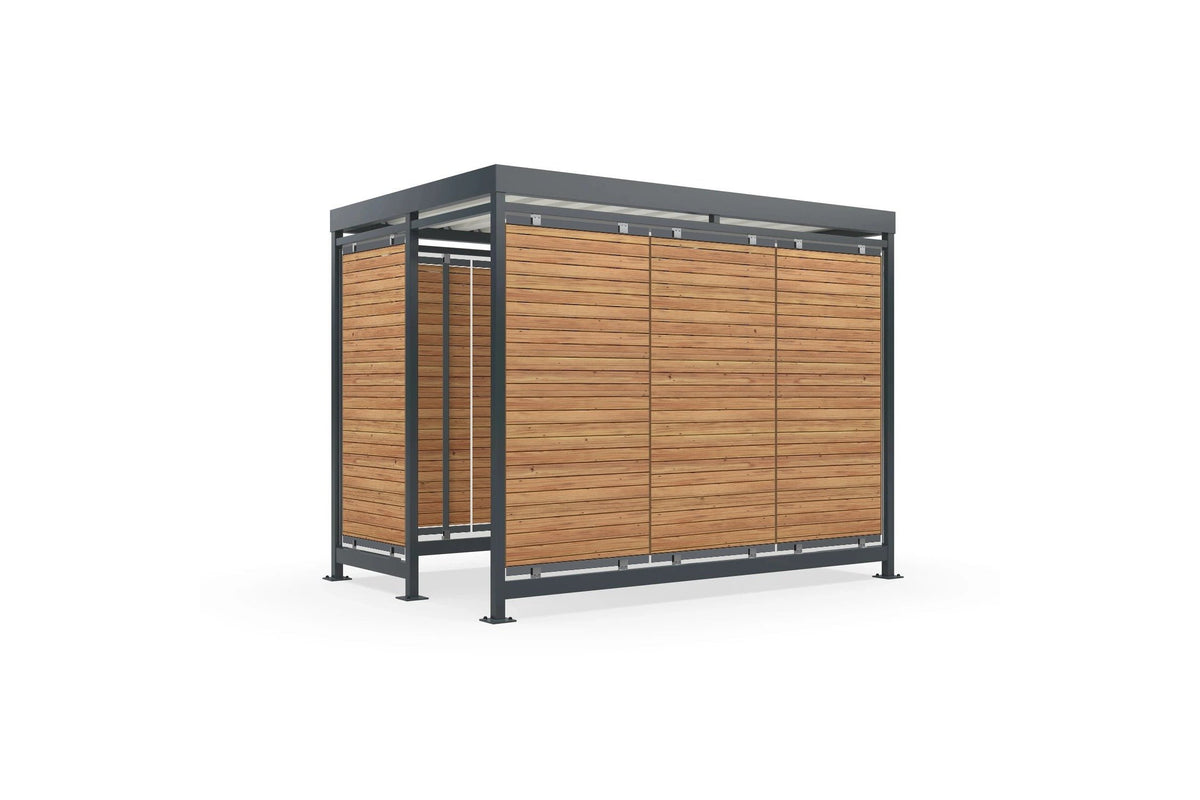

- Wood cladding made of high-quality Douglas fir (European larch)
Execution
-
Fully assembled:
Fully assembled at the factory, delivery and positioning by crane truck at the installation site. -
Kit delivery:
Suitable for limited access or self-assembly. Assembly instructions will be provided.
Delivery, Unloading, Assembly
- Self-pickup from factory
- Delivery with self-unloading (forklift or crane provided by customer)
- Delivery and unloading by crane truck, without assembly
- Delivery and unloading by crane truck including assembly and ground anchoring on site
Foundation & Ground Anchoring
- Attachment to existing foundation (OKF ± 0 cm)
- Paved subsurface (OKF –20 cm): Post extension by 20 cm
- Optional delivery including pre-fabricated concrete foundation slab. This eliminates the need for extensive foundation work. The base plate is placed at ground level on a sand or gravel bed prepared by the customer. Structured surface, slip resistance class R13, stone joint grid 300 × 300 mm, smooth formwork end faces, continuous edge break, including statics-required reinforcement up to 15 kg/m².
Green Roof
Optional, modular, and sustainable green roof with sedum plants. The modules can be securely integrated into the trapezoidal profile.
Lighting
Standard lighting with InLight, including presence detector, vandal-proof and integrated into the roof structure. Optionally expandable with a VersoVolt photovoltaic system for self-sufficient power supply without earthworks.
Notes for assembly by us
- Foundations must be created by the customer according to our specifications
- Foundation plan will be provided with the order confirmation
- Dimensioning for normal soil conditions (2 kg/cm²)
- Drilling depth at least 100 mm, reinforcement-free
- No supply lines in the area of ground anchoring
- No longitudinal or transverse gradient considered in the offer
- Gradient adjustment possible upon request at extra charge
- Foundations horizontal, max. height difference ± 5 mm
- No anchoring on paved or asphalt surfaces permitted
