Smoking shelter, bicycle shelter, passenger shelter model Siegen S28 - 430cm x 466cm

Shelter, smoking cabin, material or bicycle shelter model Siegen S28 - galvanized steel

Modular design – whether small or large – easily expandable and quick to assemble. With "Siegen" you get a practical canopy in no time.

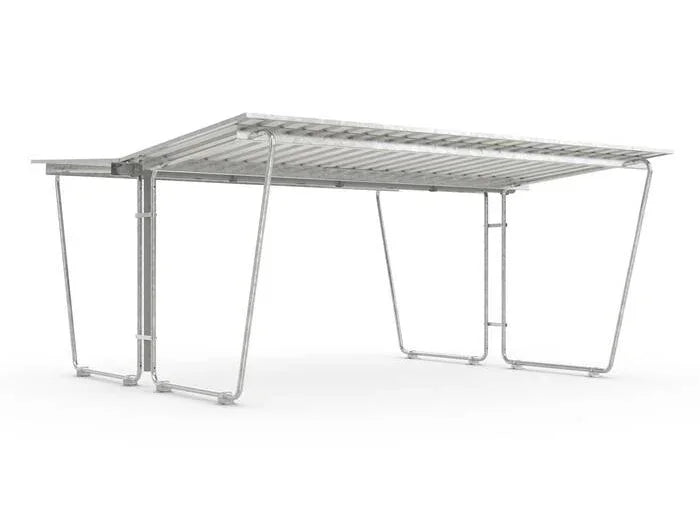

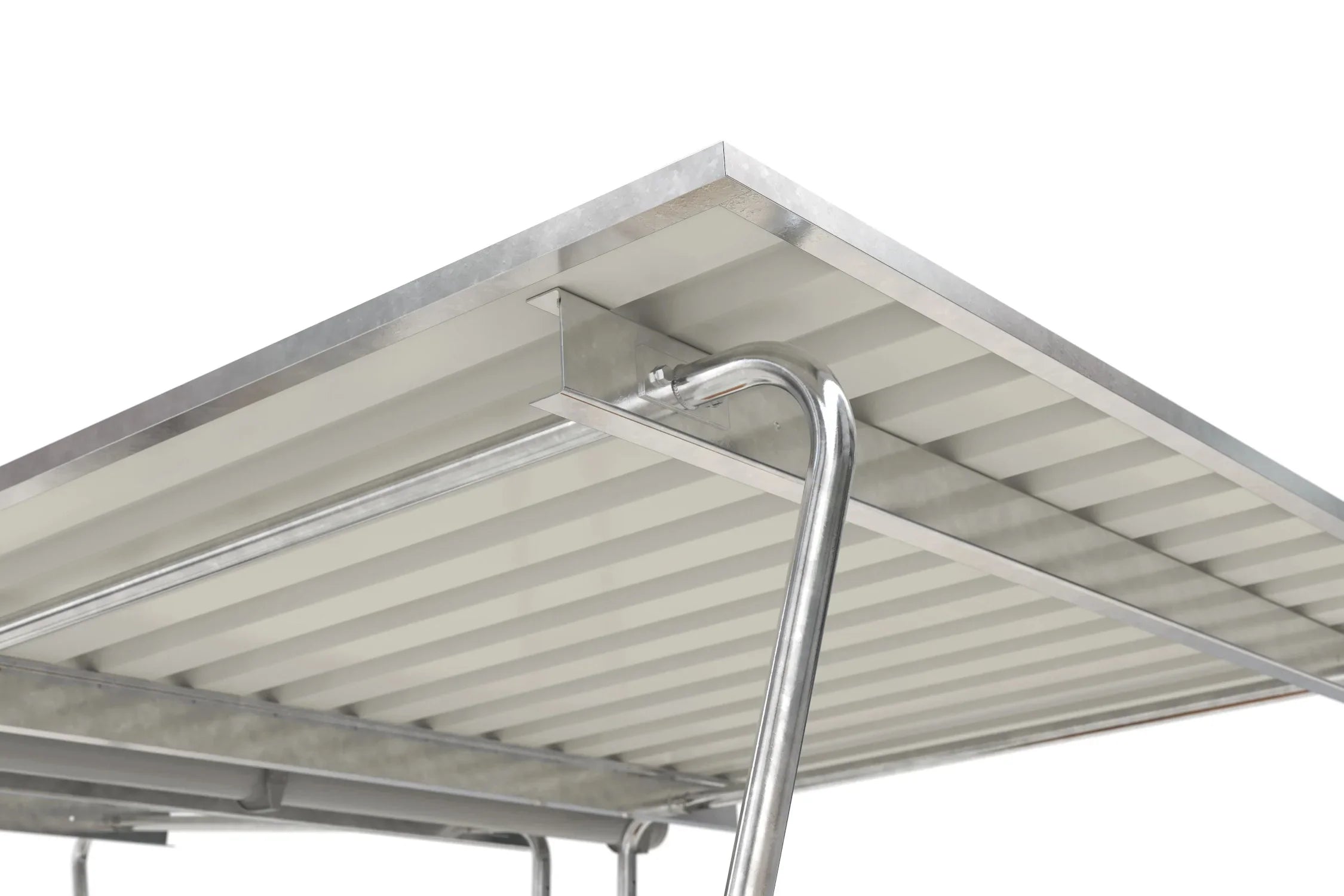

The basic system consists of a weatherproof pitched roof with trapezoidal sheet metal covering and a galvanized steel tube frame. Side elements are available as an option.

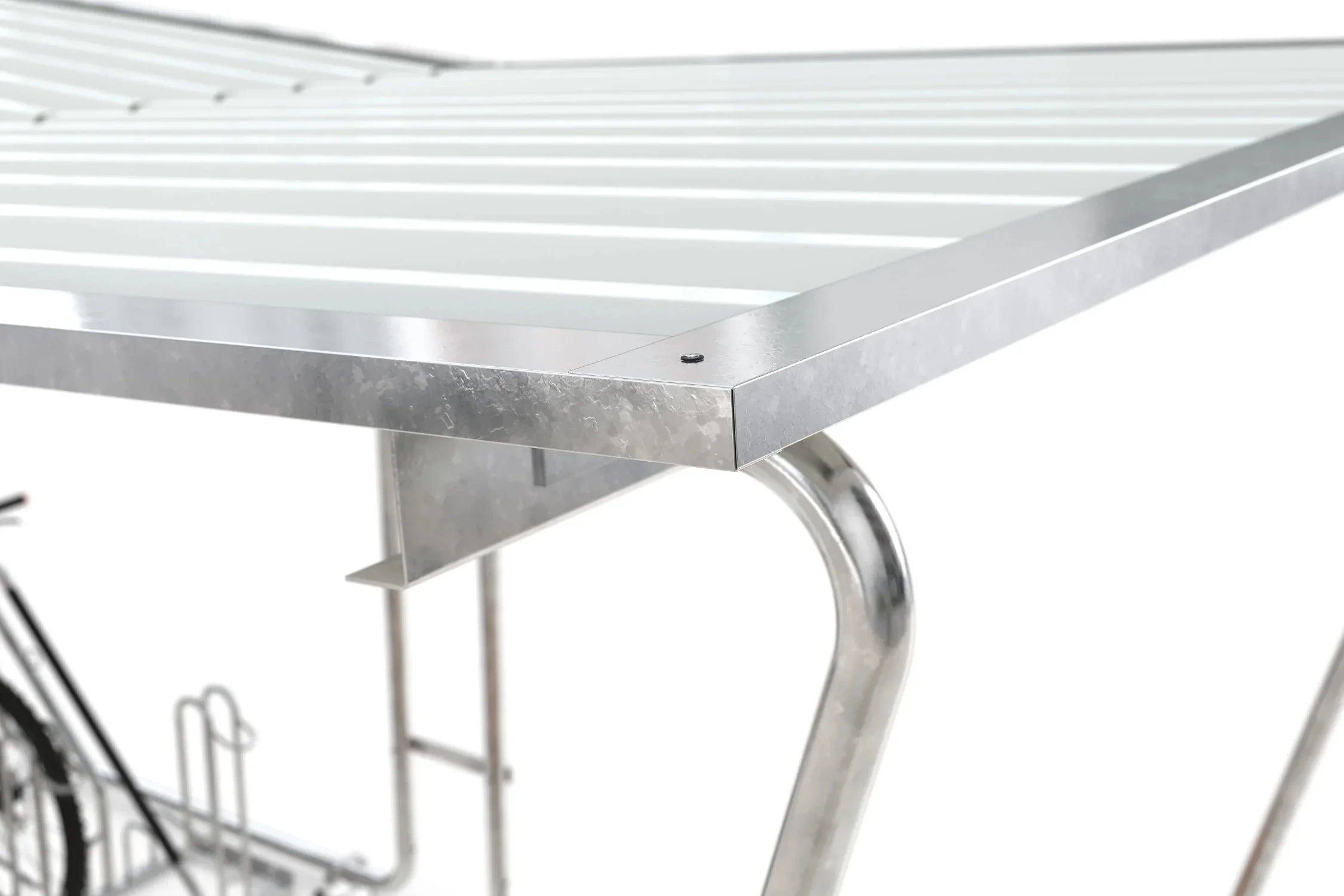

The extension modules allow you to easily enlarge your canopy, even at a later date. The kit is delivered for self-assembly. Easy-to-understand assembly instructions are included. The profiled sheet metal canopy features a three-sided, screwed-on fascia that directs rainwater to the rear. Gutters and downpipes are included.

Intended uses:

• Bicycle shelter
• Smoking cabin
• Storage area roof
• Material shelter
• Equipment shelter
• Empty container storage
• Waste disposal site enclosure
• Recycling shelter
• and much more.

Dimensions:
Width: 4,300 mm
Depth: 4,660 mm
Height: 2,250 mm
Clear height: 2,000 mm

Technical data:
Construction: Screwed together / Kit
Roof type: Flat roof / Trapezoidal sheet metal
Drainage: via rain gutter
Surface: Hot-dip galvanized or additionally powder-coated - RAL 9002
Pipe diameter: 50 mm
Side wall: Support frame with polyester filling, opal transparent or as a trapezoidal sheet metal version
Snow load: 0.85 kN/m²
Weight: 411 kg
Wind load zone : Zone 1 to 2
Warranty: 5 years

Information on assembly and installation:
Assembly instructions Siegen - Click on the link!





Optional back and side panels:

Optional polyester side panel

Optional side panel made of trapezoidal sheet metal

Manufacturer:
Kirchberger Metall Onlinevertrieb GmbH
Neunburger Str. 2c
92431 Neunburg v. W. / Seebarn
Germany

Contact:
Email: shop@kirchberger-metall.de
Telephone: +49 (0) 9672 9269110
