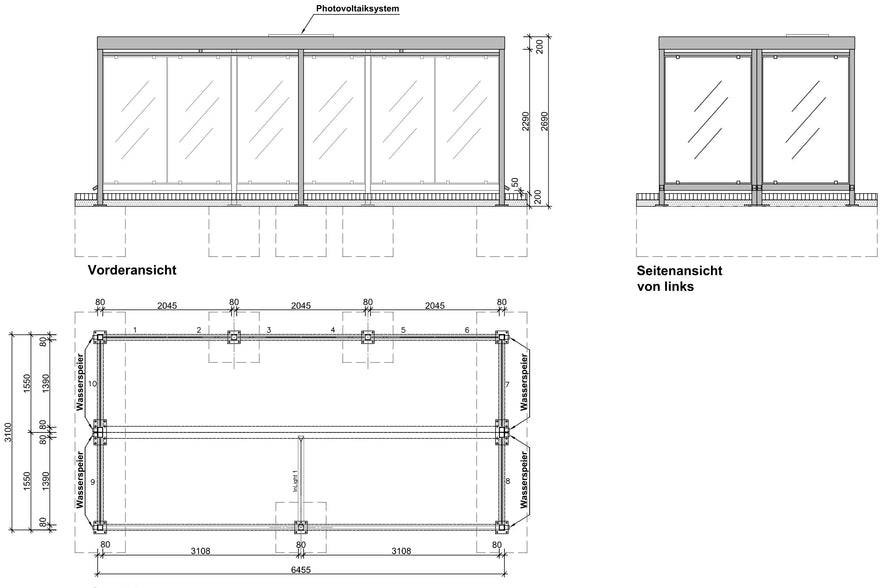

Technische Zeichnung eines modernen Überdachungs-Raucherunterstands mit Photovoltaikanlage, Metallkonstruktion, Seiten- und Vorderansicht, Maße und Wasserablauf.
Detailaufnahme moderne Metall-Überdachung mit Glas und Lamellendach für Terrasse oder Garten
Detail einer pulverbeschichteten Metallstütze mit Bodenplatte für Überdachung
Detailansicht Glasbefestigung aus Metall für Terrassenüberdachung oder Geländer
Detailansicht eines pulverbeschichteten Metallgestells mit Regenrinne für Überdachung

Bike Shelter Köln K6 6.4 × 3.1 m – Steel Smoking Shelter

Universal canopy - waiting shelters, for smokers, waste bins or bicycles

High-quality industrial grade - Manufactured according to DIN 1090, type static analysis available

Cladding可选 in glass, perforated sheet or wood

Best Price Guarantee

5-year extended manufacturer's warranty!

Configure online - get price & offer immediately!

No risk - CAD plan/drawing for fine-tuning before production starts

SKU: 102001453
Quantity:
16.540,00 €

Tax included. Shipping calculated at checkout

Lieferzeit: 8 - 12 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt - Angebot anfordern
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Canopy Cologne K6 Special (6.4 × 3.1m)

High-quality, stable flat roof canopy. Universally applicable as a waiting area, smoking shelter, tool shed, or waste bin enclosure.

Dimensions

  • Width: 6,400 mm
  • Depth: 3,100 mm
  • Height: 2,510 mm
  • Clearance height: 2,360 mm

Technical Data

  • Roof type: Trapezoidal sheet metal
  • Drainage: Via gargoyle on the rear corner post
  • Surface: Hot-dip galvanized and color-coated – RAL color of choice
  • Pipe diameter: 60 mm
  • Snow load: 1.90 kN/m² (kit Sk = 1.45 kN/m²)
  • Weight: approx. 600 kg
  • Wind load zone: Zone 1 to 3
  • Warranty: 5 years

Corrosion Protection

The entire structure is galvanized, primed, and color-coated, or painted with environmentally friendly two-component paint.

  • Corrosivity category: C4 medium (in accordance with DIN EN ISO 12944-2)
  • Steel structure (frame): RAL or DB color of choice
  • Roof sheet (underside): RAL 9002 Grey white

Wind and Snow Load

  • Snow loads: Sk = 1.9 kN/m² (kit Sk = 1.45 kN/m²)
  • Suitable for wind load zones I–III, approved nationwide
  • Standard structural analysis available

Cladding

  • ESG Glass 8mm Clear Glass

Foundation & Ground Anchoring

Two options for ground anchoring: - Please specify when ordering!

  • Mounting on existing foundation (OKF ± 0 cm)
  • Paved surface (OKF –20 cm): Column extension by 20 cm

Execution / Scope of Delivery:

  • Fully assembled at the factory, freight, delivery and positioning by crane truck.
  • incl. installation and ground anchoring on-site on foundations provided by the client.

Groundwork and Foundations, client-provided, not included in the scope of delivery:

  • Foundations are to be constructed by the client according to our specifications
  • Foundation plan will be provided with the order confirmation
  • Dimensioning for normal soil conditions (2 kg/cm²)
  • Drilling depth at least 100 mm, reinforcement-free
  • No supply lines in the area of ground anchoring
  • No longitudinal or transverse gradient considered in the offer
  • Gradient adjustment available upon request for an additional charge
  • Foundations horizontal, max. height difference ± 5 mm
  • No doweling on paved or asphalt surfaces permitted

Further options upon request - not included in the offer:

Green Roof: Optional, modular and sustainable green roof with Sedum plants. The modules can be safely integrated into the trapezoidal profile.

Lighting: LED Lighting InLight, incl. presence detector, vandal-proof and integrated into the roof structure. Optionally expandable with a VersoVolt photovoltaic system, for self-sufficient power supply without earthworks.

Alternative cladding / side panel design:Wood cladding made of high-quality Douglas fir (European larch), ESG glass, clear glass transparent, ESG glass with ceramic screen print, motif of choice

Delivery incl. pre-fabricated concrete foundation slab. This eliminates extensive foundation work. The base plate is laid at ground level on a sand or gravel bed prepared by the client. Structured surface, slip resistance class R13, stone joint grid 300 × 300 mm, smooth formwork end faces, continuous edge break, incl. statically required reinforcement up to 15 kg/m².

Questions and Answers

Footprint approx. 6,400 × 3,100 mm (6.4 × 3.1 m), height 2,510 mm (clear height 2,360 mm) – for higher bike volumes or as a large break-area canopy.

Universal: as a bike canopy or bike shed, smoking shelter, waiting shelter, bin storage, or tool shed. You choose the cladding to suit the intended use.

A hot-dip galvanized steel construction (60 mm tube), primed and color-coated in the RAL or DB color of your choice, with a trapezoidal sheet metal roof (underside in RAL 9002 gray white). Corrosion protection C4 medium in accordance with DIN EN ISO 12944-2, 5-year warranty.

A choice of clear tempered safety glass (ESG), tempered glass with ceramic screen printing (motif of your choice), aluminum perforated sheet in the frame color, or Douglas fir wood cladding.

Snow load Sk 1.90 kN/m² (1.45 kN/m² as a kit), suitable for wind load zones I–III and approved throughout Germany; type structural analysis is available.

Both are possible: fully pre-assembled at the factory and delivered/positioned by crane truck (on request including assembly and ground anchoring), or as a kit for self-assembly where access is restricted. Drainage is via a water spout on the rear corner post.

Mounting on an existing foundation (top of foundation ±0) or, on paved ground, with a 20 cm post extension (top of foundation −20). Optionally, we supply a precast concrete foundation slab (slip resistance class R13, joint grid 300×300 mm), eliminating extensive foundation work. The foundation plan comes with the order confirmation.

Yes, optionally: integrated InLight LED lighting with presence detector (vandal-protected), a self-sufficient VersoVolt photovoltaic system with no excavation work, and modular sedum green roofing.
