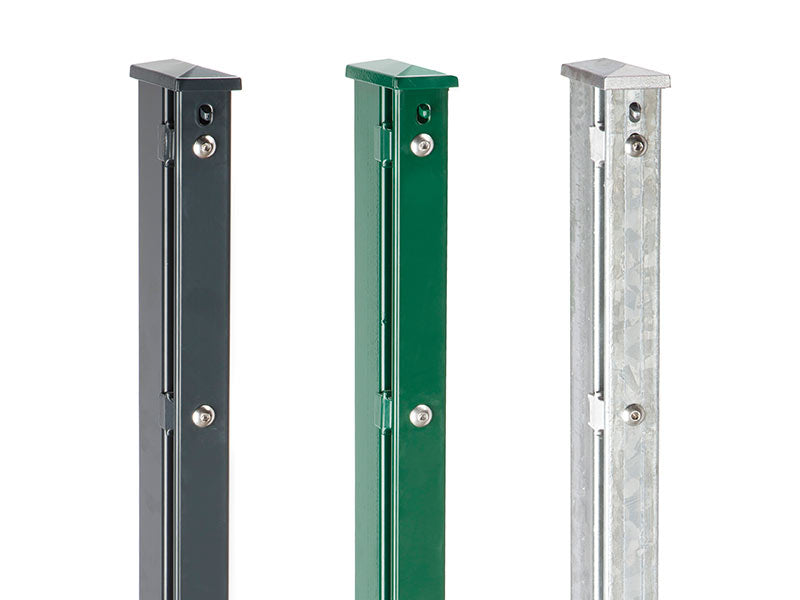

Zaunpfosten Typ XAA in Anthrazitgrau, Moosgrün und verzinkt mit Profilleiste und Aluminiumkappe

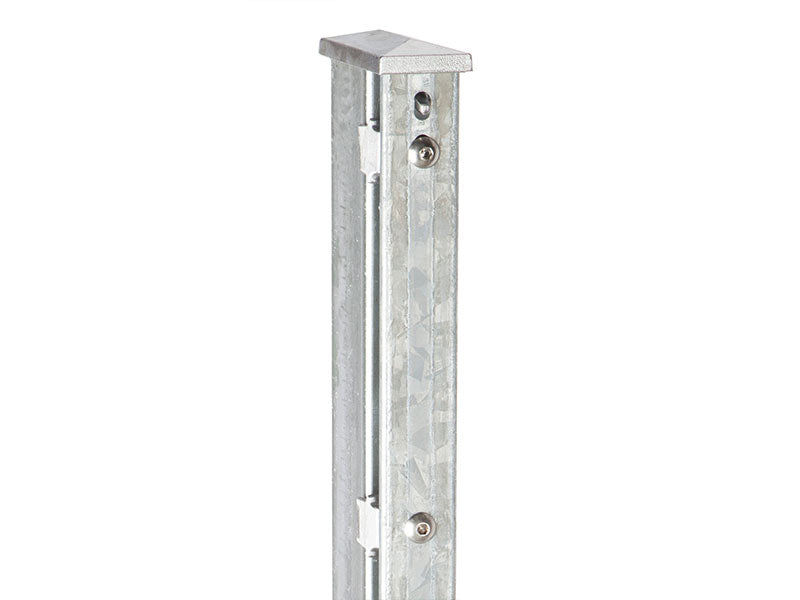

Zaunpfosten Typ XAA feuerverzinkt mit Profilleiste 40/7 mm und Aluminiumkappe

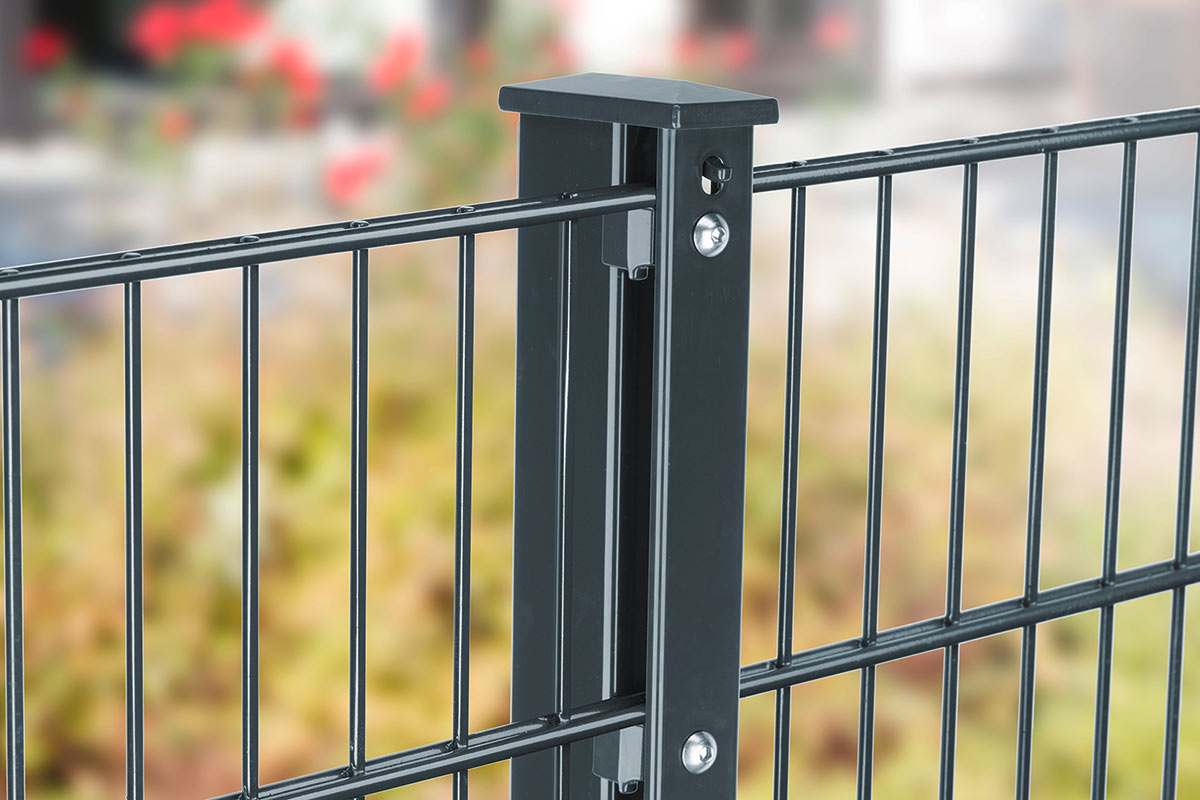

Zaunpfosten Typ XAA in Anthrazitgrau RAL 7016 an einem Doppelstabmattenzaun

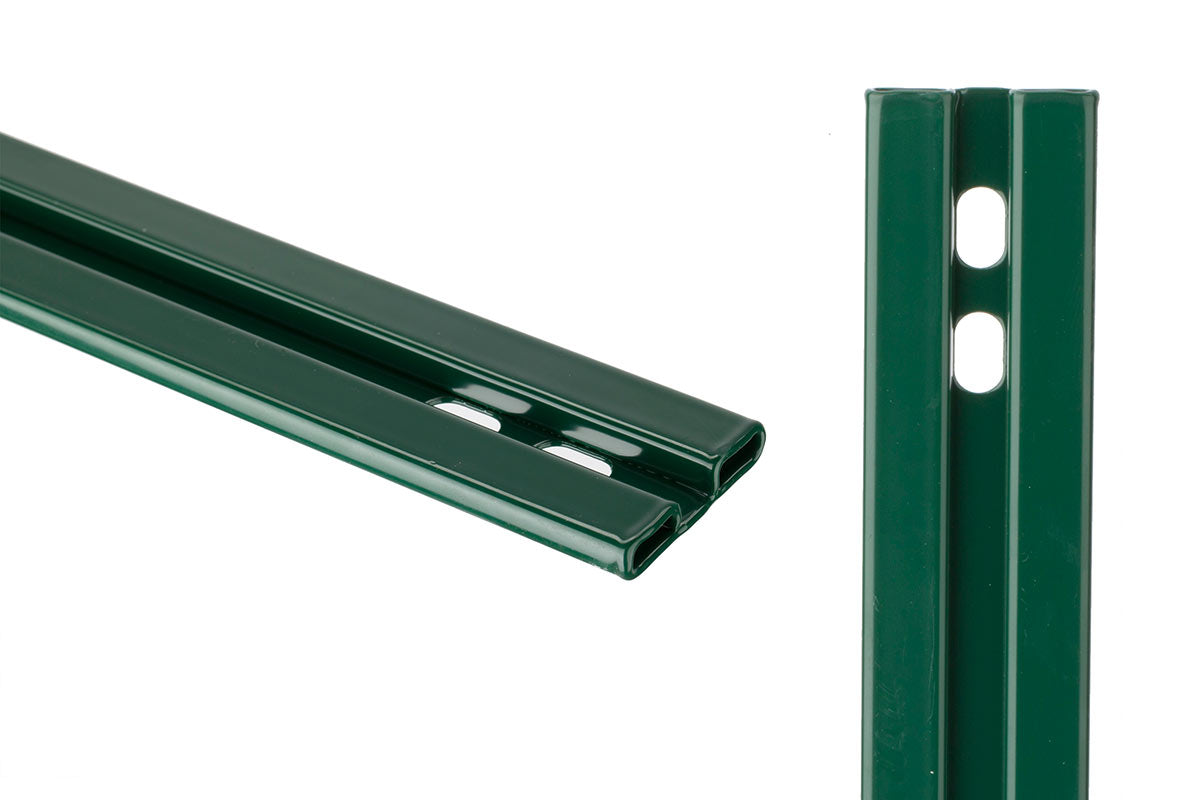

Zaunpfosten Typ XAA in Moosgrün RAL 6005 mit Profilleiste

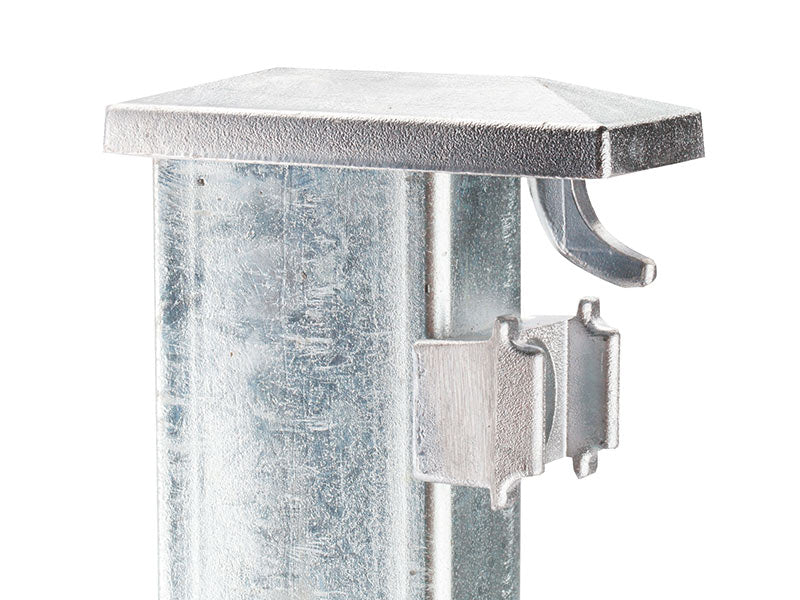

Aluminiumkappe mit Montagehaken am Zaunpfosten Typ XAA, Detail

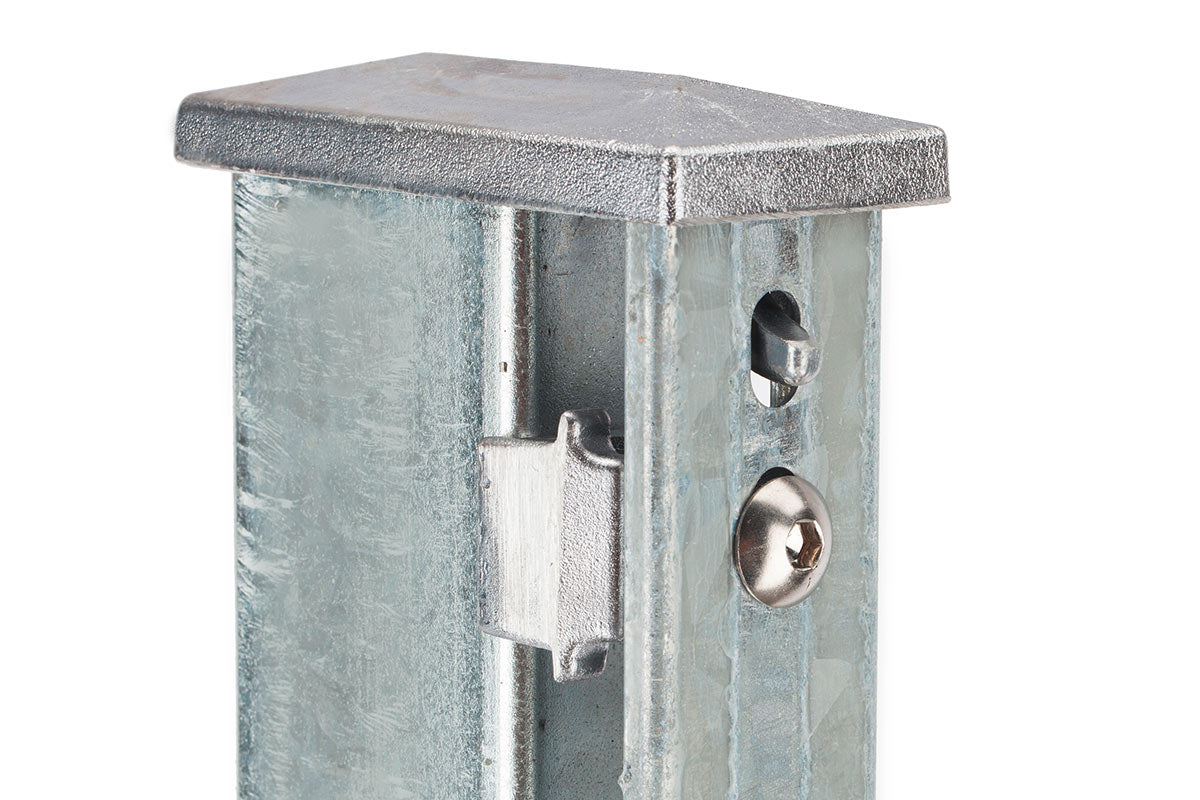

Zaunpfosten Typ XAA feuerverzinkt, Detail Aluminiumkappe mit Überstand und Befestigung

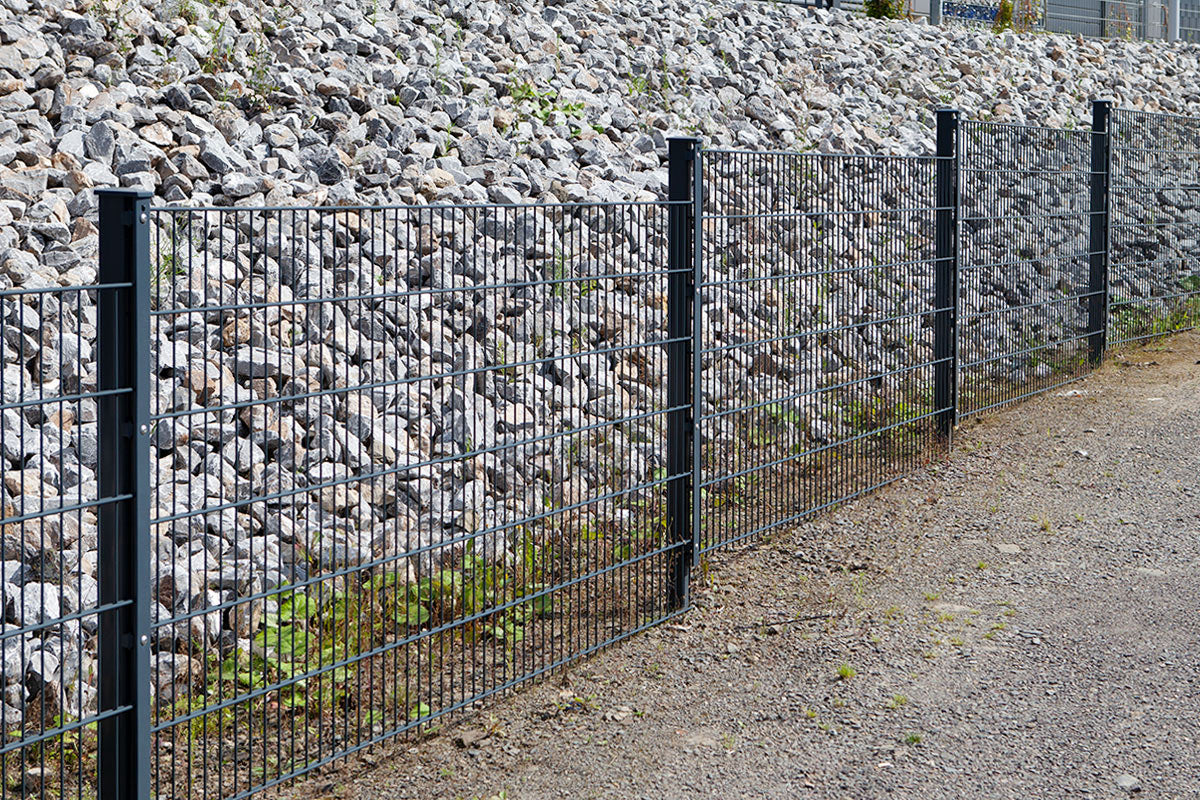

Doppelstabmattenzaun mit Zaunpfosten Typ XAA in Anthrazitgrau vor einer Gabionenwand

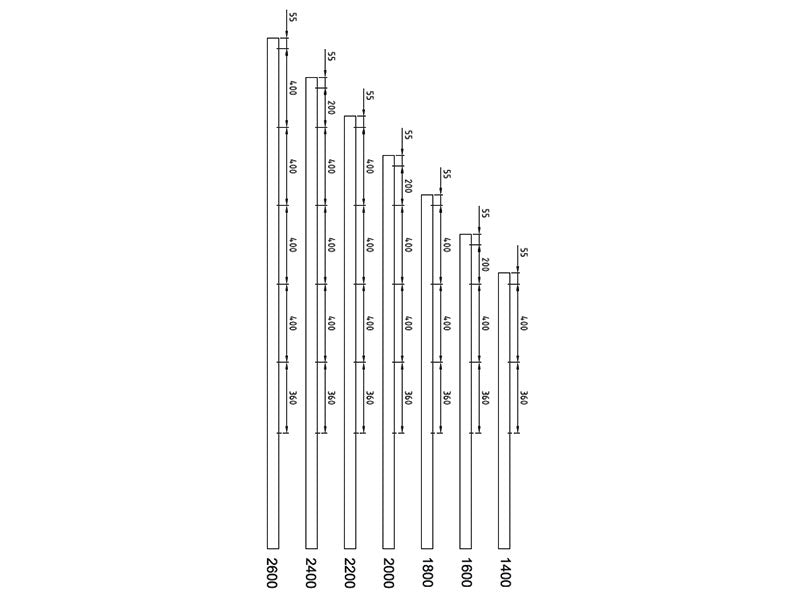

Technische Zeichnung Zaunpfosten Typ XAA, Pfostenlängen 1400 bis 2600 mm mit Befestigungspunkten

Fence Post Type XAA with Profile Strip and Aluminum Cap with Hook - Galvanized, Moss Green or Anthracite Grey

Black Weeks bis 30.11.: bis zu 400 € Rabatt ab 500 € Warenwert Stufen
SKU: XAA-ZP14XAA

Assembly hook on the aluminum cap holds the profile rail in place during screwing

Profile rail 40/7 mm, aluminum support blocks, and stainless steel screws included

Fence heights 830 to 2030 mm, posts 570 mm longer in each case for the foundation

Hot-dip galvanized or powder-coated in RAL 6005 and RAL 7016

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Für Gewerbe und Kommunen: Bis 18.12. bestellen – auf Wunsch stellen wir die Rechnung noch 2026. Eine kurze Nachricht an shop@kirchberger-metall.de genügt.

Color:

Color
Height:

Height
Quantity:
32,27 €inkl. MwSt.

Parcel or freight item: plus shipping, free shipping within Germany from €1,000 Shipping info

Lieferzeit: 2 to 3 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Satispay Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Fence Post Type XAA: The Cap Holds the Strip While You Bolt It On

Anyone who has bolted a profile strip to a post on their own knows the situation: the strip slips while the first screw is still searching for its hole. On the type XAA, the aluminum cap takes over this job. It has a mounting hook into which you hang the strip at the top. The strip hangs there, you have both hands free and set the stainless steel screws from top to bottom.

The double-rod mesh panel rests on aluminum support blocks. The cap reaches over the tube edges with an overhang. Profile strip, support blocks, screws and cap are included in the scope of delivery.

Technical Data

  • Rectangular tube 60 x 40 mm
  • Fence heights 830 to 2030 mm, post lengths 1400 to 2600 mm
  • Profile strip 40/7 mm with stainless steel screws
  • Support blocks made of aluminum
  • Aluminum cap with mounting hook and overhang
  • 3 to 6 mounting points, depending on the height
  • Hot-dip galvanized or galvanized and powder-coated in RAL 6005 moss green or RAL 7016 anthracite grey

The Height in the Selection Field Is the Fence Height

You select the height of your double-rod mesh panel. In every size the post is 570 mm longer; this part is intended for the foundation. For a fence 1230 mm high you therefore receive a post 1800 mm long. The manufacturer also offers the XAA with a welded-on base plate for bolting down (type XAAF); you can get this version from us on request.

Corner and House Connection

For changes of direction there is the corner fence post type XAA from square tube 60 x 60 mm with the same strip system. At the house or at the wall you connect the fence with the U-strip or the fence angle perforated strips. You will find all other designs under Fence Posts.

Your Benefits

  • Mounting hook on the aluminum cap holds the profile strip while you bolt it on
  • Support blocks and cap made of aluminum
  • Profile strip 40/7 mm and stainless steel screws included in the scope of delivery
  • Hot-dip galvanized, optionally also powder-coated in RAL 6005 or RAL 7016

Questions and Answers

For all posts in this series except the privacy screen post Type A80, the figure is the fence height, meaning the height of the double-rod mesh panel. The post itself is longer because it is set in concrete. For the Type A80, the selection shows the overall length of the post instead, and the matching fence height is stated right next to it.

One post per fence bay, plus one extra at the end of the run. The bay width is stated with each double-rod mesh panel. Every change of direction adds a corner post, and a gate adds a gate post. Measure the run before ordering, not from the plan but on the property itself.

On a post with a cover strip, a flat steel bar runs the full height of the post and conceals the joint between two panels. With clamping plates, each panel is clamped individually with a small stainless steel plate and the joint stays visible. The cover strip gives a calmer fence line, while the clamping plate is quicker to install.

The short post Type A without a ground section, together with a base plate. It is anchored onto L-shaped retaining blocks, paving, asphalt surfaces or a concrete wall. The base plate is not included in delivery and is ordered separately. Alternatively, the fence post Type U is available with a base plate as an option.

Hot-dip galvanized means the finished post is immersed in a zinc bath, where the zinc bonds metallurgically with the steel. Sendzimir galvanized means the steel strip was already galvanized before it was processed. The bare posts are hot-dip galvanized in an immersion bath to EN ISO 1461. The powder-coated posts are Sendzimir galvanized and additionally carry the powder layer, which increases corrosion protection further.

Yes. Once the strips are woven in, the air-permeable mesh becomes a closed surface and the wind pushes against it instead of passing through. That load ends up in the post and in the foundation. This is what the privacy screen post Type A80 is for, made from 80 x 40 x 2 mm tube and set in concrete over a greater length, so it meets the structural requirements.
