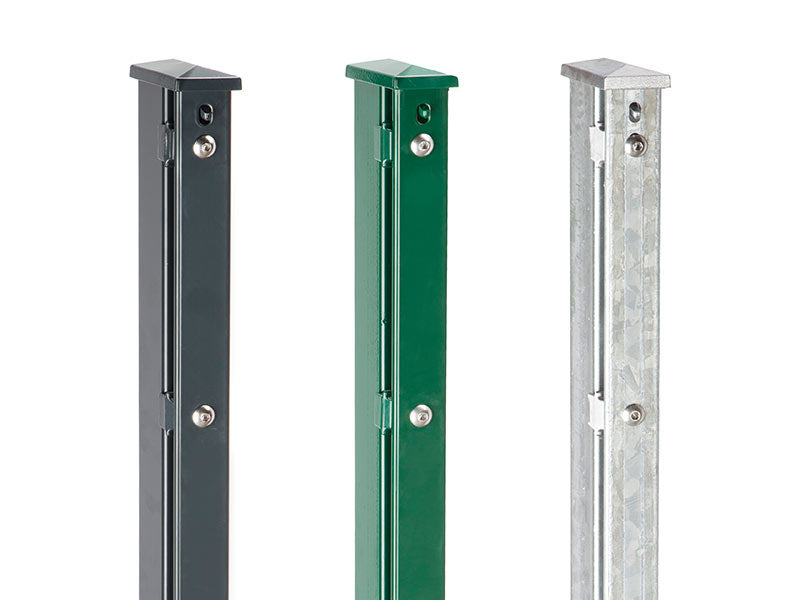

Abbildung ähnlich: Zaunpfosten Typ XAA in drei Farben, der Eckpfosten hat ein Quadratrohr 60 x 60 mm

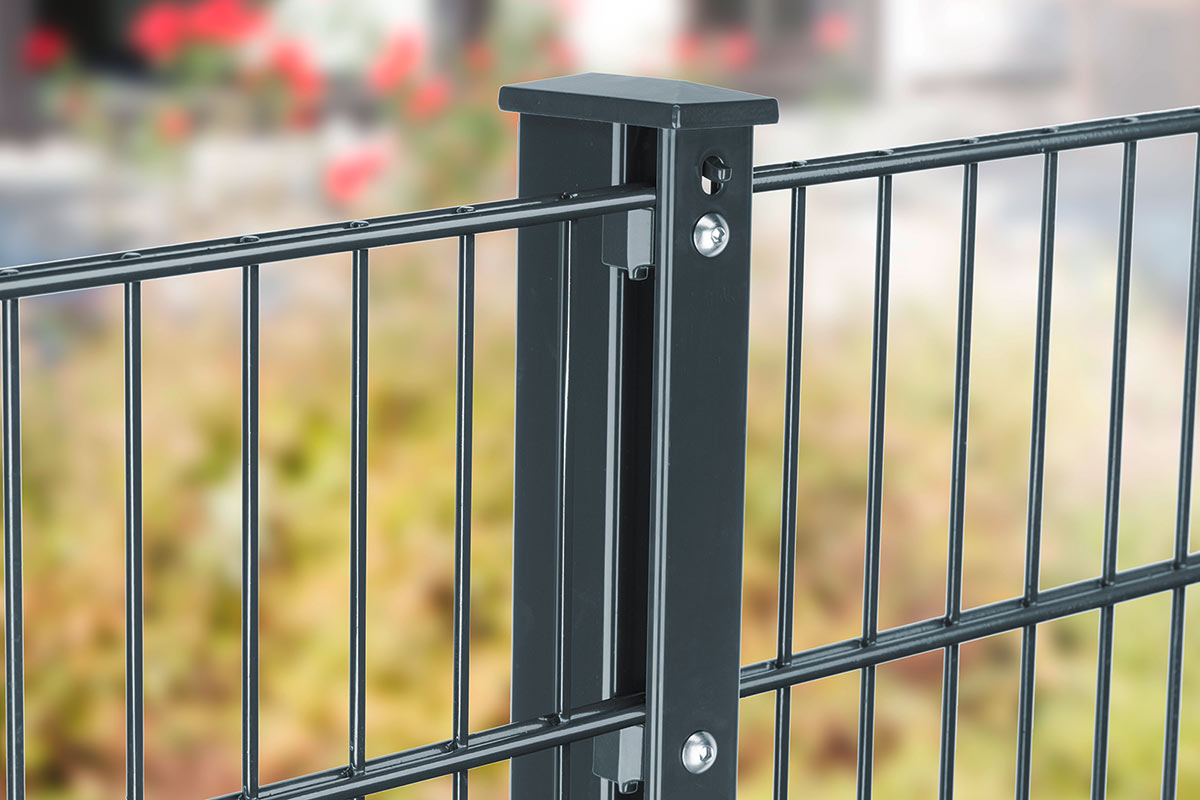

Abbildung ähnlich: Zaunpfosten Typ XAA in Anthrazitgrau mit Profilleiste an einem Doppelstabmattenzaun

Corner Fence Post Type XAA from Square Tube 60 x 60 mm with Profile Strip - Galvanized, Moss Green or Anthracite Grey

Black Weeks bis 30.11.: bis zu 400 € Rabatt ab 500 € Warenwert Stufen
SKU: QXAAE-ZP13QXAAE

Square tube 60 x 60 mm, same support for both fence directions

Same strip system as the straight fence post type XAA

Profile strip, aluminum support blocks, stainless steel screws and aluminum cap included in delivery

Galvanized, optionally powder-coated in RAL 6005 and RAL 7016

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Für Gewerbe und Kommunen: Bis 18.12. bestellen – auf Wunsch stellen wir die Rechnung noch 2026. Eine kurze Nachricht an shop@kirchberger-metall.de genügt.

Color:

Color
Height:

Height
Quantity:
57,41 €inkl. MwSt.

Parcel or freight item: plus shipping, free shipping within Germany from €1,000 Shipping info

Lieferzeit: 2 to 3 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Satispay Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Corner Fence Post Type XAA for the Change of Direction in a Double-Rod Fence

At the corner, two fence bays run towards one post from different directions. A rectangular tube 60 x 40 mm would offer only 40 mm of bearing surface on one side. The corner post type XAA is therefore a square tube 60 x 60 mm, both sides are equally wide. There are mounting points on both sides: three per side at a fence height of 830 mm, six per side at 2030 mm.

It belongs to the same system as the fence post type XAA: profile strip 40/7 mm, aluminum support blocks, stainless steel screws and an aluminum cap. In the end, the corner and the straight run look the same.

Technical Data

  • Square tube 60 x 60 mm
  • Fence heights 830 to 2030 mm, post lengths 1300 to 2600 mm
  • Mounting points per side: 3 to 6, depending on the height
  • Profile strip 40/7 mm with stainless steel screws
  • Support blocks made of aluminum
  • Aluminum cap
  • Galvanized, optionally also powder-coated in RAL 6005 moss green or RAL 7016 anthracite grey

Post Length on the Low Fences

The height in the selection field is the fence height. For fence heights of 830, 1030 and 1230 mm, the corner post is 100 mm shorter than the straight XAA: 1300, 1500 and 1700 mm instead of 1400, 1600 and 1800 mm. From a fence height of 1430 mm, both are the same length. If you set the top edges in one line, the corner post therefore stands 100 mm less deep in the foundation on the low fences. Plan the foundation hole at the corner accordingly.

The photos show the straight fence post type XAA. The corner post has the same strip system, but a square tube.

Your Benefits

  • Square tube 60 x 60 mm gives both fence directions the same bearing surface
  • Same strip system as the straight fence post type XAA
  • Profile strip, aluminum support blocks, stainless steel screws and aluminum cap included in the scope of delivery
  • Galvanized, optionally powder-coated in RAL 6005 or RAL 7016

Questions and Answers

For all posts in this series except the privacy screen post Type A80, the figure is the fence height, meaning the height of the double-rod mesh panel. The post itself is longer because it is set in concrete. For the Type A80, the selection shows the overall length of the post instead, and the matching fence height is stated right next to it.

One post per fence bay, plus one extra at the end of the run. The bay width is stated with each double-rod mesh panel. Every change of direction adds a corner post, and a gate adds a gate post. Measure the run before ordering, not from the plan but on the property itself.

On a post with a cover strip, a flat steel bar runs the full height of the post and conceals the joint between two panels. With clamping plates, each panel is clamped individually with a small stainless steel plate and the joint stays visible. The cover strip gives a calmer fence line, while the clamping plate is quicker to install.

The short post Type A without a ground section, together with a base plate. It is anchored onto L-shaped retaining blocks, paving, asphalt surfaces or a concrete wall. The base plate is not included in delivery and is ordered separately. Alternatively, the fence post Type U is available with a base plate as an option.

Hot-dip galvanized means the finished post is immersed in a zinc bath, where the zinc bonds metallurgically with the steel. Sendzimir galvanized means the steel strip was already galvanized before it was processed. The bare posts are hot-dip galvanized in an immersion bath to EN ISO 1461. The powder-coated posts are Sendzimir galvanized and additionally carry the powder layer, which increases corrosion protection further.

Yes. Once the strips are woven in, the air-permeable mesh becomes a closed surface and the wind pushes against it instead of passing through. That load ends up in the post and in the foundation. This is what the privacy screen post Type A80 is for, made from 80 x 40 x 2 mm tube and set in concrete over a greater length, so it meets the structural requirements.
