Smoking shelter, bicycle shelter, pedestrian shelter model Passau P24 kit - 685cm x 442cm

Smoking shelter, two-wheeler shelter, personnel shelter Model Passau P24 - galvanized steel, powder-coated in color of choice

Hot-dip galvanized steel construction with large glass surfaces and monopitch roof in variable sizes, selectable side walls and pre-approved structural analysis.

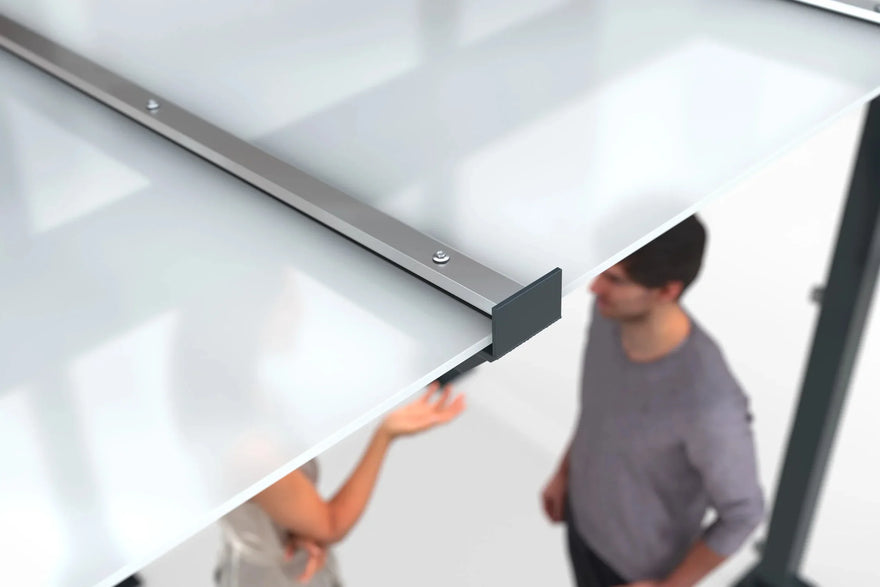

A shapely shelter, easily visible from all sides, ideally suited for people or two-wheelers, made of galvanized steel profiles and safety glass. Load-bearing frame construction made of profile tubes. Monopitch roof made of laminated safety glass (VSG) with drainage through bitumen-coated folded profiles at the back of the roof. Drainage is via gargoyles on both sides (water outlet approx. 120 mm above the ground).

Corrosion protection: The entire construction is galvanized, primed and color-coated or painted with environmentally friendly two-component paint.
Corrosivity protection class: C4 medium (corrosivity based on DIN EN ISO 12944-2)
Roofing: Laminated safety glass (VSG)
Steel construction: RAL of choice (pearl and signal colors excluded)

Variable sizes and numerous options for rear and side walls - including printable ESG - create weatherproof shelters for vehicles, materials or comfortable lounge areas. Individual color schemes, implemented in at least C4 medium quality, support your CI concepts and design wishes.

The existing structural analysis for high wind and snow loads saves you time and money.
Wind and snow loads Sk = 1.9 kN/m2
The characteristic Sk-value in the snowiest zones (3) in Germany is greater than or equal to 1.10 kN/m2.
The constructions are also approved for wind load zones I - III and thus permitted throughout Germany.

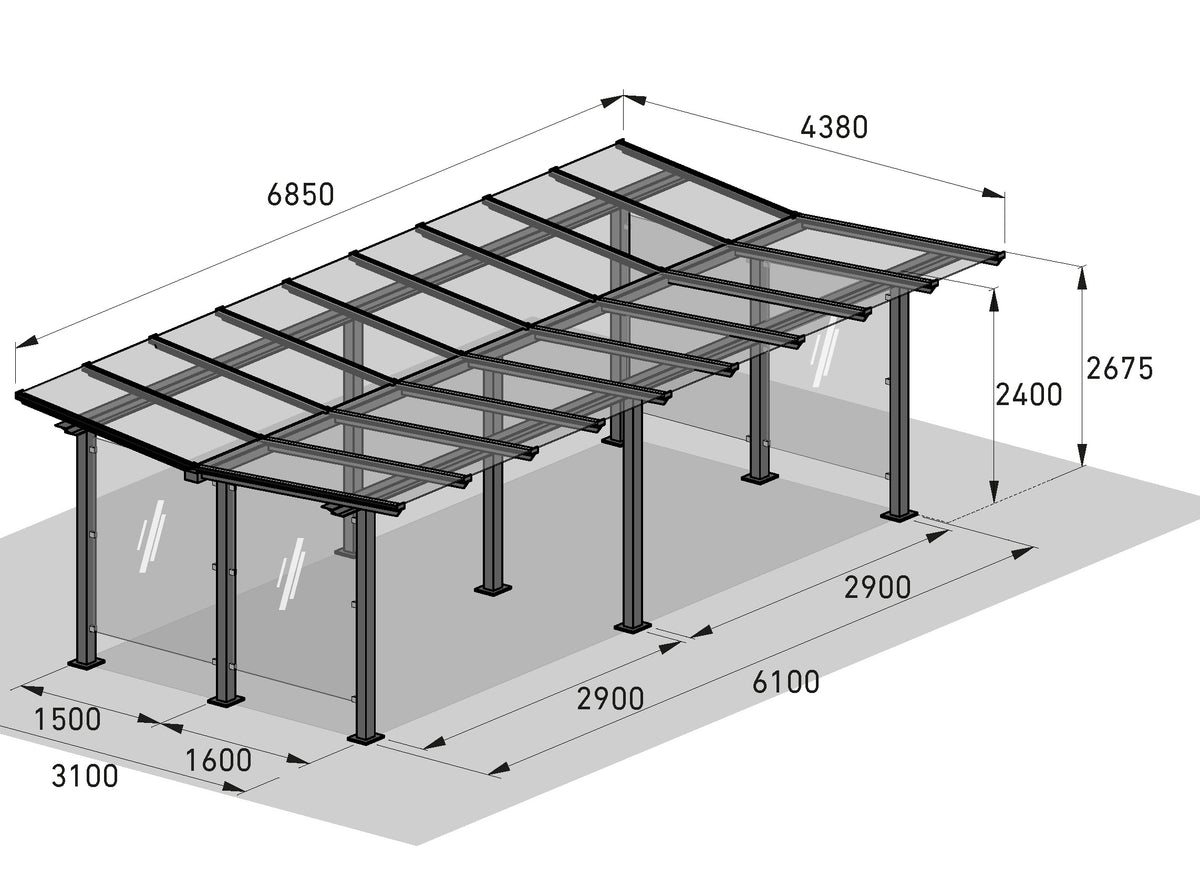

Dimensions:
Width: 6,850 mm
Depth: 4,420 mm
Height: 2,435 mm
Clear height: 2,200 mm
Height when paved over: 2,635 mm

Technical data:
Number of wall elements: 4
Construction: Bolted / Kit
Roof type: Monopitch roof / Laminated safety glass (VSG)
Drainage: Via gargoyles
Surface: Hot-dip galvanized and color-coated - RAL color of choice
Pipe diameter: 100 mm
Rear wall type: Toughened safety glass (ESG)
Side wall type: Toughened safety glass (ESG)
Snow load: 1.90 kN/m²
Wind load zone: Zone 1 to 3
Warranty: 5 years

Glass design screen print:
The wall elements made of toughened safety glass (ESG) are printed with stripes, grids, ornaments, coats of arms, logos, photos, etc.
There are no limits to your design. They also offer the ideal blank space for advertising, notices, pictograms, etc.
Please select the desired glass design in the selection field.

Delivery options:

• Kit delivery - The double-sided models Passau P22, P23, P24 can only be delivered as a kit.

Options for foundation, base plates, fastening:

The following options are available for fastening to the ground or for the foundation:

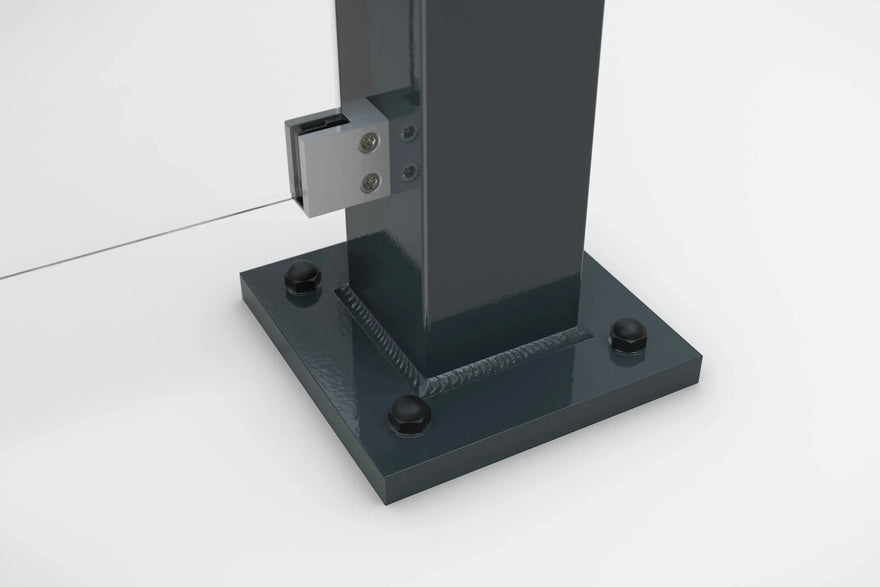

• Fastening to existing foundation (OKF +/-0) - for bolting to foundation points or base plates constructed by the customer.
• Paved subsurface (OKF -200) - For this, you will receive support pillars extended by 200mm, which are fastened with bolts or high-bond anchors and then paved over. Other lengths than 200mm are also available on request.

Options for unloading and on-site assembly:

• Self-unloading - You have the option of unloading the goods yourself on site, so we do not need a crane truck.
• Unloading by crane truck - Delivery and unloading on site by crane truck, without assembly.
• Unloading by crane truck incl. on-site assembly - The canopy is unloaded, positioned and professionally assembled on site by us and doweled to the ground.

Frame color of choice: Color of the profiles
Please enter the desired RAL color in the input field. An overview of all RAL colors can be found here - please click on the link.



matching accessories: (please scroll down)

• Lighting - Toplight LED luminaire - Energy-efficient lighting system with LED technology for more safety in the dark. Uniform illumination of the shelter is achieved by a wide-beam cross-prism.
• Lighting with photovoltaics - identical Toplight LED with solar panel incl. posts and base plate for doweling. Independent of the power grid. The built-in battery has a capacity of 432 Wh.
• Heating - Infrared radiant heater, specially designed for canopy systems. The flexibly attachable radio push-button (battery-free) simplifies installation. The time control supports the sustainable operation of the heating.
• Ashtrays - Various models and designs
• Standing table - Various models and designs

Notes for assembly by us:
The required foundations are to be laid by the customer according to our specifications.
With the order confirmation you will receive a foundation plan, whereby we assume normal soil conditions (2 kg/sqcm) for the dimensioning.
It must be ensured that drillings of at least 100 mm can be made into the base plate without reinforcement.
There are no supply lines in the area of the floor doweling.
In the offer, we do not assume any longitudinal or transverse inclination to the extent that an adaptation of the construction would be necessary.
In the specific case, we would be happy to offer you an inclination adaptation (at extra charge) on request.
Foundations to be laid must be on the same level and level without inclination, with a maximum height difference of +/- 5 mm.
Doweling by our assembly team on paved or asphalt surfaces (tar, bitumen, etc.) is not permitted.

Packaging:
The packaging material required for truck transport (wood, PE film, cardboard, etc.) will be disposed of by you on site.

Delivery time:
approx. 6-8 weeks after order confirmation

Exclusion from exchange:
Items that are coated according to RAL colors, custom-made products, or individually manufactured are excluded from exchange (return).
