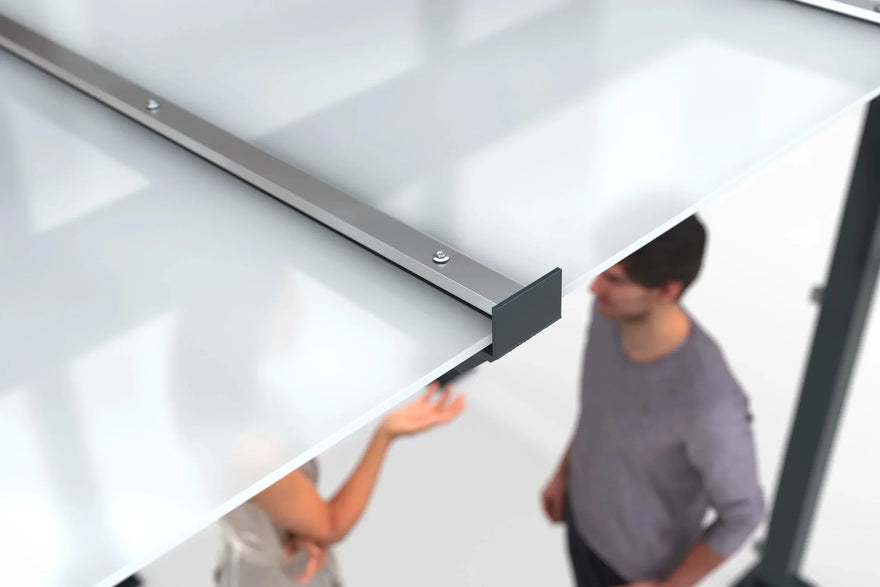

Detailansicht moderner Metall Unterstand Überdachung mit zwei Personen darunter

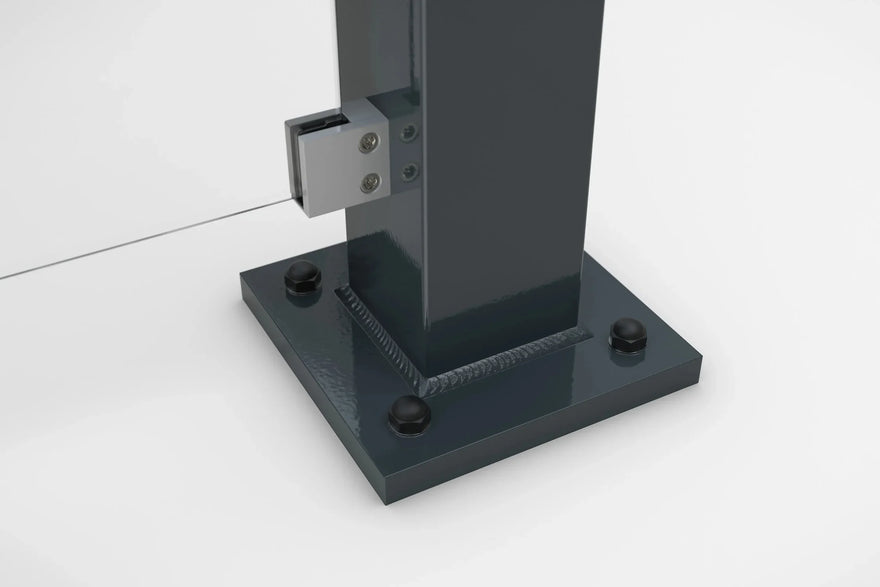

Detail einer Metallstütze mit Bodenplatte und Glasaufnahme, Unterstand Überdachung Passau
Detailansicht Metallprofil mit Glasbefestigung, Überdachung, wetterfest, hochwertig
Detailansicht einer modernen Metall-Überdachung mit Glasdach, filigrane Profilkonstruktion
Detailaufnahme von Metallpfosten mit Regenablauf für Überdachung oder Unterstand

Smoking shelter, bicycle shelter, passenger shelter model Passau P14 B - 685cm x 225cm

✓ Robust steel construction – hot-dip galvanized & powder-coated

✓ Generous glass surfaces made of safety glass for a modern look

✓ Stable lean-to roof for maximum weather resistance

✓ High stability due to tested structural analysis

✓ Free shipping directly to your home

SKU: 102100360-OHNEGLASHELL-BODENVERANKERUNGZUMÜBERPFLASTERN,OKF20CM-SELBSTABHOLUNG(ABWERK41836HÜCKELHOVEN)
Glass screen printing pattern:

Glass screen printing pattern
Foundation and ground anchoring:

Foundation and ground anchoring
Delivery and unloading:

Delivery and unloading
13.838,51 €

Tax included. Shipping calculated at checkout

Delivery time: 28 to 42 days

Quantity:
5,0 82 Google-Bewertungen

Smoking shelter, two-wheeler canopy, person shelter model Passau P12 - galvanized steel, powder-coated in color of choice

Hot-dip galvanized steel structure with large glass surfaces and monopitch roof in variable sizes, selectable side walls and pre-tested type statics.
A shapely shelter, clearly visible from all sides, ideally suited for people or two-wheelers, made of galvanized steel profiles and safety glass. Load-bearing frame construction made of profile tubes. Monopitch roof made of laminated safety glass (LSG) with drainage through bituminized canted profiles at the rear of the roof. Drainage is via the rear right corner post by means of a gargoyle to the rear (water outlet approx. 120 mm above the ground).

Corrosion protection: The entire construction is galvanized, primed and color-coated or painted with environmentally friendly two-component paint.
Corrosivity protection class: C4 medium (corrosivity based on DIN EN ISO 12944-2)
Roofing: Laminated safety glass (LSG)
Steel construction: RAL of choice (pearl and signal colors excluded)

Variable sizes and numerous options for rear and side walls - including printable ESG - create weatherproof canopies for vehicles, materials or comfortable lounges. Individual color schemes, implemented in at least C4 medium quality, support your CI concepts and design wishes.

The existing type statics for high wind and snow loads save you time and money.
Wind and snow loads Sk = 1.9 kN/m2
The characteristic Sk value in the snowiest zones (3) in Germany is greater than or equal to 1.10 kN/m2.
The constructions are also approved for wind load zones I - III and thus permitted throughout Germany.

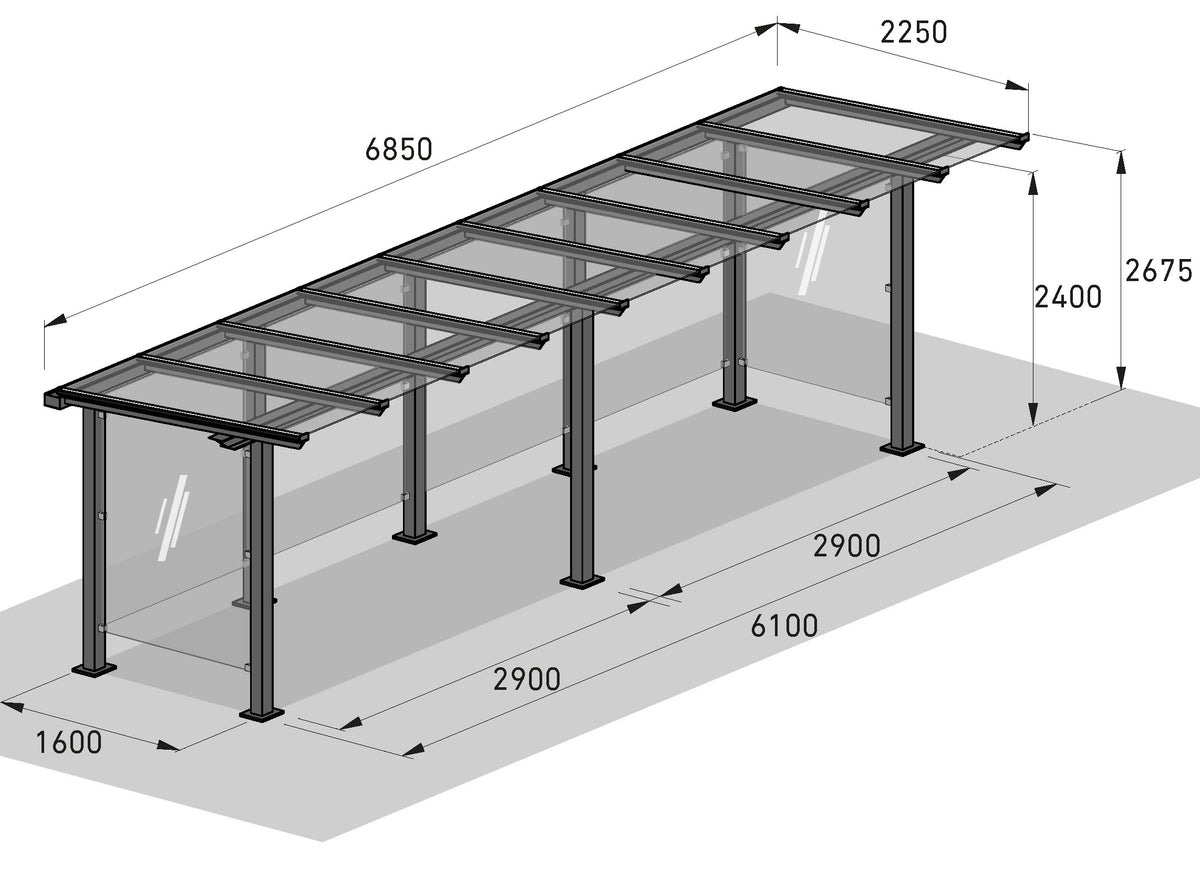

Dimensions:
Width: 6,850 mm
Depth: 2,250 mm
Height: 2,445 mm
Clear height: 2,200 mm
Height when paved over: 2,645 mm

Technical data:
Number of wall elements: 6
Construction: Welded / fully assembled or Screwed / kit
Roof type: Monopitch roof / laminated safety glass (LSG)
Drainage: Via gargoyle
Surface: Hot-dip galvanized and color-coated - RAL color of choice
Pipe diameter: 100 mm
Rear wall type: Single-pane safety glass (ESG)
Side wall type: Single-pane safety glass (ESG)
Snow load: 1.90 kN/m²
Wind load zone: Zone 1 to 3
Warranty: 5 years

Glass design screen print:
The wall elements made of single-pane safety glass (ESG) are printed with stripes, grids, ornaments, coats of arms, logos, photos, etc.
There are no limits to your design. They also offer the ideal free space for advertising, notices, pictograms, etc.
Please select the desired glass design in the selection field.

Delivery options:

  • Fully assembled - canopy is delivered completely assembled and positioned on site at the customer's location by crane truck. Truck crane checklist - please click on link!
  • Kit delivery - If the installation site is in a location that is not accessible by crane truck.


Options for foundations, base plates, fastening:

Smoking shelter, two-wheeler canopy, person shelter model Passau P14 B - 685cm x 225cm - Kirchberger Metall Onlinevertrieb GmbH

The following options are available for fastening to the ground or for founding:

  • Fastening to existing foundation (OKF +/-0) - for doweling onto foundation points or base plates constructed by the customer.
  • Paved ground (OKF -200) - You will receive support pillars extended by 200mm, which are fastened with bolts or highbond anchors and then paved over. Other lengths than 200mm are also possible on request.

Options for unloading and on-site assembly:

  • Self-unloading - You have the option to unload the goods yourself on site, so we do not need a crane truck.
  • Unloading by crane truck - Delivery and unloading on site by crane truck, without assembly.
  • Unloading by crane truck incl. on-site assembly - Canopy is unloaded, positioned and professionally assembled on site by us and dowelled to the ground.


Frame color of choice: Color of the profiles
Please state the desired RAL color in the input field. An overview of all RAL colors can be found here - please click on the link.

Smoking shelter, two-wheeler canopy, person shelter model Passau P14 B - 685cm x 225cm - Kirchberger Metall Onlinevertrieb GmbHSmoking shelter, two-wheeler canopy, person shelter model Passau P14 B - 685cm x 225cm - Kirchberger Metall Onlinevertrieb GmbHSmoking shelter, two-wheeler canopy, person shelter model Passau P14 B - 685cm x 225cm - Kirchberger Metall Onlinevertrieb GmbH

Matching accessories: (please scroll all the way down)

  • Lighting - Toplight LED luminaire - Energy-efficient lighting system with LED technology for more safety in the dark. Uniform illumination of the shelter is achieved by a wide-beam cross prism.
  • Lighting with photovoltaics - identical Toplight LED with solar panel incl. posts and base plate for doweling. Independent of the power grid. The built-in battery has a capacity of 432 Wh.
  • Heating - Infrared heater, specially designed for canopy systems. The flexibly attachable radio button (battery-free) facilitates installation. The time control supports the sustainable operation of the heating.
  • Ashtrays - Various models and designs
  • Standing table - Various models and designs


Notes on assembly by us:
The required foundations are to be constructed by the customer according to our specifications.
With the order confirmation, you will receive a foundation plan, whereby we assume normal soil conditions (2 kg/sqcm) for dimensioning.
It must be ensured that drillings of at least 100 mm can be made into the base plate without reinforcement.
There are no supply lines in the area of the floor doweling.
In the offer, we do not assume any longitudinal or transverse slope to such an extent that an adjustment of the construction is necessary.
In specific cases, we are happy to offer you a slope adjustment (at an additional cost) on request.
Foundations to be constructed must be on the same level and level without a slope, with a maximum height difference of +/- 5 mm.
Doweling by our assembly team on paved or asphalt surfaces (tar, bitumen, etc.) is not permitted.

Packaging:
The packaging material necessary for truck transport (wood, PE film, cardboard, etc.) will be disposed of by you on site.

Delivery time:
approx. 6-8 weeks after order confirmation

Exclusion from exchange:
Articles that are coated in RAL colors, custom-made, or individually manufactured are excluded from exchange (return).

Questions and Answers

Ein professioneller Raucherunterstand ermöglicht eine saubere räumliche Trennung gemäß den Nichtraucherschutzgesetzen, ohne den Komfort von Mitarbeitern oder Gästen zu beeinträchtigen. Zudem sorgt er für ein sauberes Betriebsgelände, da er einen zentralen Anlaufpunkt bietet und unkontrollierte Verschmutzungen minimiert.

Das Spektrum reicht von einfachen, einseitig offenen Überdachungen bis hin zu komplexen Raucherpavillons oder nahezu vollständig umschlossenen Raucherkabinen. Die Entscheidung für die Anzahl der Seitenwände beeinflusst direkt den gewünschten Wetterschutz bei Wind, Regen oder Schnee.

Ja, durch modular aufgebaute Konstruktionen lassen sich die Systeme flexibel anpassen. Sie können sowohl auf großzügigen Freiflächen als auch in räumlich begrenzten Bereichen wie Innenhöfen oder auf Dachterrassen optimal positioniert werden.

Für die Modelle (wie z. B. Modell K, Passau oder R) stehen funktionale Komponenten zur Verfügung. Besonders platzsparend und hygienisch sind Kombiascher mit integriertem Abfallbehälter. Zur Steigerung des Aufenthaltskomforts bieten wir zudem wetterfeste Sitzbänke, Stehtische und integrierte Beleuchtungssysteme an.

Aus technischer Sicht ist ein ebenes Betonfundament am Standort zwingend erforderlich. Auf diesem wird der Raucherunterstand mittels robuster Fußplatten fachgerecht verankert, um die notwendige Standfestigkeit und statische Sicherheit bei auftretenden Windlasten zu garantieren.

Ja, wir begleiten Sie von der Auswahl der passenden Baugröße unter Berücksichtigung von Wartung und Reinigungsfreundlichkeit. Neben detaillierten Dokumentationen für eine effiziente Installation bieten wir Ihnen auch einen fachgerechten Montageservice für eine normkonforme Aufstellung an.

Die optimale Größe richtet sich nach Ihrer gewünschten Standortkapazität und dem nötigen Schutzgrad. In der Praxis wird für einen komfortablen Stehplatz meist mit ca. 0,5 bis 1 Quadratmeter Fläche pro Person kalkuliert.

Die Systeme wie die Modell K, Passau oder R basieren auf modularen Konstruktionen und sind in vielen Baugrößen erhältlich. Das Spektrum reicht von kompakten, einseitig offenen Überdachungen für kleine Teams bis hin zu großen, nahezu vollständig umschlossenen Raucherpavillons oder Kabinen. Gerne unterstützen wir Sie bei der Auswahl der passenden Kapazität für Ihr Gelände.
