Smoking shelter, bicycle shelter, passenger shelter model Passau P13 B - 535cm x 225cm

Smoking shelter, bicycle shelter, pedestrian shelter model Passau P13 B - galvanized steel, powder-coated in color of your choice

Hot-dip galvanized steel construction with large glass surfaces and a pitched roof in variable sizes, selectable side walls and pre-tested structural analysis.

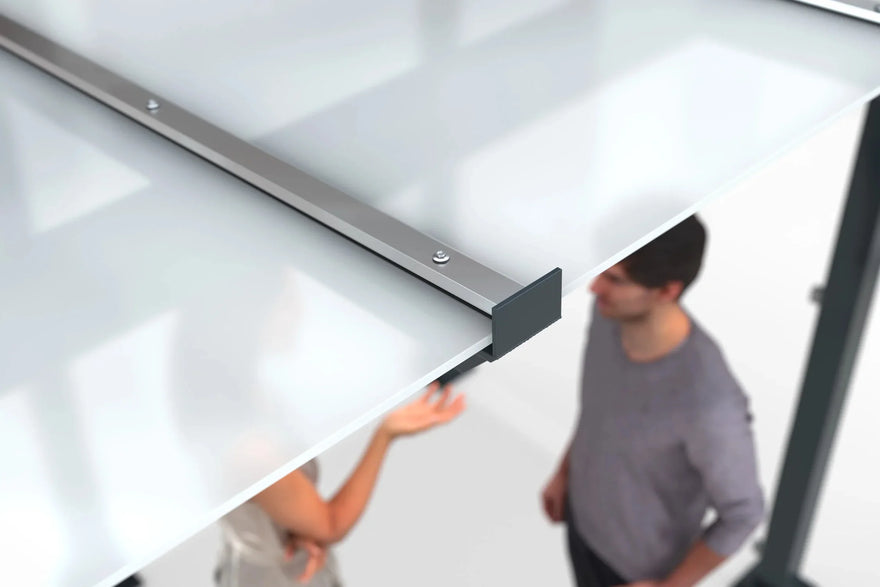

An attractively designed shelter, offering excellent visibility from all sides, ideally suited for people or bicycles, constructed from galvanized steel profiles and safety glass. The load-bearing frame is made of profiled tubing. The pent roof is made of laminated safety glass (VSG) with drainage via bitumen-coated edge profiles at the rear of the roof. Drainage is achieved through a downspout at the rear right corner post (water exits approximately 120 mm above the ground).

Corrosion protection: The entire structure is galvanized, primed and color-coated or painted with environmentally friendly two-component paint.
Corrosivity protection class: C4 medium (corrosivity in accordance with DIN EN ISO 12944-2)
Roof covering: Laminated safety glass (VSG)
Steel construction: RAL color of your choice (excluding pearl and signal colors)

Variable sizes and numerous options for back and side panels – including printable tempered safety glass – allow for the creation of weatherproof canopies for vehicles, materials, or comfortable break rooms. Custom colors, implemented in at least C4 medium quality, support your corporate identity concepts and design requirements.

The existing structural analysis for high wind and snow loads saves you time and money.
Wind and snow loads Sk = 1.9 kN/m2
The characteristic Sk value in the snowiest zones (3) in Germany is greater than or equal to 1.10 kN/m2.
The structures are also permitted for wind load zones I – III and are therefore approved throughout the entire federal territory.

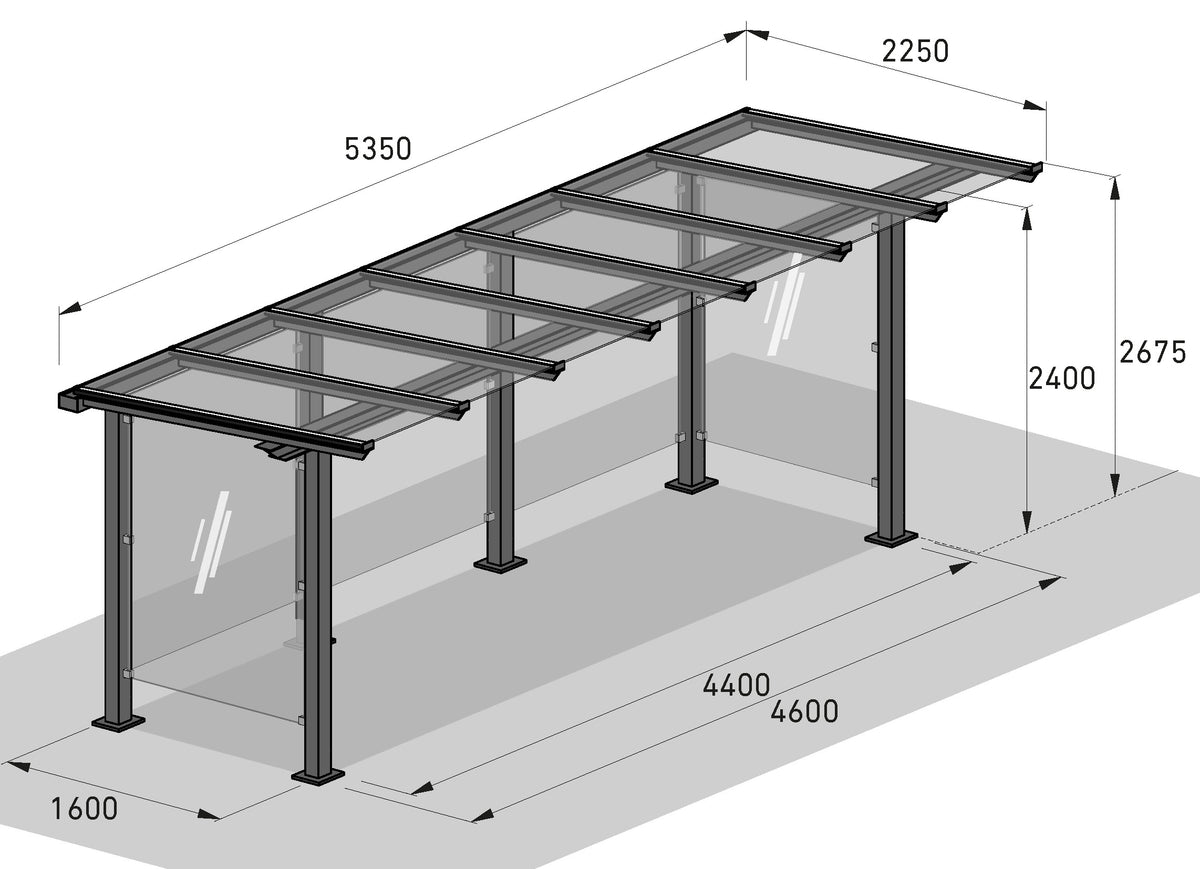

Dimensions:
Width: 5,350 mm
Depth: 2,250 mm
Height: 2,445 mm
Clear height: 2,200 mm
Height when paved over: 2,645 mm

Technical data:
Number of wall elements: 5
Construction: Welded / fully assembled or bolted / kit
Roof type: Pitched roof / Laminated safety glass (VSG)
Drainage: Via gargoyles
Surface: Hot-dip galvanized and powder-coated - RAL color of your choice
Pipe diameter: 100 mm
Back panel type: Single-pane safety glass (ESG)
Sidewall type: Single-pane safety glass (ESG)
Snow load: 1.90 kN/m²
Wind load zone : Zone 1 to 3
Warranty: 5 years

Glass design screen printing:
The wall elements made of single-pane safety glass (ESG) are printed with stripes, grids, ornaments, coats of arms, logos, photos, etc.
There are no limits to their design possibilities. They also offer the ideal blank space for advertising, notices, pictograms, etc.
Please select your desired glass design from the selection box.

Delivery options:

• Fully assembled – the canopy is delivered fully assembled to the customer's site by crane truck and positioned at the installation location. Truck crane checklist – please click on the link!
• Kit delivery - if the installation site is in a location inaccessible to the crane truck.

Options for foundation, base plates, fastening:

The following options are available for securing the device to the ground or for the foundation:

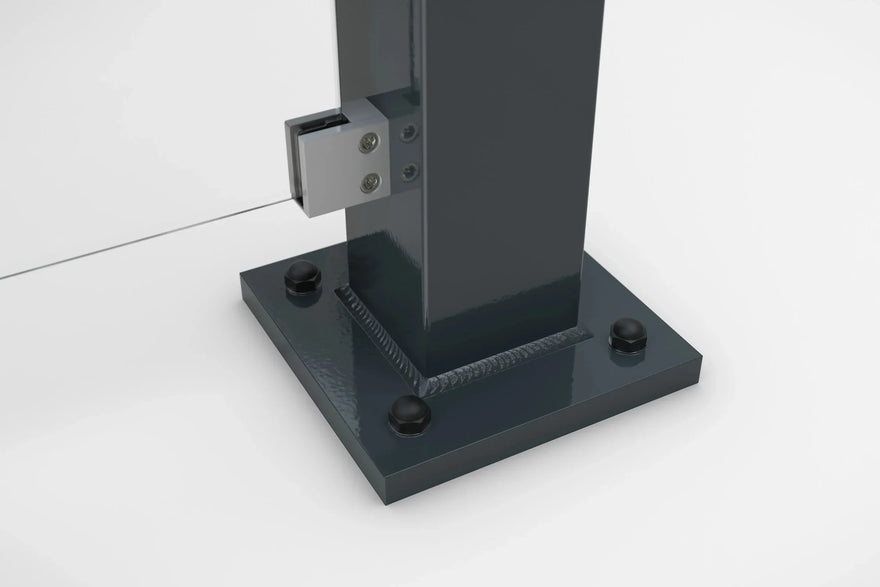

• Fastening to existing foundation (OKF +/-0) - for anchoring to foundation points or base plates provided on site.
• Paved subgrade (OKF -200) - For this, you will receive support pillars extended by 200 mm, which are fastened using bolts or high-bond anchors and then paved over. Other lengths besides 200 mm are also available upon request.

Options for unloading and assembly on site:

• Self-unloading - You have the option of unloading the goods yourself on site, so we do not need a crane truck.
• Unloading by crane truck - Delivery and unloading on site by crane truck, without assembly.
• Unloading by crane truck including on-site assembly - the canopy is unloaded, positioned and professionally assembled on-site by us and anchored to the ground.

Frame color of your choice: Profile color
Please enter the desired RAL color in the input field. An overview of all RAL colors can be found here – please click on the link.



Suitable accessories: (please scroll to the bottom)

• Lighting - Toplight LED luminaire - Energy-efficient lighting system with LED technology for increased safety in the dark. Uniform illumination of the shelter is achieved through a wide-beam transverse prism.
• Photovoltaic lighting – identical to the Toplight LED with solar panel, including post and base plate for bolting down. Independent of the power grid. The integrated battery has a capacity of 432 Wh.
• Heating – Infrared radiant heater, specially designed for roof systems. The flexibly mountable wireless switch (battery-free) simplifies installation. The timer function supports the sustainable operation of the heater.
• Ashtrays - Various models and designs
• Standing table - Various models and designs

Instructions for installation by us:
The necessary foundations must be constructed on-site according to our specifications.
With the order confirmation you will receive a foundation plan, whereby we assume normal soil conditions (2 kg/m²) for the design.
It must be ensured that the boreholes can be drilled into the base plate without reinforcement, with a depth of at least 100 mm.
There are no supply lines in the area of ​​the ground anchoring.
In our offer, we assume no longitudinal or transverse slope to such an extent that an adjustment of the design is necessary.
In this specific case, we will gladly offer you a slope adjustment upon request (for an additional charge).
The foundations to be constructed must be level and horizontal, without any slope, and with a maximum height difference of +/- 5 mm.
Anchoring by our installation team on paved or asphalt surfaces (tar, bitumen, etc.) is not permitted.

Packaging:
You will be responsible for disposing of the packaging material required for truck transport (wood, PE film, cardboard, etc.) on site.

Delivery time:
approximately 6-8 weeks after order confirmation

Exclusion from exchange:
Items coated in RAL colors, custom-made items, or individually manufactured items are excluded from exchange (return).
