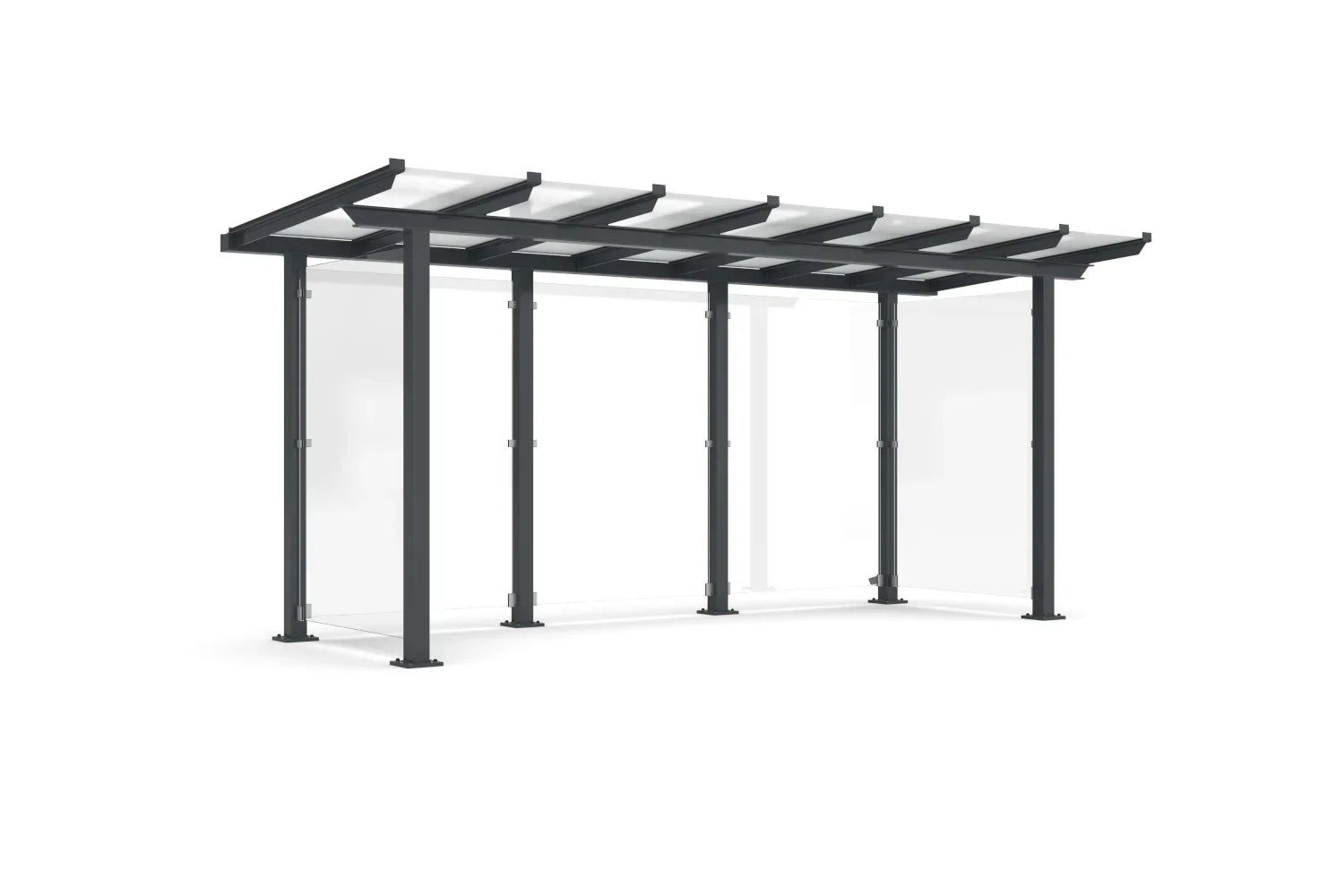

Smoking shelter, bicycle shelter, passenger shelter model Passau P13 - 535cm x 209cm

Smoking Shelter, Bicycle Shelter, People Shelter Model Passau P13 - Galvanized Steel, Powder-Coated in Color of Choice

Hot-dip galvanized steel structure with large glass surfaces and a monopitch roof in variable sizes, with selectable side walls and pre-approved structural analysis.

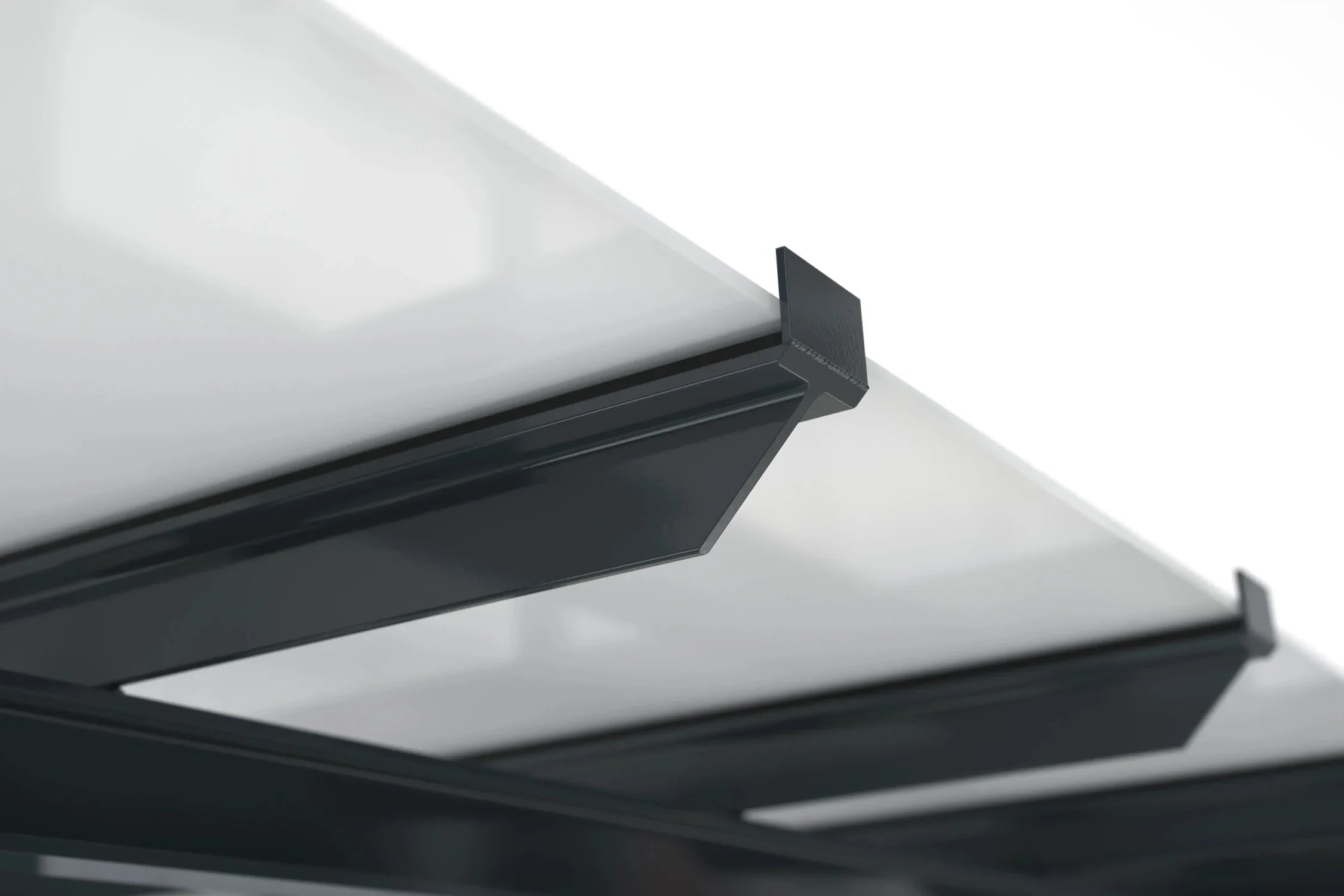

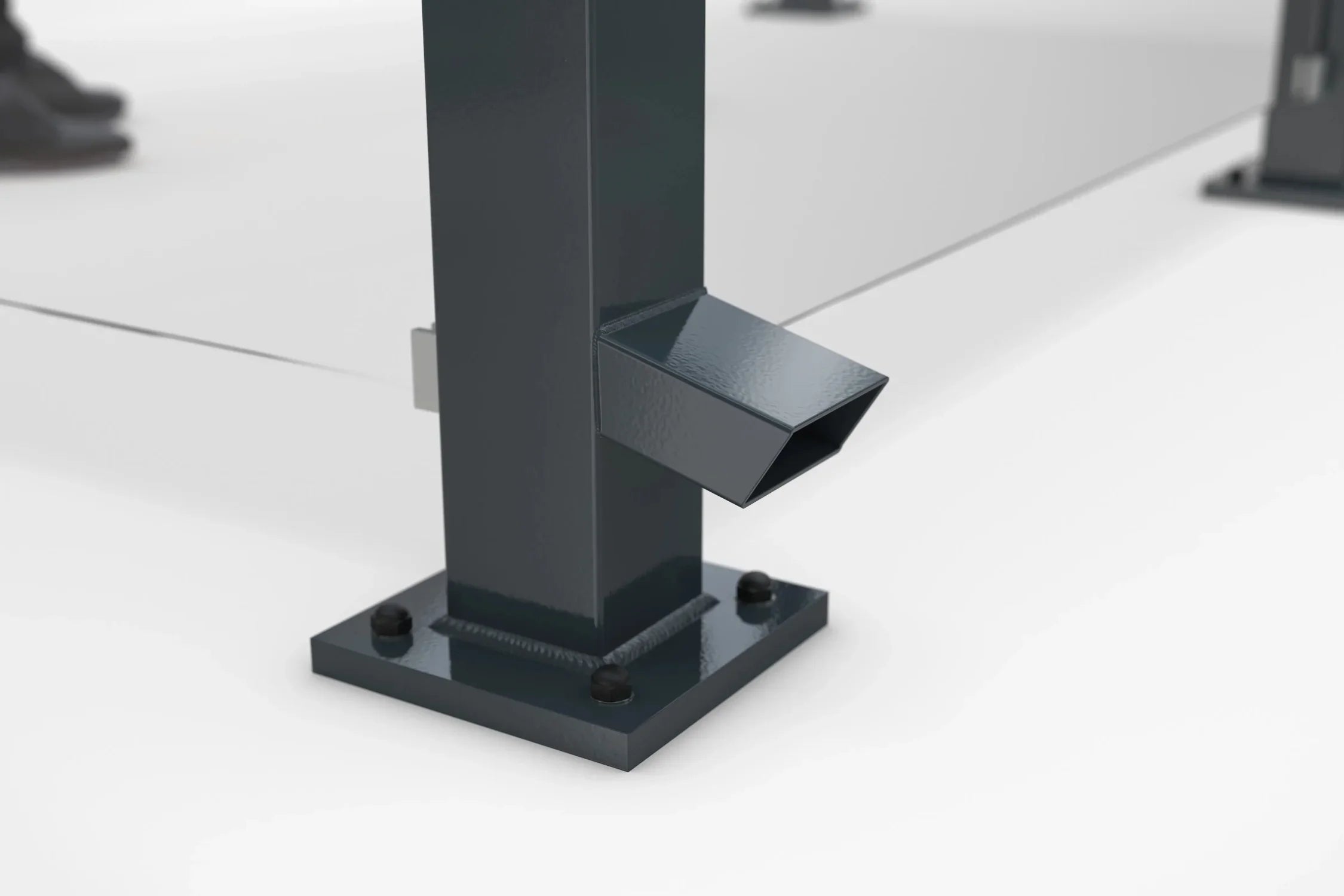

A shapely shelter, easily visible from all sides, ideally suited for people or two-wheelers, made of galvanized steel profiles and safety glass. Load-bearing frame construction made of profile tubes. Monopitch roof made of laminated safety glass (VSG) with drainage through bituminized folded profiles at the back of the roof. Drainage occurs through the rear right corner post via a gargoyle to the rear (water outlet approx. 120 mm above the ground).

Corrosion Protection: The entire structure is galvanized, primed, and color-coated or painted with environmentally friendly two-component paint.
Corrosivity protection class: C4 medium (corrosivity based on DIN EN ISO 12944-2)
Roofing: Laminated safety glass (VSG)
Steel structure: RAL color of choice (excluding pearl and signal colors)

Variable sizes and numerous options for rear and side walls – including printable ESG – create weather-resistant shelters for vehicles, materials, or comfortable lounge areas. Individual color schemes, implemented in at least C4 medium quality, support your CI concepts and design wishes.

The existing structural analysis for high wind and snow loads saves you time and money.
Wind and snow loads Sk = 1.9 kN/m2
The characteristic Sk-value in the snowiest zones (3) in Germany is greater than or equal to 1.10 kN/m2.
The constructions are also approved for wind load zones I – III and thus approved throughout Germany.

Dimensions:
Width: 5,350 mm
Depth: 2,090 mm
Height: 2,435 mm
Clear height: 2,200 mm
Height when paved over: 2,635 mm

Technical data:
Number of wall elements: 5
Construction: Welded / fully assembled or Bolted / Kit
Roof type: Monopitch roof / Laminated safety glass (VSG)
Drainage: Via gargoyle
Surface: Hot-dip galvanized and color-coated - RAL color of choice
Pipe diameter: 100 mm
Rear wall type: Single-pane safety glass (ESG)
Side wall type: Single-pane safety glass (ESG)
Snow load: 1.90 kN/m²
Wind load zone: Zone 1 to 3
Warranty: 5 years

Glass Design Screen Printing:
The wall elements made of single-pane safety glass (ESG) are printed with stripes, grids, ornaments, coats of arms, logos, photos, etc.
There are no limits to your design. They also offer the ideal free surface for advertising, information, pictograms, etc.
Please select the desired glass design in the selection field.

Delivery options:

• Fully assembled - The shelter is delivered fully assembled and positioned on site at the customer's location with a crane truck. Crane Truck Delivery Checklist - please click on the link!
• Kit delivery - If the installation location is in a place not accessible by crane truck.

Options for foundation, base plates, fastening:

For fastening to the ground or for the foundation, the following options are available:

• Fastening to existing foundation (OKF +/-0) - for doweling onto foundation points or base plates provided by the customer.
• Paved subsurface (OKF -200) - You will receive support pillars extended by 200mm, which are fastened with bolts or high-bond anchors and then paved over. Other lengths than 200mm are also available on request.

Options for unloading and on-site assembly:

• Self-unloading - You have the option to unload the goods yourself on site, thus eliminating the need for a crane truck.
• Unloading by crane truck - Delivery and unloading on site by crane truck, without assembly.
• Unloading by crane truck incl. on-site assembly - The shelter is unloaded, positioned, professionally assembled on site by us, and doweled to the ground.

Frame color of choice: Color of profiles
Please specify the desired RAL color in the input field. An overview of all RAL colors can be found here - please click on the link.



Matching accessories: (please scroll all the way down)

• Lighting - Toplight-LED luminaire - Energy-efficient lighting system with LED technology for increased safety in the dark. Uniform illumination of the shelter is achieved by a wide-beam cross-prism.
• Lighting with Photovoltaics - identical to Toplight-LED with solar panel incl. post and base plate for doweling. Independent of the power grid. The built-in battery has a capacity of 432 Wh.
• Heating - Infrared heater, specially designed for roofing systems. The flexibly attachable radio push-button (battery-free) simplifies installation. Time control supports the sustainable operation of the heating.
• Ashtrays - Various models and designs
• Standing table - Various models and designs

Notes for assembly by us:
The required foundations must be prepared by the customer according to our specifications.
With the order confirmation, you will receive a foundation plan, assuming normal soil conditions (2 kg/sqcm) for dimensioning.
It must be ensured that drillings of at least 100 mm can be made into the base plate without reinforcement.
There are no supply lines in the area of the base plate doweling.
The offer assumes no longitudinal or transverse slope to an extent that would require an adjustment of the construction.
In specific cases, we would be happy to offer a slope adjustment (at extra cost) upon request.
Foundations to be laid must be on the same level and in balance without any slope, with a maximum height difference of +/- 5 mm.
Doweling by our assembly team on paved or asphalt surfaces (tar, bitumen, etc.) is not permitted.

Packaging:
The packaging material necessary for truck transport (wood, PE film, cardboard, etc.) will be disposed of by you on site.

Delivery time:
approx. 6-8 weeks after order confirmation

Exclusion from exchange:
Items that are coated according to RAL colors, custom-made products, or individually manufactured are excluded from exchange (return).

Manufacturer:
Kirchberger Metall Onlinevertrieb GmbH
Neunburger Str. 2c
92431 Neunburg v. W. / Seebarn
Germany

Contact:
Email: shop@kirchberger-metall.de
Telephone: +49 (0) 9672 9269110
