Canopy, pedestrian shelter, bicycle shelter Passau P12 B - 385cm x 225cm

Smokers' Shelter, Two-Wheeler Shelter, Passenger Shelter Model Passau P12 B - Galvanized Steel, Powder-Coated in Color of Choice

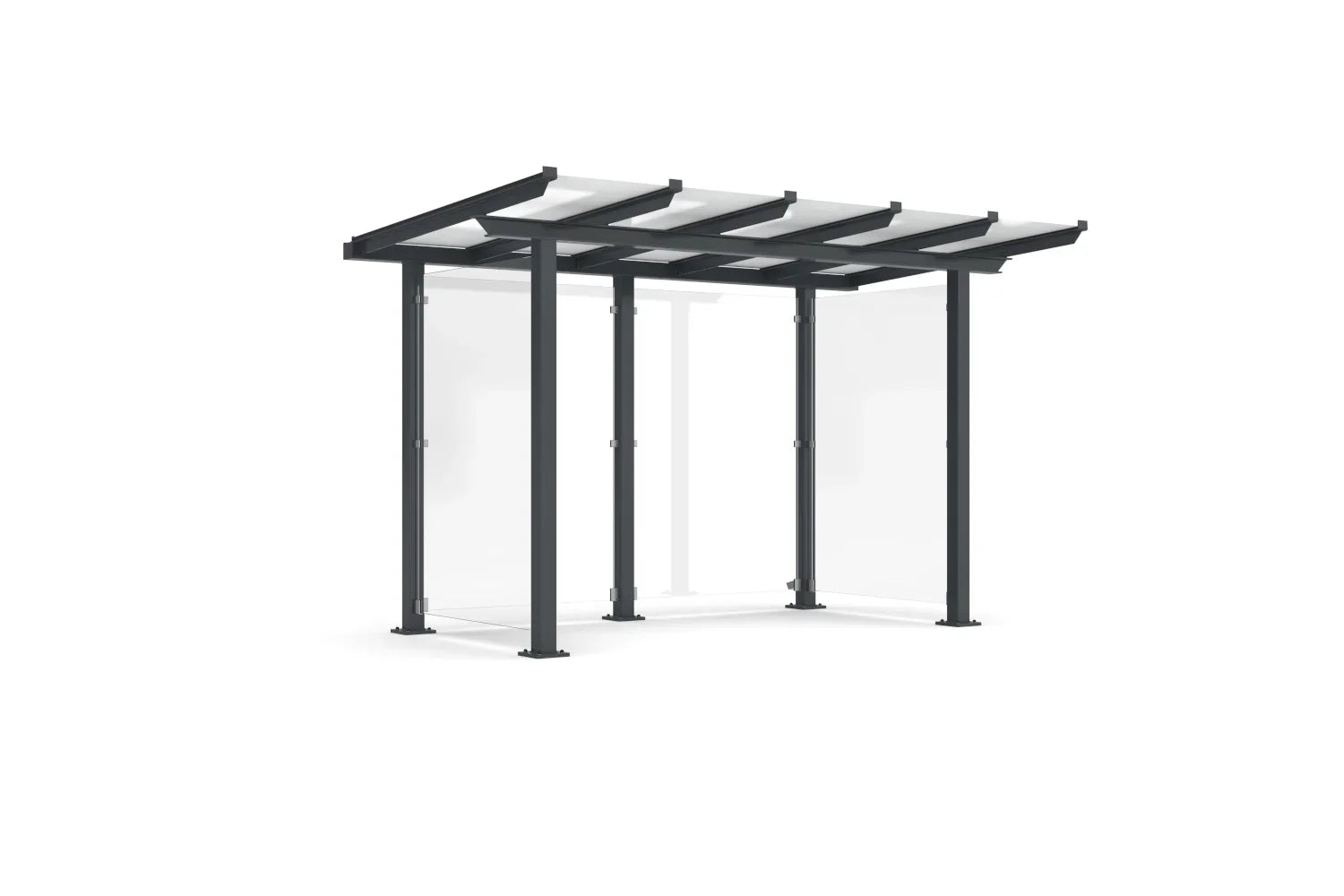

Hot-dip galvanized steel construction with large glass surfaces and monopitch roof in variable sizes, selectable side panels, and pre-approved structural analysis.

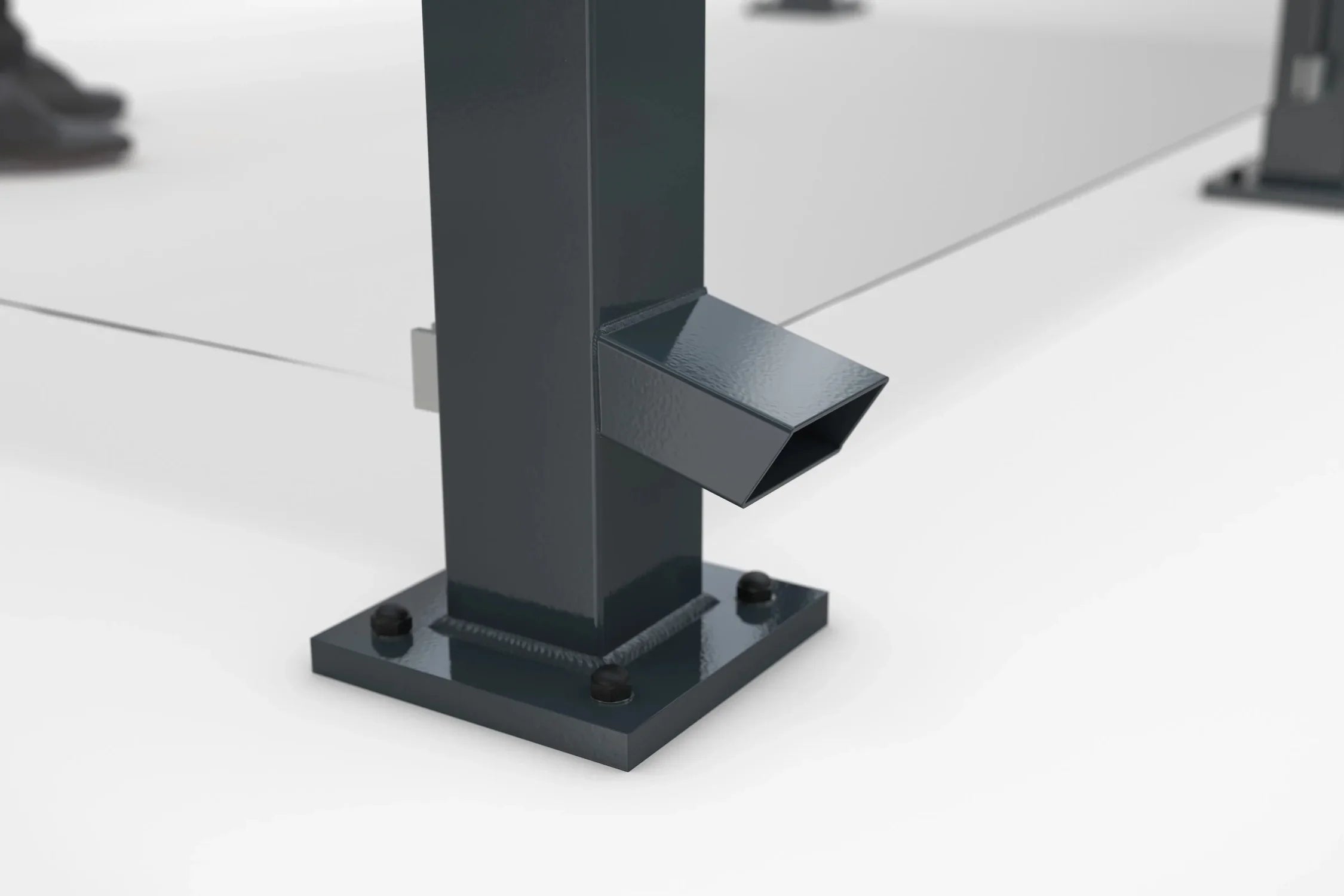

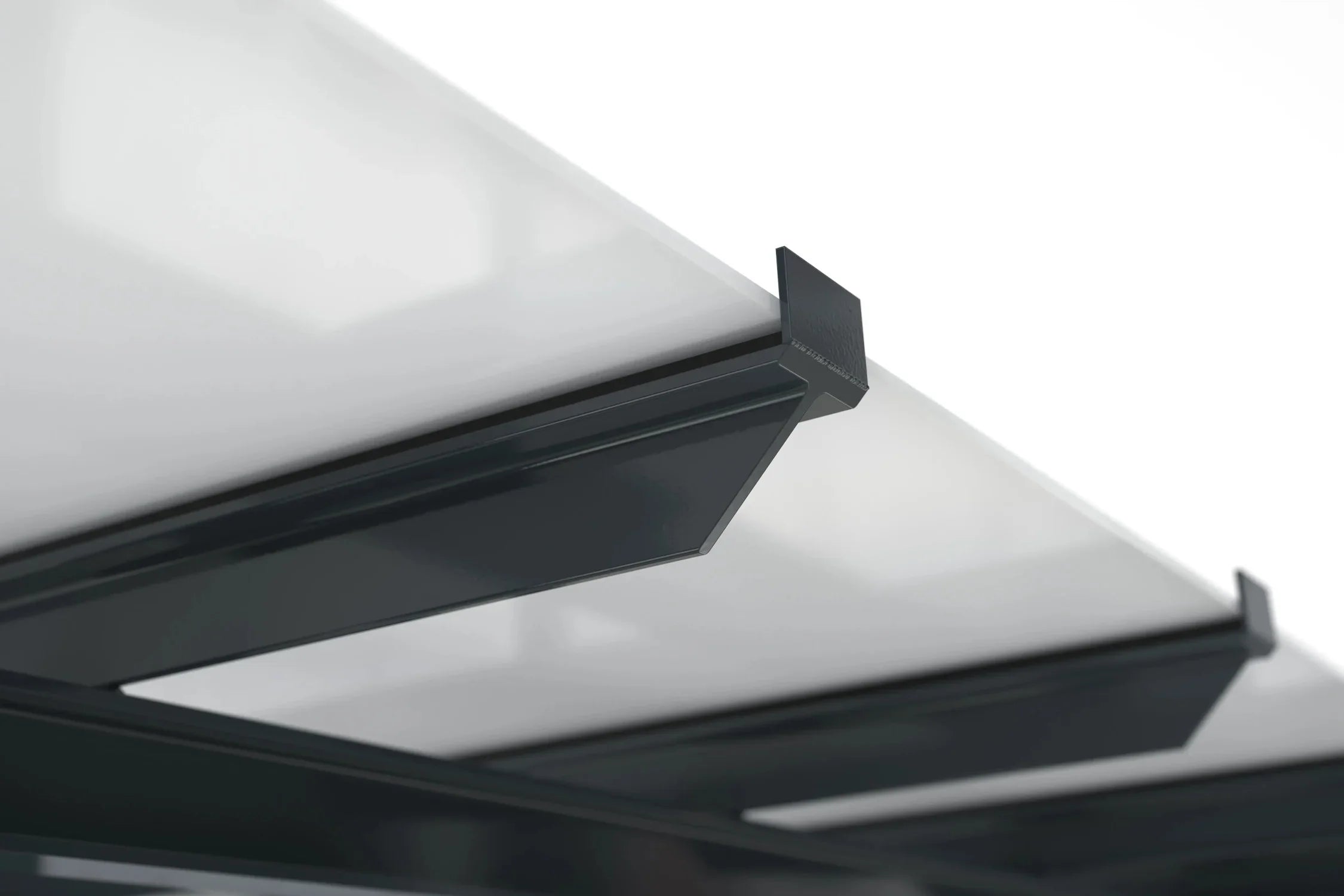

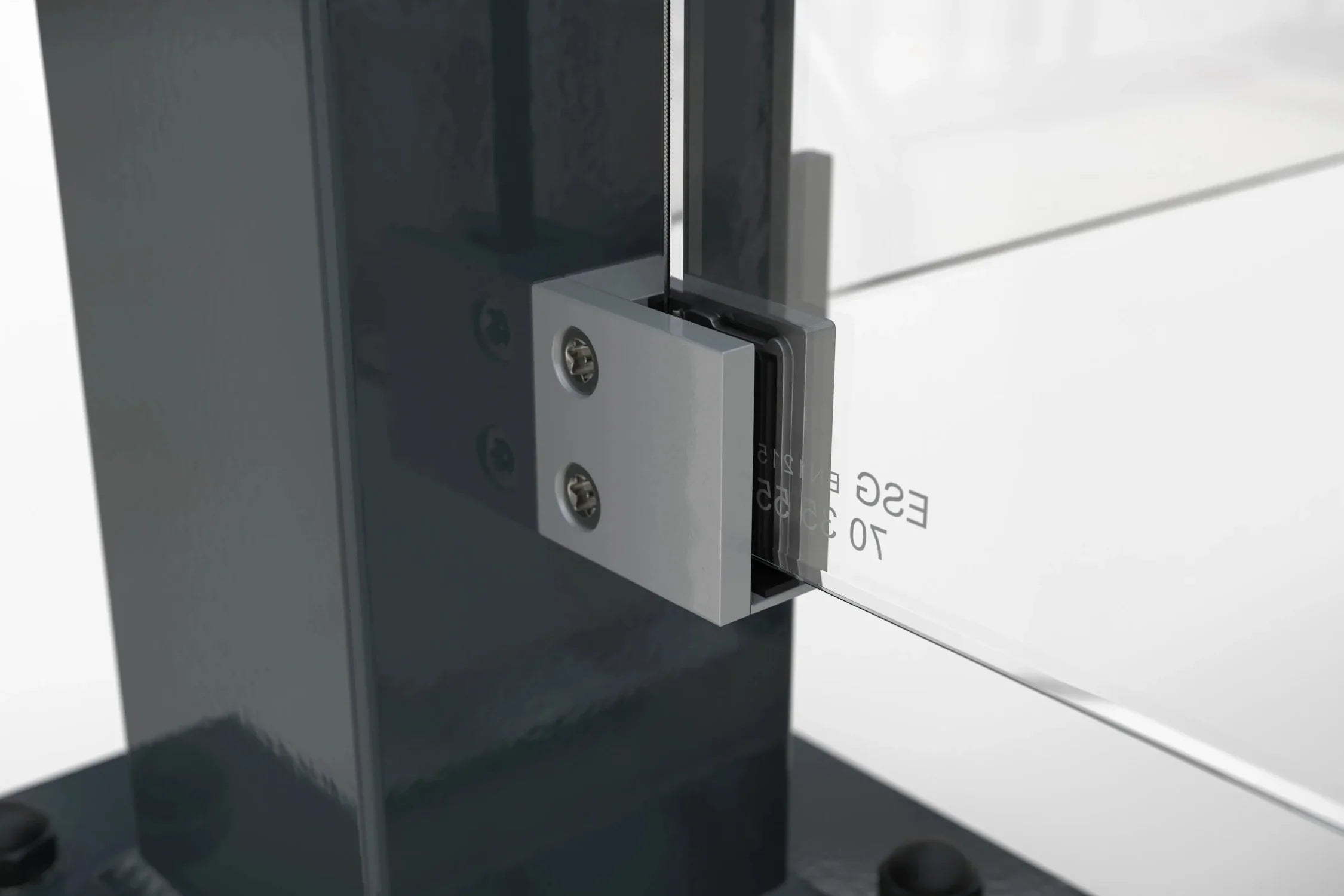

A shapely shelter, easily visible from all sides, ideally suited for people or two-wheelers, made of galvanized steel profiles and safety glass. Load-bearing frame construction made of tubular profiles. Monopitch roof made of laminated safety glass (VSG) with drainage via bitumen-coated folded profiles on the rear side of the roof. Drainage occurs through the rear right corner post by means of a gargoyle to the rear (water outlet approx. 120 mm above the ground).

Corrosion protection: The entire structure is galvanized, primed, and color-coated, or painted with environmentally friendly two-component lacquer.
Corrosivity protection class: C4 medium (Corrosivity based on DIN EN ISO 12944-2)

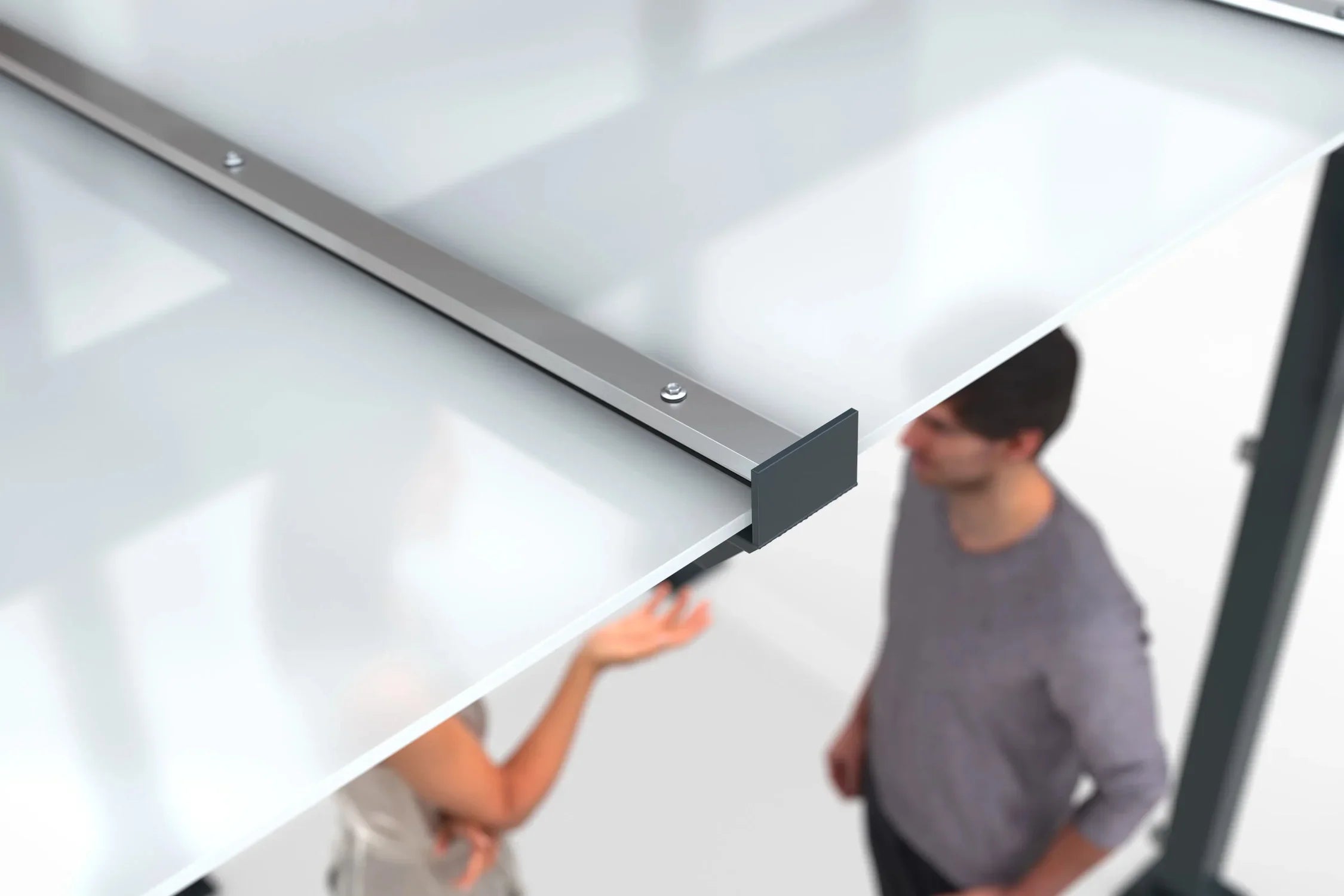

Roofing: Laminated safety glass (VSG)
Steel construction: RAL according to choice (pearl and signal colors excluded)

Variable sizes and numerous options for rear and side walls - including printable ESG - allow for the creation of weatherproof shelters for vehicles, materials, or comfortable lounge areas. Individual color schemes, implemented in at least C4 medium quality, support your CI concepts and design preferences.

The existing structural analysis for high wind and snow loads saves you time and money.
Wind and snow loads Sk = 1.9 kN/m2
The characteristic Sk-value in the snowiest zones (3) in Germany is greater than or equal to 1.10 kN/m2.
The constructions are also approved for wind load zones I – III and are thus approved throughout Germany.

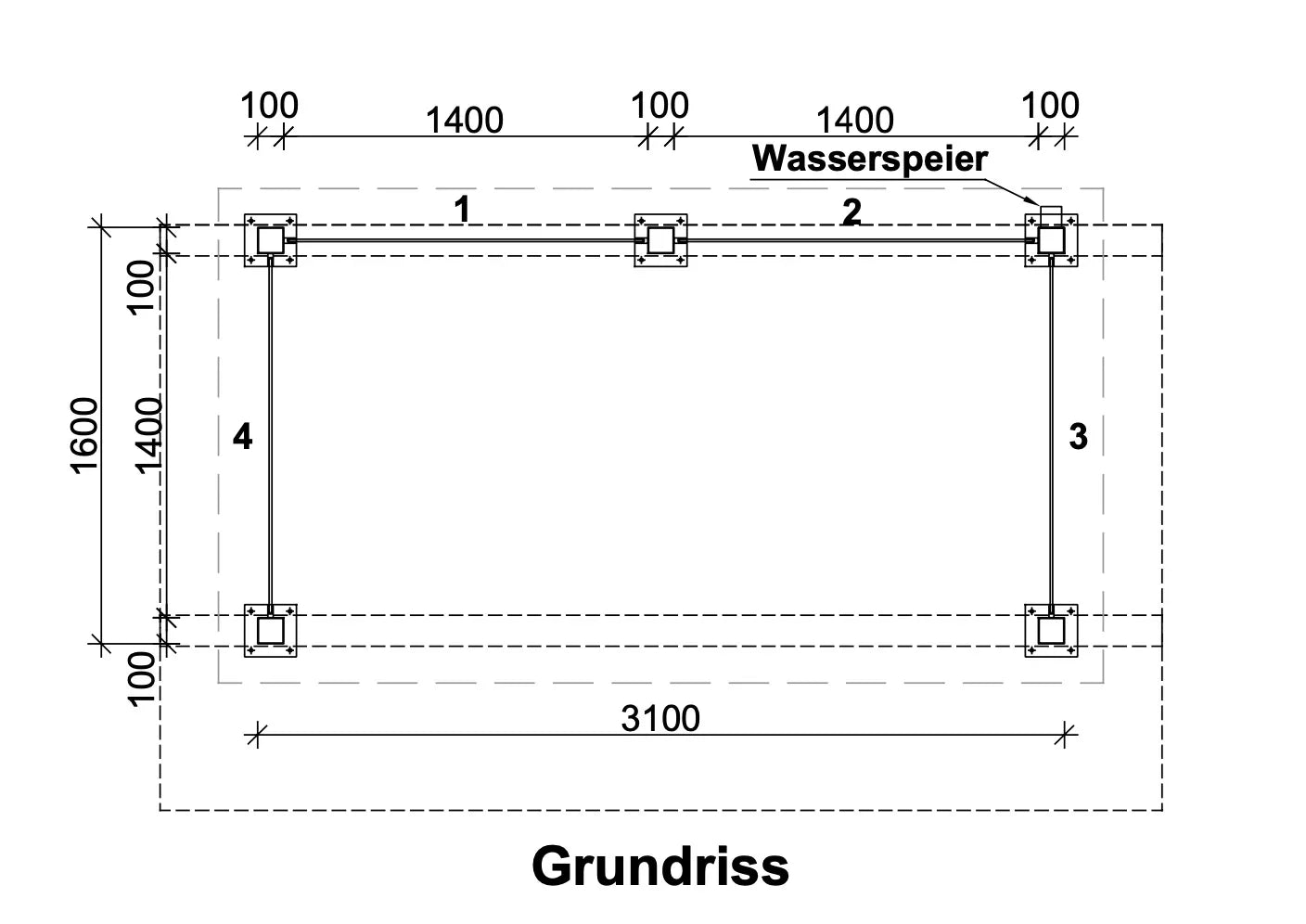

Dimensions:
Width: 3,850 mm
Depth: 2,250 mm
Height: 2,445 mm
Clearance height: 2,200 mm
Height when paved over: 2,645 mm

Technical data:
Number of wall elements: 4
Construction: Welded / fully assembled or Bolted / Kit
Roof type: Monopitch roof / Laminated safety glass (VSG)
Drainage: Via gargoyle
Surface: Hot-dip galvanized and color-coated - RAL color of choice
Pipe diameter: 100 mm
Rear wall type: Single-pane safety glass (ESG)
Side wall type: Single-pane safety glass (ESG)
Snow load: 1.90 kN/m²
Wind load zone: Zone 1 to 3
Warranty: 5 years

Glass Design Silk Screen Printing:
The wall elements made of single-pane safety glass (ESG) can be printed with stripes, grids, ornaments, coats of arms, logos, photos, etc.
There are no limits to your design. They also offer the ideal free space for advertising, notices, pictograms, etc.
Please select the desired glass design in the selection field.

Delivery options:

• Fully assembled - The shelter is completely pre-assembled and positioned at the customer's site by a crane truck. Truck-crane checklist - please click on the link!
• Kit delivery - If the installation site is in a location not accessible by crane truck.

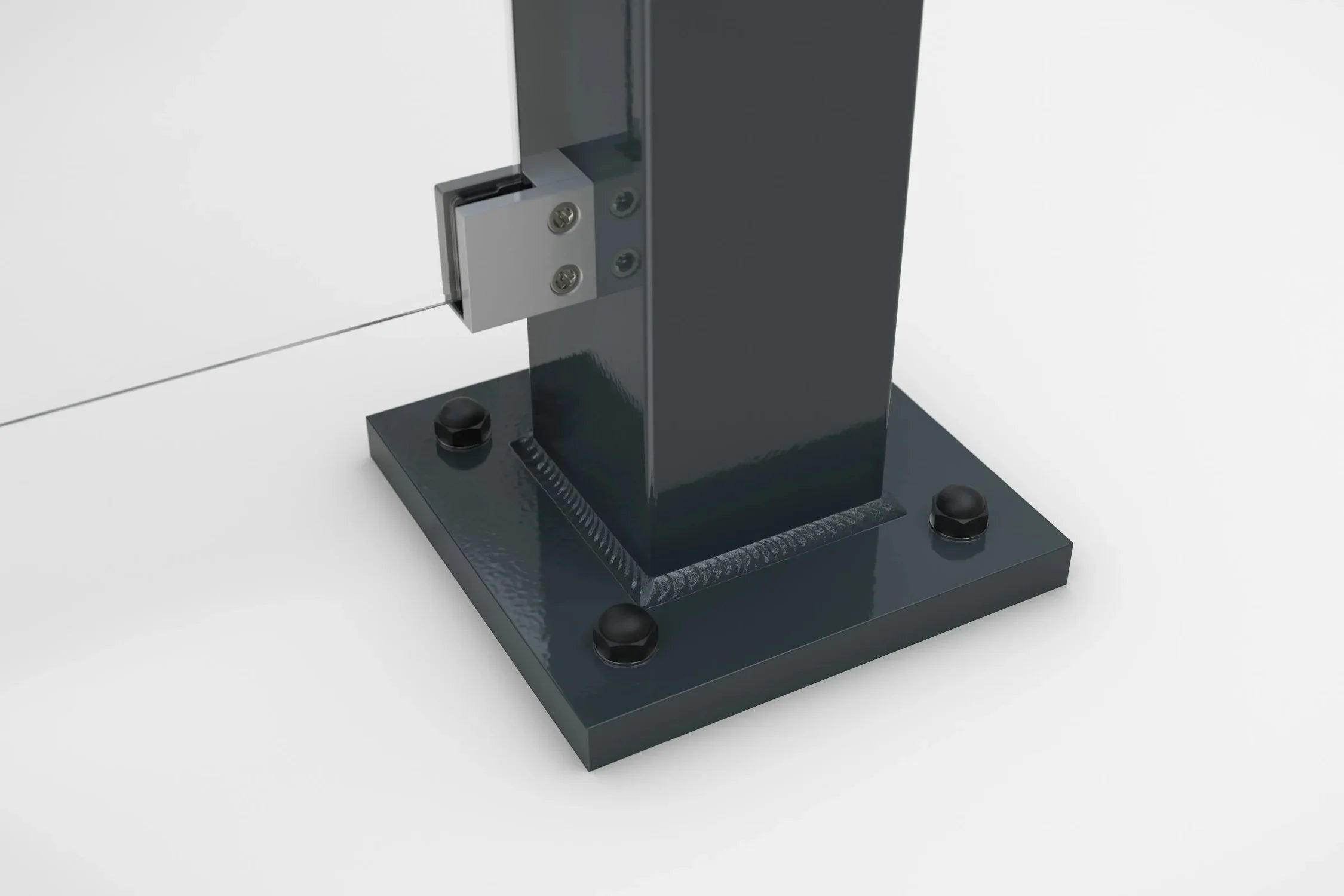

Options for foundation, base plates, fastening:

The following options are available for fastening to the ground or for founding:

• Fastening to existing foundation (OKF +/-0) - for doweling onto foundation points or base plates constructed by the customer.
• Paved ground (OKF -200) - For this, you receive support pillars extended by 200mm, which are fastened with bolts or high-bond anchors and then paved over. Other lengths than 200mm are also possible on request.

Options for unloading and on-site assembly:

• Self-unloading - You have the option of unloading the goods yourself on-site, so we do not need a crane truck.
• Unloading by crane truck - Delivery and unloading on-site by crane truck, without assembly.
• Unloading by crane truck incl. on-site assembly - The shelter is unloaded, positioned, professionally assembled on-site, and doweled to the ground by us.

Frame color of choice: Color of the profiles
Please specify the desired RAL color in the input field. An overview of all RAL colors can be found here - please click on the link.



Matching accessories: (please scroll all the way down)

• Lighting - Toplight-LED luminaire - Energy-efficient lighting system with LED technology for increased safety in the dark. Uniform illumination of the shelter is achieved by a wide-beam transverse prism.
• Lighting with photovoltaics - identical to Toplight-LED with solar panel incl. posts and base plate for doweling. Independent of the power grid. The built-in battery has a capacity of 432 Wh.
• Heating - Infrared heater, specially designed for canopy systems. The flexibly attachable radio push-button (battery-free) simplifies installation. Time control supports sustainable operation of the heating.
• Ashtray - Various models and designs
• Standing table - Various models and designs

Notes for assembly by us:
The required foundations are to be constructed by the customer according to our specifications.
With the order confirmation, you will receive a foundation plan, whereby we assume normal ground conditions (2 kg/sqcm) for dimensioning.
It must be ensured that drillings of at least 100 mm can be made into the base plate without reinforcement.
There are no supply lines in the area of the ground doweling.
The offer assumes no longitudinal or transverse slope to an extent that would require an adaptation of the construction.
In specific cases, we are happy to offer a slope adjustment (at an additional cost) on request.
Foundations to be constructed must be on the same level and level without a slope, with a maximum height difference of +/- 5 mm.
Doweling by our assembly team on paved or asphalt surfaces (tar, bitumen, etc.) is not permitted.

Packaging:
The packaging material necessary for truck transport (wood, PE film, cardboard, etc.) will be disposed of by you on-site.

Delivery time:
approx. 6-8 weeks after order confirmation

Exclusion from exchange:
Items that are coated in RAL colors, custom-made, or individually manufactured are excluded from exchange (return).
