Canopy, pedestrian shelter, bicycle shelter Passau P12 - 385cm x 209cm

Smoking Shelter, Two-Wheeler Shelter, People Shelter Model Passau P12 - Galvanized Steel, Powder-Coated in Color of Choice

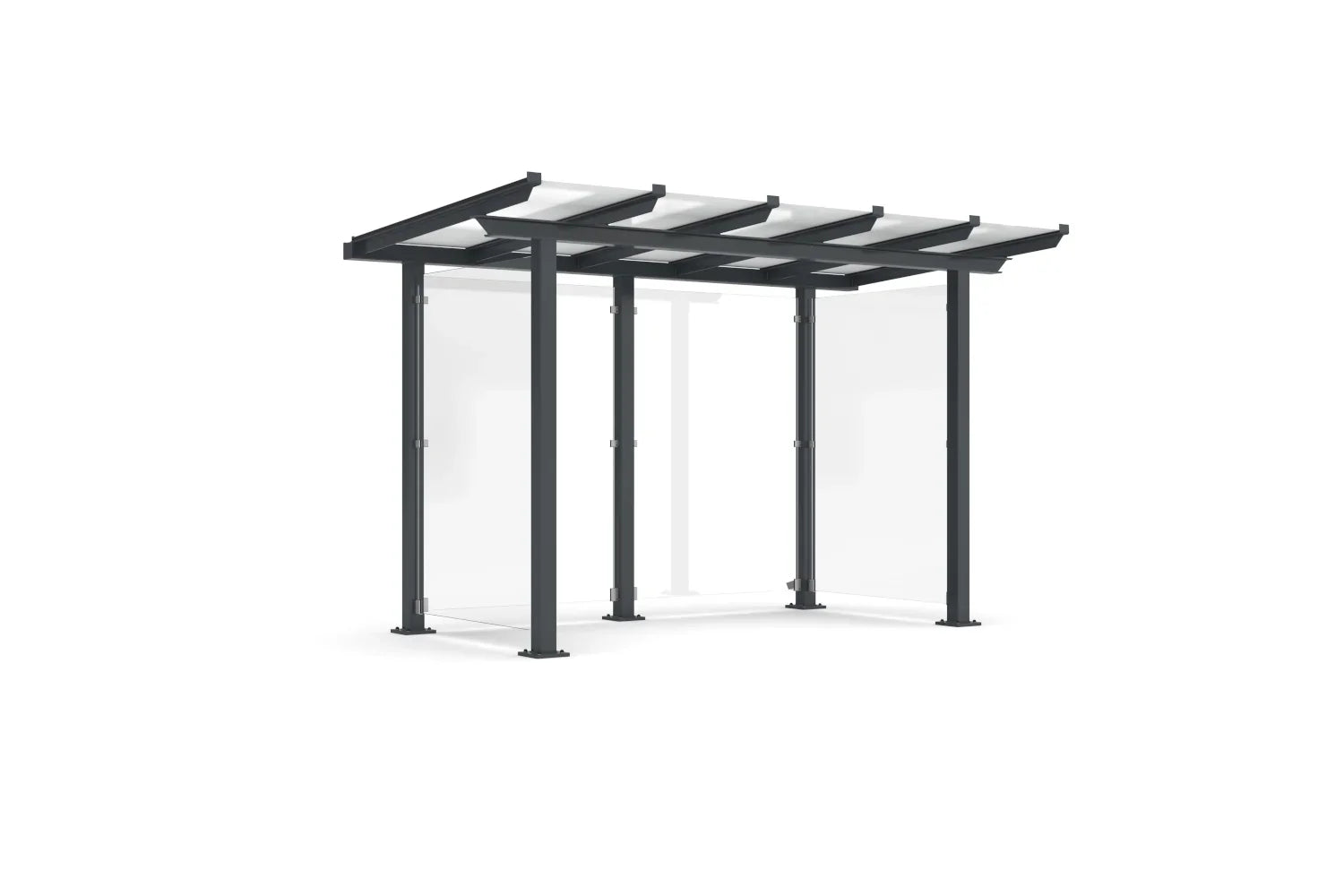

Hot-dip galvanized steel construction with large glass surfaces and a monopitch roof in variable sizes, selectable side walls, and pre-approved type statics.

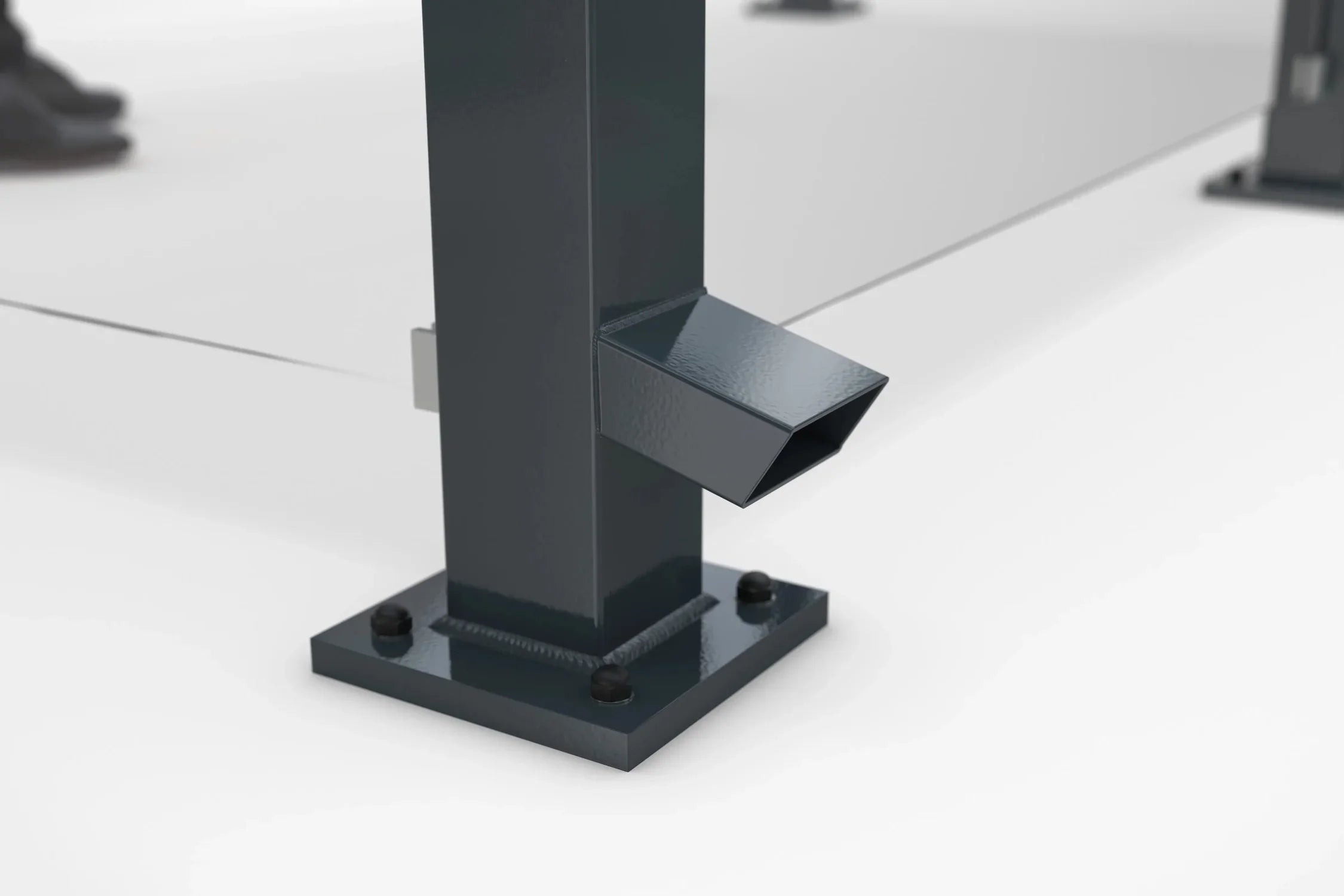

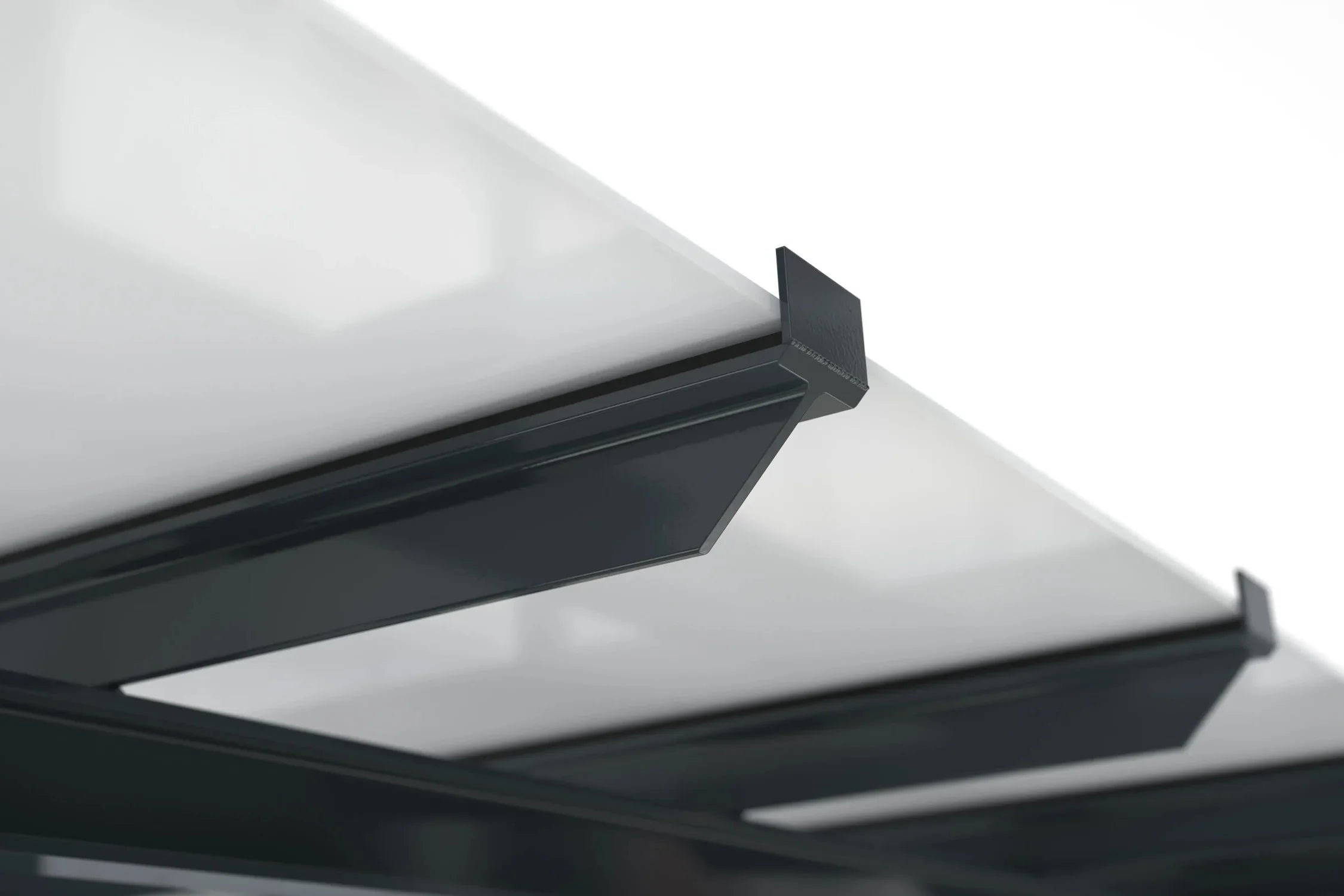

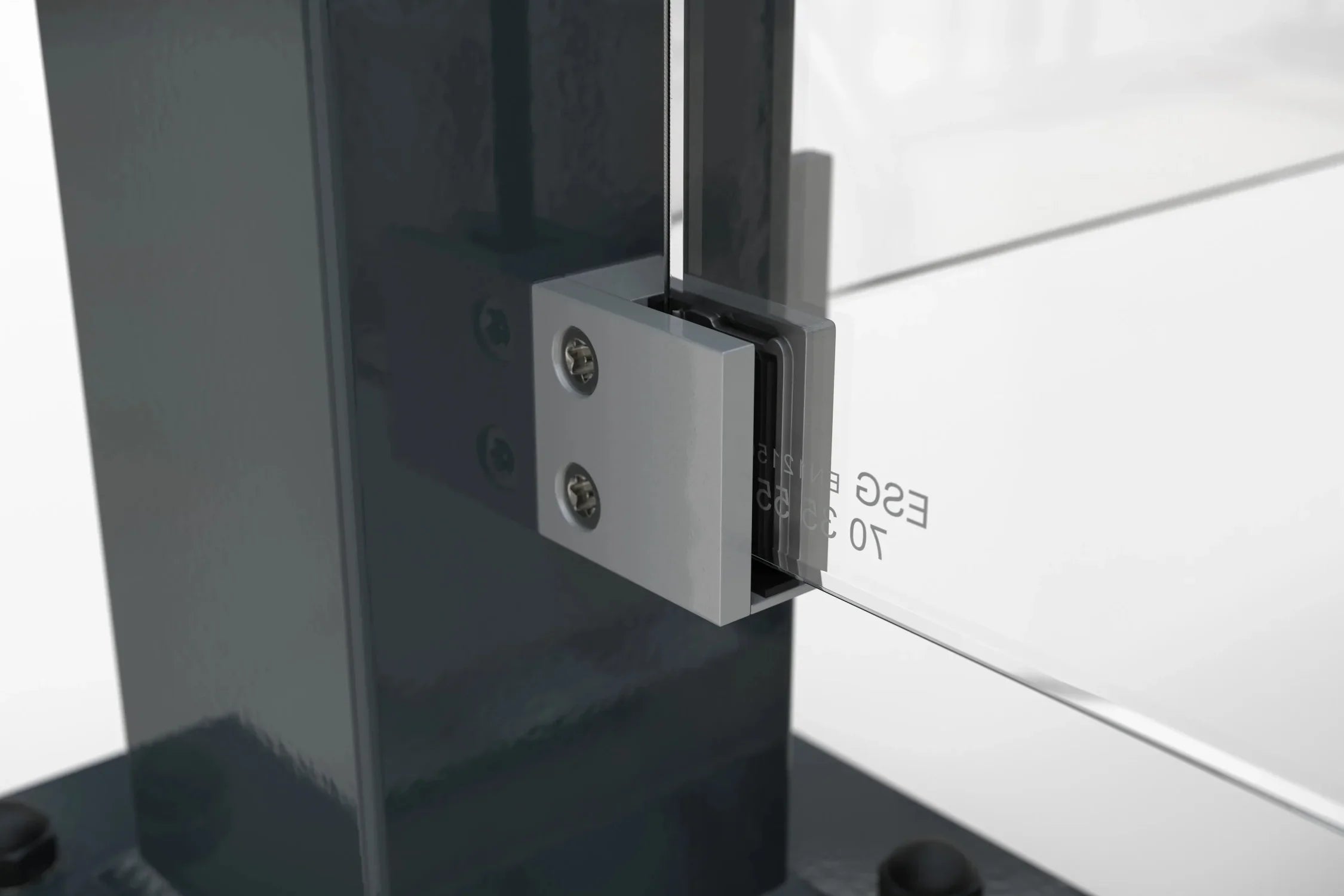

A shapely shelter, easily visible from all sides, ideally suited for people or two-wheelers, made of galvanized steel profiles and safety glass. Load-bearing frame construction made of profile tubes. Monopitch roof made of laminated safety glass (VSG) with drainage through bituminized folded profiles at the back of the roof. Drainage occurs through the rear right corner post via a gargoyle to the rear (water outlet approx. 120 mm above the ground).

Corrosion Protection: The entire structure is galvanized, primed, and color-coated or painted with environmentally friendly two-component paint.
Corrosivity protection class: C4 medium (corrosivity in accordance with DIN EN ISO 12944-2)
Roofing: Laminated safety glass (VSG)
Steel construction: RAL of choice (excluding pearl and signal colors)

Variable sizes and numerous options for rear and side walls – including printable ESG – create weatherproof shelters for vehicles, materials, or comfortable lounge areas. Individual color schemes, implemented in at least C4 medium quality, support your CI concepts and design wishes.

The existing type statics for high wind and snow loads save you time and money.
Wind and snow loads Sk = 1.9 kN/m2
The characteristic Sk value in the snowiest zones (3) in Germany is greater than or equal to 1.10 kN/m2.
The constructions are also approved for wind load zones I – III and are therefore approved throughout Germany.

Dimensions:
Width: 3,850 mm
Depth: 2,090 mm
Height: 2,435 mm
Clearance Height: 2,200 mm
Height with paving: 2,635 mm

Technical data:
Number of wall elements: 4
Construction: Welded / fully assembled or Bolted / Kit
Roof type: Monopitch roof / laminated safety glass (VSG)
Drainage: Via gargoyle
Surface: Hot-dip galvanized and color-coated - RAL color of choice
Pipe diameter: 100 mm
Rear wall type: Single-pane safety glass (ESG)
Side wall type: Single-pane safety glass (ESG)
Snow load: 1.90 kN/m²
Wind load zone: Zone 1 to 3
Warranty: 5 years

Glass Design Silk Screen:
The wall elements made of single-pane safety glass (ESG) are printed with stripes, grids, ornaments, coats of arms, logos, photos, etc.
There are no limits to your design. They also offer the ideal free space for advertising, notices, pictograms, etc.
Please select the desired glass design in the selection field.

Delivery options:

• Fully assembled - The canopy is delivered completely pre-assembled and positioned at the installation site by a crane truck. Crane truck delivery checklist - please click on the link!
• Kit delivery - If the installation site is not accessible by crane truck.

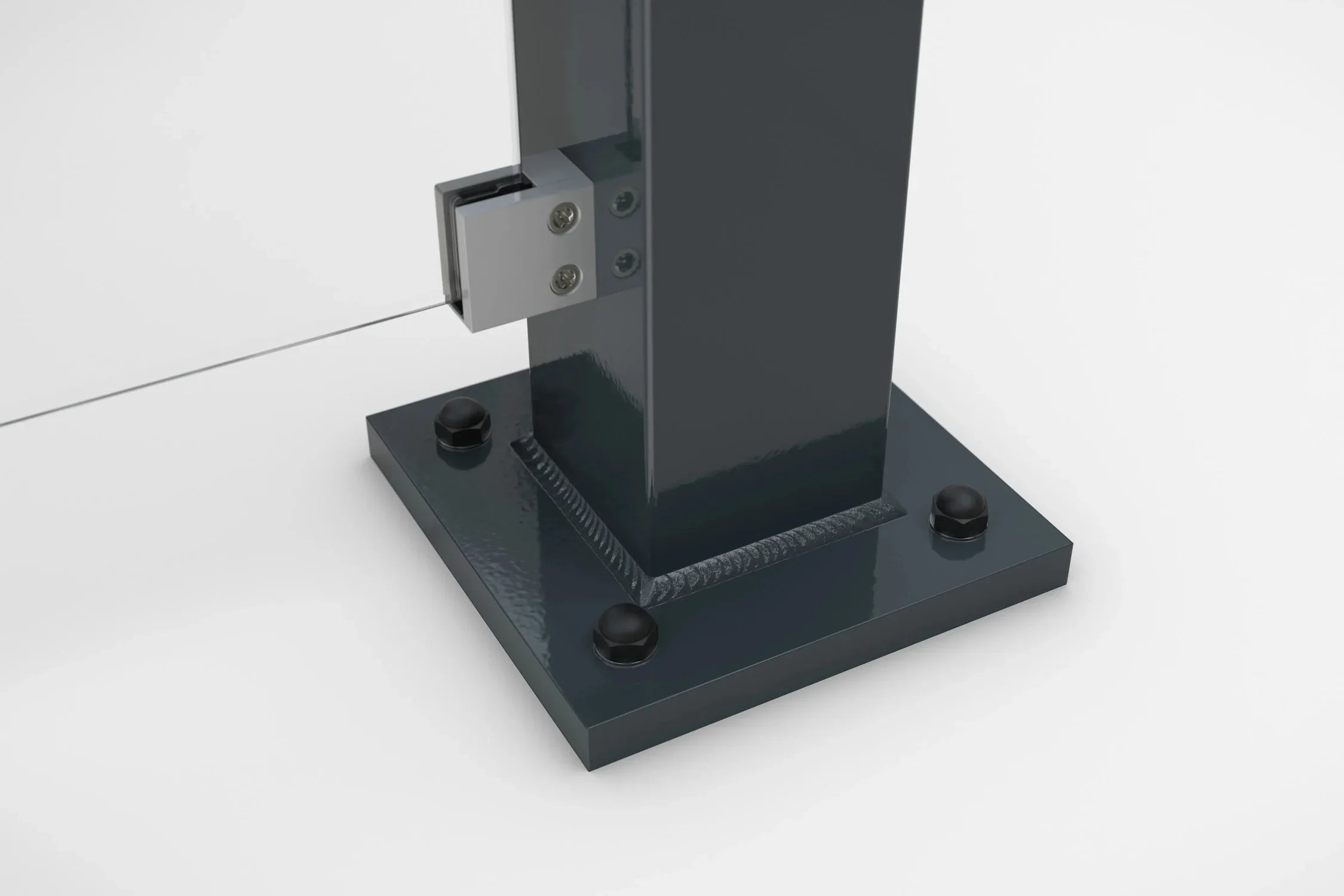

Options for foundation, base plates, fastening:

The following options are available for fastening to the ground or for the foundation:

• Fastening to existing foundation (OKF +/-0) - for bolting to foundation points or base plates provided by the customer.
• Paved ground (OKF -200) - For this, you will receive support pillars extended by 200mm, which are fastened with bolts or high-bond anchors and then paved over. Other lengths than 200mm are also available on request.

Options for unloading and on-site assembly:

• Self-unloading - You have the option to unload the goods yourself on site, so we do not need a crane truck.
• Unloading by crane truck - Delivery and unloading on site by crane truck, without assembly.
• Unloading by crane truck incl. on-site assembly - The canopy will be unloaded, positioned, professionally assembled on site, and bolted to the ground by us.

Frame color of choice: Color of the profiles
Please enter the desired RAL color in the input field. An overview of all RAL colors can be found here - please click on the link.



Matching accessories: (please scroll all the way down)

• Lighting - Toplight LED lamp - Energy-efficient lighting system with LED technology for more safety in the dark. Even illumination of the shelter is achieved by a wide-beam transverse prism.
• Lighting with photovoltaics - identical to Toplight LED with solar panel including post and base plate for bolting. Independent of the power grid. The built-in battery has a capacity of 432 Wh.
• Heating - Infrared heater, specially designed for canopy systems. The flexibly attachable radio push button (battery-free) facilitates installation. Time control supports the sustainable operation of the heating.
• Ashtray - Various models and designs
• Standing table - Various models and designs

Notes for assembly by us:
The required foundations must be prepared by the customer according to our specifications.
You will receive a foundation plan with the order confirmation, for which we assume normal ground conditions (2 kg/sqcm).
It must be ensured that drillings of at least 100 mm can be made into the base plate without reinforcement.
There are no utility lines in the area of the ground anchoring.
In our offer, we do not assume any longitudinal or transverse inclination to an extent that would require adaptation of the construction.
In specific cases, we would be happy to offer an inclination adjustment (at an additional cost) upon request.
Foundations to be constructed must be on the same level and plumb without inclination, with a maximum height difference of +/- 5 mm.
Anchoring by our assembly team on paved or asphalt surfaces (tar, bitumen, etc.) is not permitted.

Packaging:
The packaging material required for truck transport (wood, PE film, cardboard, etc.) will be disposed of by you on site.

Delivery time:
approx. 6-8 weeks after order confirmation

Exclusion from exchange:
Items that are coated in RAL colors, custom-made, or individually manufactured are excluded from exchange (return).
