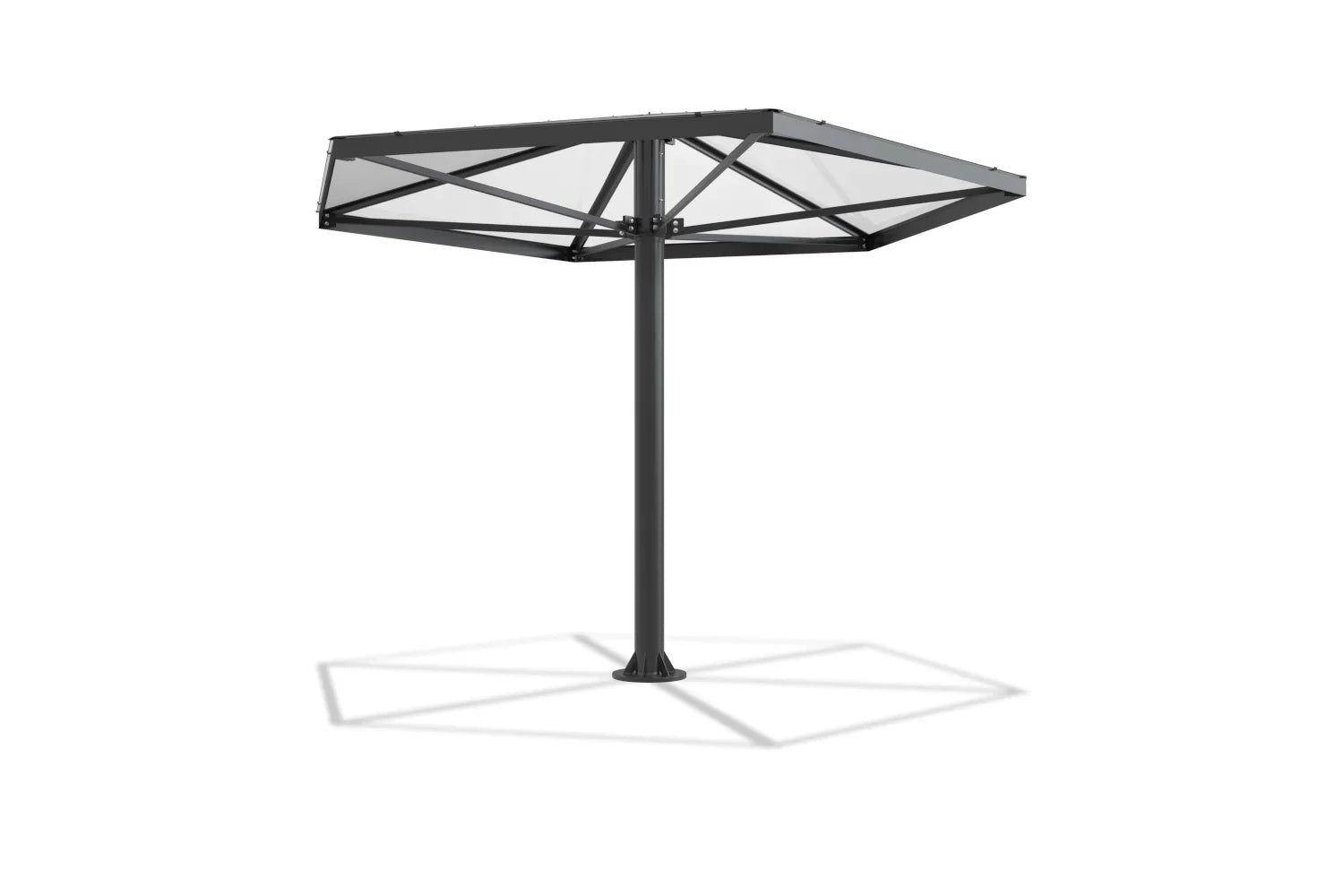

Moderner Metall Unterstand mit transparenter Überdachung, freistehend auf Stützpfosten

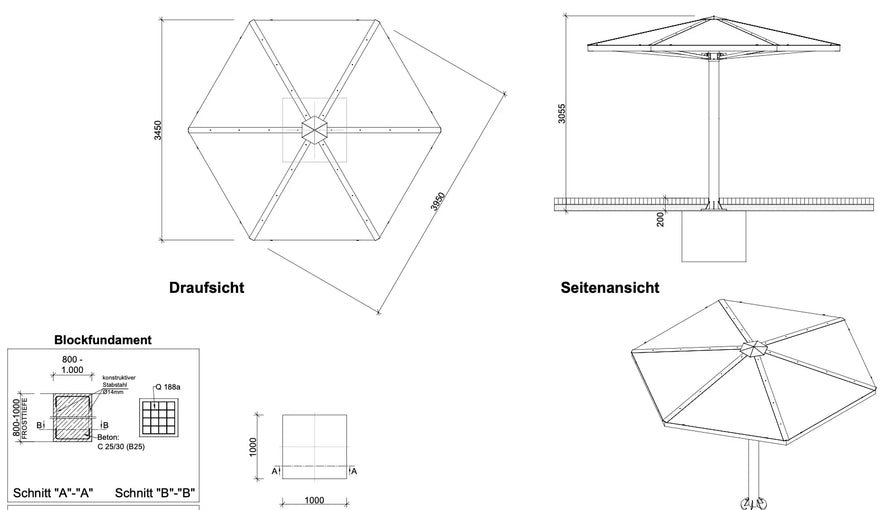

Technische Zeichnung einer sechseckigen Metall Überdachung mit Fundamentplan, Draufsicht und Seitenansicht.

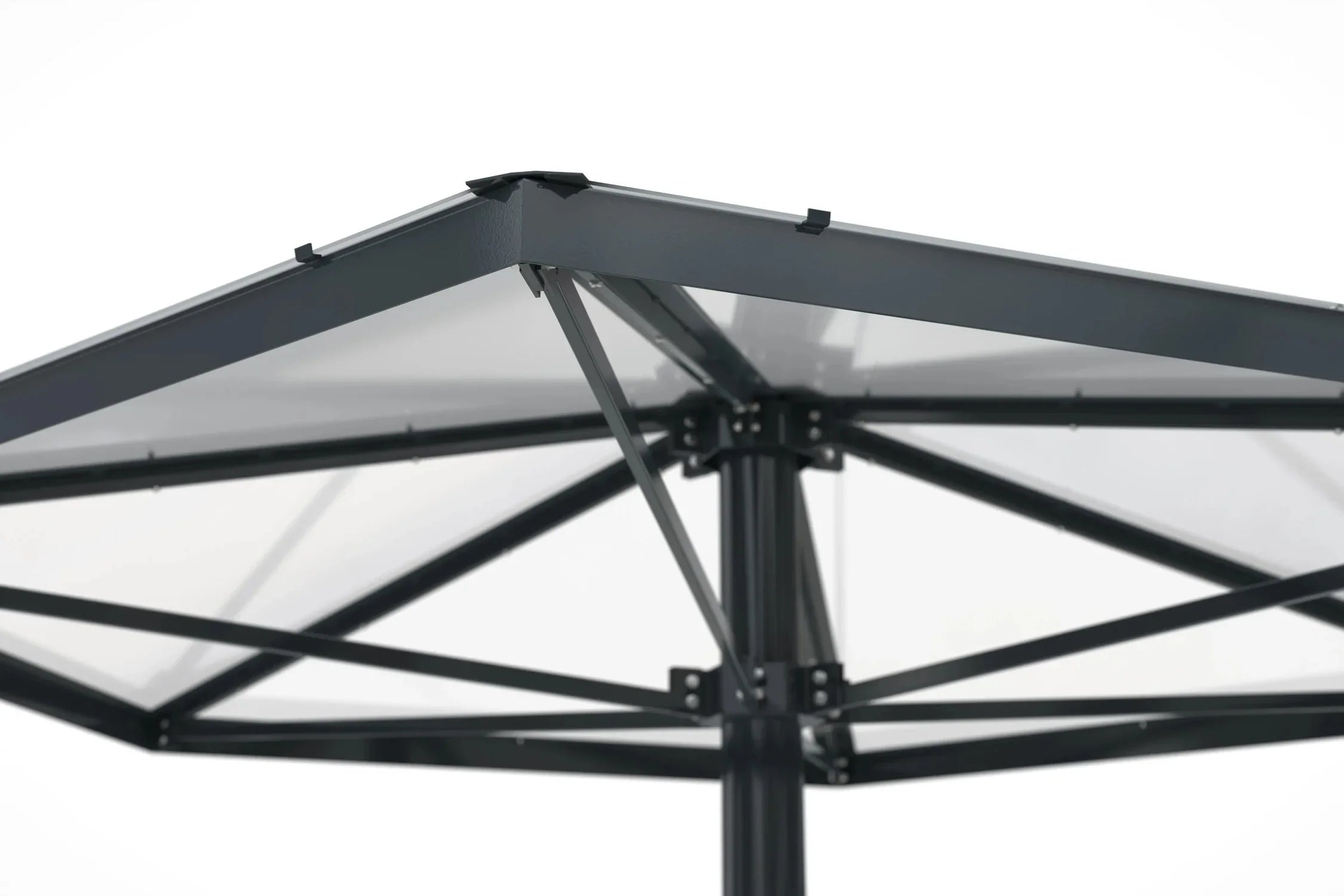

Detailansicht einer modernen Metall Überdachung mit Polycarbonatplatten, stabile Konstruktion

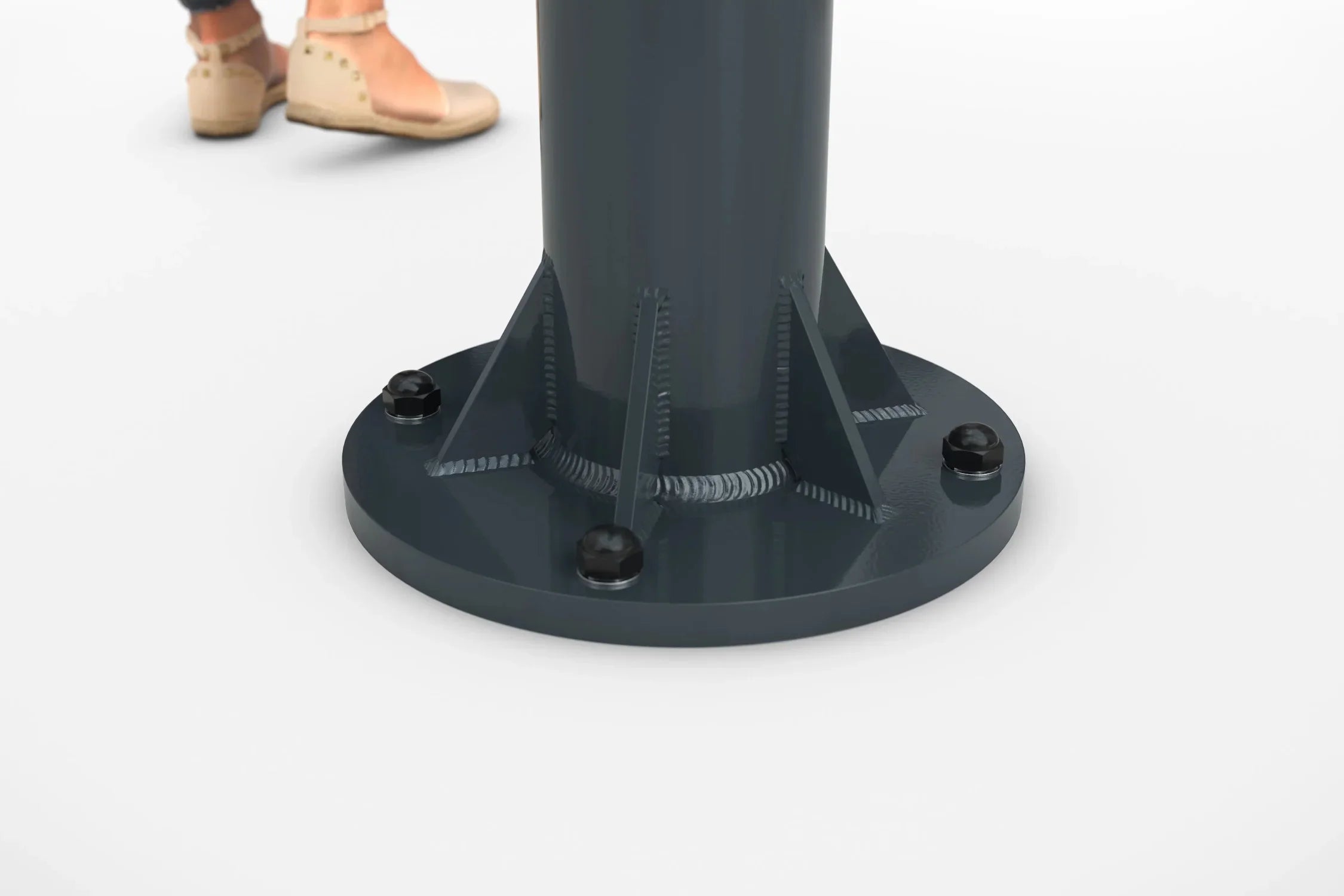

Detail einer Metallstütze mit Bodenplatte und Schrauben für Unterstand oder Überdachung

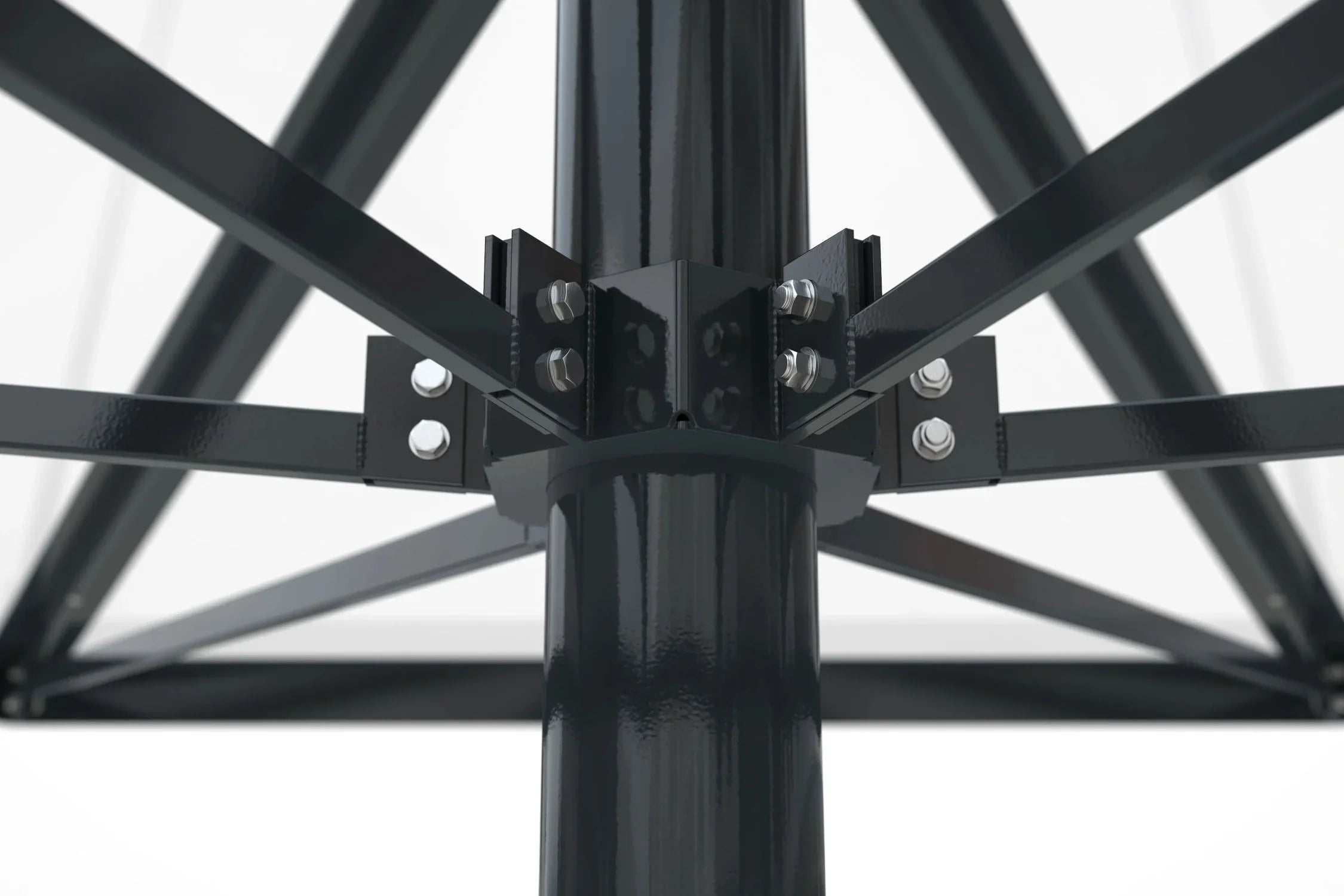

Detailaufnahme Metallkonstruktion Überdachung, schwarze Stahlträger mit Schraubverbindungen

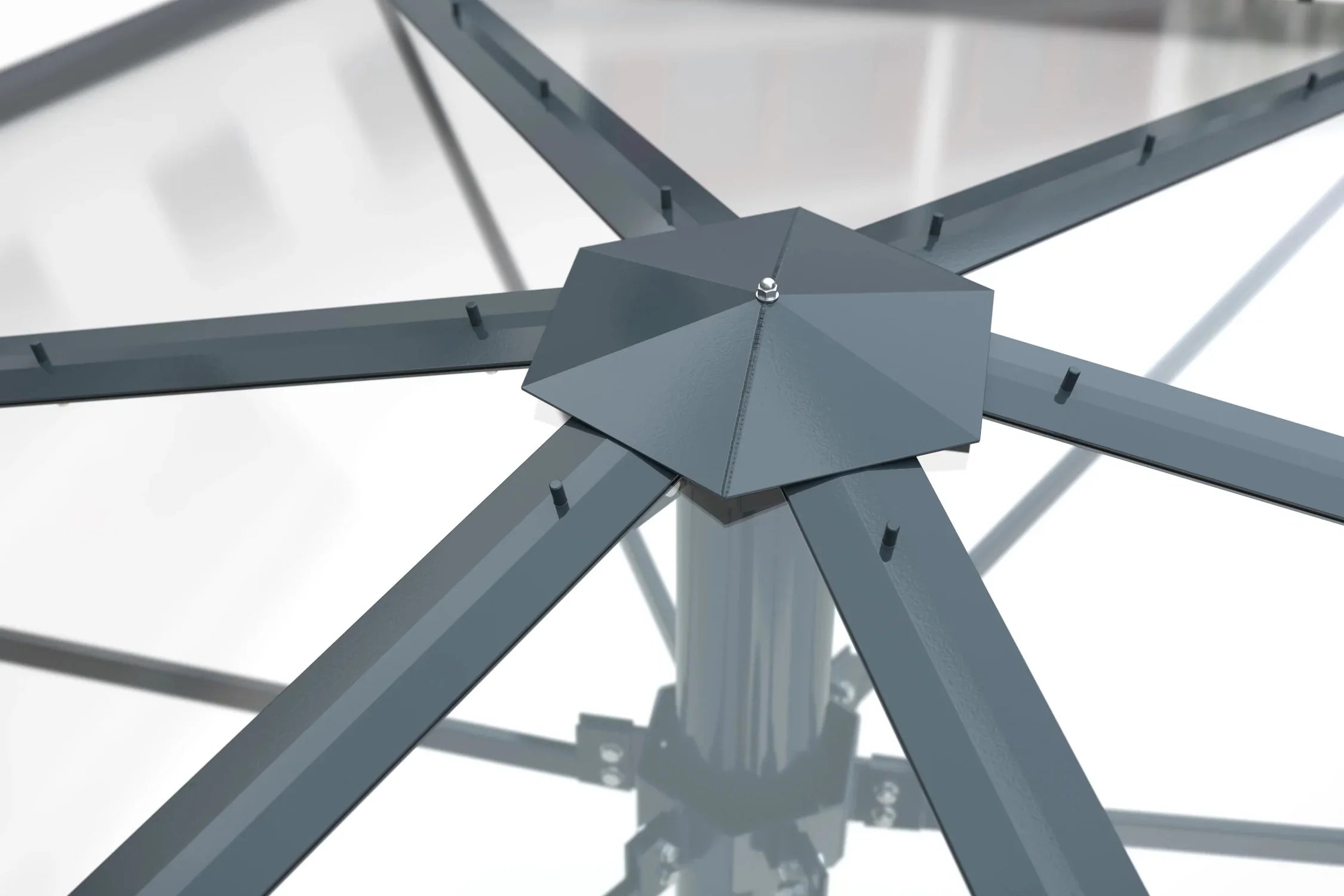

Detailansicht Metallüberdachung mit stabilen Stahlträgern und Verschraubung

Smoking shelter, pedestrian canopy, sunshade model Regensburg 640 - 395cm x 345cm

SKU: 102200002-OHNERAUCHERTISCH

Robust steel construction – hot-dip galvanized & durable

Spacious smoking shelter for guests and employees

Pyramid mono-pitch roof made of polycarbonate with UV protection

High stability up to 1.9 kN/m² snow load

Free shipping directly to your home

Smoking table:

Smoking table
Quantity:
6.095,18 €inkl. MwSt.

Kostenfreier Versand Versandinfos

Lieferzeit: 28 to 35 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Smoking Shelter, Pedestrian Canopy, Sun Protection Model Regensburg 640 - Galvanized Steel, Powder-Coated in Color of Choice


The "Regensburg" canopy reliably protects against sun and rain. As a smoking shelter and also as weather protection, it is ideally suited for employees and guests in gastronomy, retail, and for companies of all kinds. The hot-dip galvanized and color powder-coated steel construction is valuable and durable.
Popular locations include public squares, open spaces at restaurants, or in front of shops, hospitals, authorities, etc. The glass roof element is optionally available tinted or with UV protection, as well as optionally with smoking tables and ashtrays.


Dimensions:
Width: 3,950 mm
Depth: 2,450 mm
Height: 3,046 mm
Clearance Height: 2,306 mm

Technical Data:
Construction: Bolted / Kit
Roof Type: Pyramid roof, polycarbonate roofing
Drainage: Free dripping
Surface: Hot-dip galvanized and color-coated - RAL color of choice
Pipe Diameter: 159 mm
Snow Load: 1.90 kN/m²
Wind Load Zone: Zone 1 to 3
Weight: 450kg
Warranty: 5 years

Fastening:
Supports with base plates for doweling onto on-site foundations at +/- 0 mm according to our plans. The dimensioning of the supports took into account a standard paving overlay of 200 mm.

Delivery Options:

Kit Delivery - for easy self-assembly, assembly plans are included with the delivery. Assembly by us is also possible upon request.

Frame color of choice: Color of the profiles
Please specify the desired RAL color in the input field. You can find an overview of all RAL colors here - please click on the link.

Matching Accessories:
Smoking Shelter, Pedestrian Canopy, Sun Protection Model Regensburg 640 - 395cm x 345cm - Kirchberger Metall Onlinevertrieb GmbH


Optionally with smoking table or with smoking table and 6 liter ashtray Cubix 6.

Smoking Shelter, Pedestrian Canopy, Sun Protection Model Regensburg 640 - 395cm x 345cm - Kirchberger Metall Onlinevertrieb GmbHSmoking Shelter, Pedestrian Canopy, Sun Protection Model Regensburg 640 - 395cm x 345cm - Kirchberger Metall Onlinevertrieb GmbHSmoking Shelter, Pedestrian Canopy, Sun Protection Model Regensburg 640 - 395cm x 345cm - Kirchberger Metall Onlinevertrieb GmbH
Delivery Time:
approx. 6-8 weeks after order confirmation

Exclusion from Exchange:
Items that are coated according to RAL colors, special designs, or custom-made items are excluded from exchange (returns).

Questions and Answers

A professional smoking shelter enables clean spatial separation in accordance with non-smoker protection laws without compromising the comfort of employees or guests. It also keeps the company premises clean, as it provides a central gathering point and minimizes uncontrolled littering.

The range extends from simple canopies open on one side to complex smoking pavilions or almost fully enclosed smoking cabins. The choice of the number of side walls directly affects the desired weather protection against wind, rain, or snow.

Yes, thanks to modular construction, the systems can be adapted flexibly. They can be optimally positioned on spacious open areas as well as in confined spaces such as courtyards or on roof terraces.

Functional components are available for the models (such as Modell K, Passau, or R). Combination ashtrays with an integrated waste bin are particularly space-saving and hygienic. To further increase comfort, we also offer weatherproof benches, standing tables, and integrated lighting systems.

From a technical standpoint, a level concrete foundation at the site is mandatory. The smoking shelter is professionally anchored to it using robust base plates to guarantee the necessary stability and structural safety under wind loads.

Yes, we assist you starting with the selection of the right size, taking maintenance and ease of cleaning into account. In addition to detailed documentation for efficient installation, we also offer a professional installation service for a code-compliant setup.

The optimal size depends on your desired site capacity and the required level of protection. In practice, around 0.5 to 1 square meter of space per person is usually calculated for a comfortable standing spot.

Systems such as Modell K, Passau, or R are based on modular constructions and are available in many sizes. The range extends from compact canopies open on one side for small teams to large, almost fully enclosed smoking pavilions or cabins. We are happy to help you select the right capacity for your premises.
