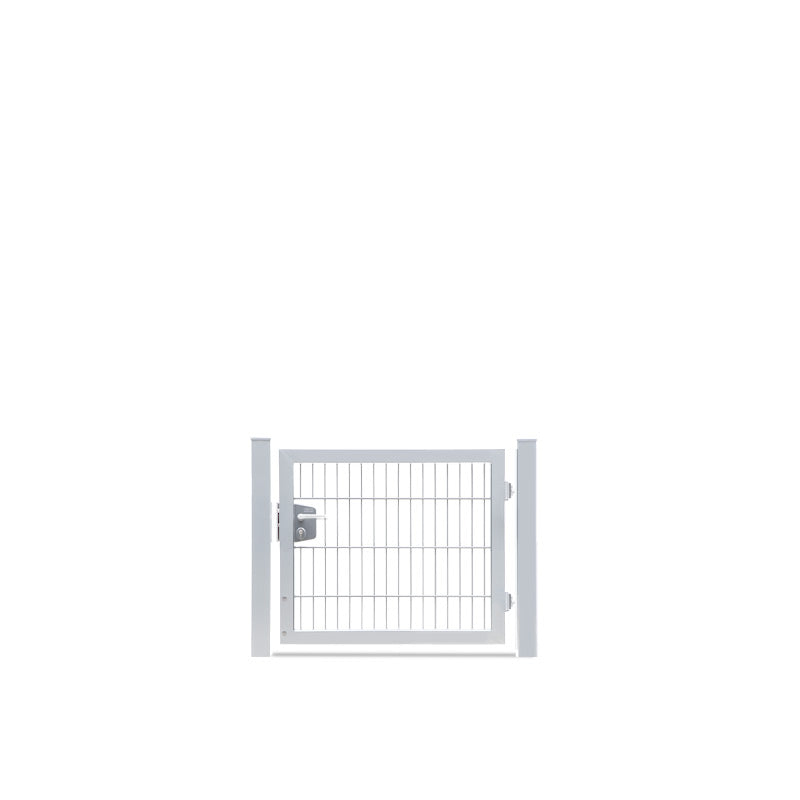

Gartentor VARIO trend einflügelig, verzinkt, freigestellt

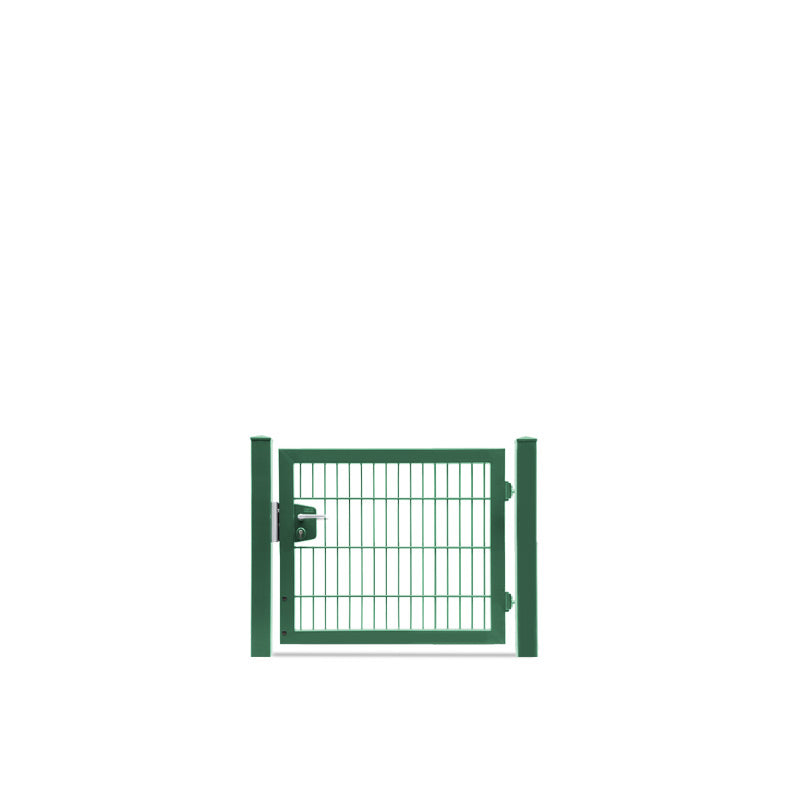

Gartentor VARIO trend einflügelig, Moosgrün (RAL 6005), freigestellt

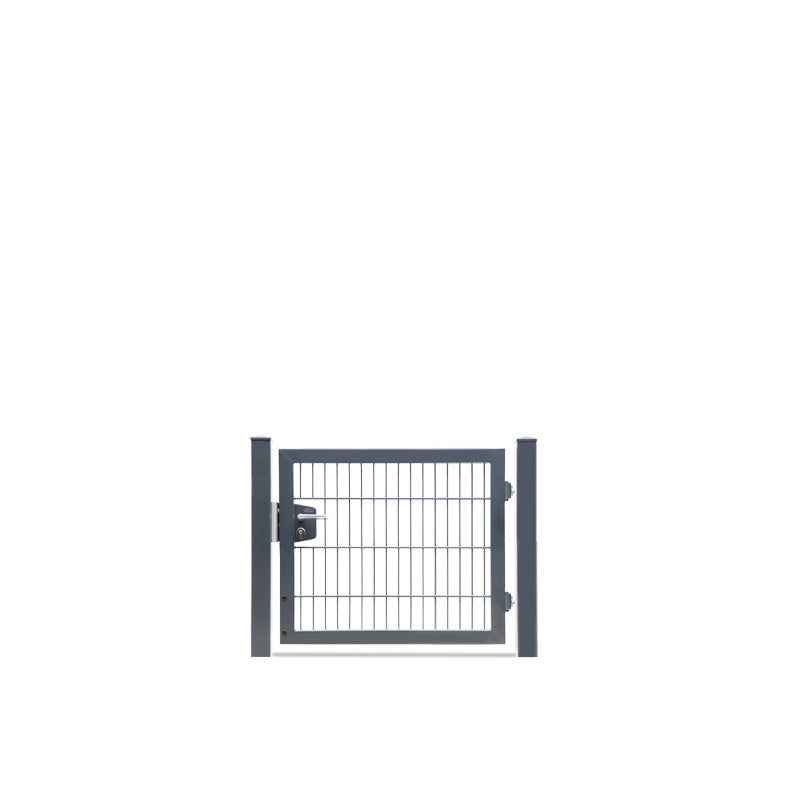

Gartentor VARIO trend einflügelig, Anthrazitgrau (RAL 7016), freigestellt

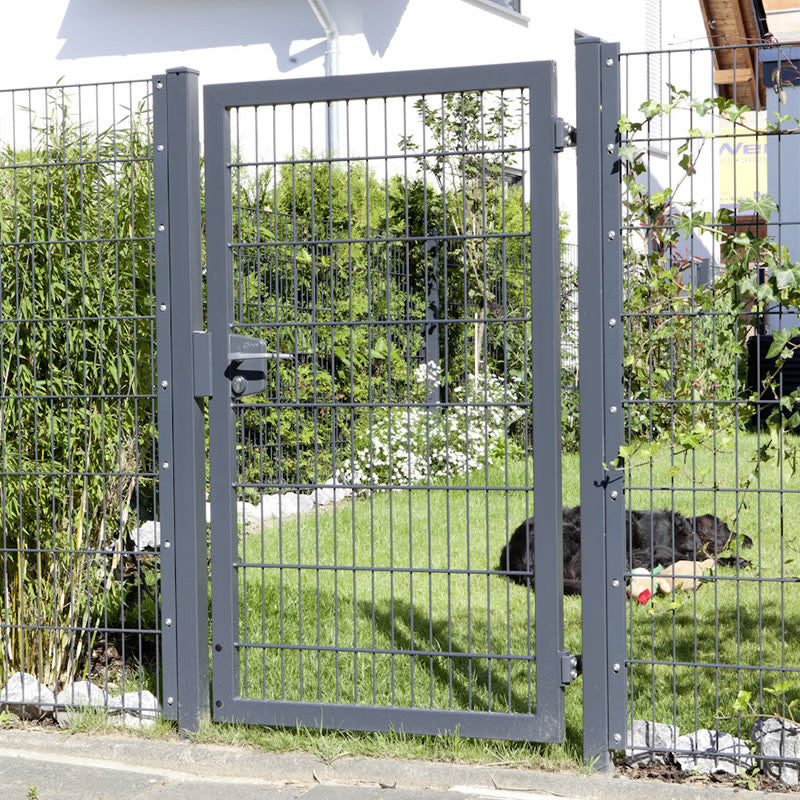

Gartentor VARIO trend in Anthrazit im Doppelstabmattenzaun vor einem Garten

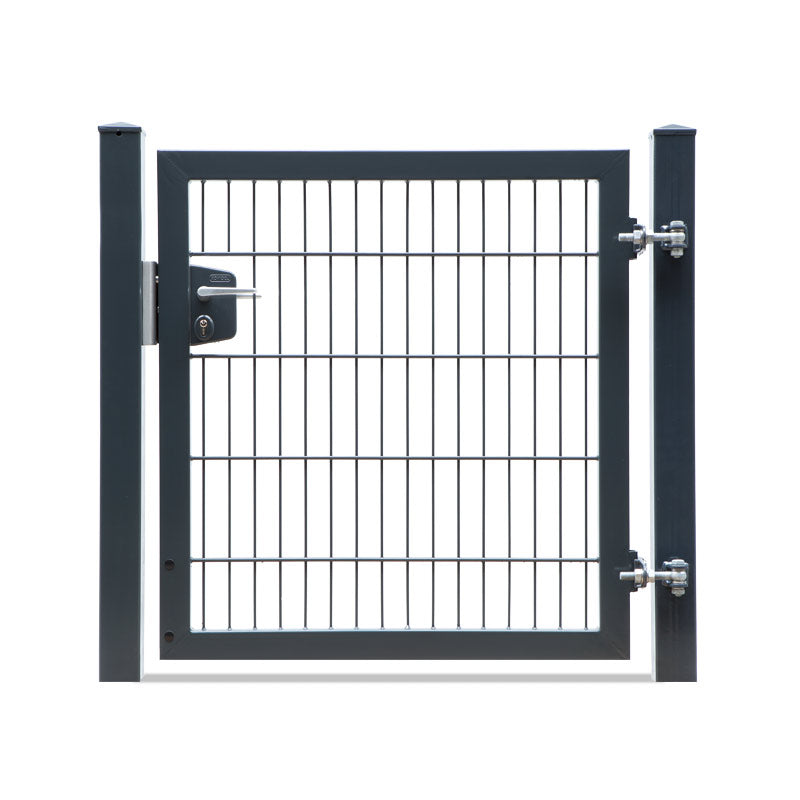

Gartentor VARIO trend einflügelig in Anthrazit, Frontansicht

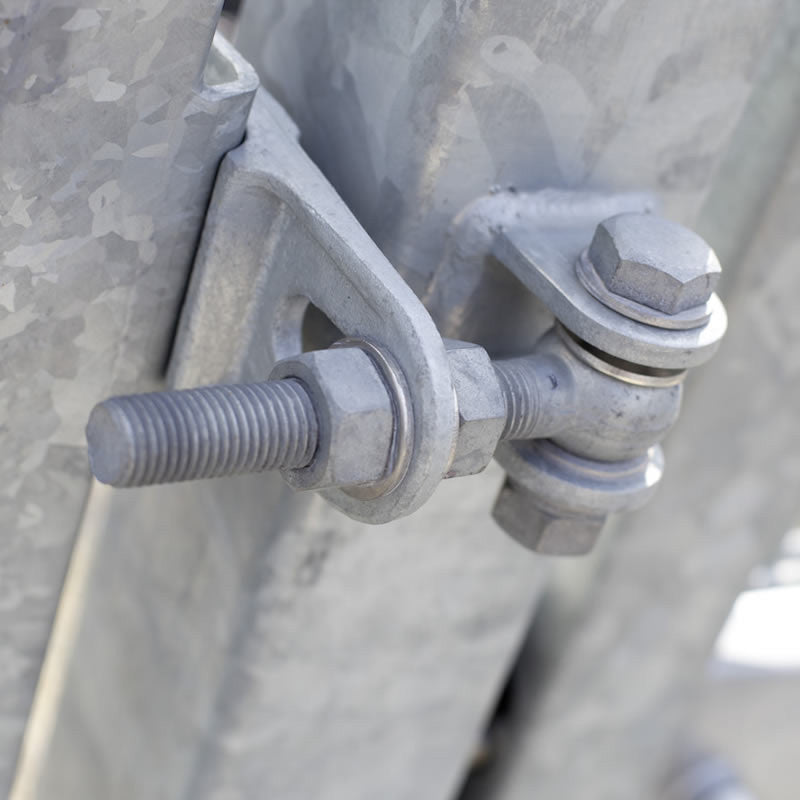

Verstellbares Torband am Pfosten des VARIO trend, Detail

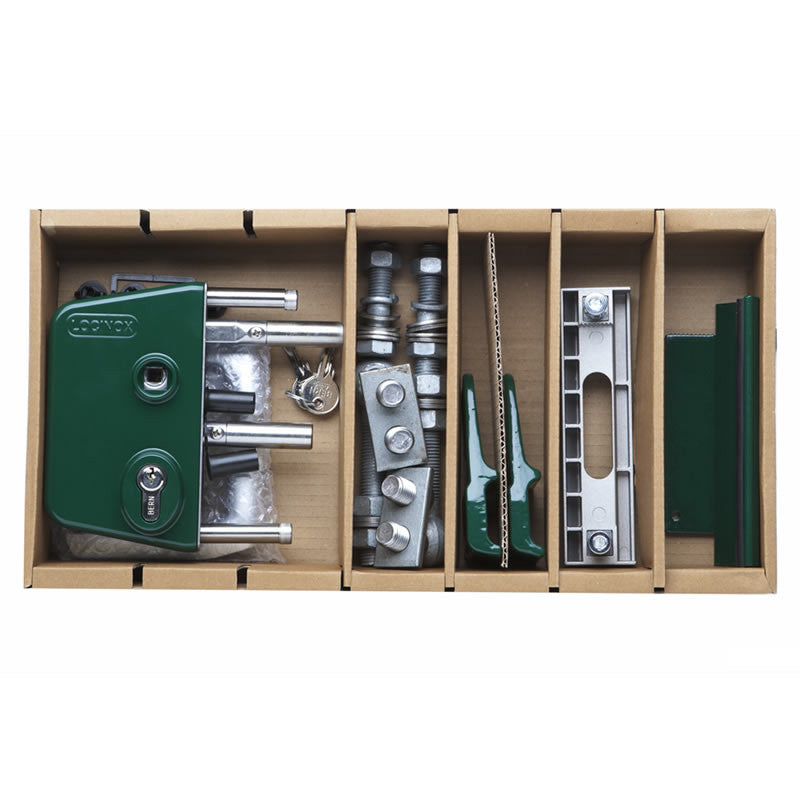

Zubehör-Set mit Locinox-Schlosskasten für das VARIO trend im Karton

Garden Gate VARIO trend single-leaf with 8/6/8 infill and Locinox lock - galvanized, moss green or anthracite grey

Black Weeks bis 30.11.: bis zu 400 € Rabatt ab 500 € Warenwert Stufen
SKU: VT1-ZTV11008

Frame made of 60 x 40 x 2 mm rectangular tubing, 8/6/8 wire mesh infill

Locinox lock case and 3D adjustable hinges

Clear width 1000 to 3010 mm, seven heights

Hot-dip galvanized according to EN ISO 1461, optionally green or anthracite

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Für Gewerbe und Kommunen: Bis 18.12. bestellen – auf Wunsch stellen wir die Rechnung noch 2026. Eine kurze Nachricht an shop@kirchberger-metall.de genügt.

Color:

Color
Clear width:

Clear width
Height:

Height
Quantity:
601,19 €inkl. MwSt.

Parcel or freight item: plus shipping, free shipping within Germany from €1,000 Shipping info

Lieferzeit: 2 to 3 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Satispay Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Garden Gate VARIO trend: Single-Leaf, Also for Wide Openings

VARIO trend is the gate series with Locinox hardware. The leaf is made of rectangular tube 60 x 40 x 2 mm with an 8/6/8 double-rod infill, and a Locinox lock case sits in the frame. The hinges can be readjusted in three directions. That helps when a post has settled by a few millimeters after the first winter: you realign the leaf instead of resetting the post.

The single-leaf version is available from 1000 to 3010 mm clear width. This way a single leaf also covers a narrow access for a lawn tractor or the car parking space, without a center stop in the ground becoming necessary.

Which Gate Post Belongs to Which Width

The wider the leaf, the stronger the post. Up to 1750 mm clear width the manufacturer supplies gate posts 80 x 80 mm, from 2010 to 2510 mm posts 100 x 100 mm and at 3010 mm posts 120 x 120 mm. The posts are part of the scope of delivery. Plan the foundation to match the post size; the installation dimensions are given in the assembly instructions, which are available as a PDF at the bottom of this page.

Technical Data

  • Version: single-leaf, manual, gate opening up to 180°
  • Clear width: 1000, 1250, 1500, 1750, 2010, 2260 and 2510 mm, plus 3010 mm in the heights 1830 and 2030 mm
  • Heights: 830 to 2030 mm in increments of 200 mm
  • Frame: rectangular tube 60 x 40 x 2 mm
  • Infill: double-rod mesh 8/6/8 mm
  • Gate posts: 80 x 80, 100 x 100 or 120 x 120 mm, depending on width
  • Lock: Locinox lock case, 3D hinge mounting, accessory set included
  • Colors: hot-dip galvanized, moss green RAL 6005 or anthracite grey RAL 7016

Matching Products

The 8/6/8 infill has the same wire gauge as our MAX fence package. For the driveway there is the double-leaf VARIO trend driveway gate. You solve the connection to fence or wall with Fence Connection & Connectors, and hardware and spare parts are found under Gate Hardware & Gate Accessories.

Corrosion Protection

The gate is hot-dip galvanized in a dip bath to EN ISO 1461. The zinc also covers the weld seams, exactly where a merely painted gate would rust first. Under normal weather conditions the manufacturer expects around 30 years before the zinc layer is worn away. On the coated colors a powder coating is applied on top, which extends this protection further. Read more in the guide Hot-dip galvanized or electro-galvanized.

Questions and Answers

The clear width is the free opening between the two gate posts, that is, the dimension actually left for you to walk or drive through. The posts themselves need additional space. For some VARIO gates the manufacturer states two values: if the leaf only opens to 90°, the clear width is slightly larger than at 180° – on the single-leaf Residenz gates, for example, 1030 instead of 1020 mm.

No. On the VARIO gates the opening direction results from how the gate posts are installed; on VARIO plus and VARIO secret it results from how the posts, leaf and hinges are installed. You therefore only decide which way the gate opens when it is installed.

That varies by model and is stated in every product description under scope of delivery or technical data. The single-leaf VARIO compact and the Residenz gates BARCELONA and ROM include the lock, the aluminum lever handle and the profile cylinder. The VARIO light comes with the lock and lever handle; the profile cylinder is optional.

Installation dimensions and fixing are given in the assembly instructions for the respective gate. For VARIO light, compact, plus and trend you can download the instructions as a PDF on the product page beforehand, so you can see how much space the gate and posts need before you buy. On the VARIO secret the posts are intended to be set in concrete. For 80 x 80 mm gate posts we also stock a base plate for bolting down.

Depending on the model: hot-dip galvanized, moss green RAL 6005 or anthracite grey RAL 7016, and the classic models TURIN and RIMINI in RAL 7016. For most VARIO gates the manufacturer specifies hot-dip galvanizing in a dip bath to EN ISO 1461 and expects around 30 years under normal weather conditions before the zinc layer is worn away. Powder coating extends the protection. The finish of your gate is stated in the product description. Special and effect colors are available on request.

Check the infill. VARIO light, plus and trend have an 8/6/8 double-rod infill like our MAX fence package, and VARIO compact a 6/5/6 infill like the MORITZ fence package. The Residenz gates BARCELONA, ROM, TURIN and RIMINI each belong to the decorative fence of the same name. You create the transition from the gate post to the fence or to the house wall with a connection profile; the fence connection is optional on the gates.
