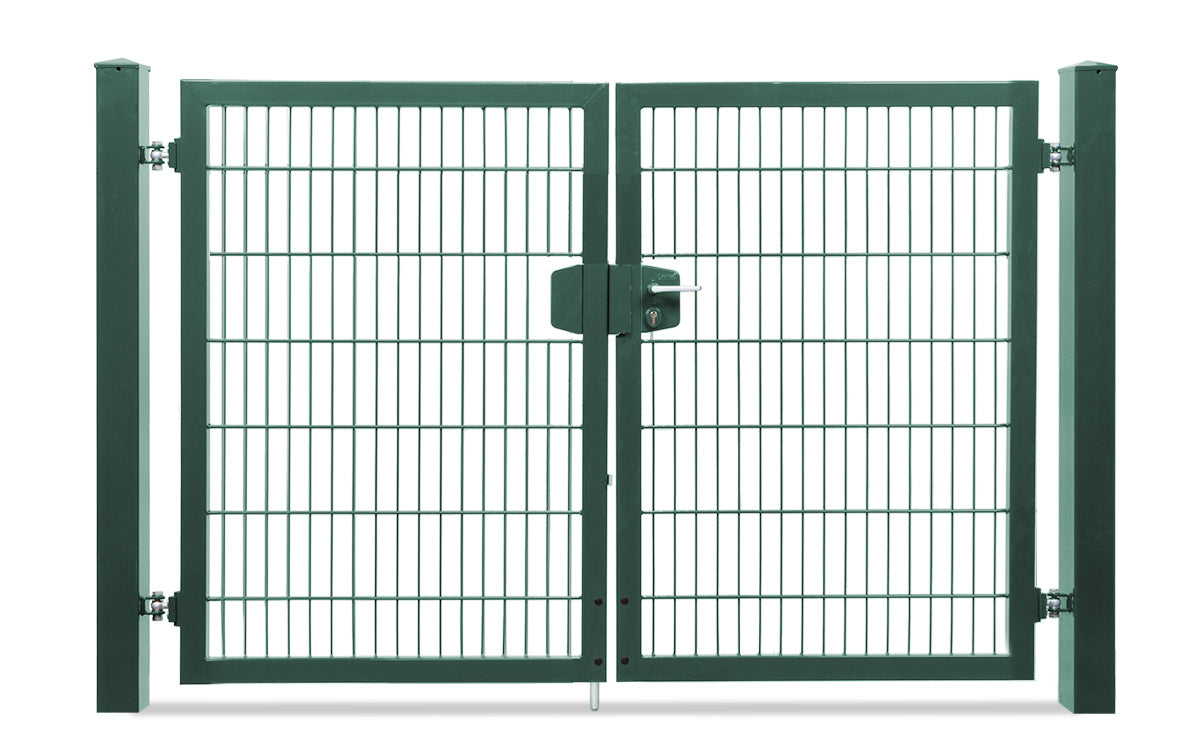

Einfahrtstor VARIO trend zweiflügelig in Moosgrün, freigestellt

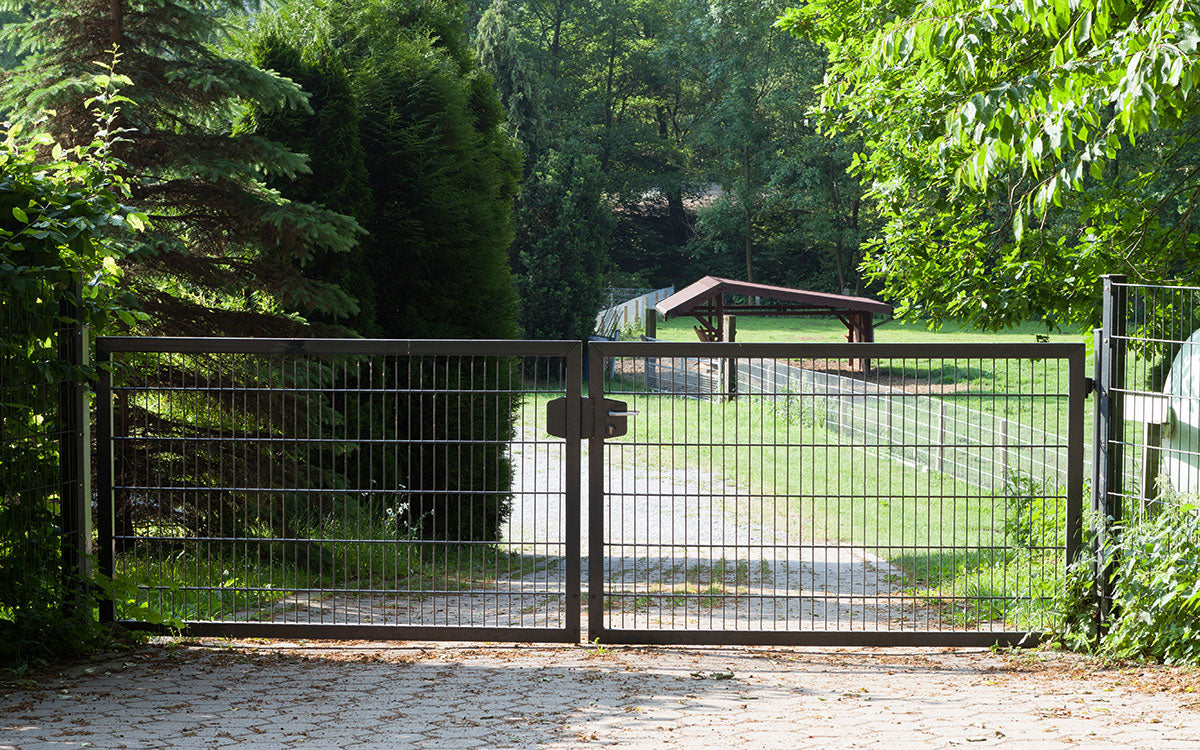

Einfahrtstor VARIO trend an einer Hofeinfahrt mit Bäumen

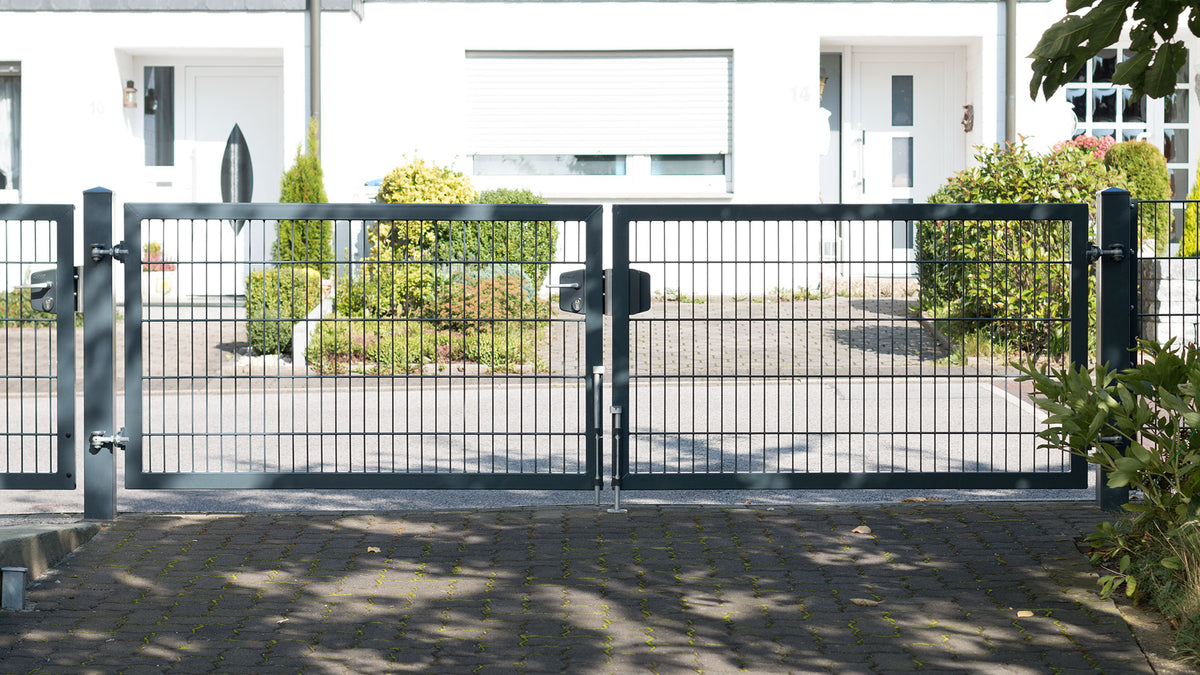

Einfahrtstor VARIO trend vor einem Wohnhaus mit gepflasterter Zufahrt

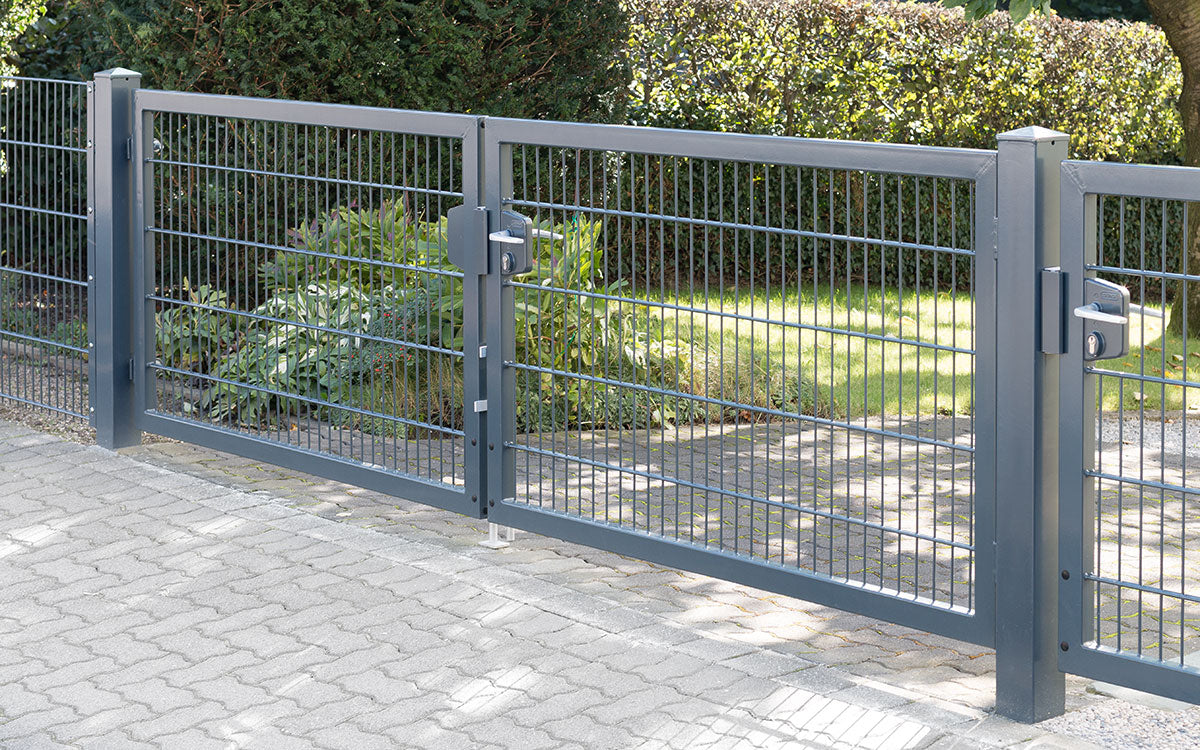

Einfahrtstor VARIO trend an einer Grundstückszufahrt

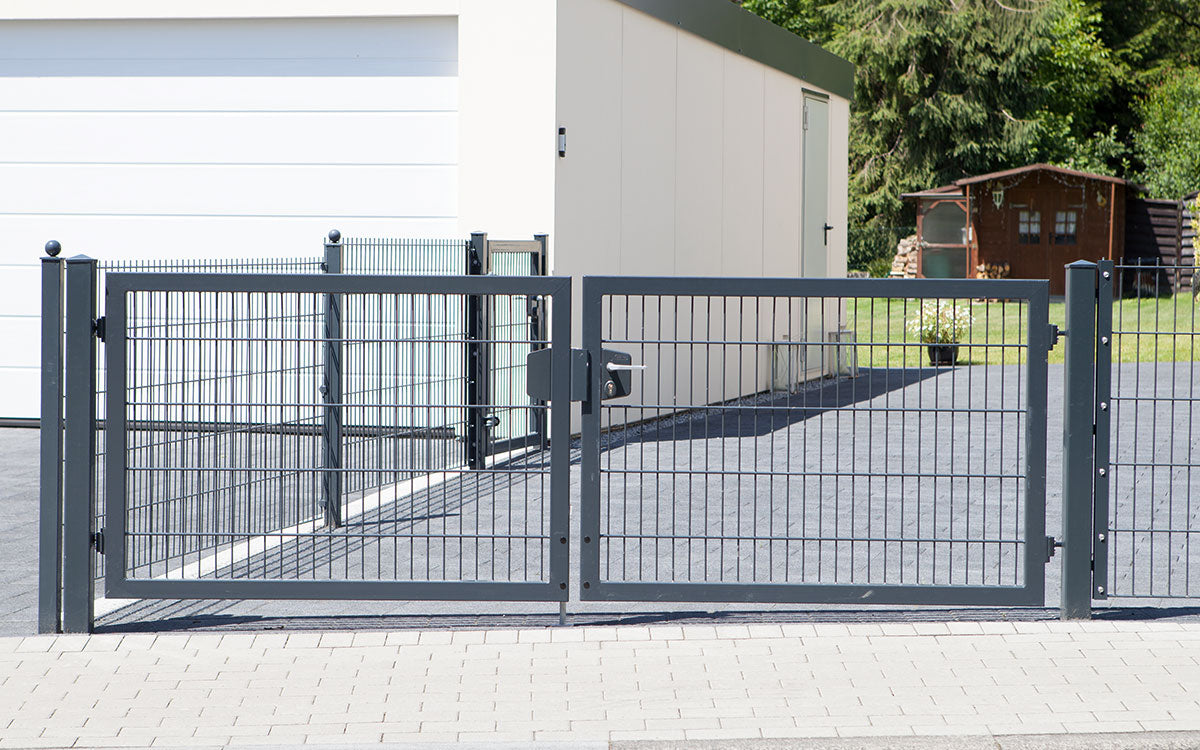

Einfahrtstor VARIO trend anthrazit an einer Garageneinfahrt

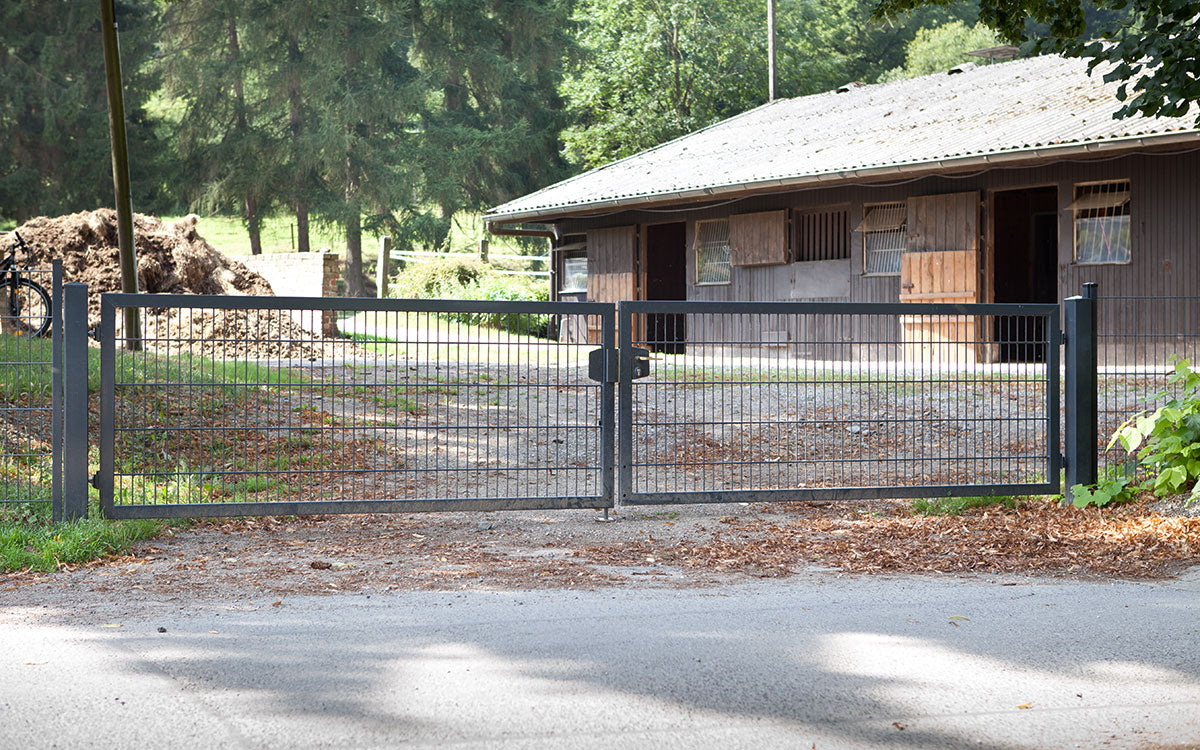

Einfahrtstor VARIO trend an einem Hof mit Nebengebäude

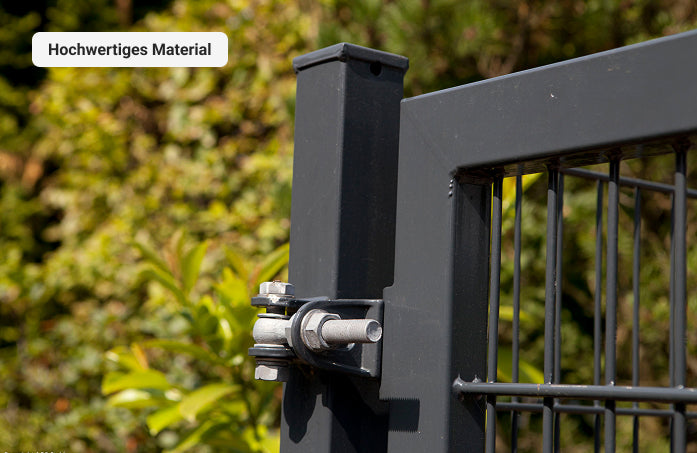

Detail Torband am Pfosten des Einfahrtstors VARIO trend

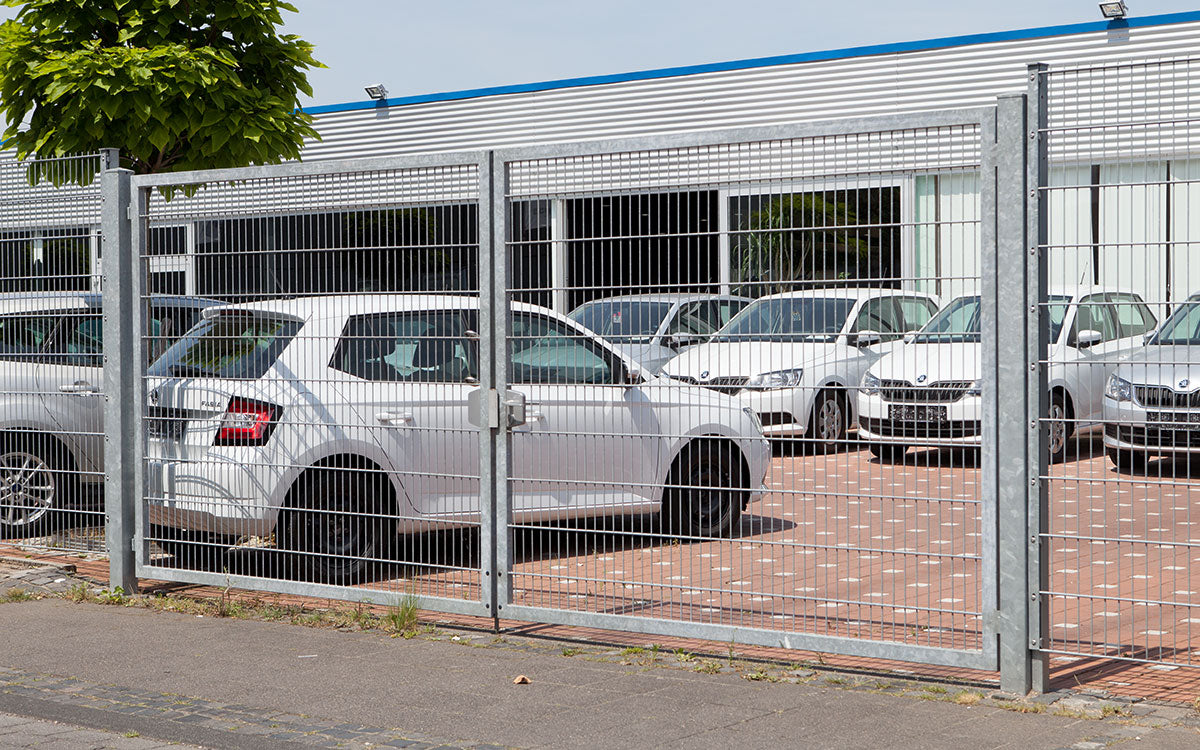

Einfahrtstor VARIO trend an einem Firmenparkplatz

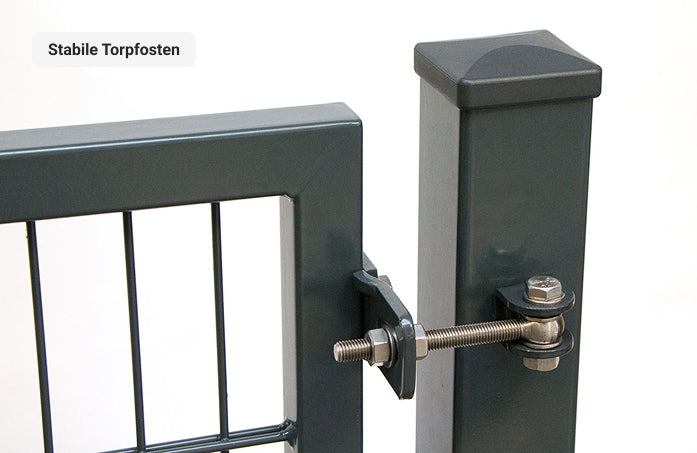

Detail Torpfosten mit Kappe und Torband am VARIO trend

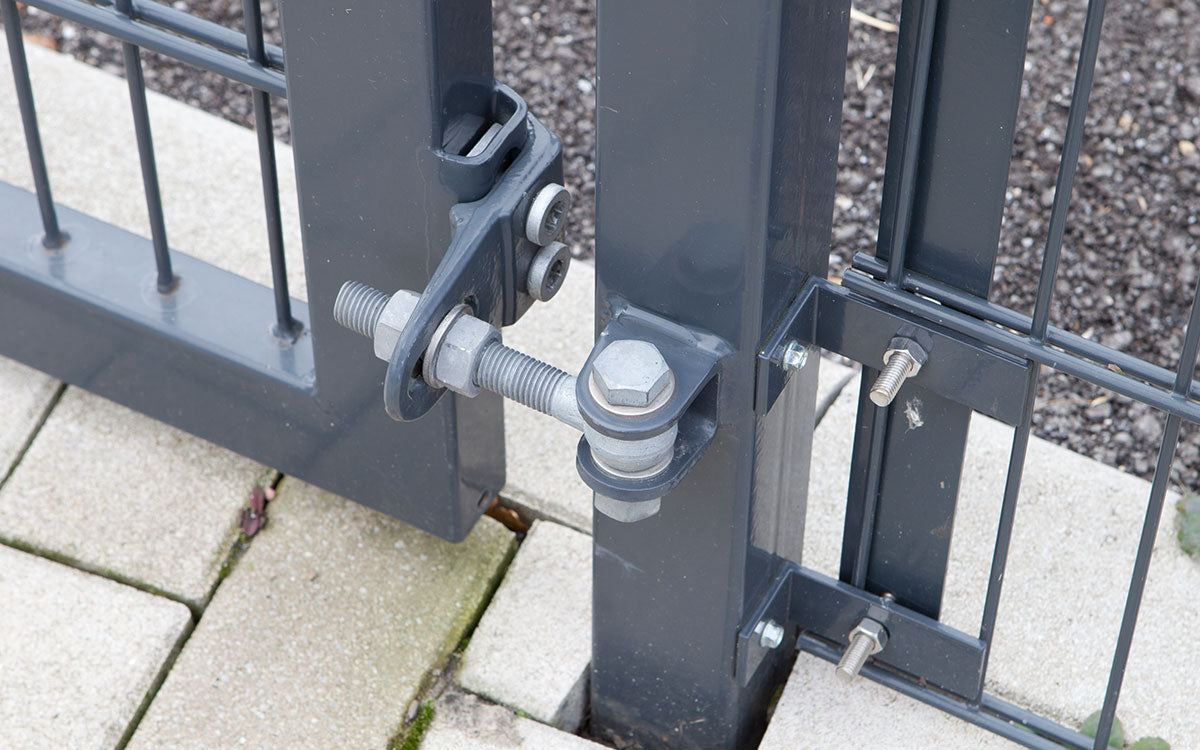

Detail Torband unten am Pfosten des Einfahrtstors VARIO trend

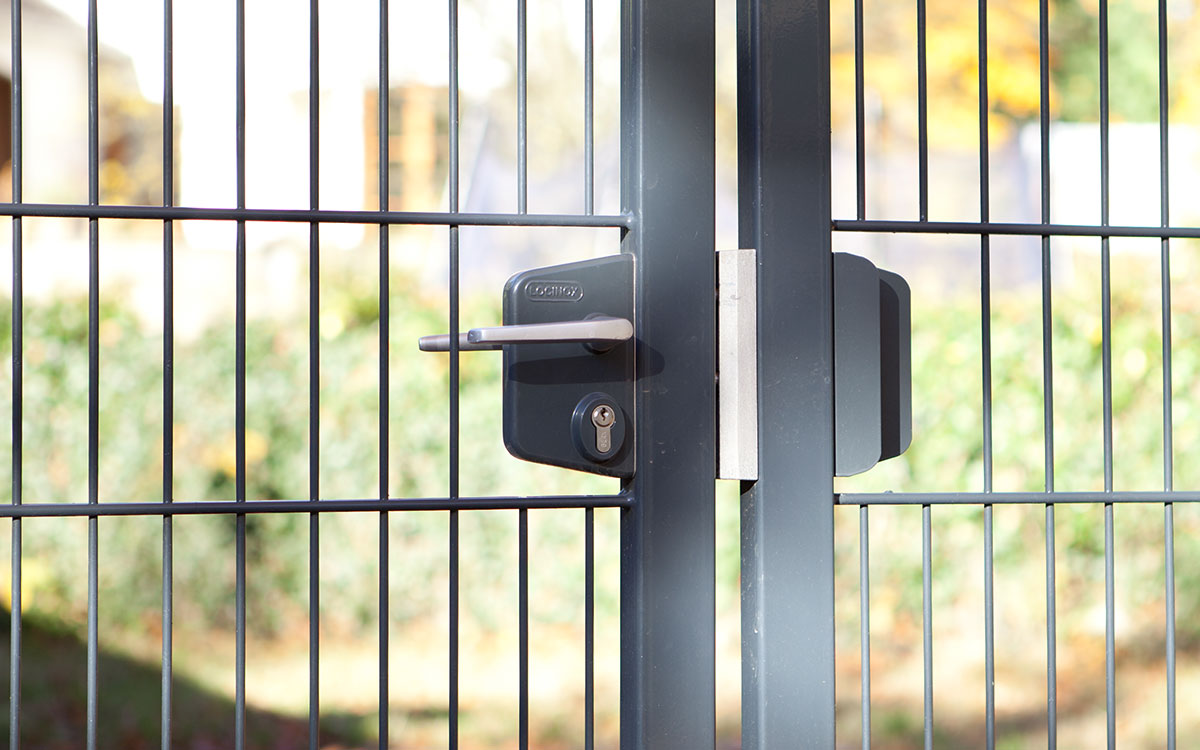

Detail Schloss am Einfahrtstor VARIO trend

Driveway gate VARIO trend double-leaf with 8/6/8 infill and Locinox lock - galvanized, moss green or anthracite grey

Black Weeks bis 30.11.: bis zu 400 € Rabatt ab 500 € Warenwert Stufen
SKU: VT2-ZTV22008B7016

Widths from 2000 to 6000 mm for large driveways

Hinges adjustable in three dimensions, 180-degree hinges

Locinox lock, 60 x 40 x 2 mm frame

Double wire mesh MAX 8/6/8, three colors

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Für Gewerbe und Kommunen: Bis 18.12. bestellen – auf Wunsch stellen wir die Rechnung noch 2026. Eine kurze Nachricht an shop@kirchberger-metall.de genügt.

Color:

Color
Width:

Width
Height:

Height
Quantity:
1.092,42 €inkl. MwSt.

Parcel or freight item: plus shipping, free shipping within Germany from €1,000 Shipping info

Lieferzeit: 2 to 3 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Satispay Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Driveway gate VARIO trend: up to 6000 mm wide, hinges adjustable in three directions

The double-leaf VARIO trend covers the wide driveways. The infill is a double-rod mesh 8/6/8 in the MAX version, and the frame is made of rectangular tube 60 x 40 x 2 mm. Depending on the gate height, the leaves hang on gate posts of 80 x 80 x 3 mm or 100 x 100 x 3 mm.

What makes the difference in everyday use

The hinges can be adjusted in three dimensions. That sounds like a minor detail, but it decides whether a large gate still closes cleanly after the first winter. If a foundation settles by a few millimeters, you readjust the leaf instead of resetting the post. Added to this are 180-degree hinges and a lock from Locinox.

You set the opening direction, DIN left or DIN right, via the way the posts are mounted.

Technical data

  • Design: double-leaf, manual
  • Widths: 2000, 2500, 3000, 3500, 4000, 4500, 5000 and 6000 mm
  • Heights: 830 to 2030 mm in steps of 200 mm; at 6000 mm width, 1830 and 2030 mm
  • Frame: rectangular tube 60 x 40 x 2 mm
  • Infill: double-rod mesh MAX 8/6/8 mm
  • Gate posts: 80 x 80 x 3 mm or 100 x 100 x 3 mm, depending on the gate height
  • Hinges: 180 degrees, hinge straps adjustable in three dimensions
  • Lock: Locinox
  • Colors: hot-dip galvanized, moss green RAL 6005 or anthracite grey RAL 7016

Matching products

The infill comes from the MAX series, and the matching MAX fence package continues the look along the fence. For the footpath next to it, the VARIO trend S garden gate is the right match. The assembly instructions with the installation dimensions are available below as a PDF. Connection profiles can be found under Fence Connection & Connectors.

Corrosion protection

The gate is hot-dip galvanized in a dip bath to EN ISO 1461. In the process the zinc also covers the weld seams, which is exactly where a merely painted gate rusts first. Under normal weather conditions the manufacturer reckons on around 30 years before the zinc layer is worn away. On the coated colors a powder coating is applied on top, which extends this protection further. More on this in the guide Hot-dip galvanized or electro-galvanized.

Questions and Answers

The clear width is the free opening between the two gate posts, that is, the dimension actually left for you to walk or drive through. The posts themselves need additional space. For some VARIO gates the manufacturer states two values: if the leaf only opens to 90°, the clear width is slightly larger than at 180° – on the single-leaf Residenz gates, for example, 1030 instead of 1020 mm.

No. On the VARIO gates the opening direction results from how the gate posts are installed; on VARIO plus and VARIO secret it results from how the posts, leaf and hinges are installed. You therefore only decide which way the gate opens when it is installed.

That varies by model and is stated in every product description under scope of delivery or technical data. The single-leaf VARIO compact and the Residenz gates BARCELONA and ROM include the lock, the aluminum lever handle and the profile cylinder. The VARIO light comes with the lock and lever handle; the profile cylinder is optional.

Installation dimensions and fixing are given in the assembly instructions for the respective gate. For VARIO light, compact, plus and trend you can download the instructions as a PDF on the product page beforehand, so you can see how much space the gate and posts need before you buy. On the VARIO secret the posts are intended to be set in concrete. For 80 x 80 mm gate posts we also stock a base plate for bolting down.

Depending on the model: hot-dip galvanized, moss green RAL 6005 or anthracite grey RAL 7016, and the classic models TURIN and RIMINI in RAL 7016. For most VARIO gates the manufacturer specifies hot-dip galvanizing in a dip bath to EN ISO 1461 and expects around 30 years under normal weather conditions before the zinc layer is worn away. Powder coating extends the protection. The finish of your gate is stated in the product description. Special and effect colors are available on request.

Check the infill. VARIO light, plus and trend have an 8/6/8 double-rod infill like our MAX fence package, and VARIO compact a 6/5/6 infill like the MORITZ fence package. The Residenz gates BARCELONA, ROM, TURIN and RIMINI each belong to the decorative fence of the same name. You create the transition from the gate post to the fence or to the house wall with a connection profile; the fence connection is optional on the gates.
