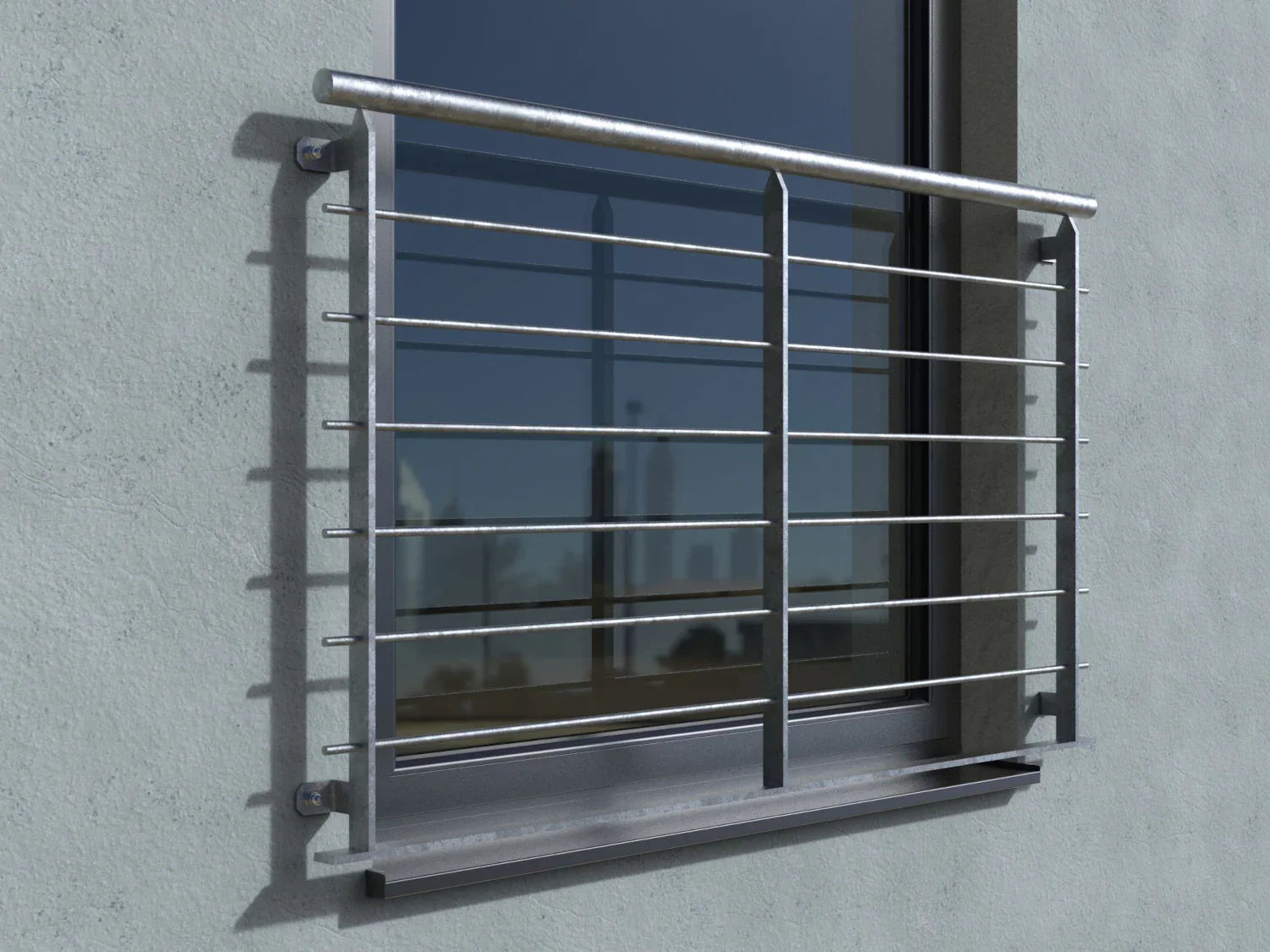

Verzinktes Fenstergitter für französischen Balkon an moderner Hausfassade

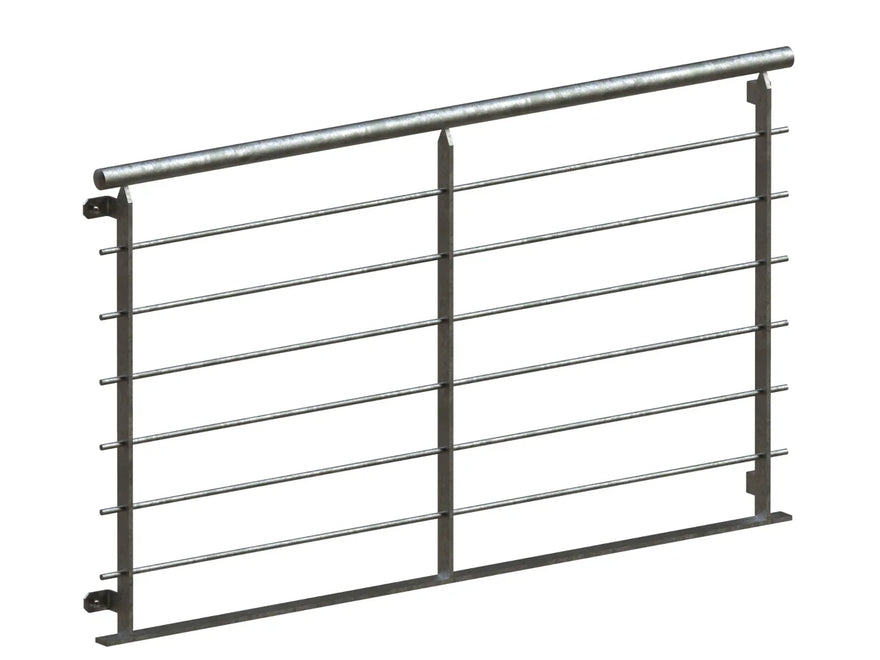

Verzinktes Fenstergitter für französischen Balkon, schlichtes Metall Design, waagerechte Stäbe

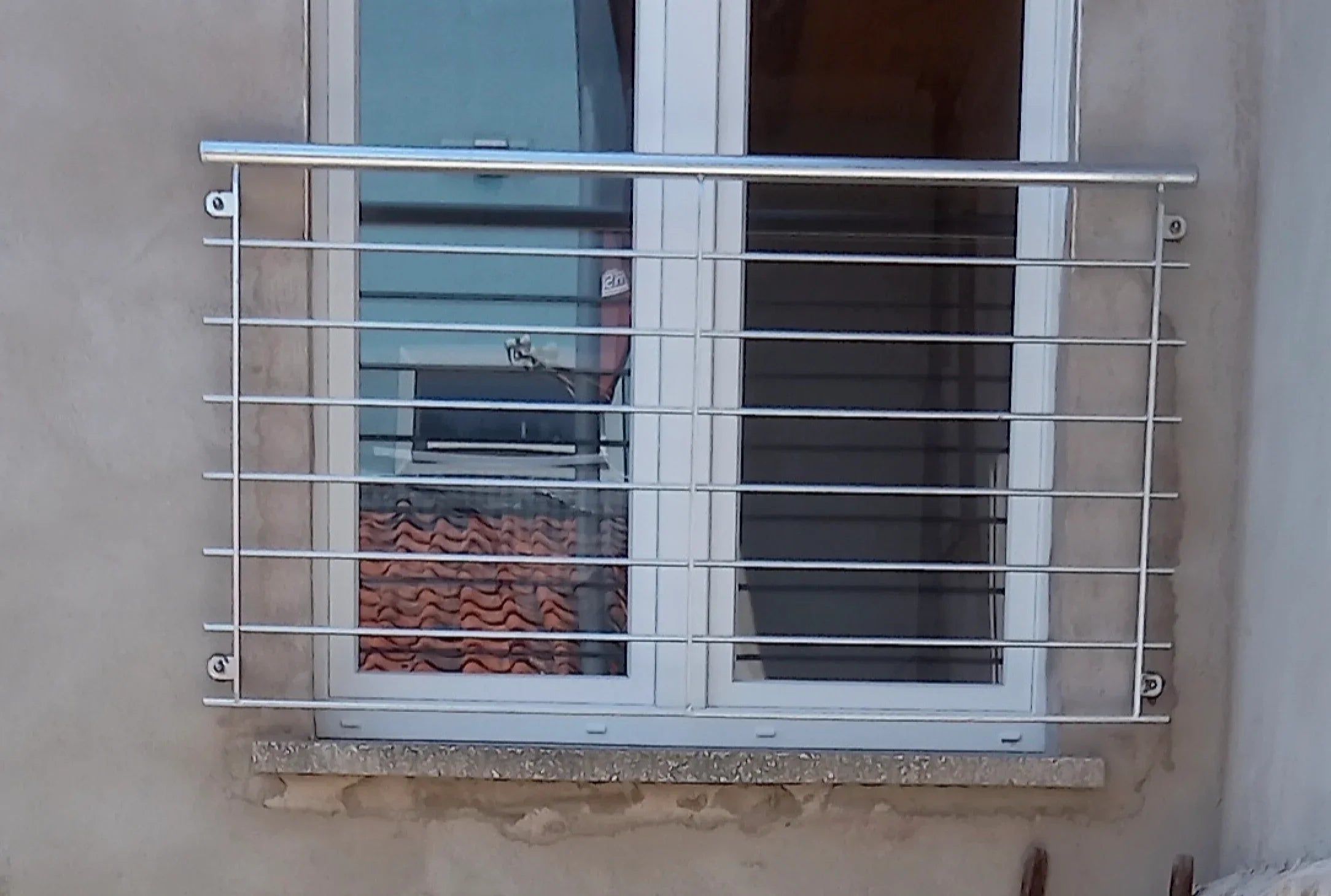

Französischer Balkon modern, verzinkt, mit waagerechten Streben vor Fenster montiert
Technische Zeichnung französischer Balkon aus Edelstahl mit Maßangaben und Befestigungsdetails

French balcony model Line, galvanized - front-mounted

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 10007
Ab
265,00 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

French Balcony / Fall Protection / Window Grille - Model Line Galvanized

High-quality French balcony made of galvanized steel - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded. We use only solid material Ø 12 mm for the infill bars. Cheap Chinese goods are often made from inferior round tubing.



  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized
  • Handrail: Tube Ø 42.4 mm - Wall thickness: 2mm
  • Railing frame: Flat steel 40x10 mm
  • Infill bars: Ø 12.0 mm - Solid material
  • Spacing between infill bars varies depending on overall length: maximum 120 mm
  • Height: 1000 mm (other heights upon request)
  • Feel free to contact us for a possible quantity discount for 3+ balconies


Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = Mounting width
A distance of approx. 10 cm from the wall edge should be maintained, otherwise the masonry may break out.

Attention:
the vertical center strut is only used for mounting distances greater than 1500mm.

Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting set - assembly material:
Depending on the nature of the wall, different assembly material is required for the French balcony.

In the configurator, you can add the mounting material according to the type of wall.

For professional installation, please observe the applicable building regulations. Please inquire with the responsible building authority in advance. The installer on site assumes liability for the selection of the correct mounting material and proper fastening.
