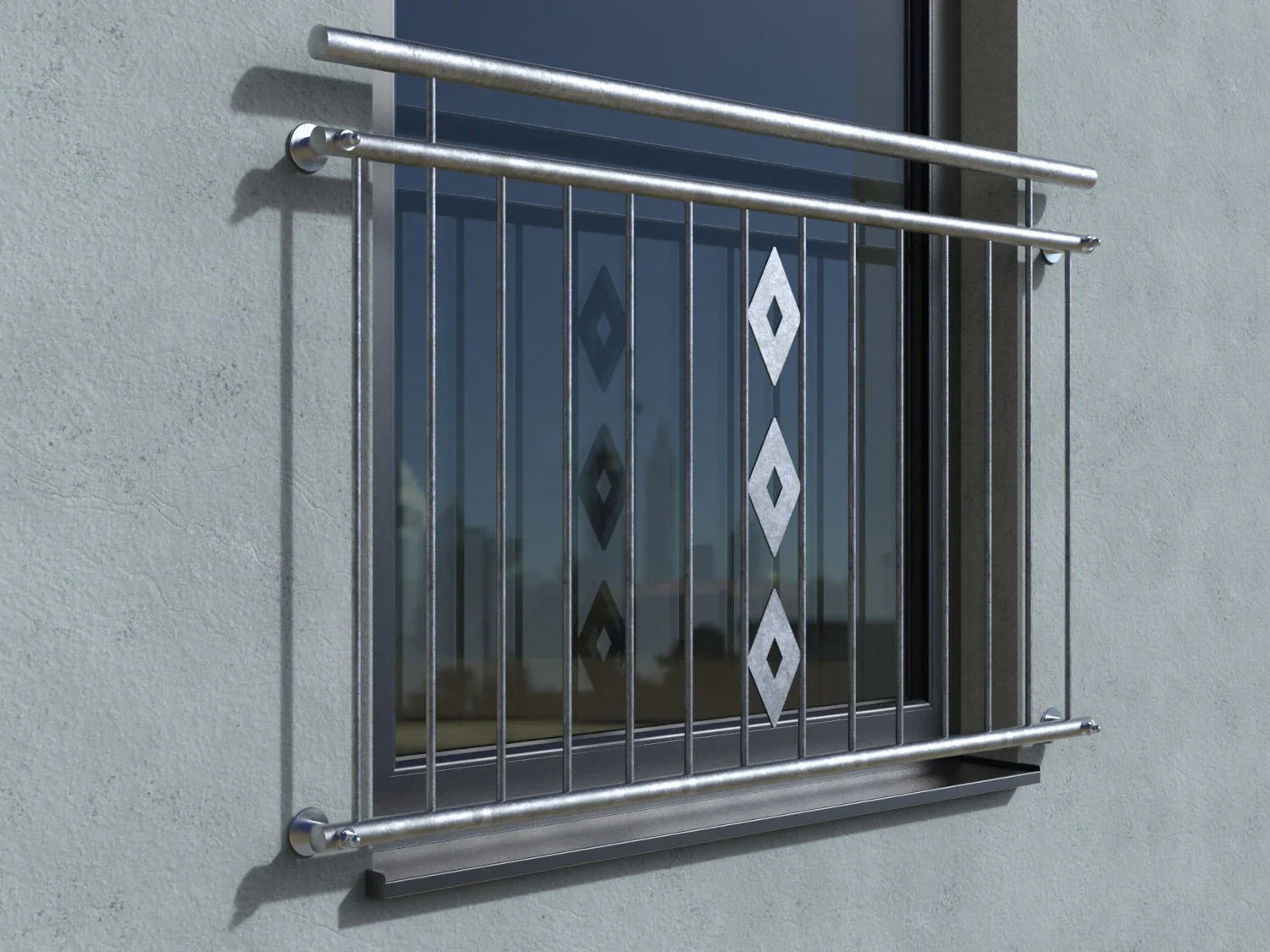

Verzinktes Fenstergitter für französischen Balkon mit Rauten, montiert an Außenfassade

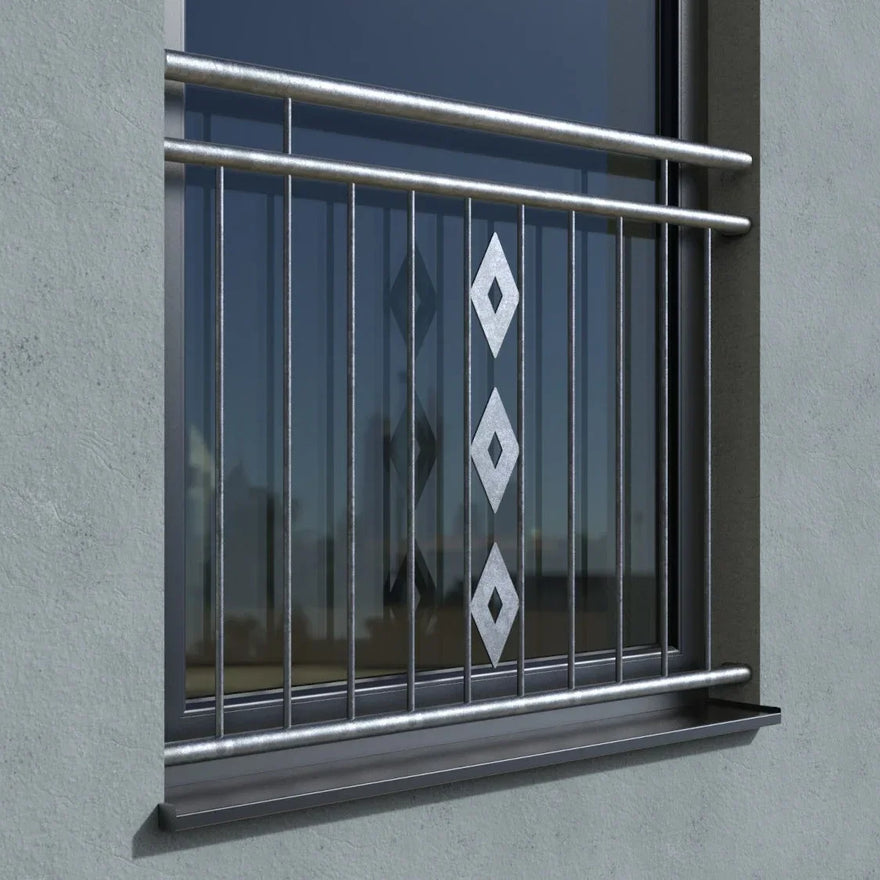

Verzinktes Fenstergitter für französischen Balkon mit Rauten-Design, montiert in Laibung
Verzinktes Fenstergitter für französischen Balkon mit Rauten und senkrechten Streben

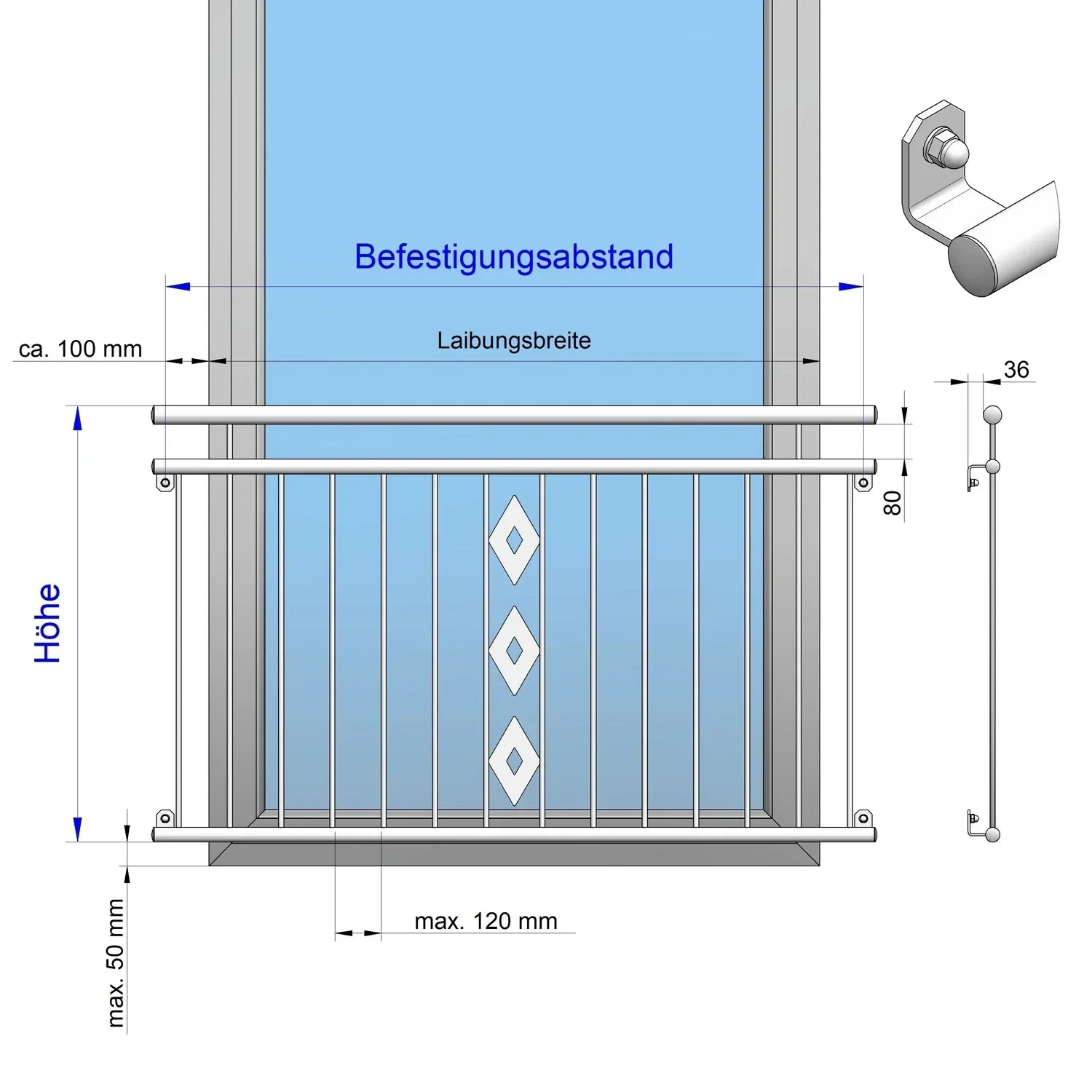

Technische Zeichnung eines französischen Balkongeländers aus Metall mit Maßangaben und Befestigung.

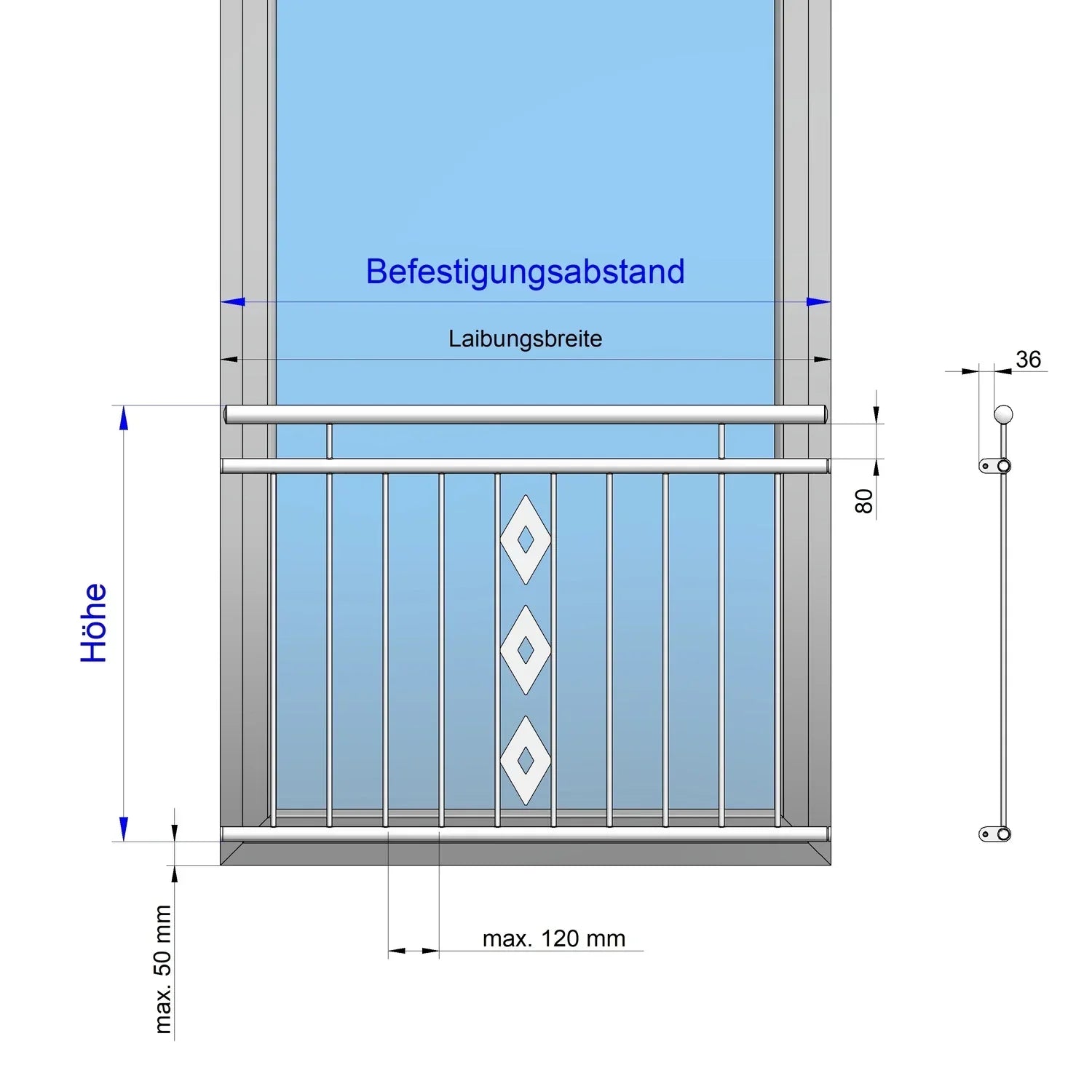

Technische Zeichnung eines französischen Balkons aus Metall mit Maßen und Befestigungsdetails
Technische Zeichnung französischer Balkon Metall, Maße und Befestigungsabstand markiert

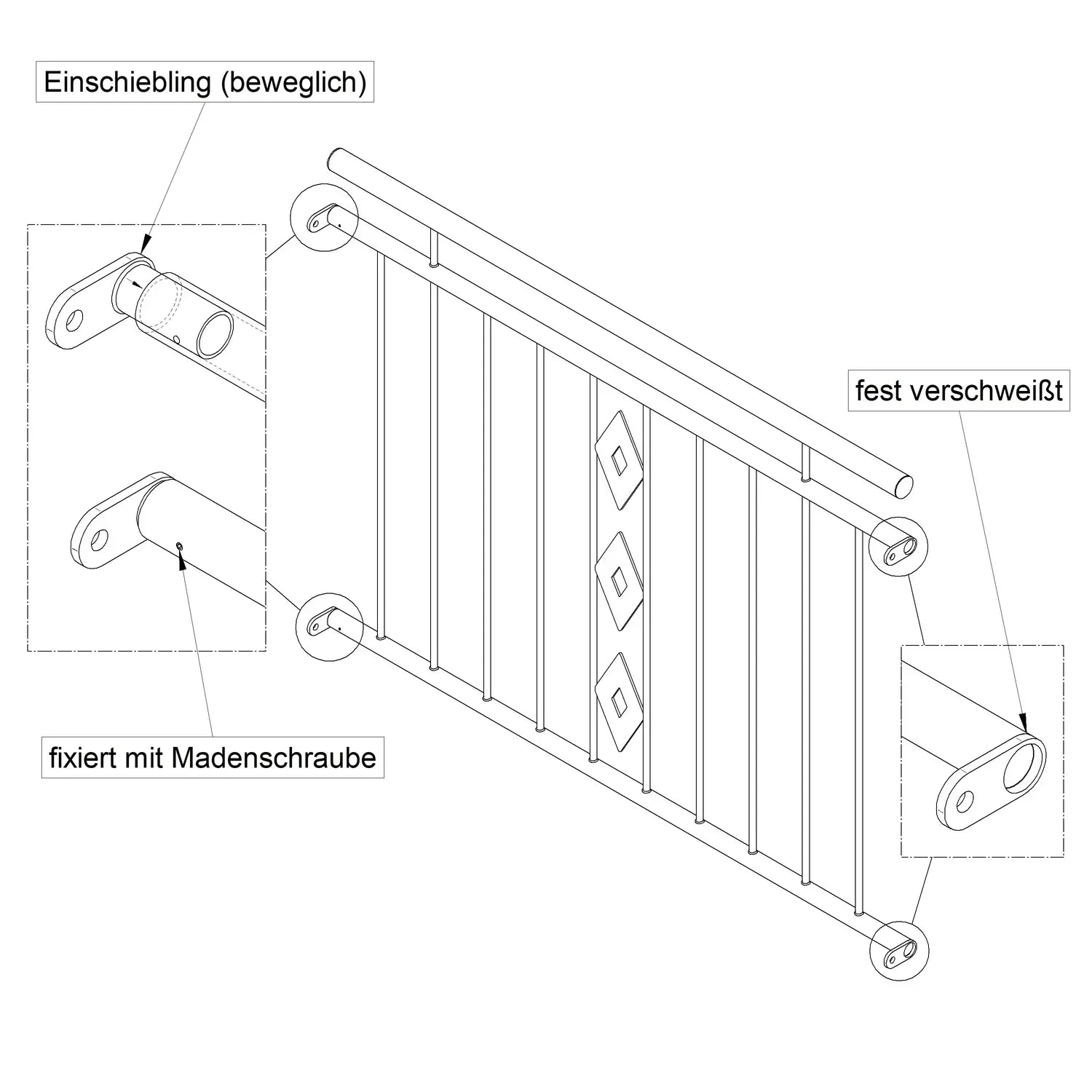

Zeichnung eines Metallgeländers mit Laibungsbefestigung, Madenschraube und Schweißpunkten

French balcony model Bordeaux galvanized

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 10010
Ab
367,50 €

Tax included. Shipping calculated at checkout

Delivery time: 21 to 28 days

French Balcony / Fall Protection / Window Grille - Model Bordeaux Galvanized

High-quality French balcony made of galvanized steel - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded. For the infill bars, we exclusively use solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubes.



  • Production: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized
  • Handrail: Pipe Ø 42.4 mm - Wall thickness: 2mm (optional in stainless steel)
  • Top and bottom chord frame: Pipe Ø 33.7 mm - Wall thickness: 2 mm
  • Infill bars: Ø 12.0 mm - Solid material
  • Distances between the infill bars vary depending on the total length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Wall mounting elements made of stainless steel
  • Please contact us for a possible quantity discount for 3+ balconies


Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = fastening distance = fastening width
A distance of approx. 10 cm from the wall edge should be maintained, otherwise the masonry may break out.

Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Select handrail variant:

  • Handrail in galvanized steel
  • Handrail in stainless steel 1.4301 - brushed


Mounting set - assembly material:
Depending on the nature of the wall, different mounting materials are required for the French balcony.

In the configurator, you can add the fastening material depending on the type of wall.

For professional installation, please observe the applicable building regulations. Please inform yourself in advance at the responsible building authority. The installer on site assumes liability for the selection of the correct mounting material and proper fastening.
