Französischer Balkon Fenstergitter aus Metall mit Rauten, anthrazit, an Hausfassade montiert

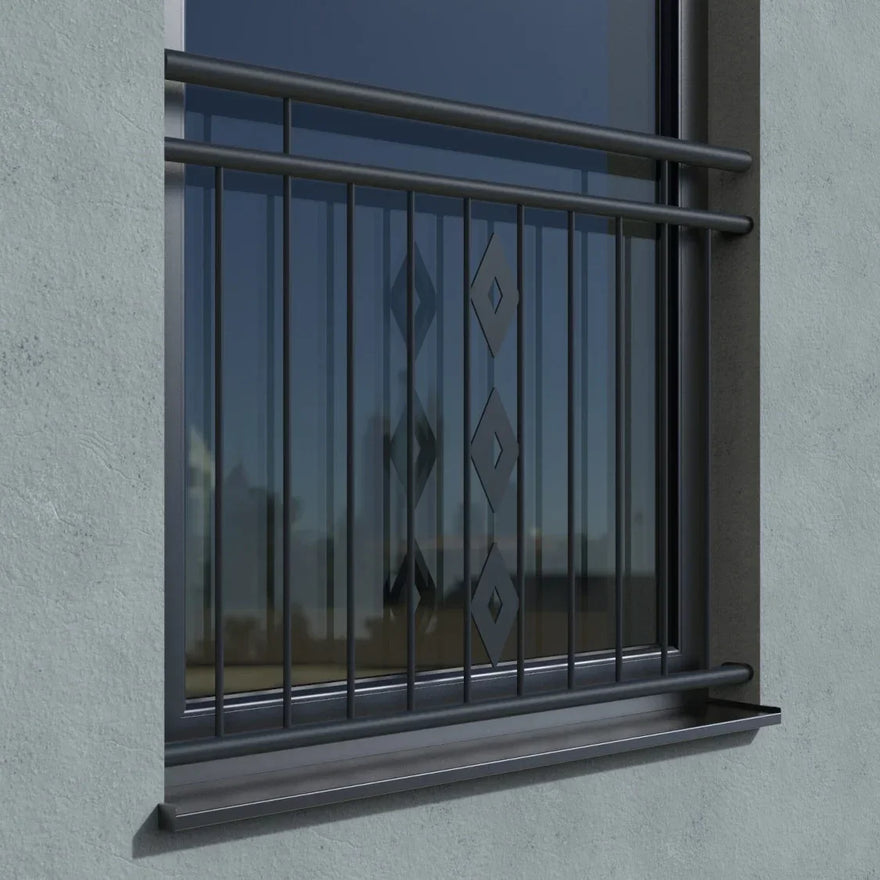

Schwarzes Fenstergitter für französischen Balkon mit Rautenmotiv, Montage in Laibung

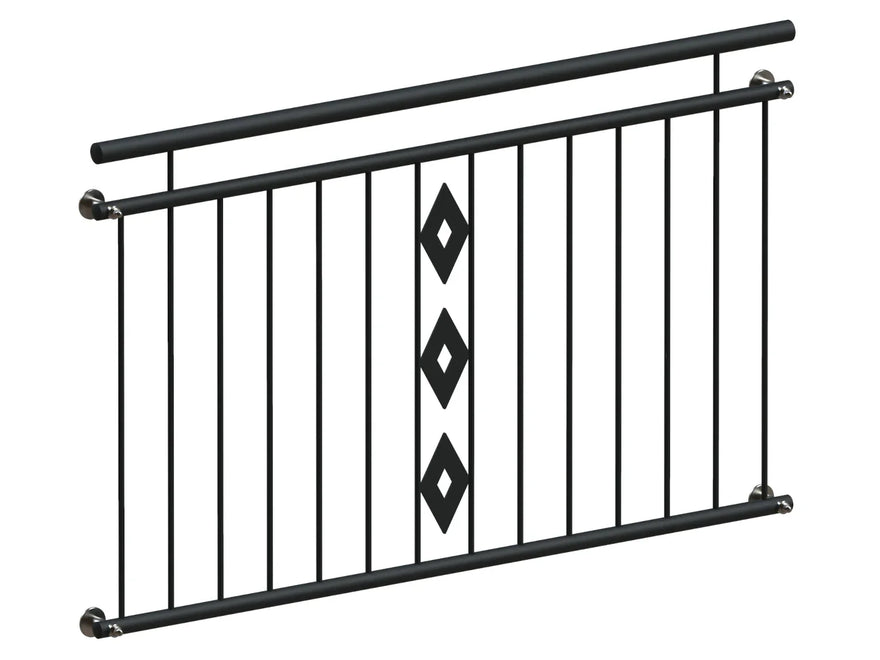

Schwarzes Fenstergitter für französischen Balkon mit drei Rauten mustern, schlichtes Design
Technische Zeichnung eines französischen Balkongeländers aus Metall mit Maßangaben und Befestigung.
Technische Zeichnung eines französischen Balkons aus Metall mit Maßen und Befestigungsdetails
Technische Zeichnung französischer Balkon Metall, Maße und Befestigungsabstand markiert
Zeichnung eines Metallgeländers mit Laibungsbefestigung, Madenschraube und Schweißpunkten

French balcony model Bordeaux, powder-coated in various colors

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 13012
Ab
647,50 €

Tax included. Shipping calculated at checkout

Delivery time: 28 to 42 days

French Balcony / Fall Protection / Window Grille - Model Bordeaux powder-coated in color of your choice

High-quality French balcony made of galvanized steel with powder coating - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded. For the infill bars, we only use solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubing.

  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized with powder coating
  • Handrail: Tube Ø 42.4 mm - Wall thickness: 2mm (optional in stainless steel)
  • Top and bottom chord frame: Tube Ø 33.7 mm - Wall thickness: 2 mm
  • Infill bars: Ø 12.0 mm - solid material
  • Distances between the infill bars vary depending on the total length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Stainless steel wall mounting elements
  • Feel free to contact us for a possible quantity discount for orders of 3+ balconies


Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = Fastening distance = Fastening width
A distance of approx. 10 cm from the edge of the wall should be maintained, otherwise the masonry may break out.

Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting distance for fastening in the reveal:
Mounting distance = dimension of the window reveal

Select handrail variant:

  • Handrail in galvanized steel
  • Handrail in stainless steel 1.4301 - brushed

Select color: Please specify in the selection field!
All DB iron mica colors and RAL colors are possible.
An overview of all RAL colors can be found here - please click on the link.

Mounting set - assembly material:
Depending on the condition of the wall, different mounting materials are required for the French balcony.

In the configurator, you can add the fastening material depending on the type of wall.

For proper installation, please observe the applicable building regulations. Please inquire in advance at the responsible building authority. The local installer is responsible for selecting the correct mounting material and proper fastening.
