Verzinktes Fenstergitter für französischen Balkon mit modernem Design an Hausfassade

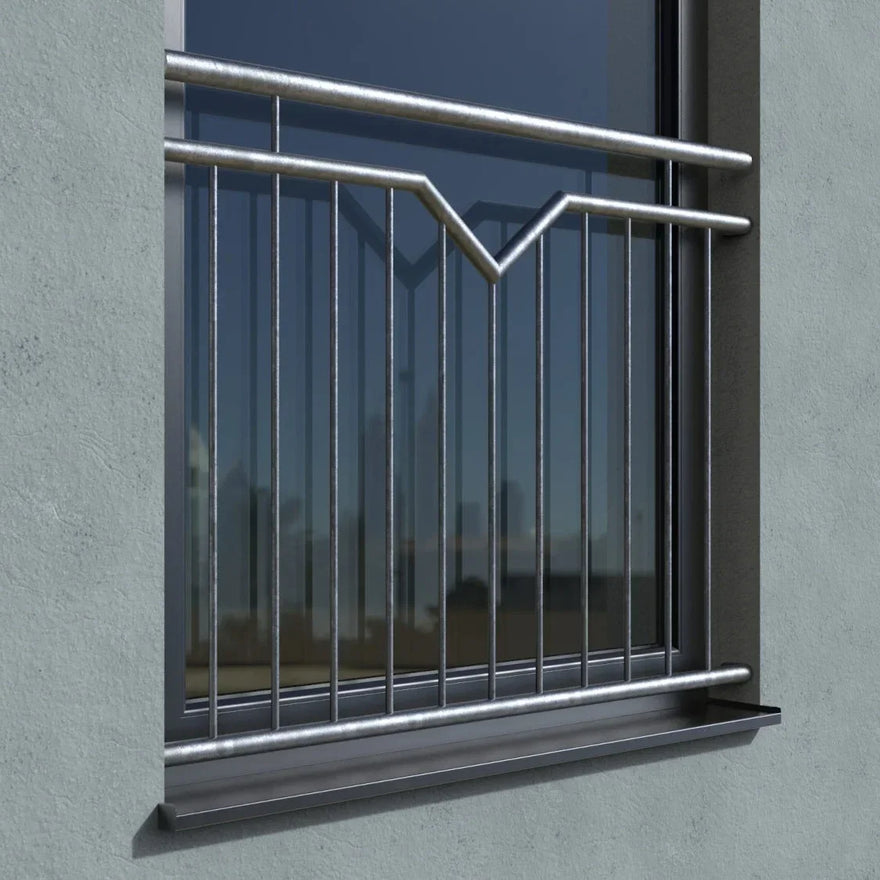

Verzinktes Fenstergitter für französischen Balkon mit senkrechten Stäben und modernem Design

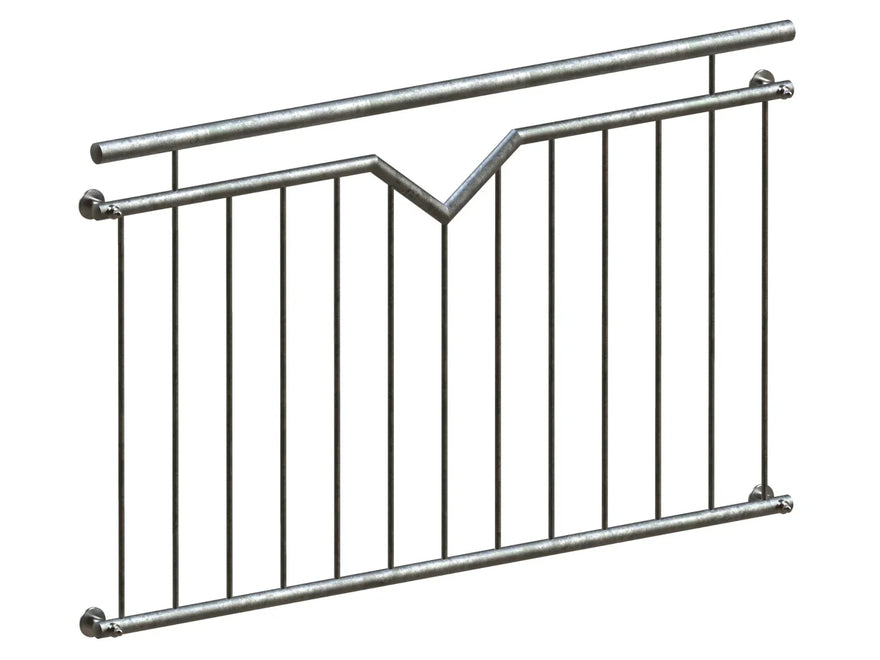

Verzinktes Fenstergitter für französischen Balkon mit modernem Z-Muster, Metallbau
Technische Zeichnung eines französischen Balkongeländers aus Metall mit Maßangaben, geeignet zur Fensterabsicherung.
Technische Zeichnung eines modernen französischen Balkongeländers aus Metall mit V-förmigem Mittelstab, Maßen und Befestigungsdetails.
Technische Zeichnung französischer Balkon aus Metall mit Maßen für Laibungsmontage
Technische Zeichnung eines Metallgeländers mit Details zu Einschiebling und Verschweißung.

French balcony, model Nizza, galvanized

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 10008
Ab
367,50 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

French Balcony / Fall Protection / Window Grille - Model Nizza galvanized

High-quality French balcony made of galvanized steel - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded. For the infill bars, we use only solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubing.



  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized
  • Handrail: Tube Ø 42.4 mm - Wall thickness: 2mm (optional in stainless steel)
  • Top and bottom chord frame: Tube Ø 33.7 mm - Wall thickness: 2 mm
  • Infill bars: Ø 12.0 mm - solid material
  • Distances between infill bars vary depending on total length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Wall mounting elements made of stainless steel
  • Please contact us for a possible quantity discount for 3+ balconies


Determine fastening distance:
Enter the value in mm in the selection field above.
Fastening distance = fastening width
A distance of approx. 10 cm from the edge of the wall should be maintained, otherwise the masonry may break out.

Example calculation of fastening distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm fastening distance

Select handrail variant:

  • Handrail in galvanized steel
  • Handrail in stainless steel 1.4301 - brushed


Fastening set - mounting material:
Depending on the nature of the wall, different mounting material is required for the French balcony.

In the configurator, you can add the fastening material depending on the wall type.

For professional installation, please observe the applicable building regulations. Please inquire in advance with the responsible building authority. The installer on site assumes liability for the selection of the correct mounting material and proper fastening.
