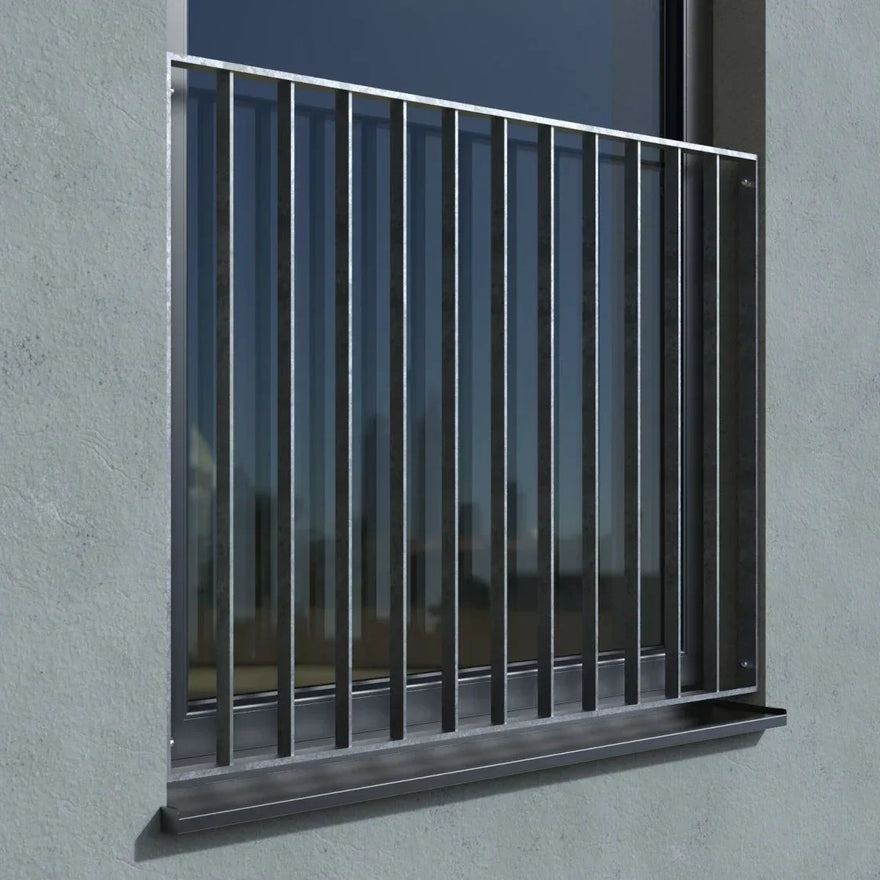

French balcony, Marseille model, galvanized

French balcony / fall protection / window grille - Marseille model, galvanized

High-quality French balcony made of galvanized steel - MADE IN GERMANY - directly from the manufacturer. All connections are sturdy and professionally welded.

• Manufacturing: according to DIN EN 1090
• Material: Steel (S235JR)
• Surface: hot-dip galvanized
• Railing frame: Flat steel 40x10 mm
• Filler bars: Flat steel 30x6 mm
• The spacing between the infill bars varies depending on the overall length: maximum 120 mm
• Height: 1000 mm (other heights available on request)
• Please contact us for a possible quantity discount starting from a quantity of 3+ balconies.

Determine the mounting distance:
Enter the value in mm in the selection box above.
Mounting distance = Mounting distance = Mounting width
A distance of approximately 10 cm from the edge of the wall should be maintained, otherwise the masonry may break out.

Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting distance for fixing in the reveal:
Mounting distance = dimension of the window reveal

Mounting kit - Mounting material:
Depending on the condition of the wall, different mounting materials are required for the French balcony.

• Fastening in masonry on brick, aerated concrete
• Fastening in masonry - brick, aerated concrete with thermal insulation ETICS
• Mounting on wooden stand

In the configurator, you can add the fastening material depending on the type of wall.

For proper installation, please observe the applicable building regulations. Please check with the relevant building authority beforehand. The installer on site assumes liability for selecting the correct mounting materials and ensuring proper fastening.
