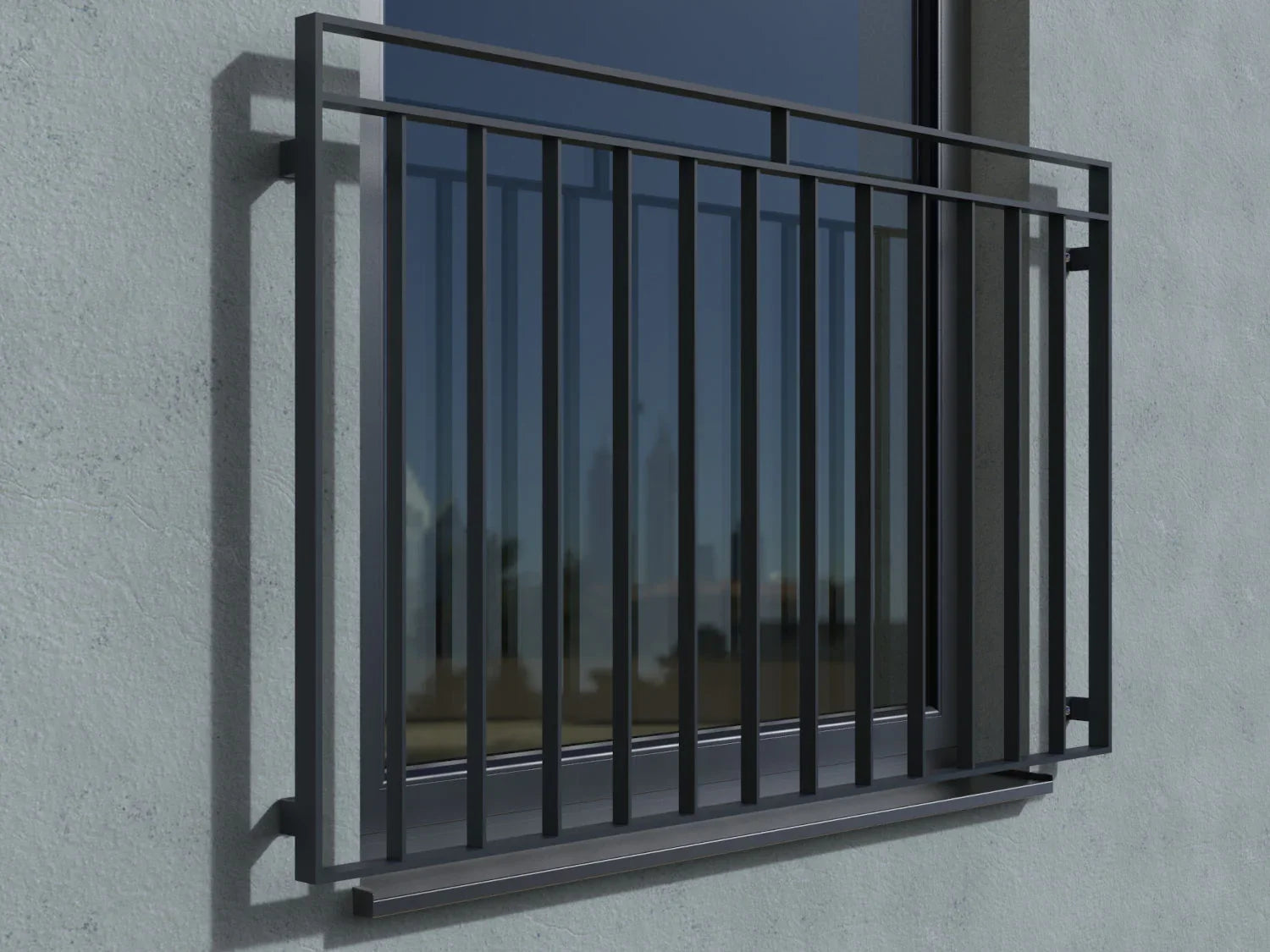

Französischer Balkon aus Flacheisen mit Handlauf in RAL 7016 vor Fenster montiert

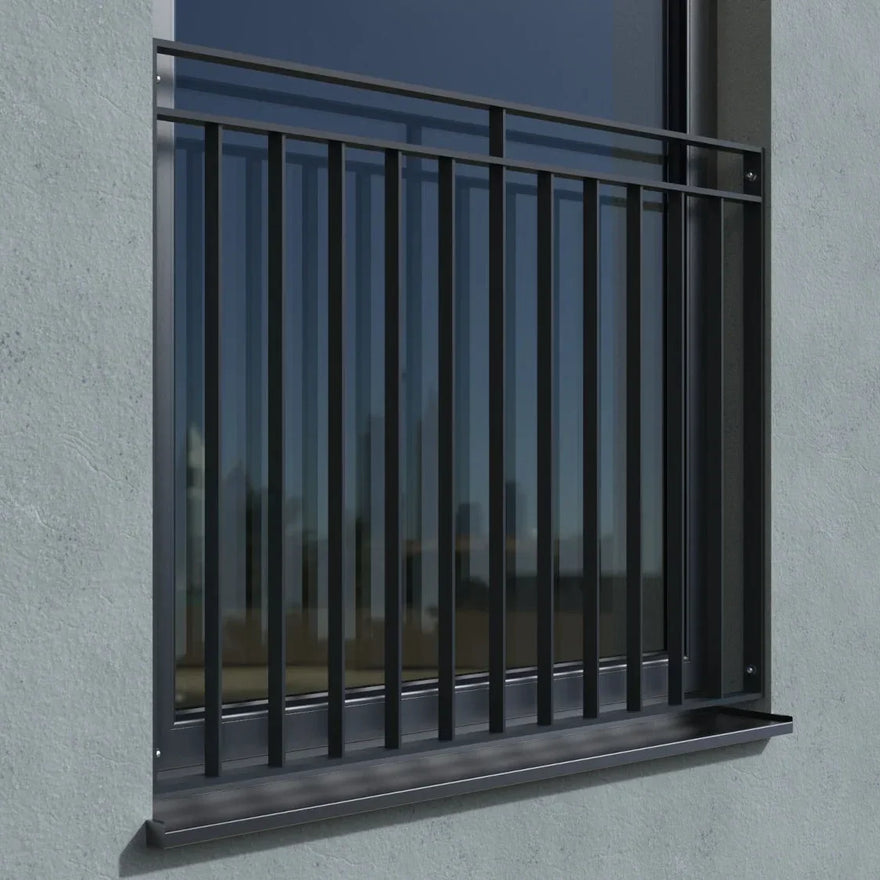

Fenstergitter für französischen Balkon, pulverbeschichtetes Metall, moderne Laibung
Technische Zeichnung eines französischen Metall-Balkongeländers mit Maßen und Befestigung.
Zeichnung eines französischen Balkongeländers mit Maßangaben für Laibungsbreite und Höhe.

French balcony model Marseille 2, powder-coated in various colors

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 13007
565,00 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

French Balcony / Fall Protection / Window Grille - Model Marseille 2 Powder-Coated in Color of Choice

High-quality French balcony made of galvanized steel with powder coating - MADE IN GERMANY - directly from the manufacturer. All connections are stably and professionally welded.

  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized with powder coating
  • Railing frame: Flat steel 40x10 mm
  • Filling bars: Flat steel 30x6 mm
  • Spacing between filling bars varies depending on total length: maximum 120 mm
  • Height: 1000 mm (other heights available upon request)
  • Feel free to contact us for a possible quantity discount for 3+ balconies


Determine the mounting distance:
Enter the value in mm above in the selection field.
Mounting distance = Mounting width
A distance of approx. 10 cm from the wall edge should be maintained, otherwise the masonry may break out.

Example calculation for mounting distance:
1000 mm window width (reveal dimension)
+100 mm left clearance
+100 mm right clearance
= 1200 mm mounting distance

Mounting distance for mounting in the reveal:
Mounting distance = Dimension of the window reveal

Select color: Please specify in the selection field!
All DB iron mica colors and RAL colors are possible.
An overview of all RAL colors can be found here - please click on the link.

Attention:
the vertical central strut is only used for a mounting distance greater than 1500mm.

Mounting set - assembly material:
Depending on the nature of the wall, different mounting materials are required for the French balcony.

In the configurator, you can add the mounting material depending on the wall type.

For professional installation, please observe the valid building regulations. Please inform yourself in advance at the responsible building authority. The installer on site is responsible for the selection of the correct mounting material and proper fastening.
