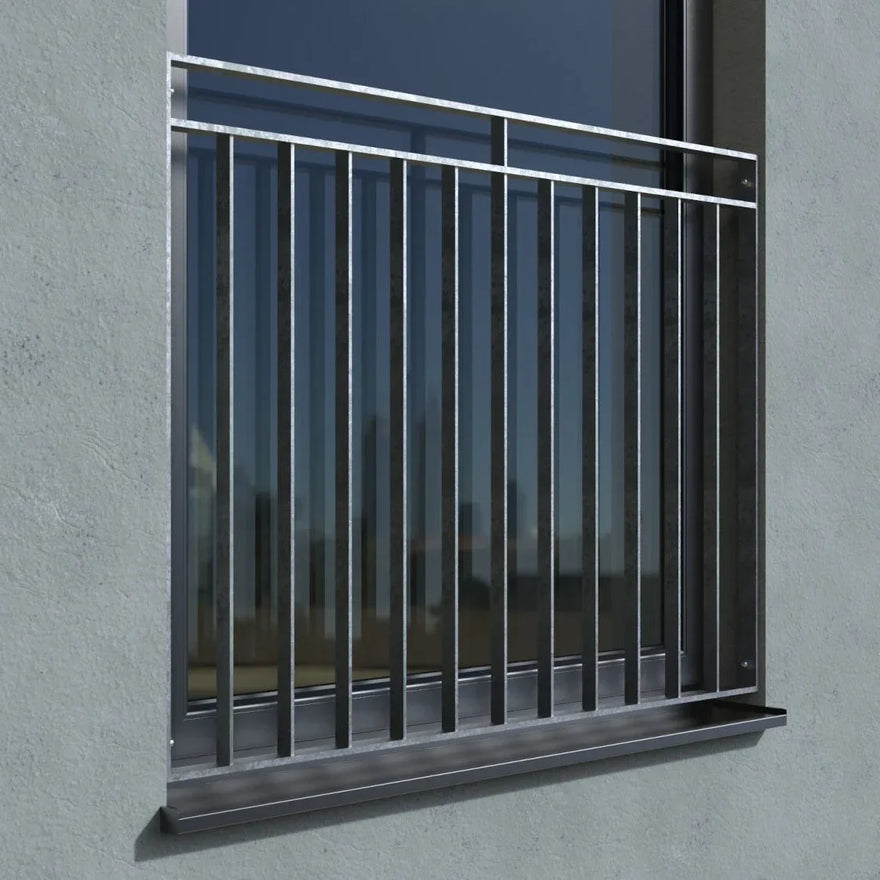

Verzinktes Fenstergitter für französischen Balkon an moderner Fassade, senkrechte Stäbe

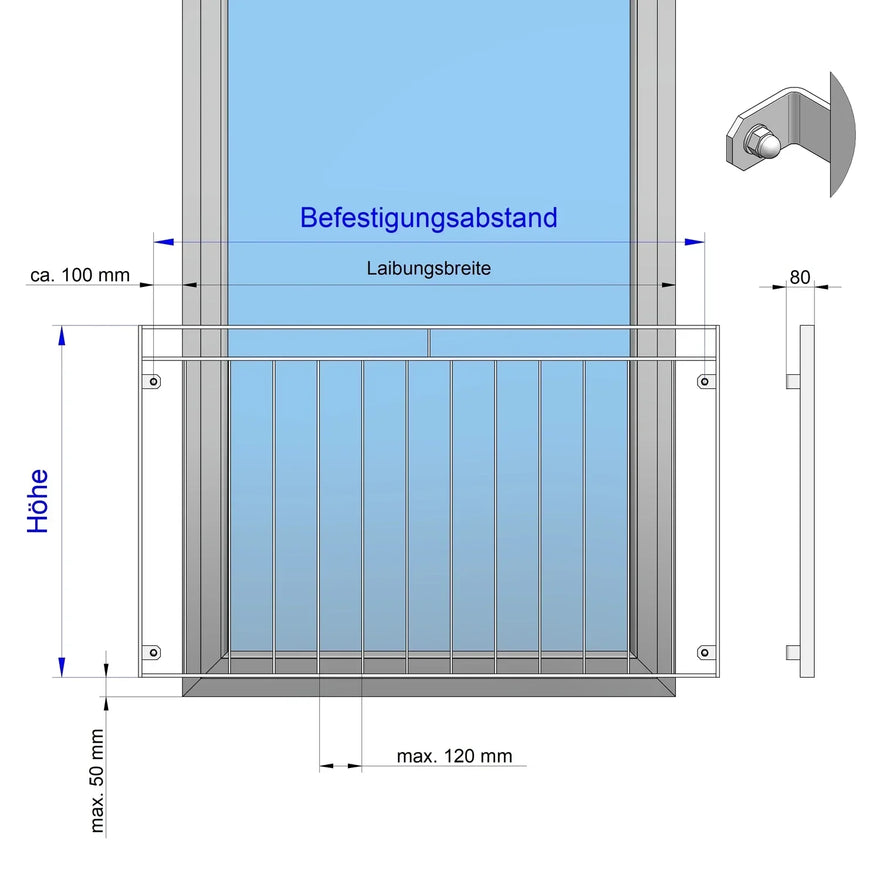

Technische Zeichnung eines französischen Metall-Balkongeländers mit Maßen und Befestigung.
Zeichnung eines französischen Balkongeländers mit Maßangaben für Laibungsbreite und Höhe.

French balcony model Marseille 2 galvanized

Certified manufacturing according to DIN 1090

Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 10005
Ab
Sale price305,00 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

French Balcony / Fall Protection / Window Grille - Model Marseille 2 galvanized

High-quality French balcony made of galvanized steel - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded.

  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized
  • Railing frame: Flat steel 40x10 mm
  • Infill bars: Flat steel 30x6 mm
  • Spacing between infill bars varies depending on overall length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Please contact us for a possible quantity discount for orders of 3+ balconies


Determine the mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = Mounting width
A distance of approx. 10 cm from the wall edge should be maintained, otherwise the masonry may break out.

Attention:
the vertical central strut is only used for mounting distances greater than 1500mm.


Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting distance for mounting in the reveal:
Mounting distance = dimension of the window reveal

Mounting set - assembly material:
Depending on the nature of the wall, different mounting material is required for the French balcony.

You can add the mounting material according to the wall type in the configurator.

For professional installation, please observe the applicable building regulations. Please inquire with the responsible building authority beforehand. The on-site installer assumes liability for the selection of the correct mounting material and proper fastening.
