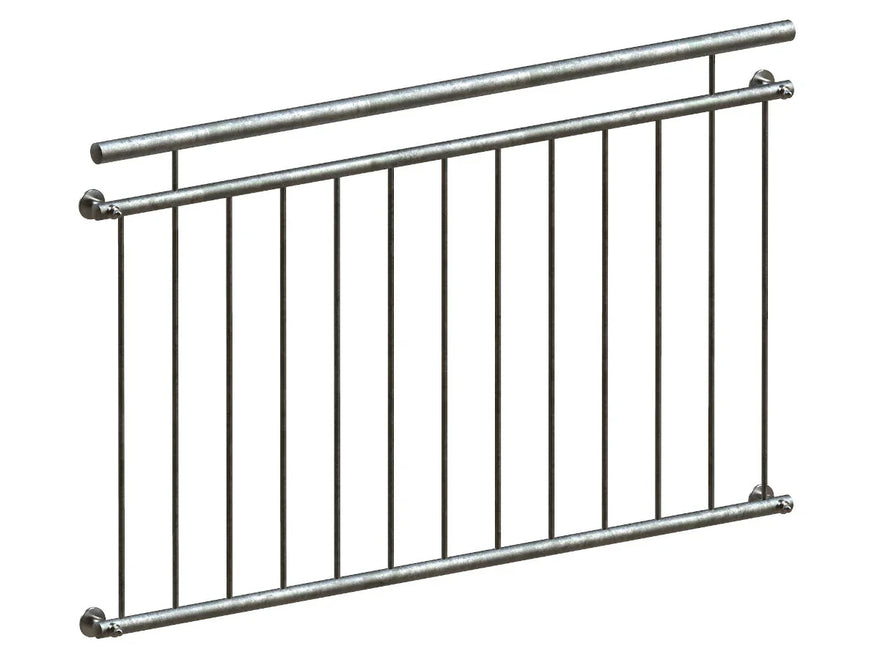

Verzinktes Fenstergitter für französischen Balkon mit vertikalen Streben, modern und robust.
Technische Zeichnung eines Metall-Fensterbalkongeländers mit Maßen und Befestigungsdetails.
Technische Zeichnung französischer Balkon aus Metall mit Maßangaben, Fenster, Geländer, Halterung
Technische Zeichnung französischer Balkon aus Metall mit Maßen und Befestigungsdetails.
Konstruktionszeichnung Metallgeländer mit Detailansichten, Einschiebling, Verschweißung, Madenschraube

French balcony model Lyon, galvanized

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 10006
Ab
267,50 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

French Balcony / Fall Protection / Window Grille - Model Lyon galvanized

High-quality French balcony made of galvanized steel - MADE IN GERMANY - directly from the manufacturer. All connections are stably and professionally welded. For the infill bars, we exclusively use solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubing.



  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized
  • Handrail: Tube Ø 42.4 mm - Wall thickness: 2mm (optional in stainless steel)
  • Top and bottom chord frame: Tube Ø 33.7 mm - Wall thickness: 2 mm
  • Infill bars: Ø 12.0 mm - Solid material
  • Spacing between infill bars varies depending on total length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Wall mounting elements made of stainless steel
  • Feel free to contact us for a possible quantity discount for orders of 3+ balconies

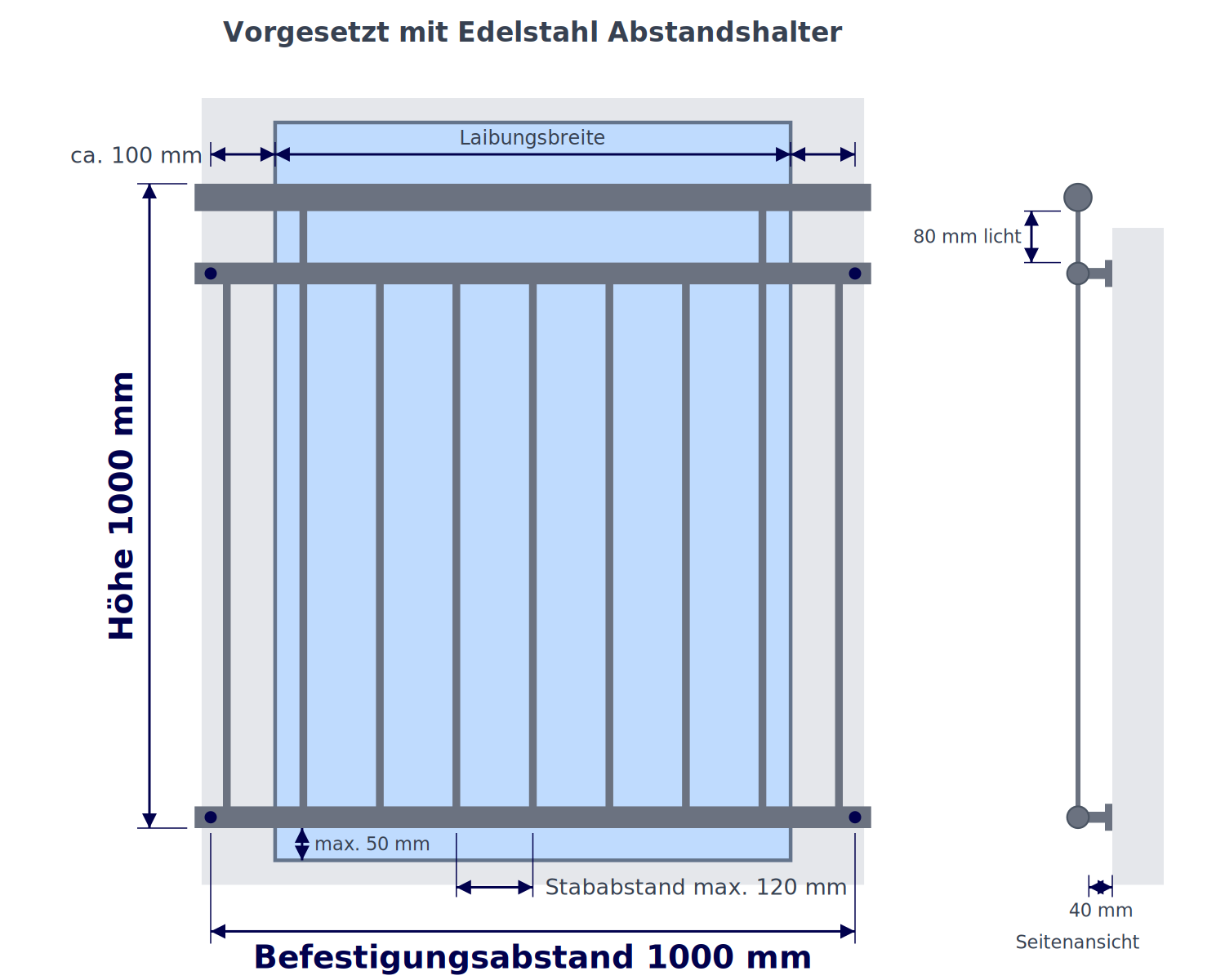

Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = Mounting width
A distance of approx. 10 cm from the edge of the wall should be maintained, otherwise the masonry may break out.

Example calculation of mounting distance:
1000 mm window width (reveal measurement)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Select handrail variant:

  • Handrail in galvanized steel
  • Handrail in stainless steel 1.4301 - brushed


Mounting set - assembly material:
Depending on the condition of the wall, different mounting material is required for the French balcony.

You can add the mounting material according to the wall type in the configurator.

For professional installation, please observe the applicable building regulations. Please inform yourself in advance at the responsible building authority. The installer on site assumes liability for the selection of the correct mounting material and proper fastening.
