Fenstergitter aus Edelstahl für französischen Balkon an moderner Hausfassade

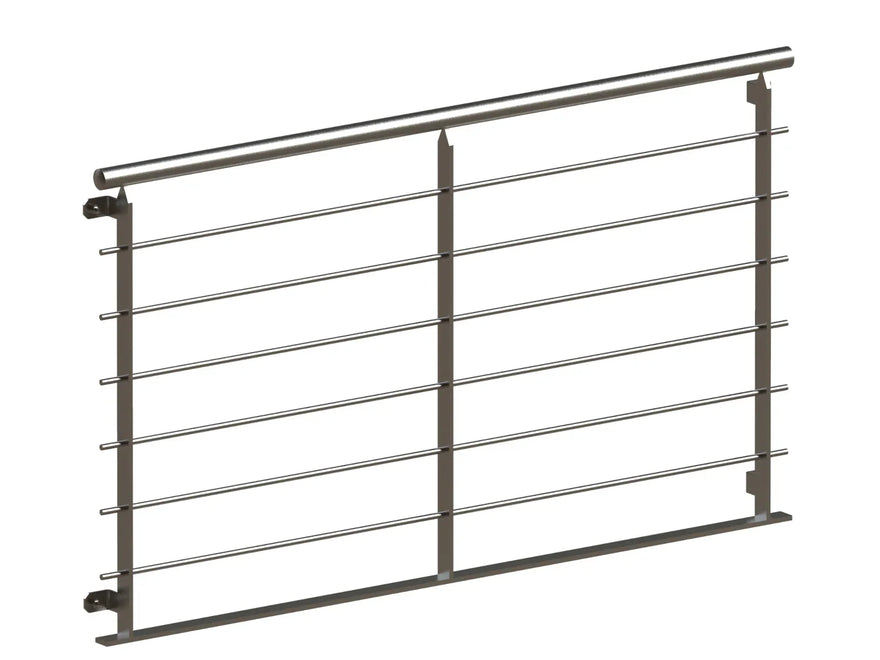

Fenstergitter aus Edelstahl für französischen Balkon, modernes Design, Querstreben

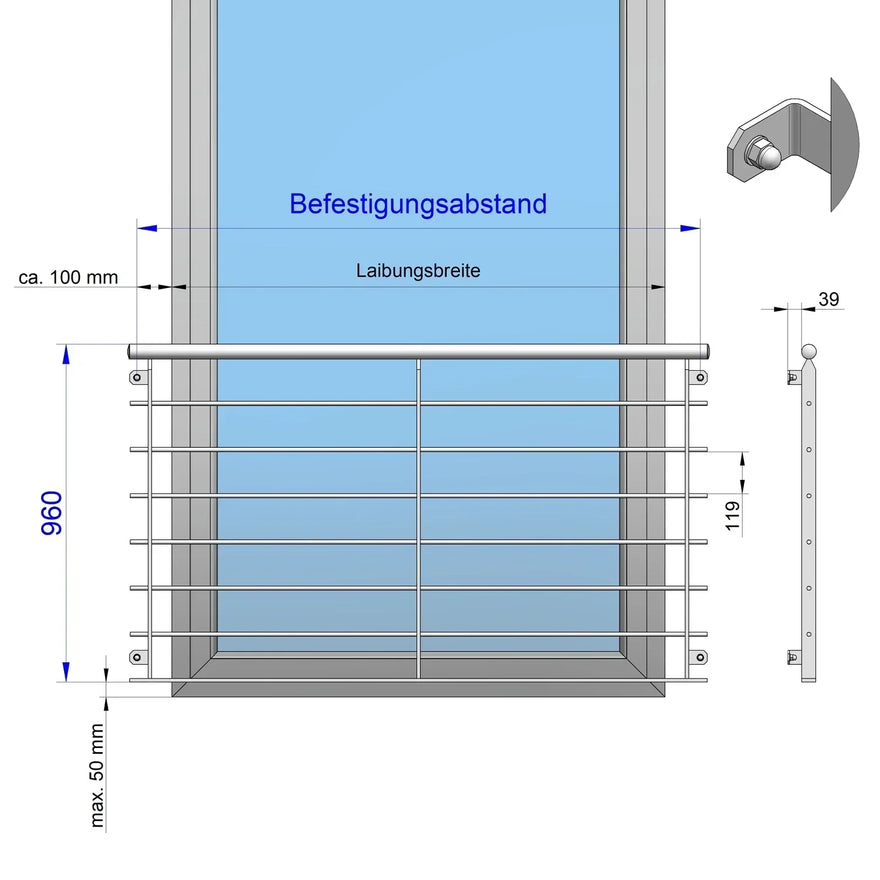

Technische Zeichnung französischer Balkon aus Edelstahl mit Maßangaben und Befestigungsdetails

French balcony model Line stainless steel - front-mounted

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 11006
452,50 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

French Balcony / Fall Protection / Window Grille - Model Line in Stainless Steel

High-quality French balcony made of stainless steel - MADE IN GERMANY - directly from the manufacturer. All connections are solidly and professionally welded. For the infill bars, we only use solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubing.



  • Manufacturing: according to DIN EN 1090
  • Material: Stainless steel V2A
  • Surface: brushed grit 320
  • Handrail: Tube Ø 42.4 mm - Wall thickness: 2mm
  • Railing frame: Flat steel 40x10 mm
  • Infill bars: Ø 12.0 mm - solid material
  • Spacing between infill bars varies depending on overall length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Please contact us for a possible bulk discount for orders of 3+ balconies


Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = Fastening distance = Fastening width
A distance of approx. 10 cm from the edge of the wall should be maintained, otherwise the masonry may break.

Attention:
the vertical central strut is only used for a mounting distance greater than 1500mm.

Example calculation mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting set - assembly material:
Depending on the nature of the wall, different mounting material is required for the French balcony.

In the configurator, you can add the mounting material depending on the type of wall.

For professional installation, please observe the applicable building regulations. Please inform yourself beforehand at the responsible building authority. The installer on site is responsible for selecting the correct mounting material and ensuring proper fastening.
