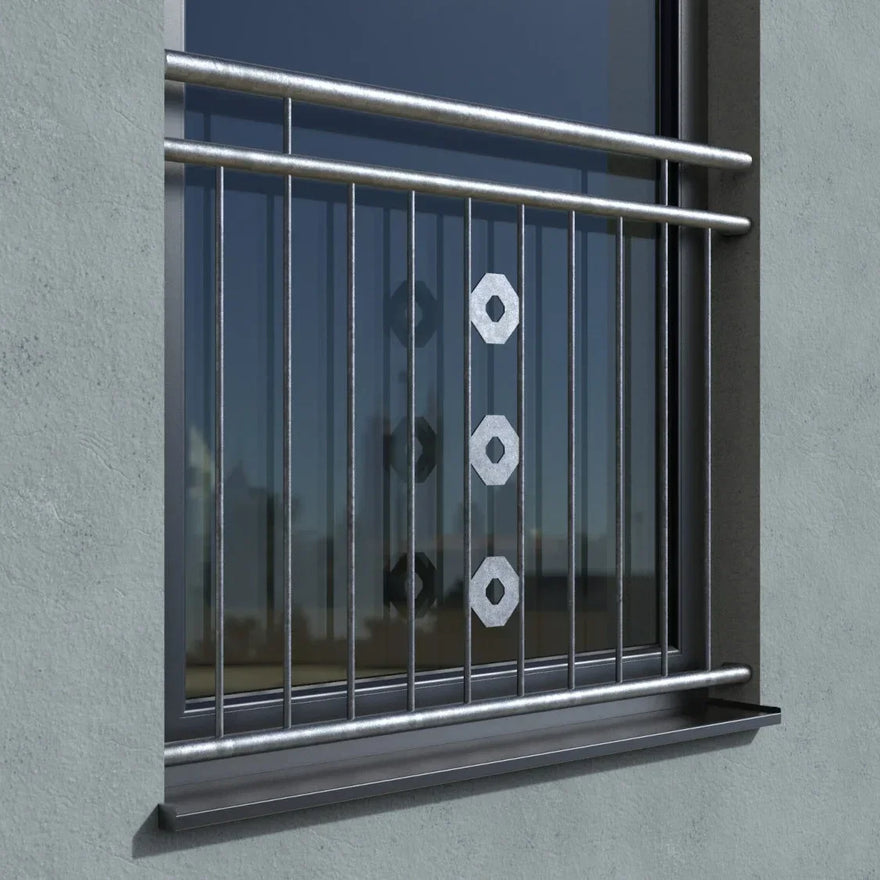

Verzinktes Fenstergitter für französischen Balkon mit geometrischen Zierelementen, Laibungsmontage

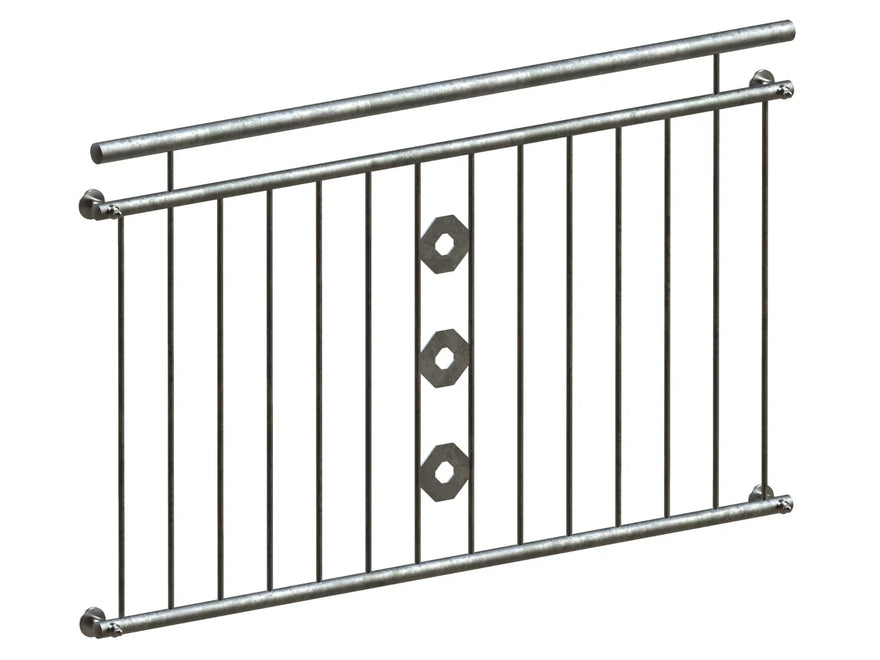

Verzinktes Fenstergitter für französischen Balkon mit senkrechten Stäben und Zierlementen
Technische Zeichnung französischer Balkon aus Metall, Befestigungsabstände und Maße markiert
Technische Zeichnung eines französischen Balkongeländers aus Metall mit Maßangaben für Befestigung und Höhe.
Technische Zeichnung französischer Balkon Grenoble, Maße für Laibung und Befestigungsabstand
Konstruktionszeichnung Metallgeländer für Laibung, Details zu Befestigung und Verschweißung

French balcony model Grenoble, galvanized

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 10013
Ab
367,50 €

Tax included. Shipping calculated at checkout

Delivery time: 21 to 28 days

French Balcony / Fall Protection / Window Grille - Model Grenoble galvanized

High-quality French balcony made of galvanized steel - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded. For the infill bars, we exclusively use solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubing.



  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized
  • Handrail: Tube Ø 42.4 mm - Wall thickness: 2mm (optionally available in stainless steel)
  • Top and bottom chord frame: Tube Ø 33.7 mm - Wall thickness: 2 mm
  • Infill bars: Ø 12.0 mm - Solid material
  • Spacing between infill bars varies depending on overall length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Stainless steel wall mounting elements
  • Feel free to contact us for a possible bulk discount for quantities of 3+ balconies


Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = fastening distance = fastening width
A distance of approx. 10 cm from the wall edge should be maintained, otherwise the masonry may break out.

Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Select handrail variant:

  • Galvanized steel handrail
  • Stainless steel handrail 1.4301 - brushed


Mounting set - assembly material:
Depending on the nature of the wall, different mounting material is required for the French balcony.

In the configurator, you can add the mounting material depending on the type of wall.

For professional installation, please observe the applicable building regulations. Please inquire with the responsible building authority in advance. The on-site installer assumes liability for the selection of the correct mounting material and proper fastening.
