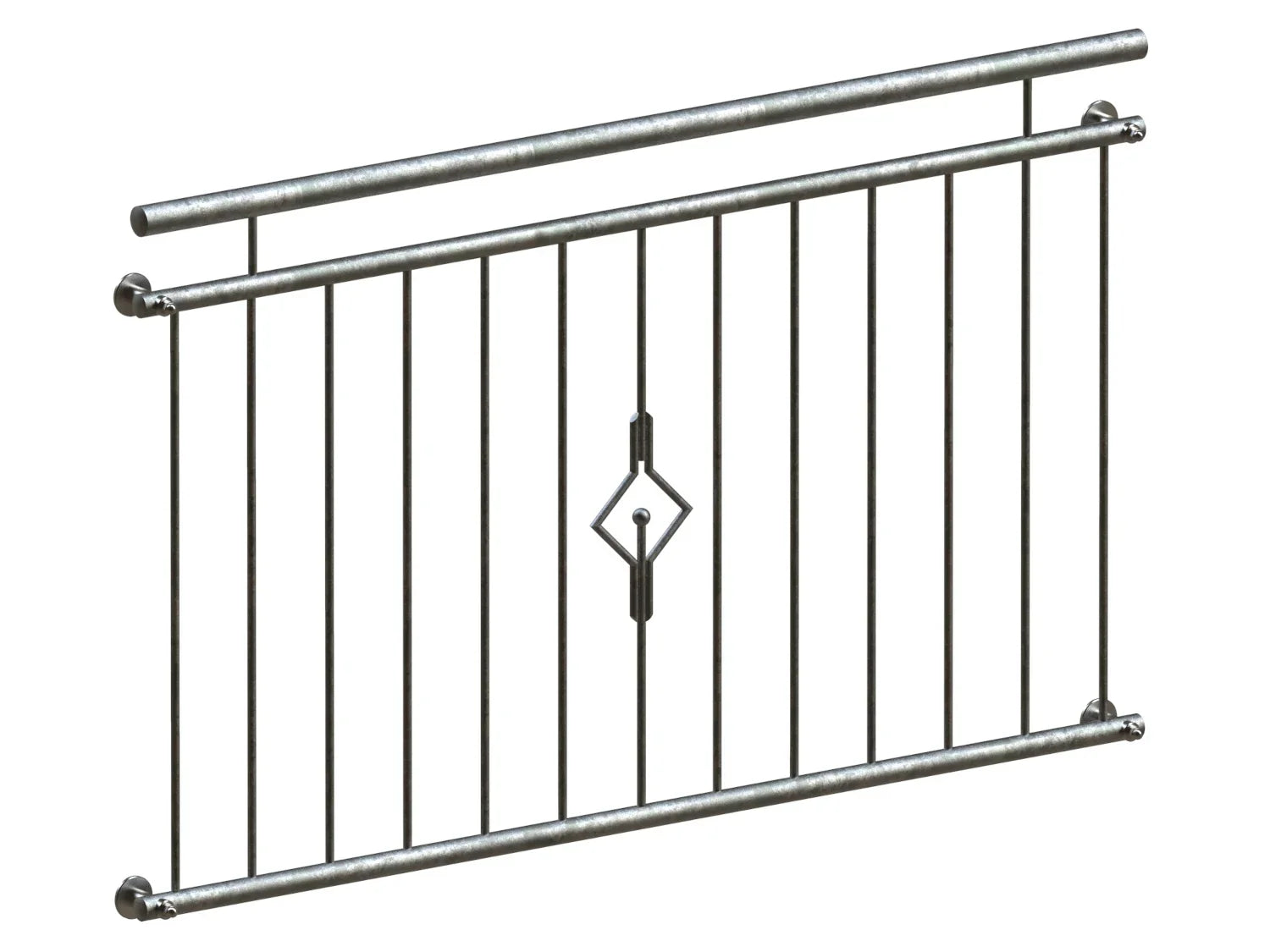

Verzinktes Fenstergitter für französischen Balkon mit vertikalen Stäben und Ziermuster.

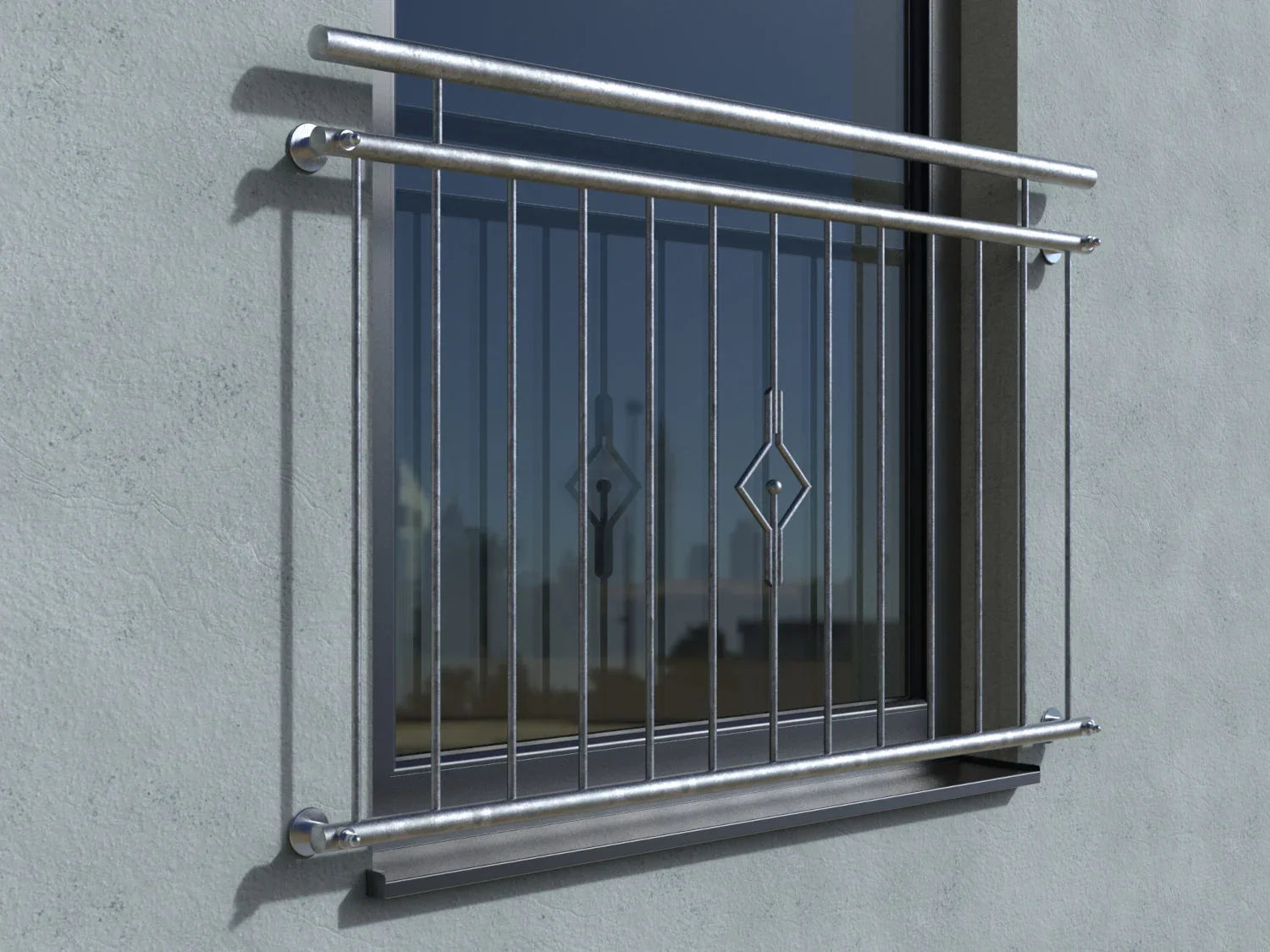

Verzinktes Fenstergitter für französischen Balkon mit modernem Stabdesign und Zierelement

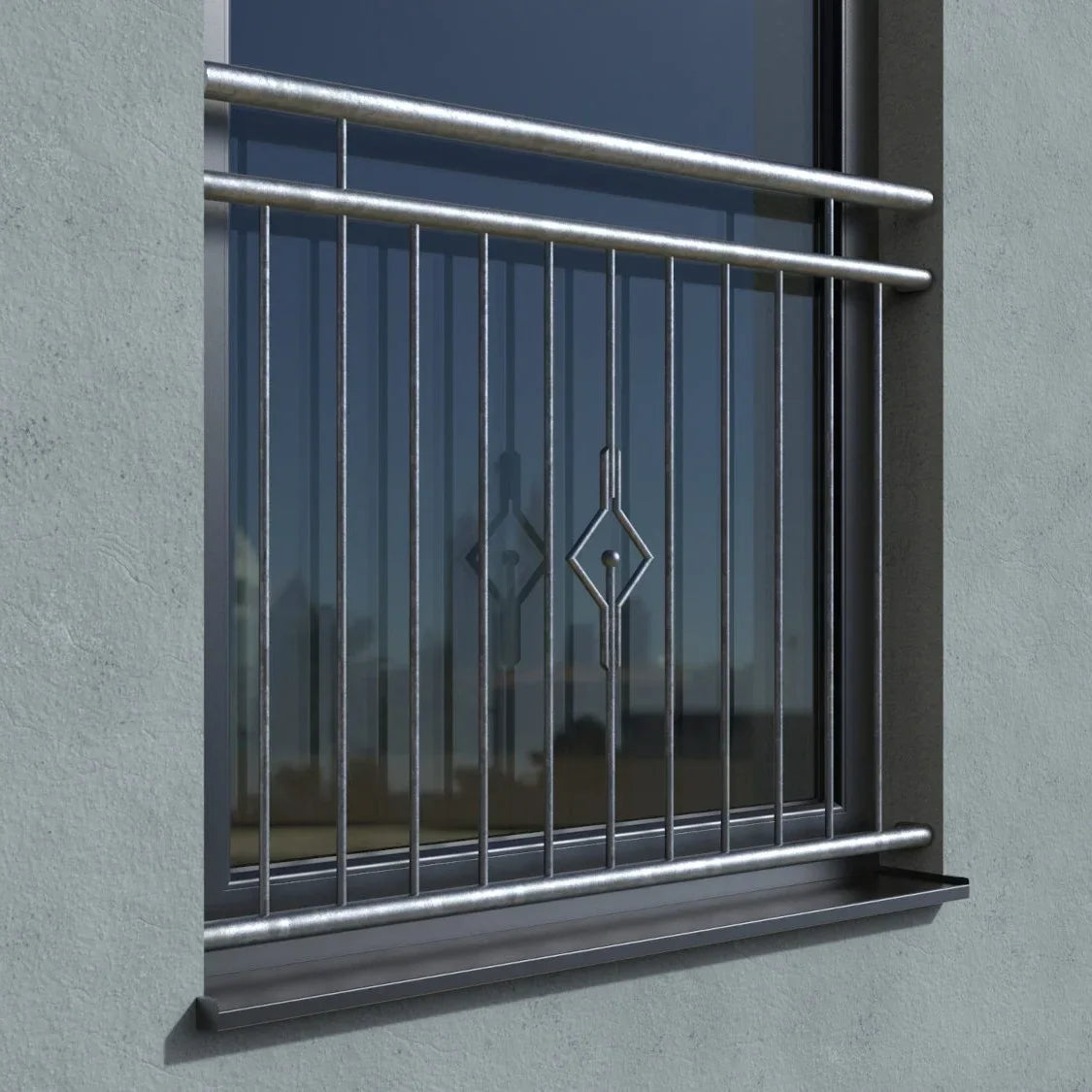

Verzinktes Fenstergitter für französischen Balkon mit Rauten-Design an Fensterlaibung

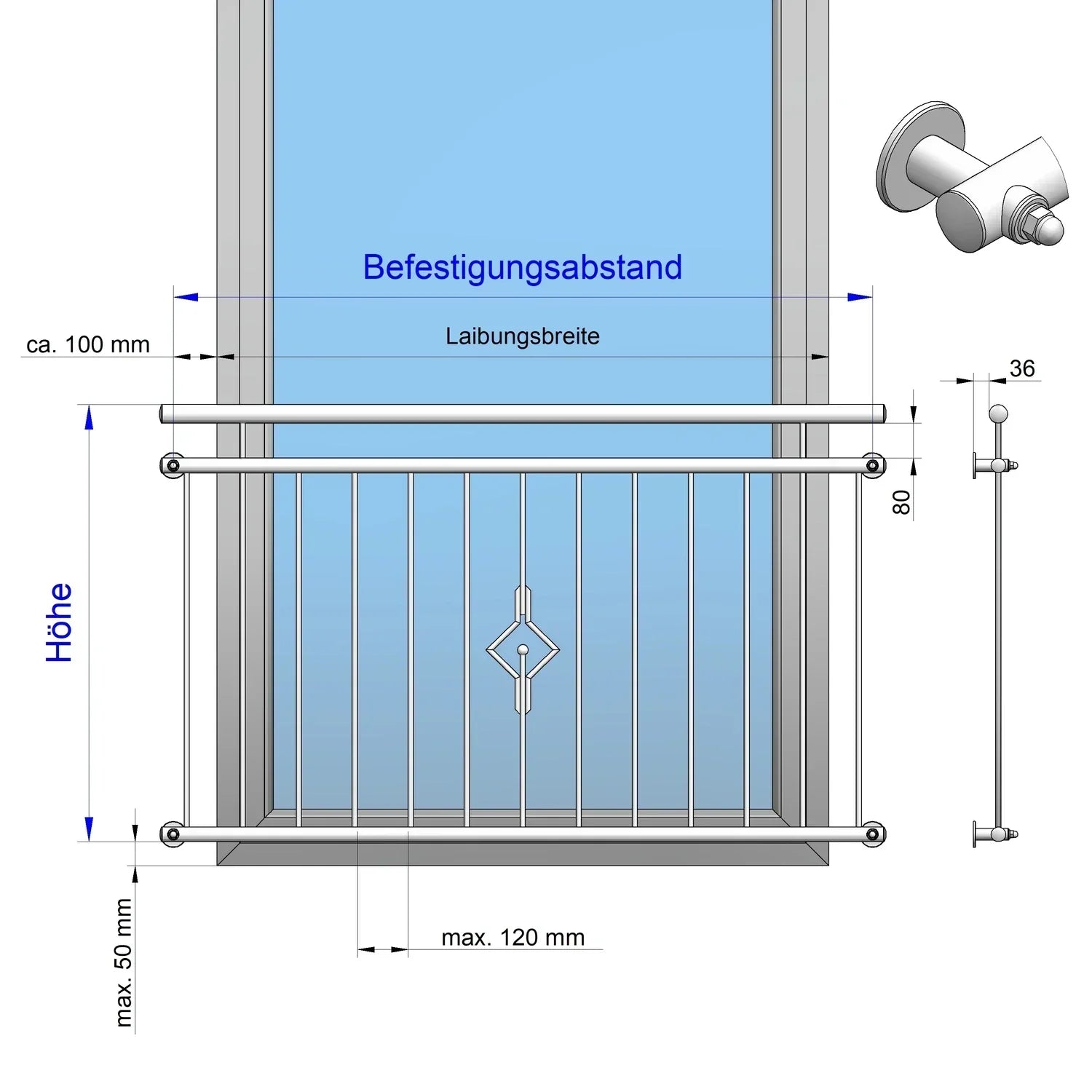

Technische Zeichnung eines französischen Balkongeländers aus Metall mit Maßangaben.

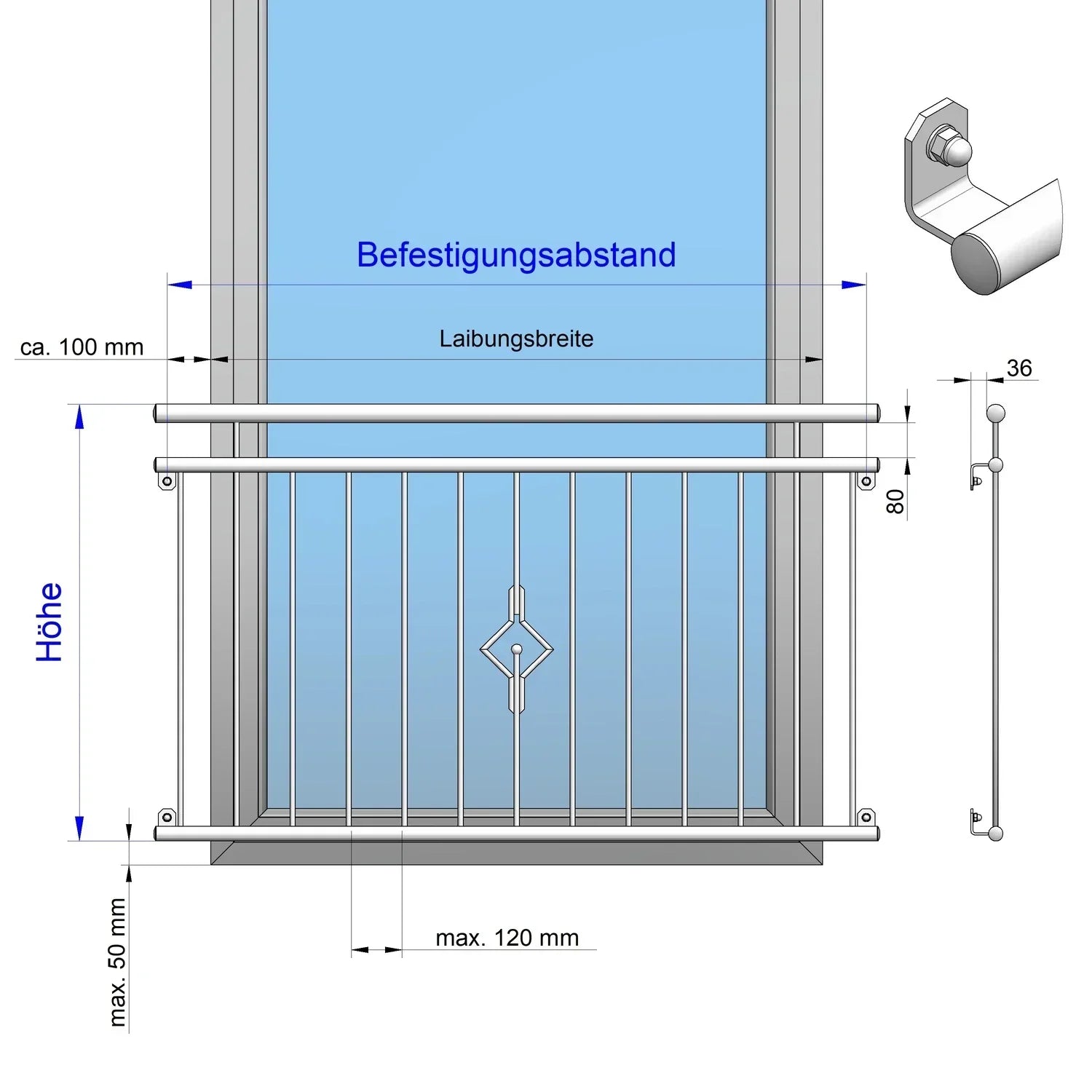

Technische Zeichnung eines französischen Balkon Geländers aus Metall mit Maßangaben und Befestigungselement.

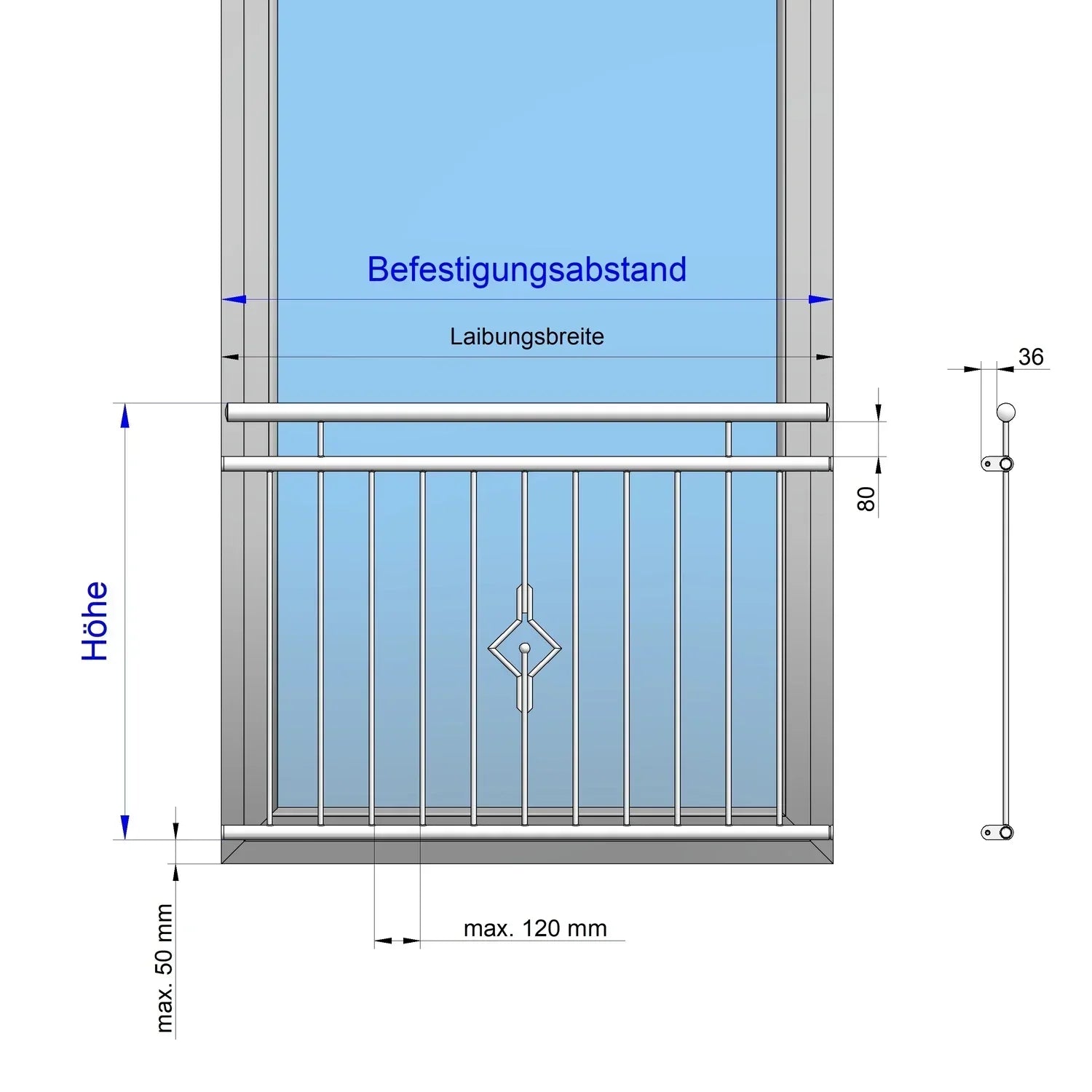

Technische Zeichnung eines Metall-Fenstergitters mit Maßangaben, Laibungsbreite, Befestigungsabstand.

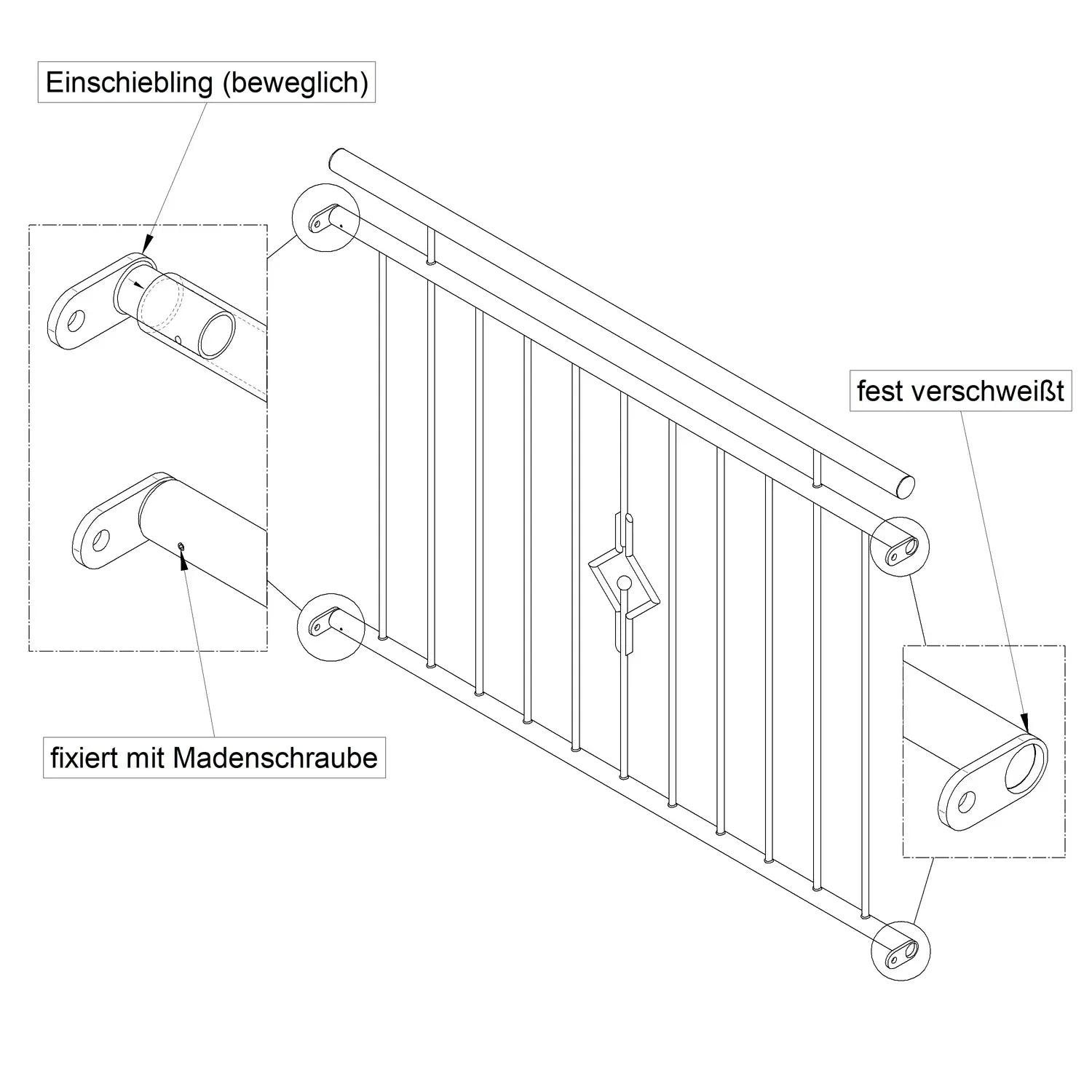

Technische Zeichnung einer Metalltor-Laibung mit Beschriftung, beweglich, fest verschweißt, Madenschraube

French balcony, Dijon model, galvanized

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 10012
Ab
367,50 €

Tax included. Shipping calculated at checkout

Delivery time: 21 to 28 days

French Balcony / Fall Protection / Window Grille - Model Dijon Galvanized

High-quality French balcony made of galvanized steel - MADE IN GERMANY - directly from the manufacturer. All connections are solidly and professionally welded. For the infill bars, we only use solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubing.



  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized
  • Handrail: Tube Ø 42.4 - Wall thickness: 2mm (optional in stainless steel)
  • Top and bottom rail frame: Tube Ø 33.7 mm - Wall thickness: 2 mm
  • Infill bars: Ø 12.0 mm - Solid material
  • Spacing between infill bars varies depending on overall length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Wall mounting elements made of stainless steel
  • Feel free to contact us for a possible quantity discount for 3+ balconies


Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = fastening distance = mounting width
A distance of approx. 10 cm from the wall edge should be maintained, otherwise the masonry may break out.

Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Select handrail variant:

  • Handrail in galvanized steel
  • Handrail in stainless steel 1.4301 - brushed


Mounting set - assembly material:
Depending on the condition of the wall, different mounting material is required for the French balcony.

In the configurator, you can add the mounting material according to the wall type.

For professional installation, please observe the applicable building regulations. Please inform yourself in advance at the responsible building authority. The installer on site is responsible for the selection of the correct mounting material and proper fastening.
