Fenstergitter für französischen Balkon in Schwarz an moderner Hausfassade montiert

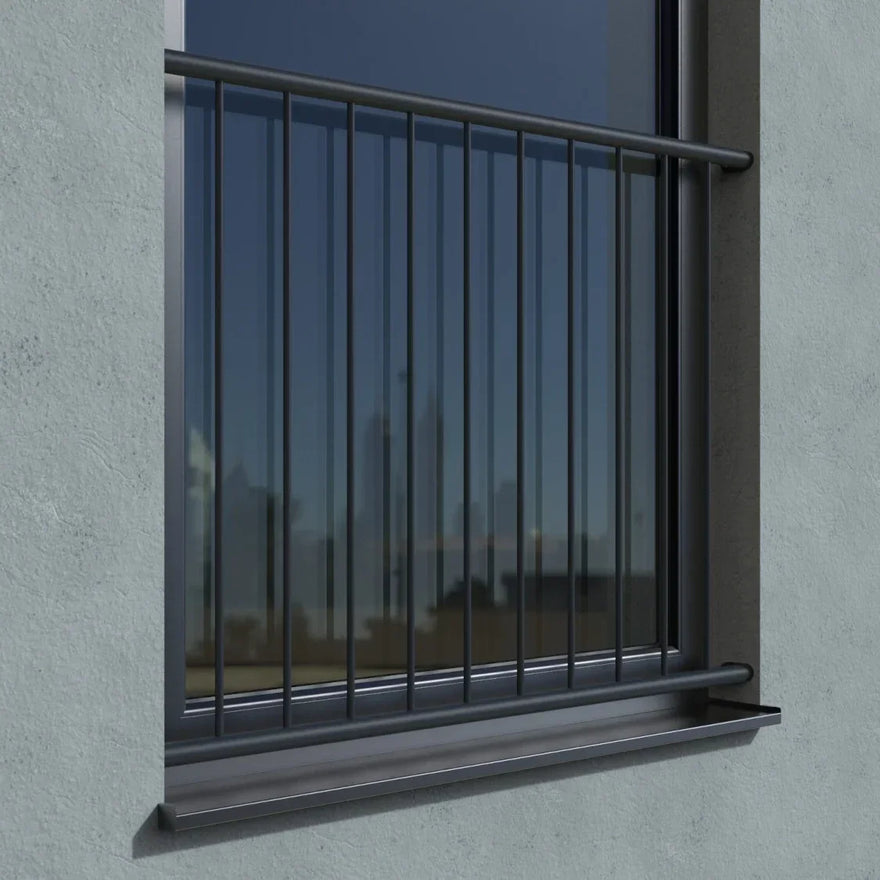

Fenstergitter für französischen Balkon in moderner Ausführung, schwarz, Laibung-Montage

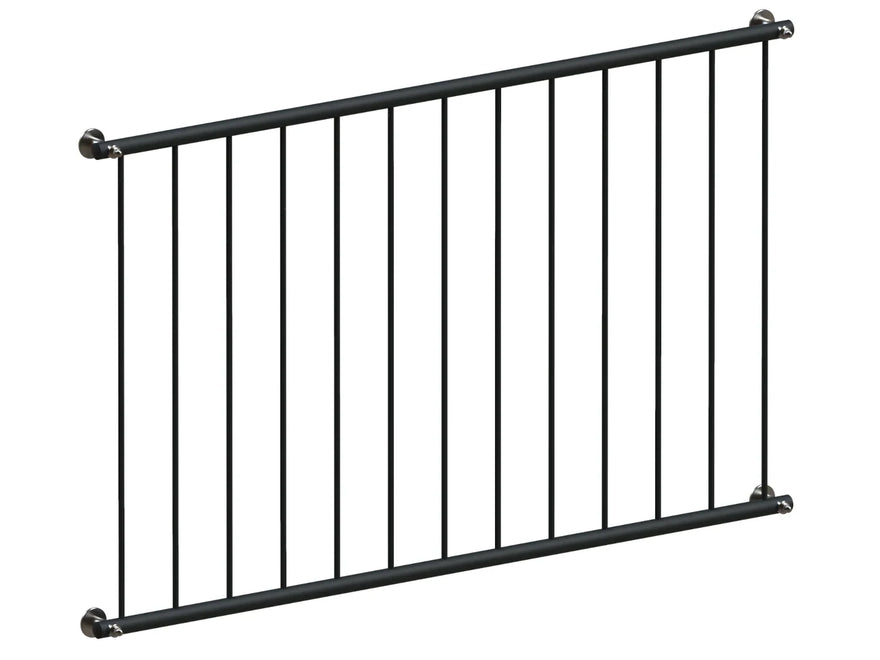

Schwarzes Fenstergitter für französischen Balkon, einfache Metallkonstruktion, Wandmontage
Zeichnung französischer Balkon aus Metall, Maße und Befestigung für Fenster, Standardmodell
Technische Zeichnung eines französischen Balkons aus Metall mit Wandbefestigung und Maßangaben.
Technische Zeichnung einer Fensterlaibung mit Metallgeländer und Maßangaben, Befestigungsabstand, Laibungsbreite, Höhe.
Technische Zeichnung eines Metallgeländers mit Einschiebling, Madenschraube und Schweißverbindung.

French balcony, basic model, powder-coated in various colors

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 13001
525,00 €

Tax included. Shipping calculated at checkout

Delivery time: 28 to 42 days

French Balcony / Fall Protection / Window Grille - Basic Model Powder-Coated in Color of Choice

High-quality French balcony made of galvanized steel with powder coating - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded. For the infill bars, we exclusively use solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubes.



  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized with powder coating
  • Top and bottom rail frame: Tube Ø 33.7 mm - Wall thickness: 2 mm
  • Infill bars: Ø 12.0 mm - solid material
  • Spacing between infill bars varies depending on total length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Stainless steel wall mounting elements
  • Feel free to contact us for a possible volume discount for orders of 3+ balconies


Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = mounting width
A distance of approx. 10 cm from the wall edge should be maintained, otherwise the masonry may break.

Example calculation mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting distance for mounting in the reveal:
Mounting distance = dimension of the window reveal

Select color: Please specify in the selection field!
All DB iron glimmer colors and RAL colors are possible.
An overview of all RAL colors can be found here - please click on the link.

Mounting set - assembly material:
Depending on the nature of the wall, different mounting material is required for the French balcony.

In the configurator, you can add the mounting material depending on the wall type.

For professional installation, please observe the applicable building regulations. Please inquire in advance with the responsible building authority. The installer on site is responsible for the selection of the correct mounting material and proper fastening.
