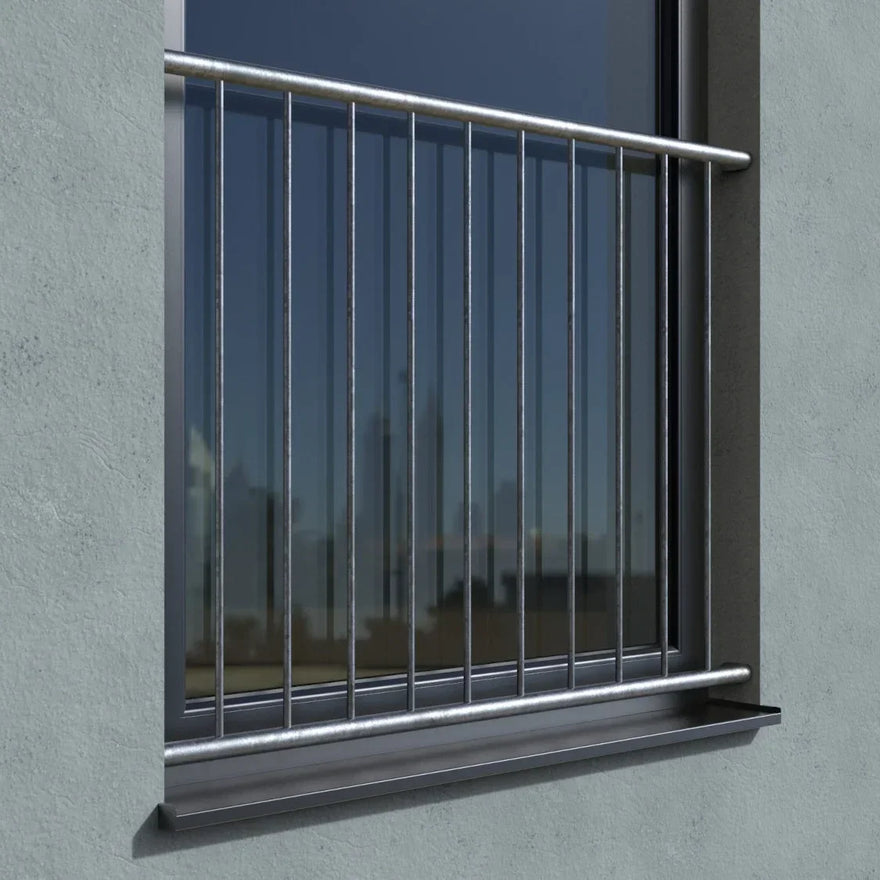

Verzinktes Fenstergitter für französischen Balkon, Laibung, vertikale Stäbe, moderner Look

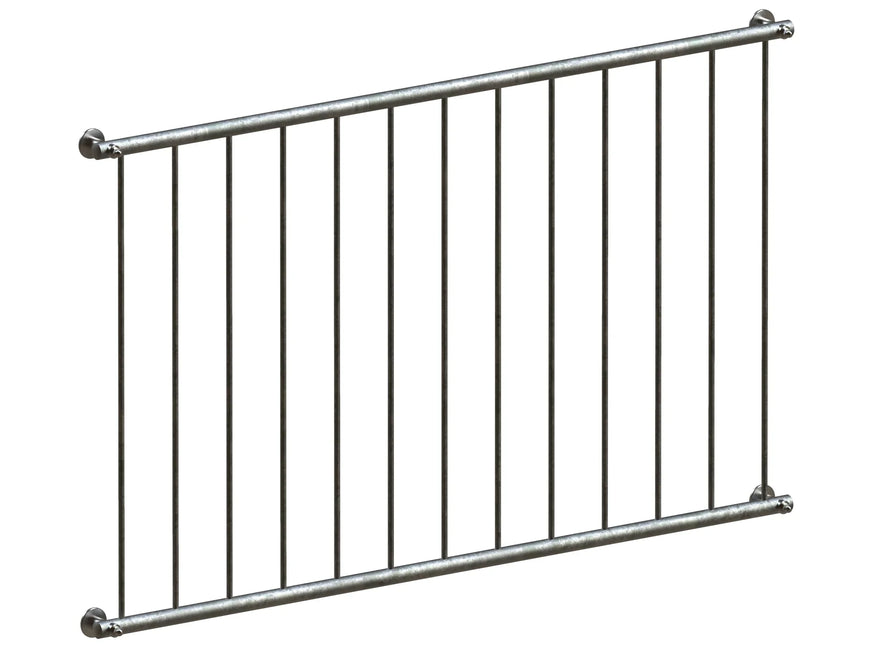

Verzinktes Fenstergitter für französischen Balkon mit vertikalen Stäben, schlichtes Design
Zeichnung französischer Balkon aus Metall, Maße und Befestigung für Fenster, Standardmodell
Technische Zeichnung eines französischen Balkons aus Metall mit Wandbefestigung und Maßangaben.
Technische Zeichnung einer Fensterlaibung mit Metallgeländer und Maßangaben, Befestigungsabstand, Laibungsbreite, Höhe.
Technische Zeichnung eines Metallgeländers mit Einschiebling, Madenschraube und Schweißverbindung.

French balcony, basic model, galvanized

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 10001
Ab
245,00 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

French Balcony / Fall Protection / Window Grille - Model Basic Galvanized

High-quality French balcony made of galvanized steel - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded. For the infill bars, we exclusively use solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubes.



  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized
  • Top and bottom rail frame: tube Ø 33.7 mm - wall thickness: 2 mm
  • Infill bars: Ø 12.0 mm - solid material
  • Spacing between infill bars varies depending on total length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Wall mounting elements made of stainless steel
  • Feel free to contact us for a possible quantity discount for orders of 3+ balconies


Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = Mounting width
A distance of approx. 10 cm from the edge of the wall should be maintained, otherwise the masonry may break out.

Example calculation for mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting set - assembly material:
Depending on the nature of the wall, different mounting material is required for the French balcony.

In the configurator, you can add the mounting material according to the type of wall.

For professional installation, please observe the applicable building regulations. Please inform yourself in advance at the responsible building authority. The installer on site assumes liability for the selection of the correct mounting material and proper fastening.
