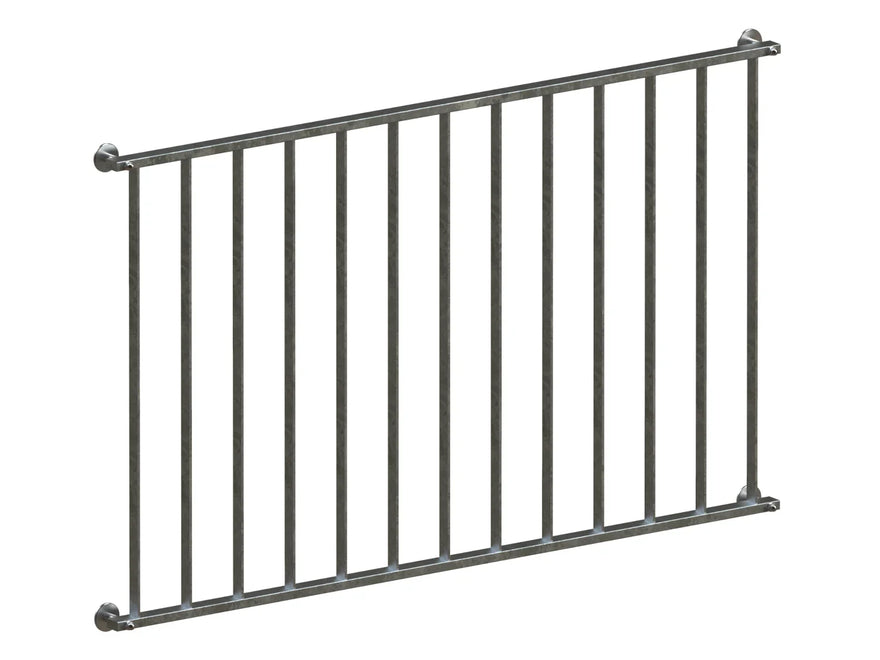

French balcony model Basic 3 galvanized - front-mounted

French Balcony / Fall Protection / Window Grille - Basic Model 3 Galvanized

High-quality French balcony made of galvanized steel - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded.

• Manufacturing: according to DIN EN 1090
• Material: Steel (S235JR)
• Surface: hot-dip galvanized
• Top and bottom chord frame: Rectangular tube 40x20 mm - wall thickness 2 mm
• Filling bars: Flat iron 30x6 mm
• Spacing between filling bars varies depending on total length: max. 120 mm
• Height: 1000 mm (other heights on request)
• Wall mounting elements made of stainless steel
• Please contact us for a possible bulk discount for orders of 3+ balconies

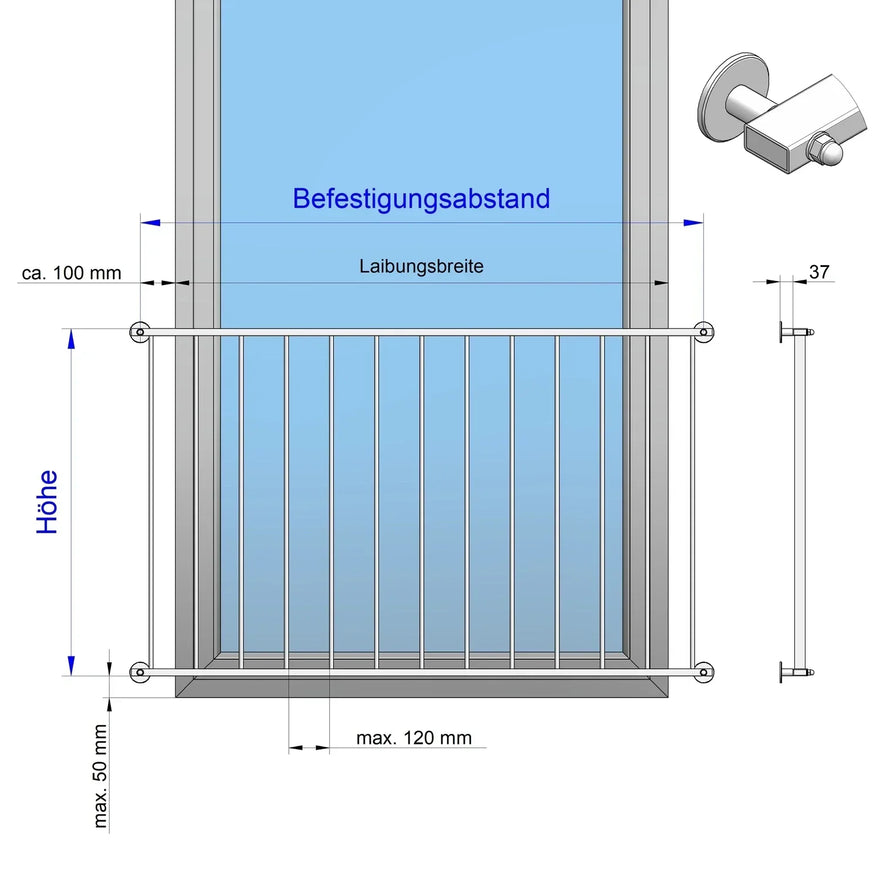

Determine mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = mounting width
A distance of approx. 10 cm from the wall edge should be maintained, otherwise the masonry may break out.

Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting set - assembly material:
Depending on the condition of the wall, different mounting materials are required for the French balcony.

• Mounting on masonry (bricks, aerated concrete)
• Mounting with thermal insulation (ETICS) with thermal break
• Mounting on timber frame constructions


You can add the mounting material according to the wall type in the configurator.

For professional installation, please observe the applicable building regulations. Please inquire with the responsible building authority beforehand. The installer on site assumes liability for the selection of the correct mounting material and proper fastening.
