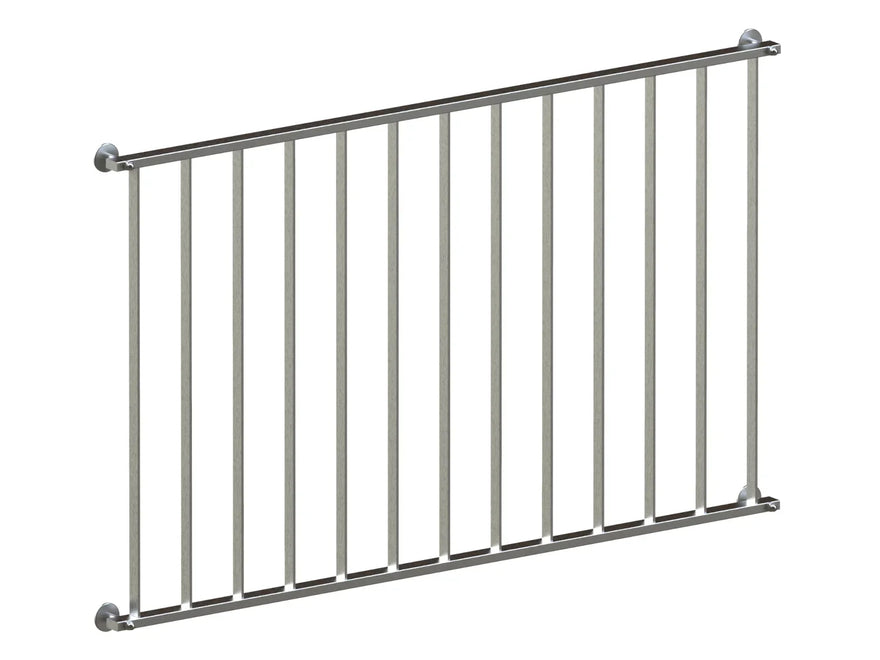

French balcony model Basic 3 stainless steel - front-mounted

French Balcony / Fall Protection / Window Grille - Model Basic 3 in Stainless Steel

High-quality French balcony made of stainless steel - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded.

• Manufacturing: according to DIN EN 1090
• Material: Stainless steel V2A
• Surface: brushed grit 320
• Top and bottom chord frame: rectangular tube 40x20 mm - wall thickness: 2 mm
• Infill bars: flat steel 30x6 mm
• Spacing between infill bars varies depending on total length: max 120 mm
• Height: 1000 mm (other heights on request)
• Stainless steel wall mounting elements
• Feel free to contact us for a possible quantity discount for 3+ balconies

Determine fastening distance:
Enter the value in mm in the selection field above.
Fastening distance = fastening width
A distance of approx. 10 cm from the edge of the wall should be maintained, otherwise the masonry may break out.

Example calculation of fastening distance:
1000 mm window width (reveal dimension)
+100 mm left clearance
+100 mm right clearance
= 1200 mm fastening distance

Fastening set - mounting material:
Depending on the nature of the wall, different mounting material is required for the French balcony.

• Mounting on masonry (brick, aerated concrete)
• Mounting with thermal insulation (ETICS) with thermal break
• Mounting on timber frame constructions


In the configurator, you can add the fastening material depending on the type of wall.

For professional installation, please observe the applicable building regulations. Please inform yourself in advance at the responsible building authority. The installer on site assumes liability for the selection of the correct mounting material and proper fastening.
