Verzinktes Fenstergitter für französischen Balkon an Hausfassade, moderner Stil

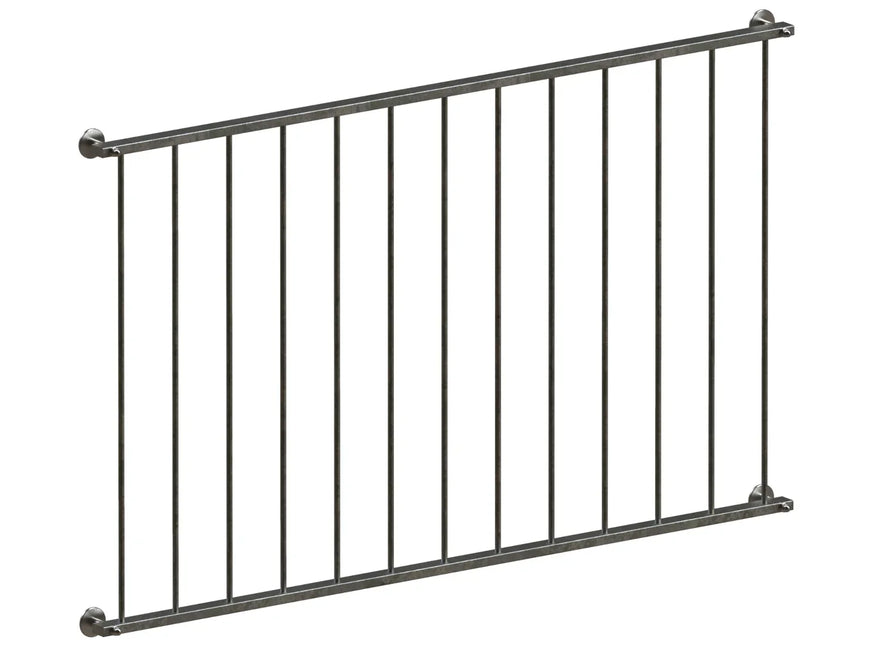

Schlichtes Fenstergitter für französischen Balkon, verzinkt, mit vertikalen Stäben

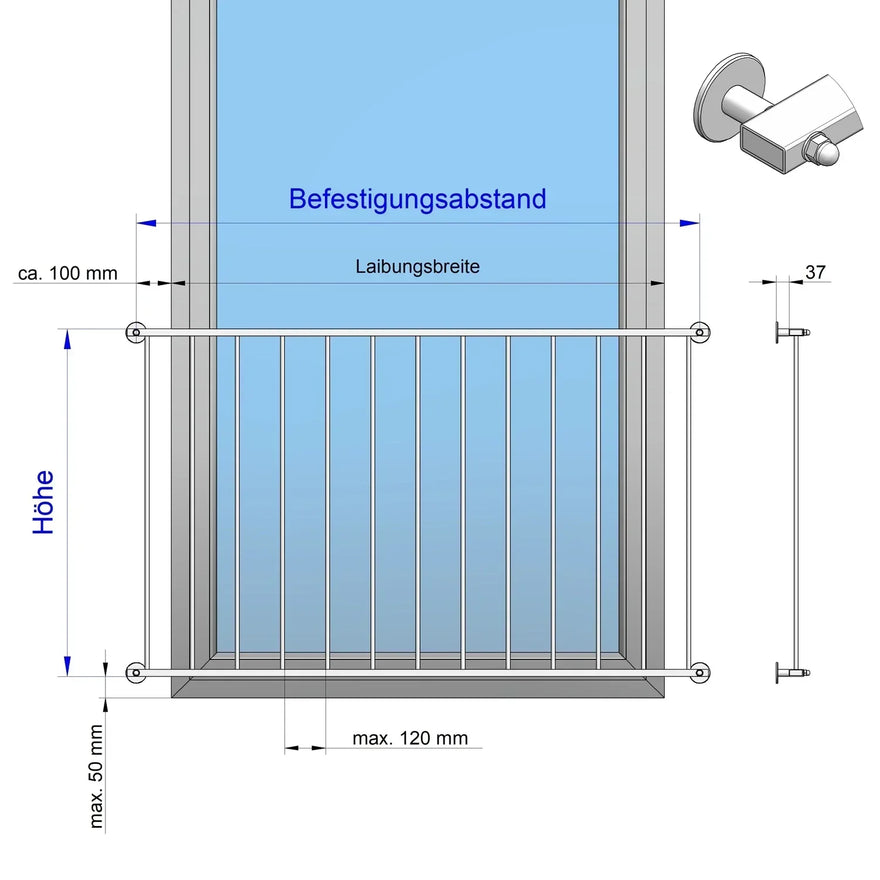

Technische Zeichnung eines Metall Fenstergitters mit Befestigungsabstand und Maßangaben
Maßzeichnung französischer Balkon aus Metall, mit Befestigungsabstand und Maßen

French balcony model Basic 2 galvanized - front-mounted

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 10002
Ab
245,00 €

Tax included. Shipping calculated at checkout

Delivery time: 21 to 28 days

French Balcony / Fall Protection / Window Grille - Model Basic 2 Galvanized

High-quality French balcony made of galvanized steel - MADE IN GERMANY - directly from the manufacturer. All connections are stably and professionally welded. For the infill bars, we only use solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubes.



  • Manufacturing: according to DIN EN 1090
  • Material: Steel (S235JR)
  • Surface: hot-dip galvanized
  • Top and bottom chord frame: Rectangular tube 40x20 mm - wall thickness 2 mm
  • Infill bars: Ø 12.0 mm - solid material
  • Spacing between infill bars varies depending on overall length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Wall mounting elements made of stainless steel
  • Please contact us for a possible quantity discount for 3+ balconies


Determining the mounting distance:
Enter the value in mm in the selection field above.
Mounting distance = Fastening distance = Fastening width
A distance of approx. 10 cm from the wall edge should be maintained, otherwise the masonry may break out.

Example calculation of mounting distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm mounting distance

Mounting set - assembly material:
Depending on the nature of the wall, different mounting materials are required for the French balcony.

In the configurator, you can add the mounting material depending on the type of wall.

For professional installation, please observe the applicable building regulations. Please inform yourself in advance at the responsible building authority. The installer on site is responsible for the selection of the correct mounting material and proper fastening.
