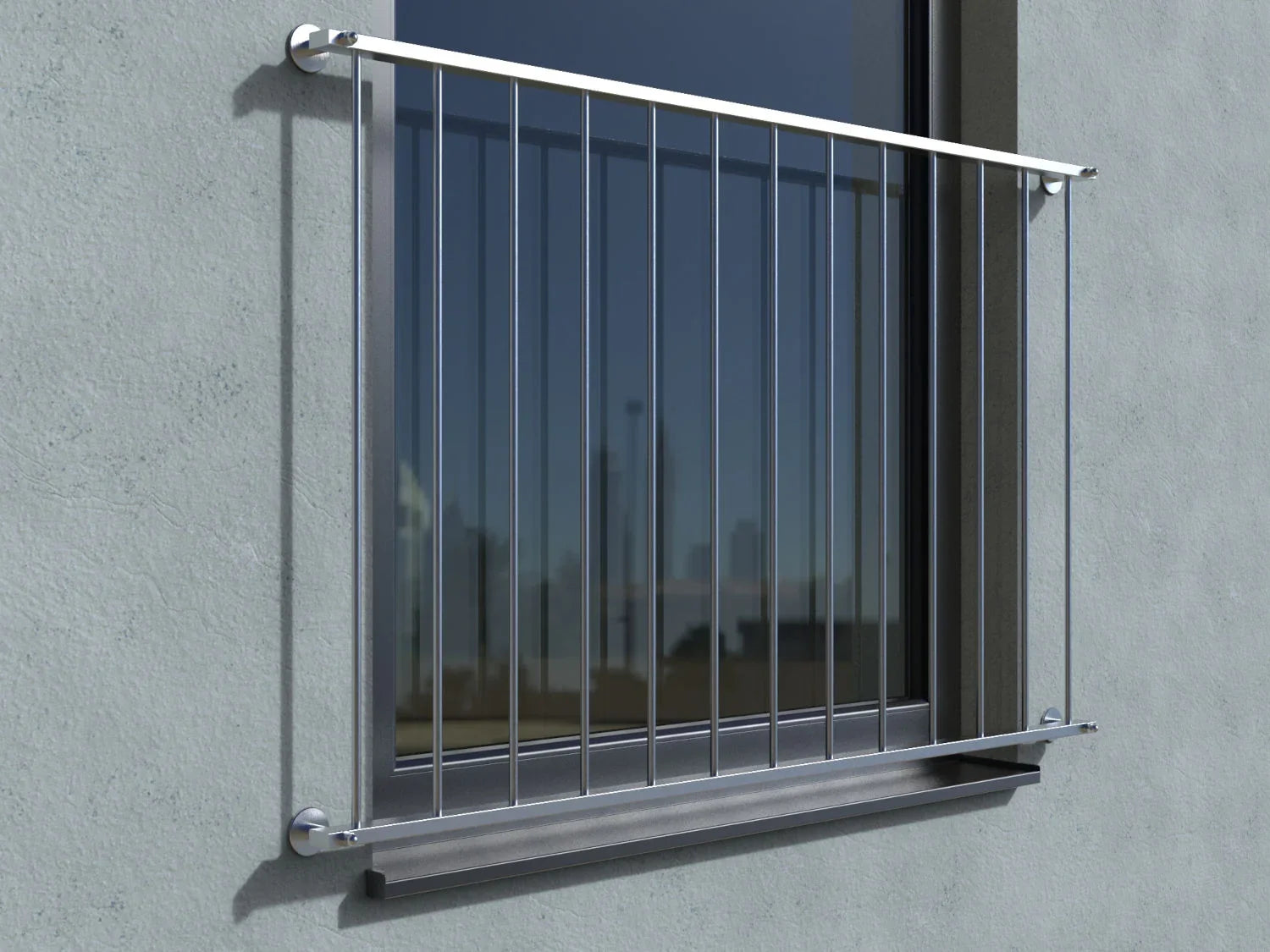

Fenstergitter aus Edelstahl für französischen Balkon, schlichtes Design an Außenfassade

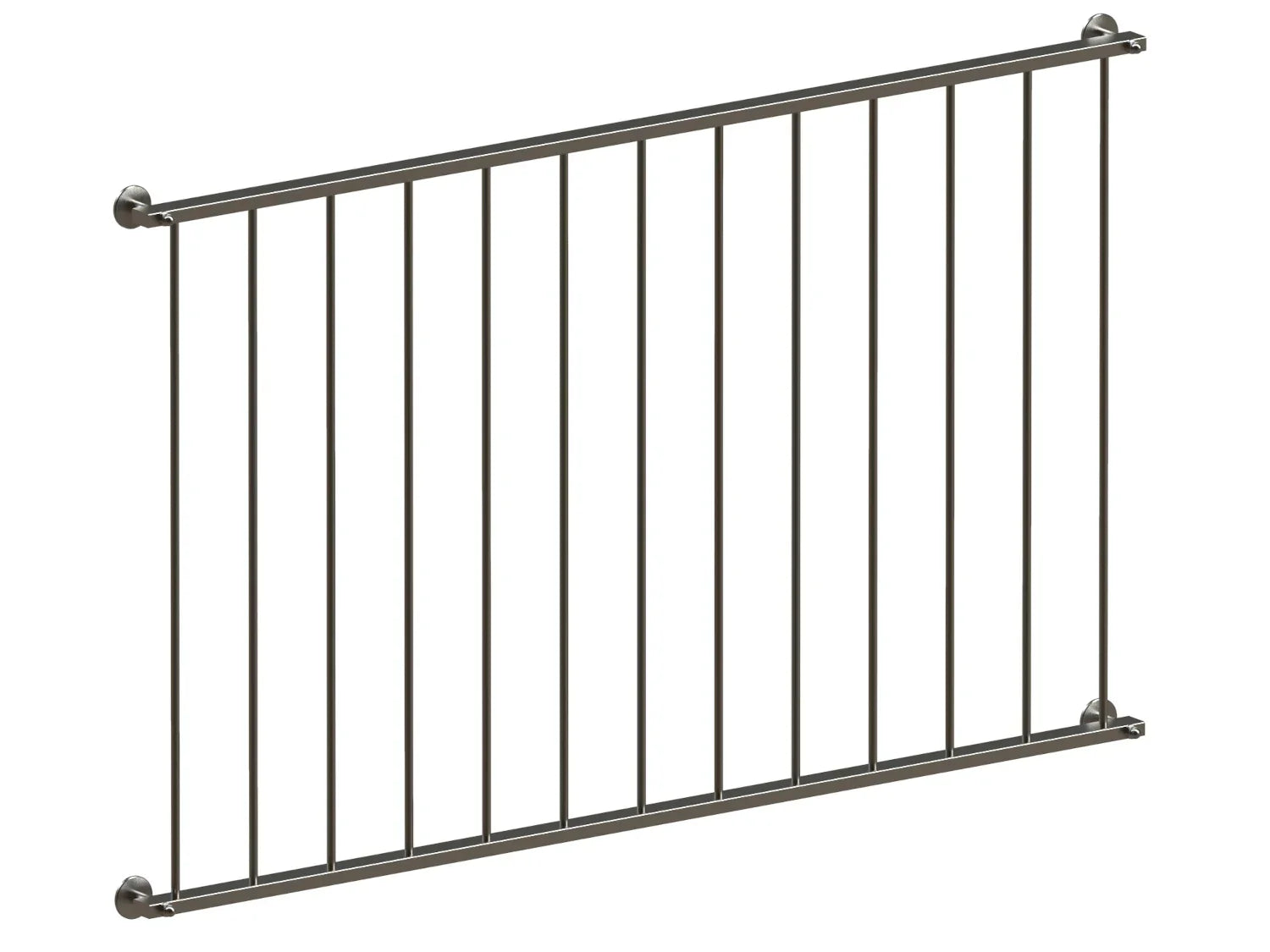

Fenstergitter für französischen Balkon aus Edelstahl, schlichtes Stabdesign

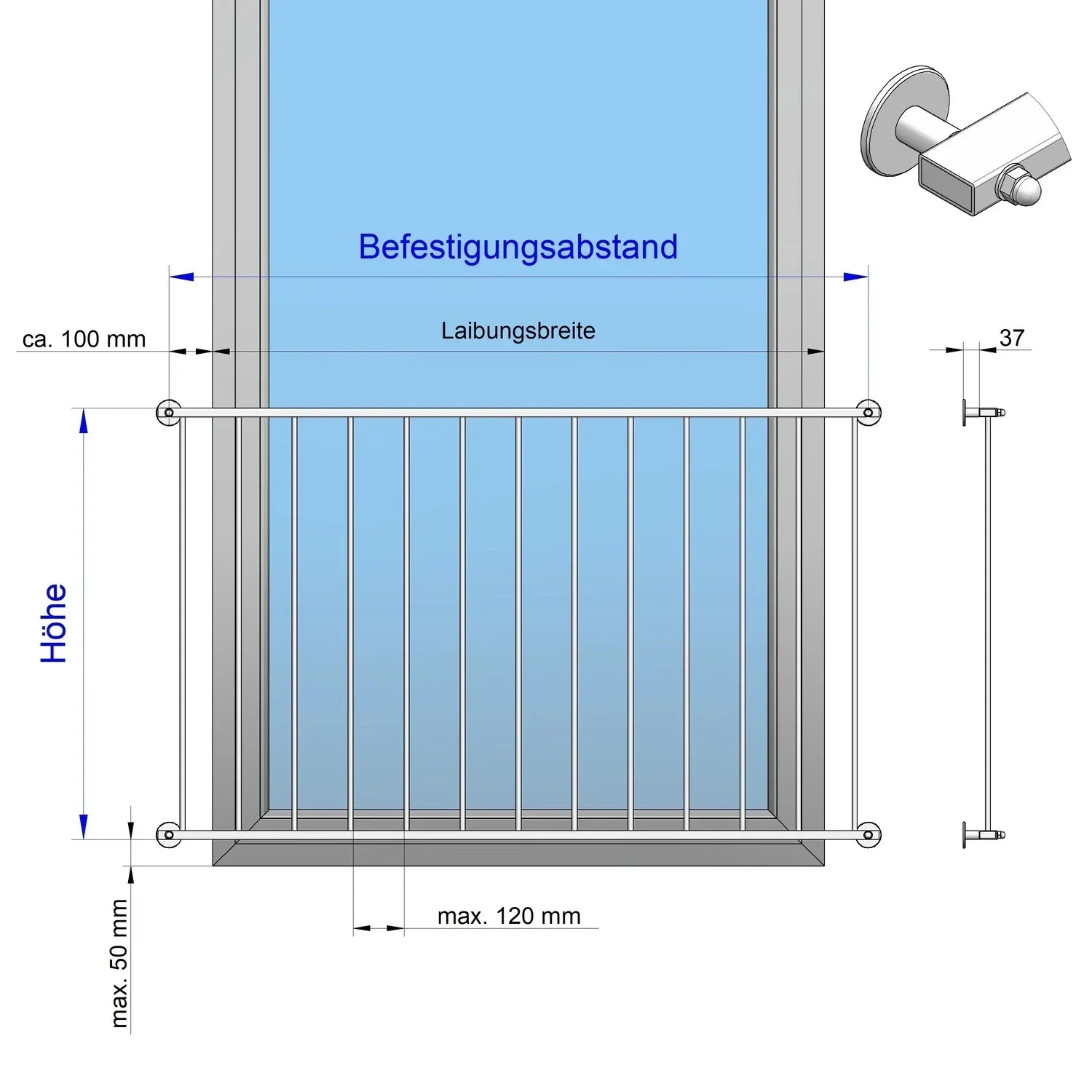

Technische Zeichnung eines Metall Fenstergitters mit Befestigungsabstand und Maßangaben

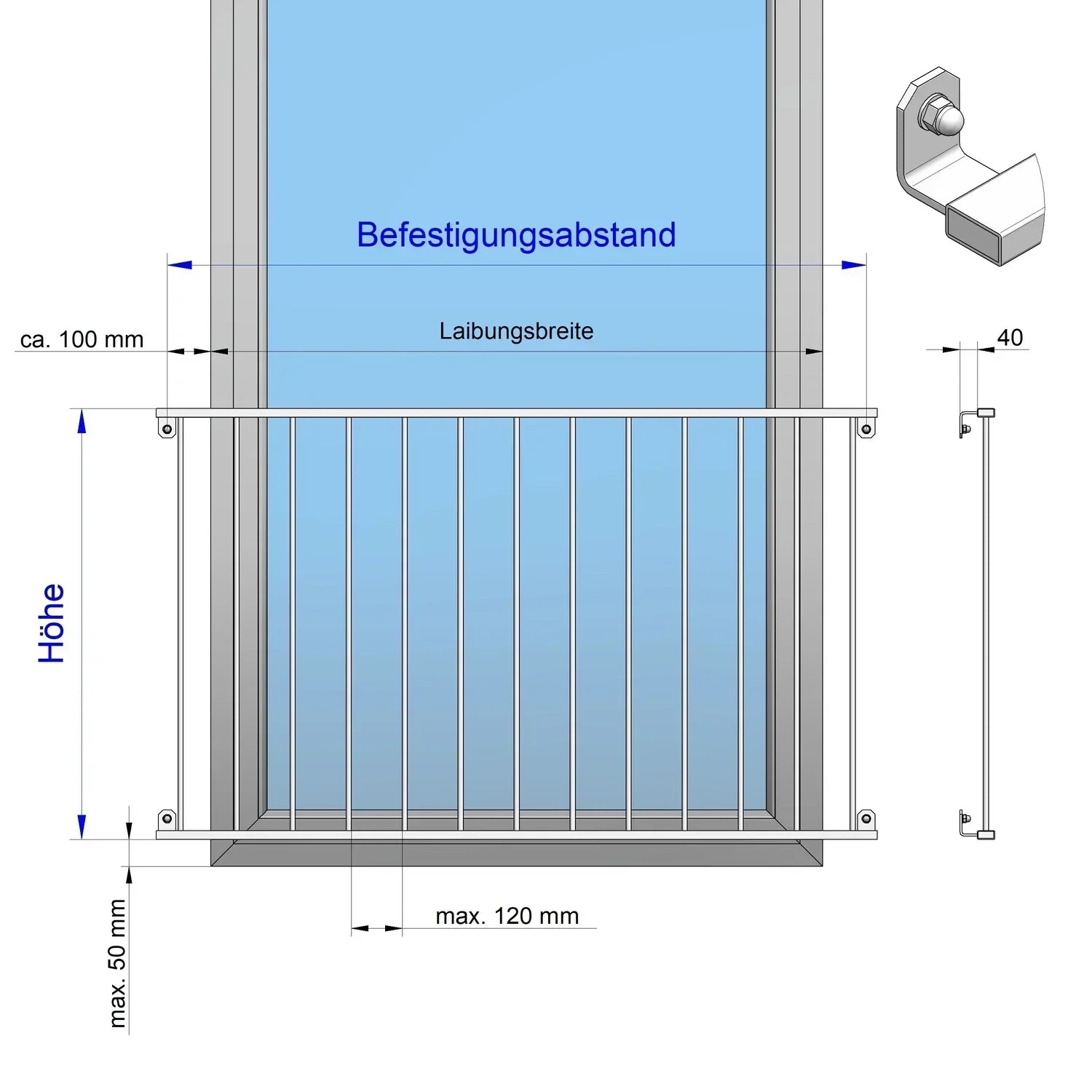

Maßzeichnung französischer Balkon aus Metall, mit Befestigungsabstand und Maßen

French balcony model Basic 2 stainless steel - front-mounted

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free delivery!

✔ Quantity discount from 3 pieces

SKU: 11003
Ab
317,50 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

French Balcony / Fall Protection / Window Grille - Model Basic 2 made of Stainless Steel

High-quality stainless steel French balcony - MADE IN GERMANY - directly from the manufacturer. All connections are stable and professionally welded. For the infill bars, we use only solid material Ø 12 mm. Cheap Chinese goods are often made from inferior round tubes.



  • Manufacturing: according to DIN EN 1090
  • Material: Stainless steel V2A
  • Surface: ground grit 320
  • Top and bottom rail frame: Rectangular tube 40x20 mm - Wall thickness: 2 mm
  • Infill bars: Ø 12.0 mm - Solid material
  • Spacing between infill bars varies depending on overall length: maximum 120 mm
  • Height: 1000 mm (other heights on request)
  • Stainless steel wall mounting elements
  • Feel free to contact us for a possible quantity discount for 3+ balconies


Determine fastening distance:
Enter the value in mm in the selection field above.
Fastening distance = Fastening width
A distance of approx. 10 cm from the wall edge should be maintained, otherwise the masonry may break out.

Example calculation of fastening distance:
1000 mm window width (reveal dimension)
+100 mm left distance
+100 mm right distance
= 1200 mm fastening distance

Fastening set - mounting material:
Depending on the nature of the wall, different mounting materials are required for the French balcony.

You can add the fastening material depending on the wall type in the configurator.

For professional installation, please observe the applicable building regulations. Please inform yourself in advance at the responsible building authority. The on-site installer assumes liability for the selection of the correct mounting material and proper fastening.
