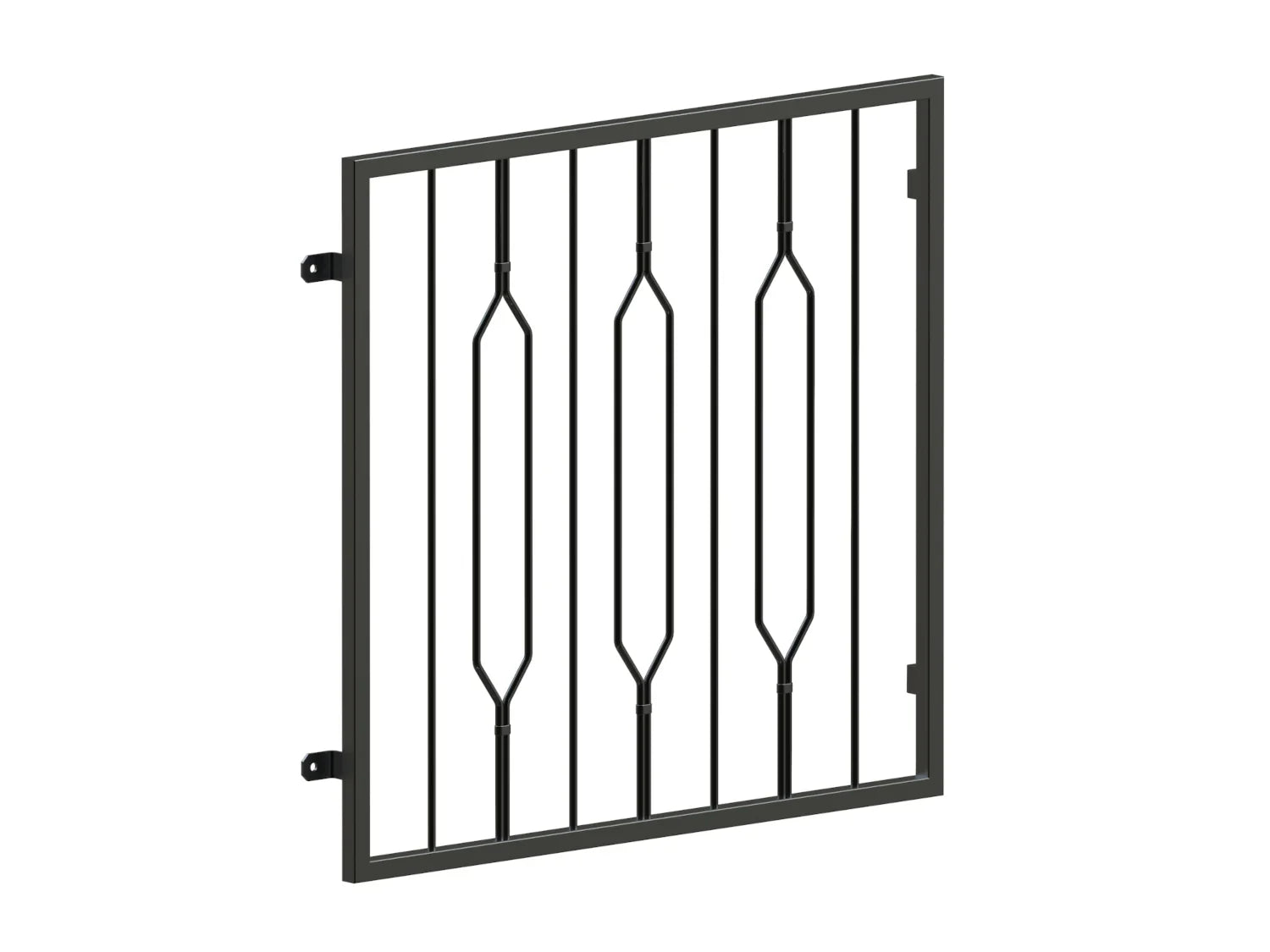

Fenstergitter Modell Venedig 2 pulverbeschichtet vorgesetzt Detail

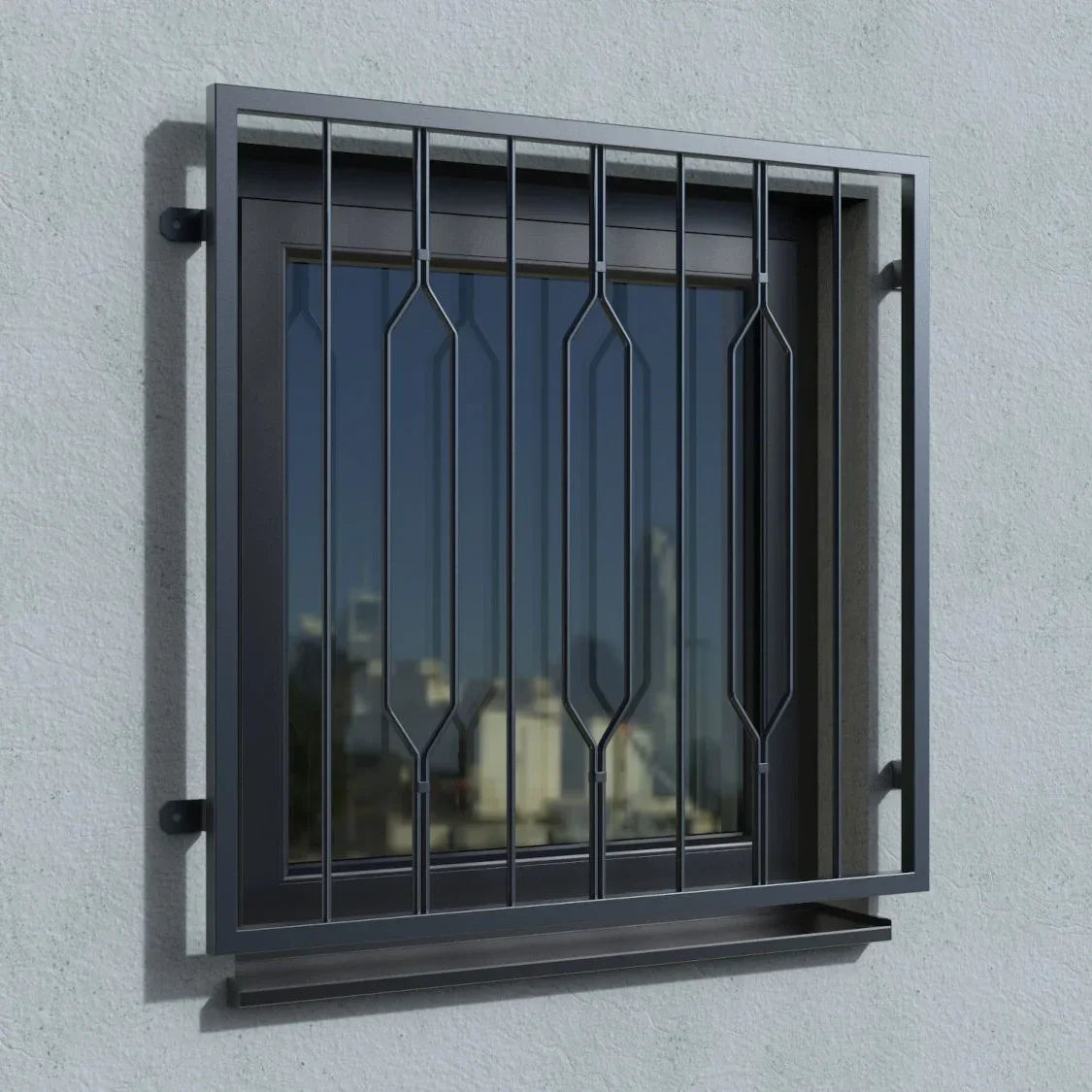

Fenstergitter Modell Venedig 2 mit Fensterbrett pulverbeschichtet vorgesetzt real

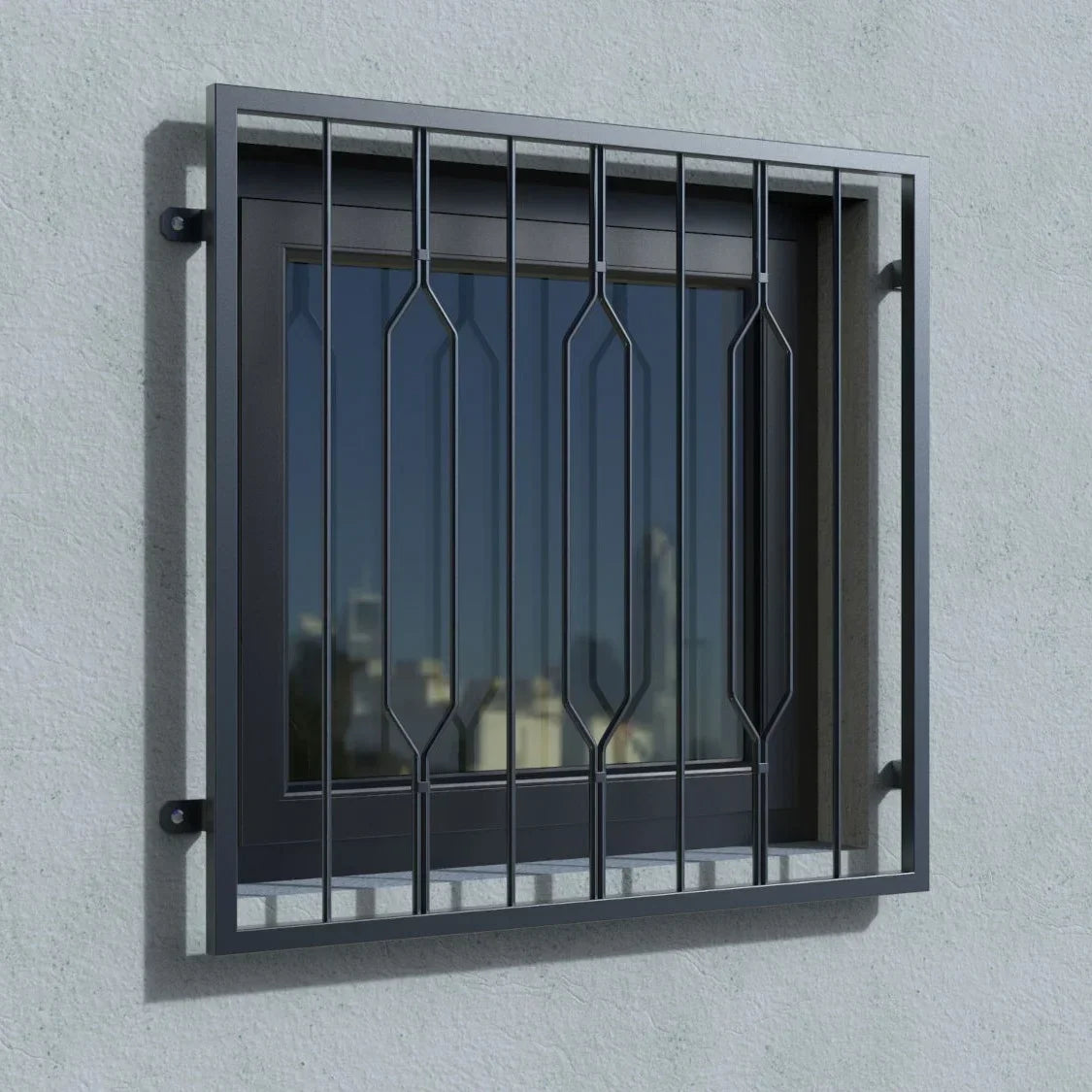

Fenstergitter Modell Venedig 2 ohne Fensterbrett pulverbeschichtet vorgesetzt real

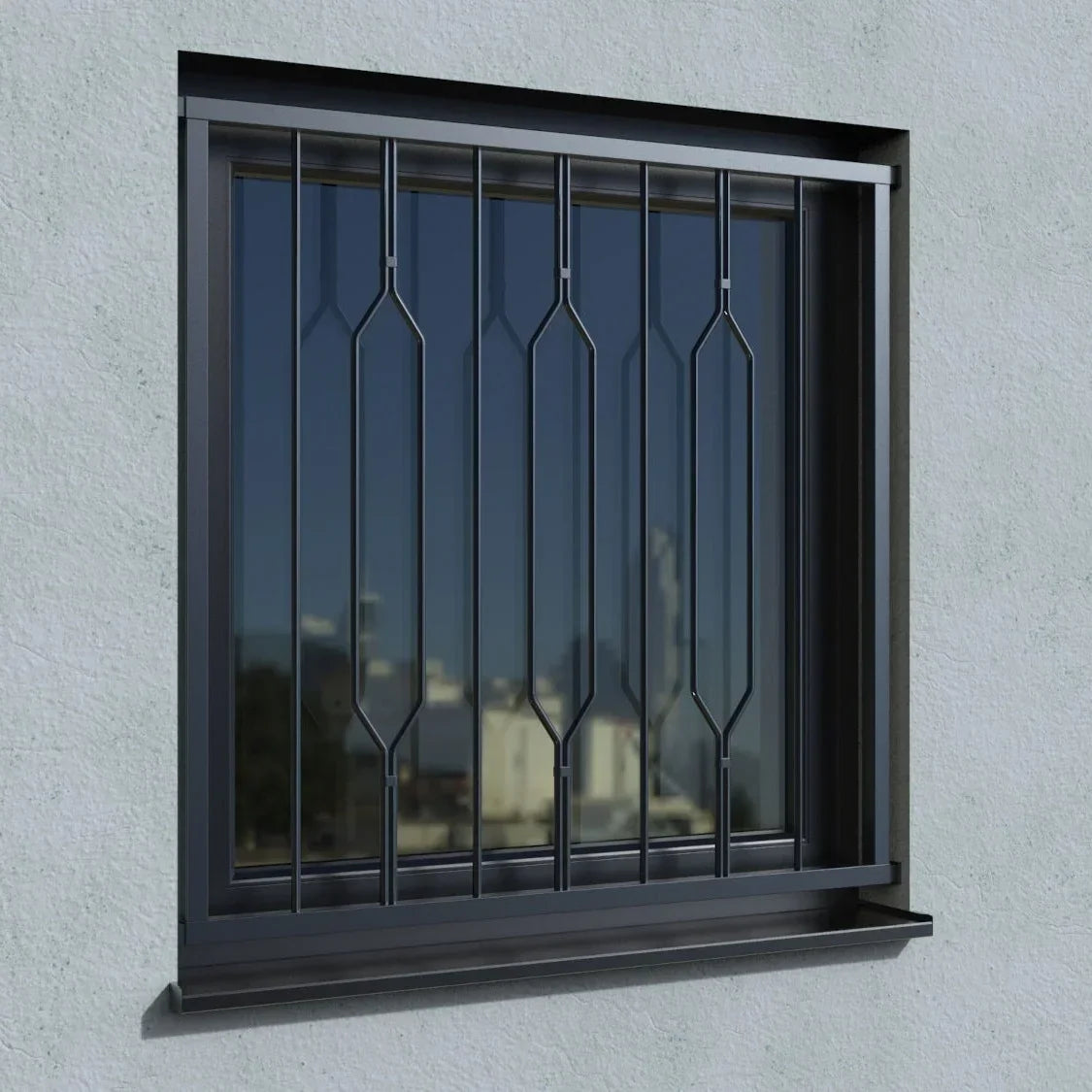

Fenstergitter Modell Venedig 2 pulverbeschichtet Laibung real

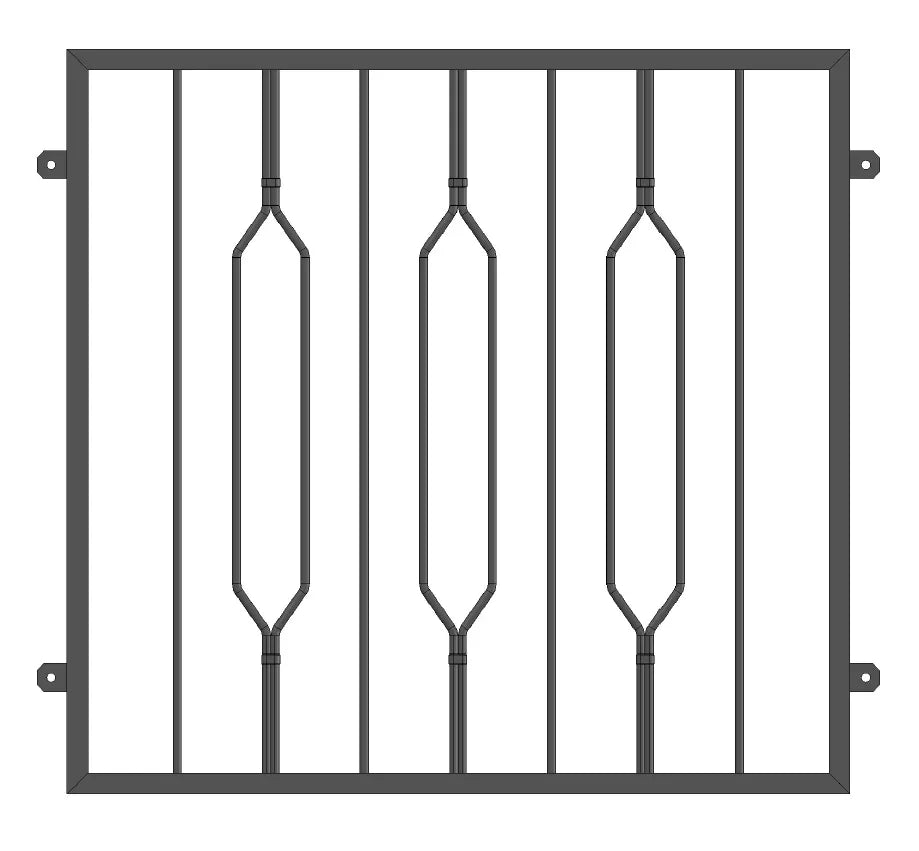

Fenstergitter Modell Venedig 2 pulverbeschichtet vorgesetzt Detail 2

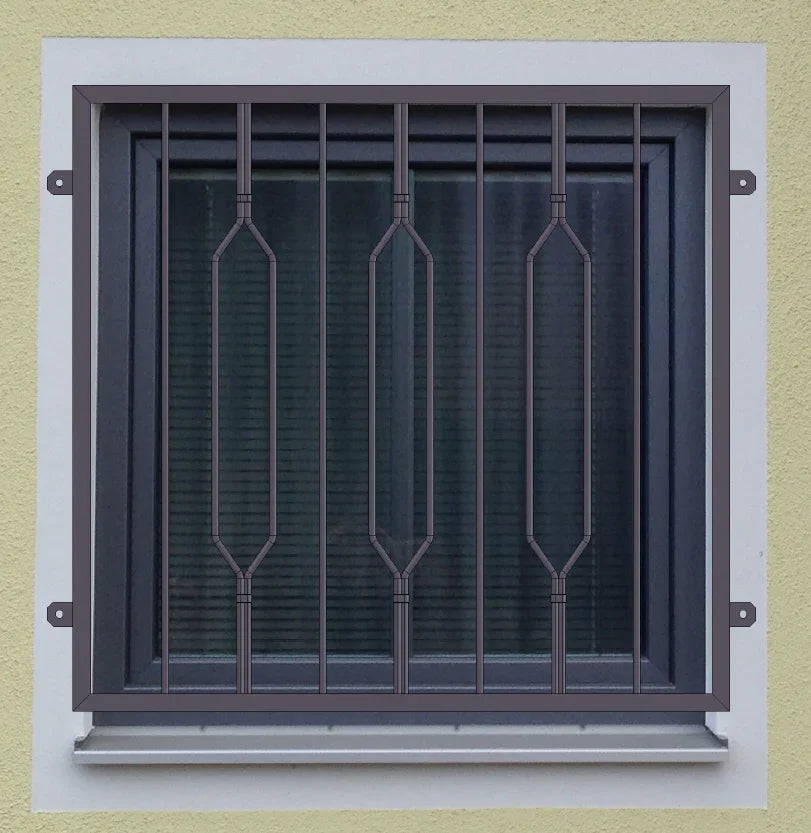

Fenstergitter Modell Venedig 2 pulverbeschichtet vorgesetzt Beispiel Kunde

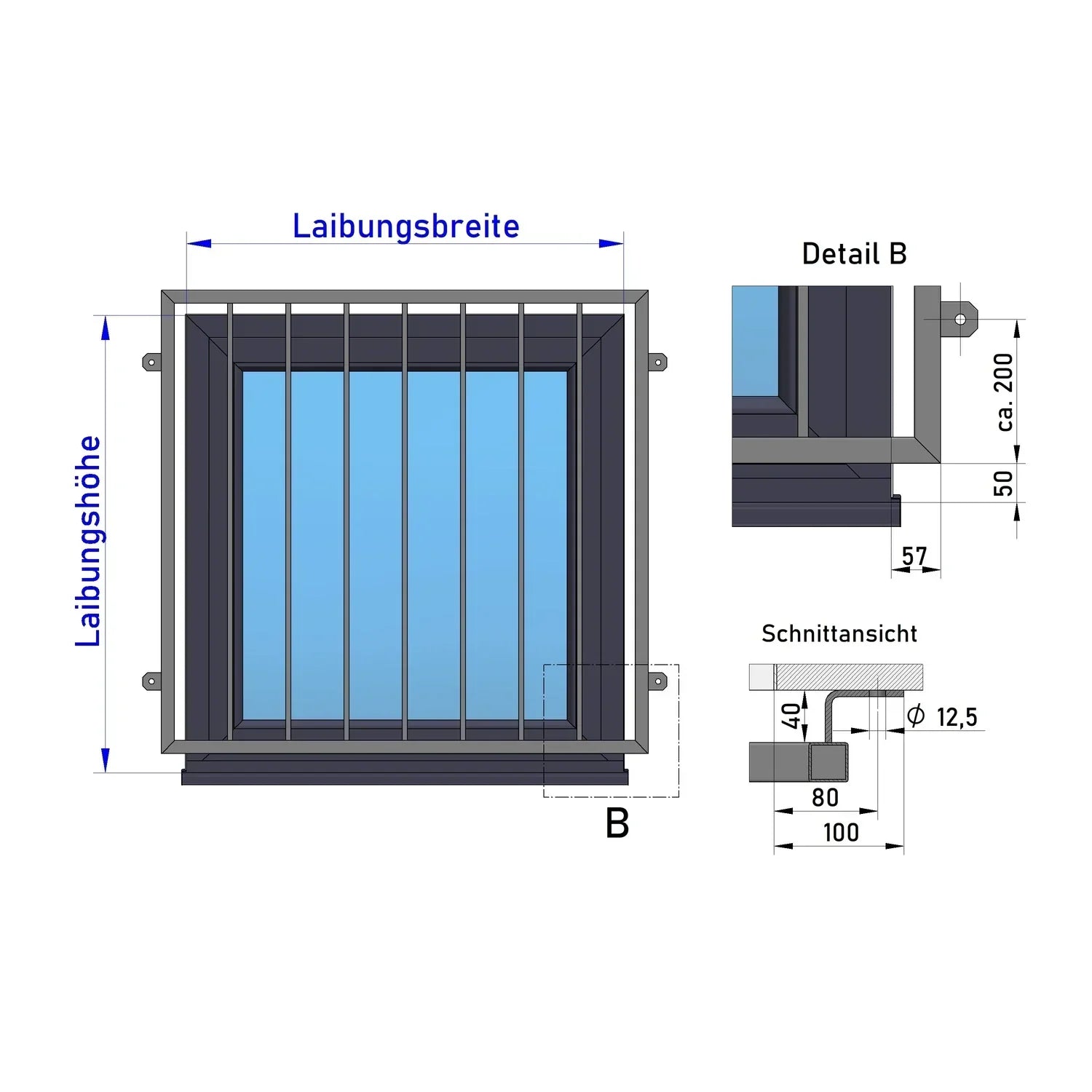

Fenstergitter Modell Venedig 2 mit Fensterbrett vorgesetzt Zeichnung

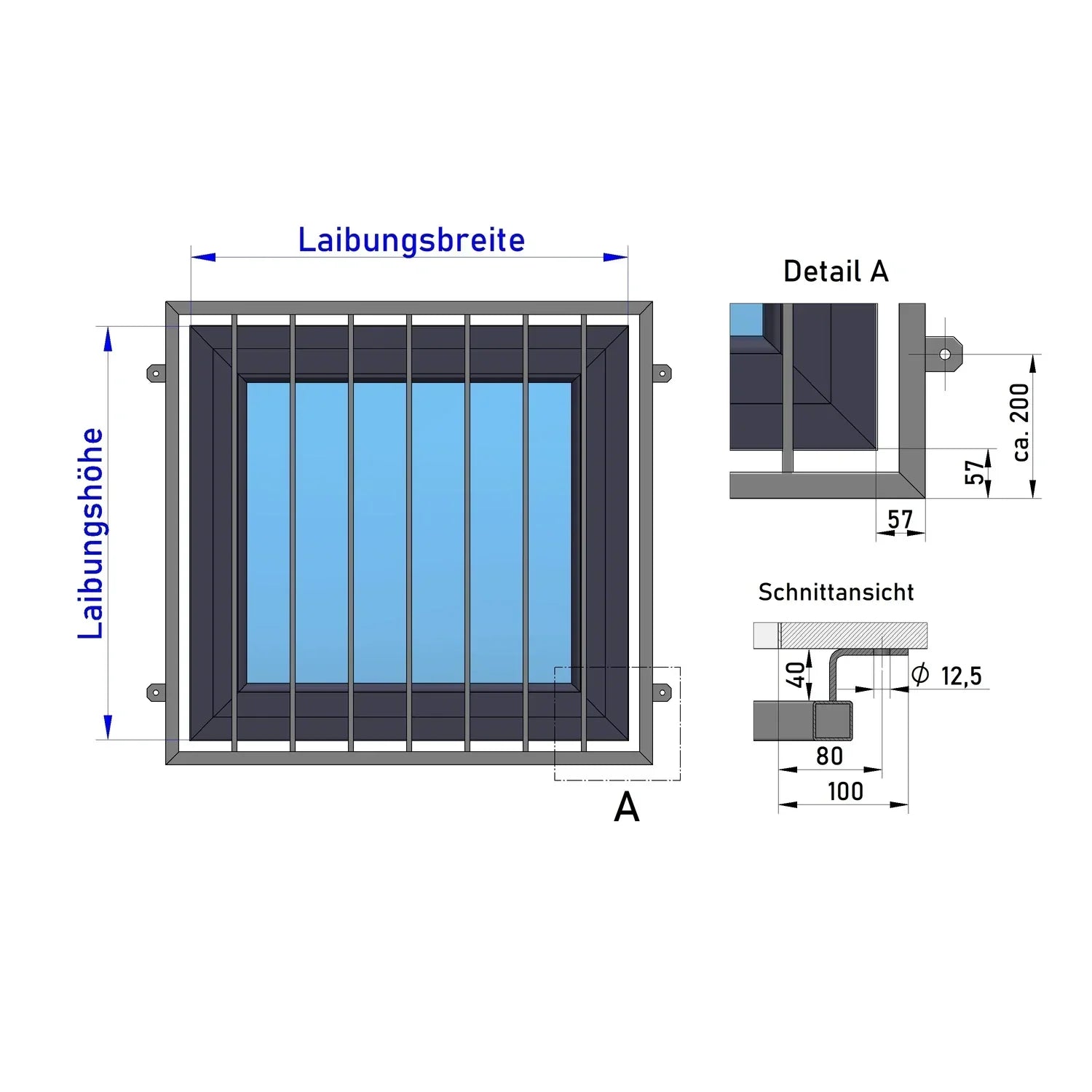

Fenstergitter Modell Venedig 2 ohne Fensterbrett vorgesetzt Zeichnung

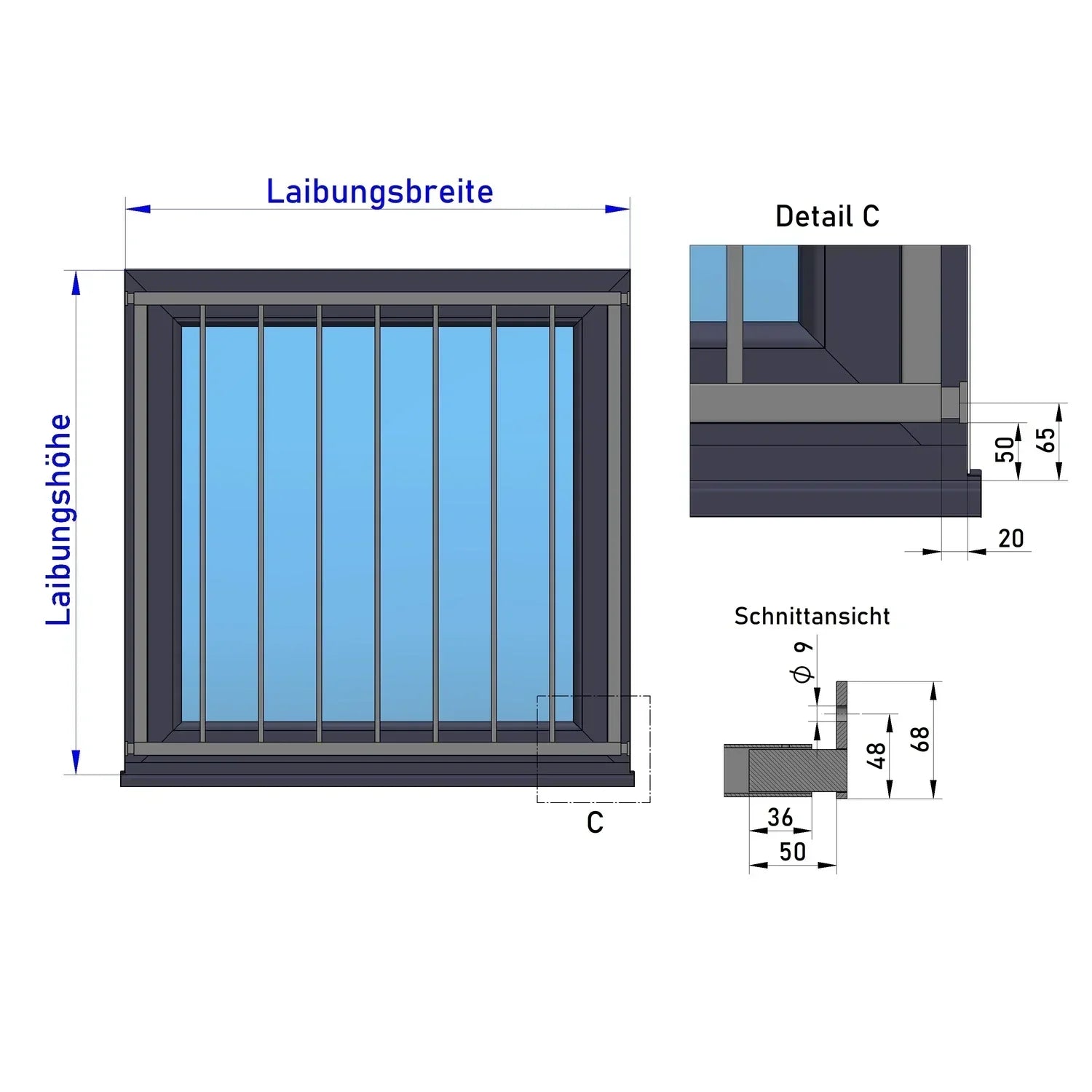

Fenstergitter Modell Venedig 2 Laibung Zeichnung

Window grille model Venice 2, galvanized, powder-coated

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free shipping

✔ Quantity discount from 3 pieces

SKU: 90023
527,10 €

Tax included. Shipping calculated at checkout

Delivery time: 28 to 35 days

Sicher bezahlen
American Express
Apple Pay
Bancontact
EPS
Google Pay
Klarna
Maestro
Mastercard
PayPal
Visa
Rechnung
Vorkasse

Window grille model Venice 2, galvanized and powder-coated, with optional opening function

Version:
Manufacturing: all connections of the window grilles are stable and professionally welded.
Material: Steel (S235JR)
Surface: hot-dip galvanized + powder-coated
Frame: 30x30x2mm
Filler rods: Round, 12mm diameter
Spacing between the infill bars: max. 120 mm

Online configurator:

Specify all features and dimensions in the configurator.


Determine sizes

Enter the reveal width and reveal height in mm.
We then determine the grid dimensions.


Select mounting type

We manufacture the window grilles according to the selected mounting method. Please note the dimensions in the illustrations.

  • on the exterior wall without a windowsill
  • on the exterior wall with window sill
  • in the reveal

Function for opening with lock

If you want to be able to open the window grille when needed, we can manufacture your window grille with a hinge and lock.
Depending on the size of the window grille, we manufacture it with one or two locks.

Mounting material / fastening kit

You can add suitable mounting hardware in the configurator. We offer 7x105mm security screws with anti-tamper protection, drive-in star sockets for Torx screws, and wall plugs. We adjust the quantity to the number of fixing points.
