Fenstergitter aus Metall in Anthrazit RAL7016 mit dekorativen Zierstäben
Fenstergitter RAL7016 aus Metall mit Zierstäben und Fensterbrett an Hauswand
Modernes Fenstergitter RAL 7016 anthrazit aus Metall mit Zierelementen, an Hauswand montiert
Fenstergitter RAL 7016 aus Metall, dekorativ, montiert in Fensterlaibung
Fenstergitter aus Metall mit dekorativen, gedrehten Stäben und Ornamenten, pulverbeschichtet
Verzinktes Fenstergitter in Anthrazitgrau mit Zierelementen vor Fenster, Einbruchschutz

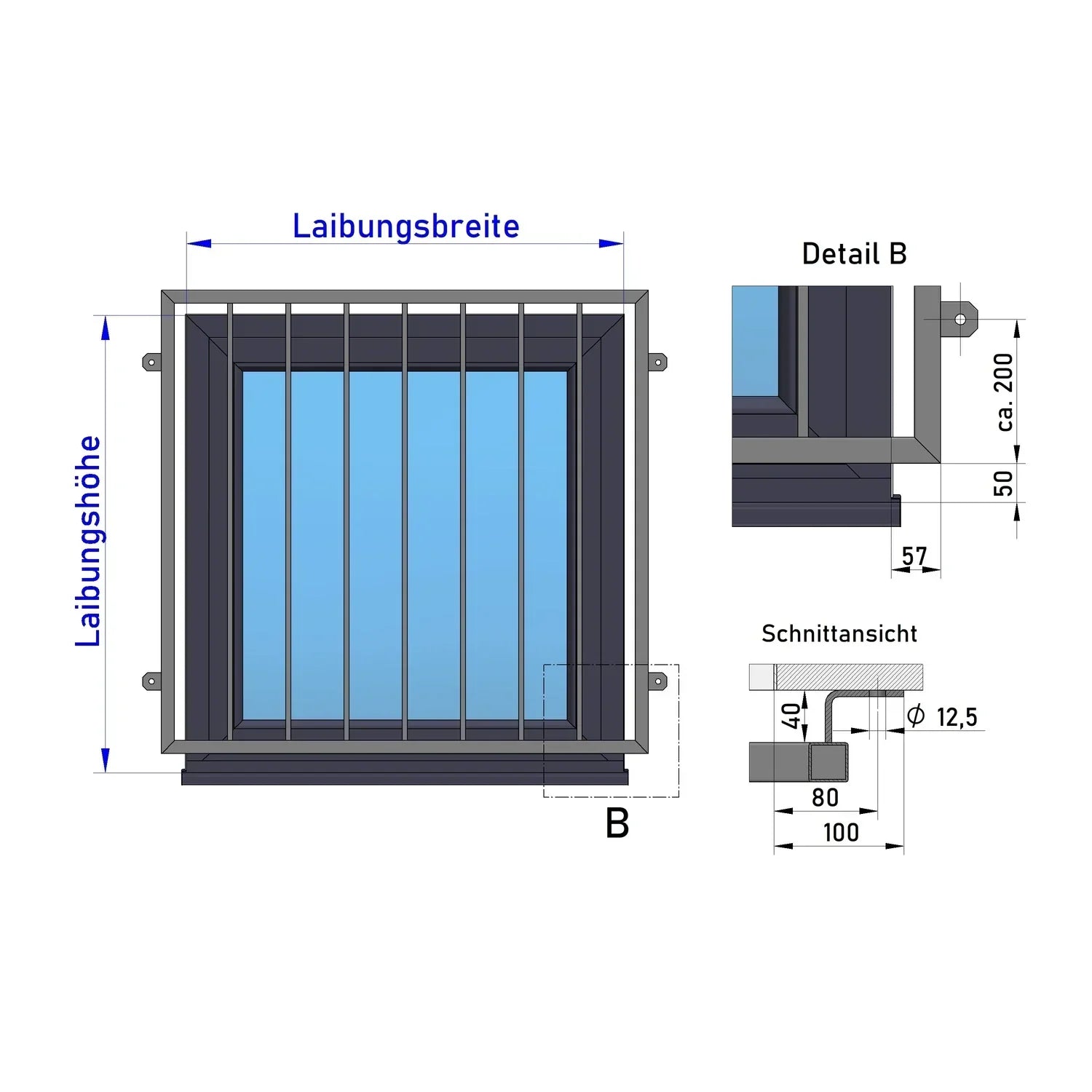

Zeichnung Fenstergitter vorgesetzt mit Fensterbank, Maße und Schnittansicht sichtbar

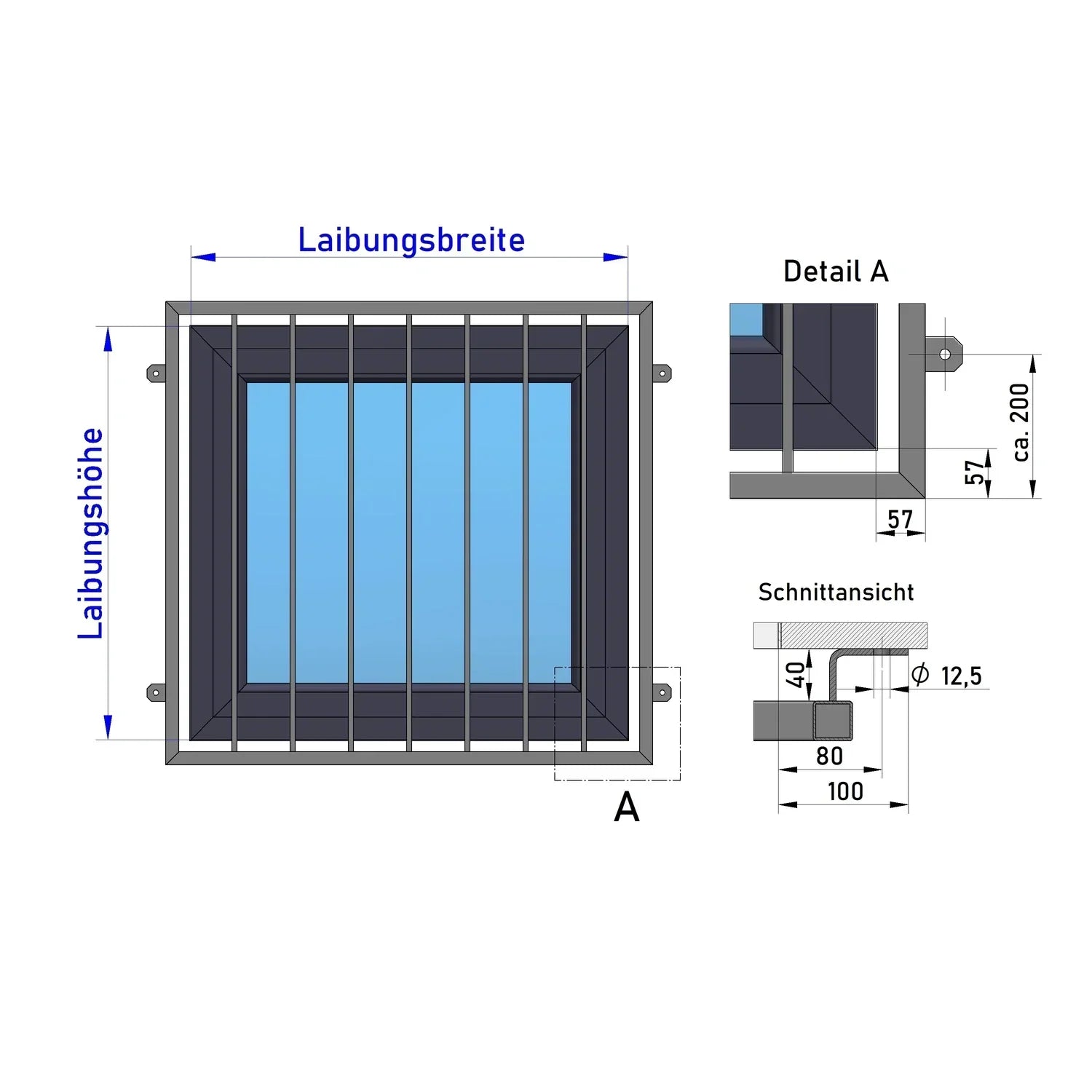

Technische Zeichnung Fenstergitter vorgesetzt ohne Fensterbrett, Maße und Schnittansicht

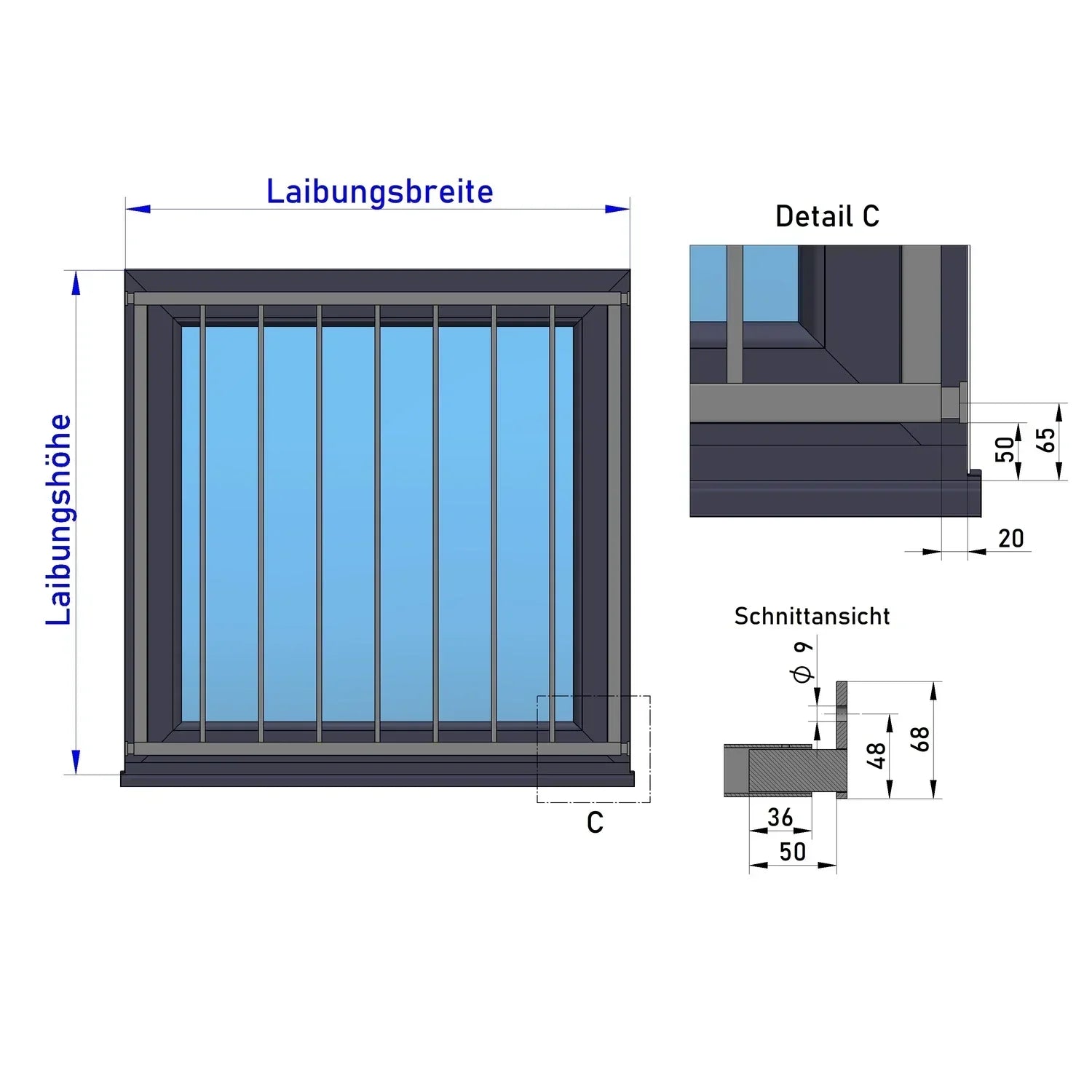

Zeichnung Fenstergitter Laibung mit Maßen, Detail- und Schnittansicht, Metallbau

Window grille model Milan 2, galvanized, powder-coated

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free shipping

✔ Quantity discount from 3 pieces

SKU: 90019
457,10 €

Tax included. Shipping calculated at checkout

Delivery time: 28 to 35 days

Window Grille Model Mailand 2, galvanized and powder-coated, with optional opening function

Design:
Manufacturing: all connections of the window grilles are stably and professionally welded.
Material: Steel (S235JR)
Surface: hot-dip galvanized + powder-coated
Frame: 30x30x2mm
Infill bars: 12mm square
Spacing between infill bars: max. 120 mm

Online Configurator:

Determine all features and dimensions in the configurator.


Determine Sizes

Enter the reveal width and reveal height in mm.
We will then determine the grille dimensions.


Select Mounting Type

We manufacture the window grilles according to the selected mounting type. Please refer to the dimensions in the illustrations.

  • on the exterior wall without a windowsill
  • on the exterior wall with a windowsill
  • in the reveal

Opening Function with Lock

If you wish to open the window grille when needed, we will manufacture your window grille with a hinge and lock.
Depending on the window grille size, we will manufacture it with one lock or two locks.

Mounting Material / Fastening Set

You can add suitable mounting material in the configurator. We offer security screws 7x105mm including protection against disassembly with impact stars for Torx and wall plugs. We adjust the quantity to the number of fastening points.
