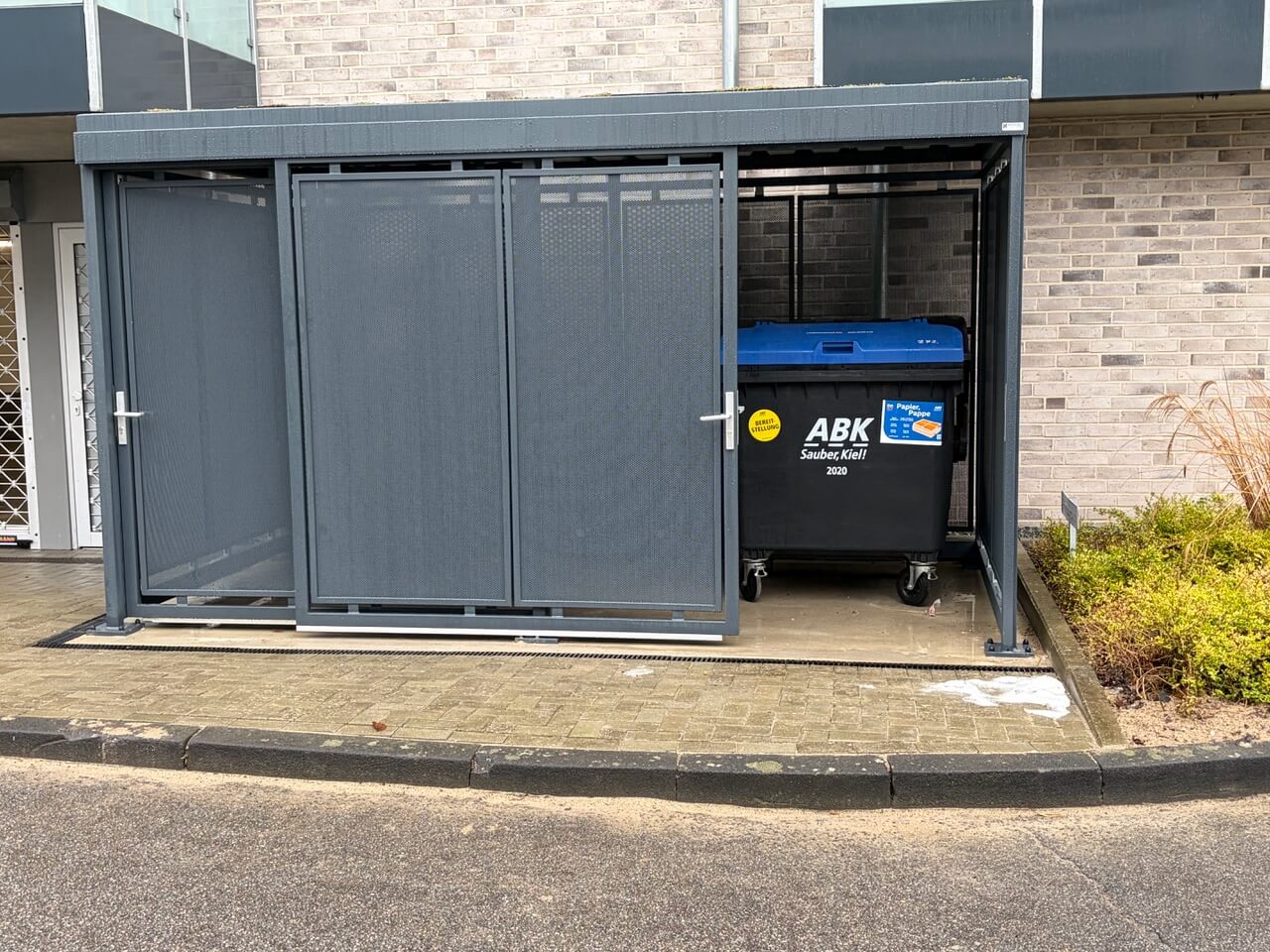

Überdachung für Mülltonnen und Fahrräder Modell K40 - Kundenreferenz

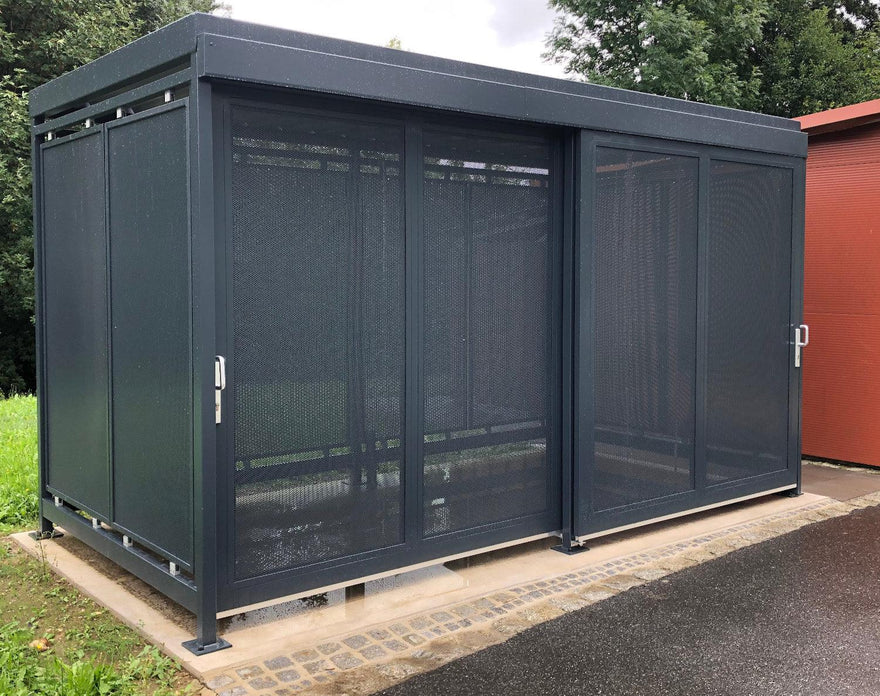

Metall Gerätehaus mit Lochblech und Schiebetüren für Mülltonnen und Fahrräder im Außenbereich

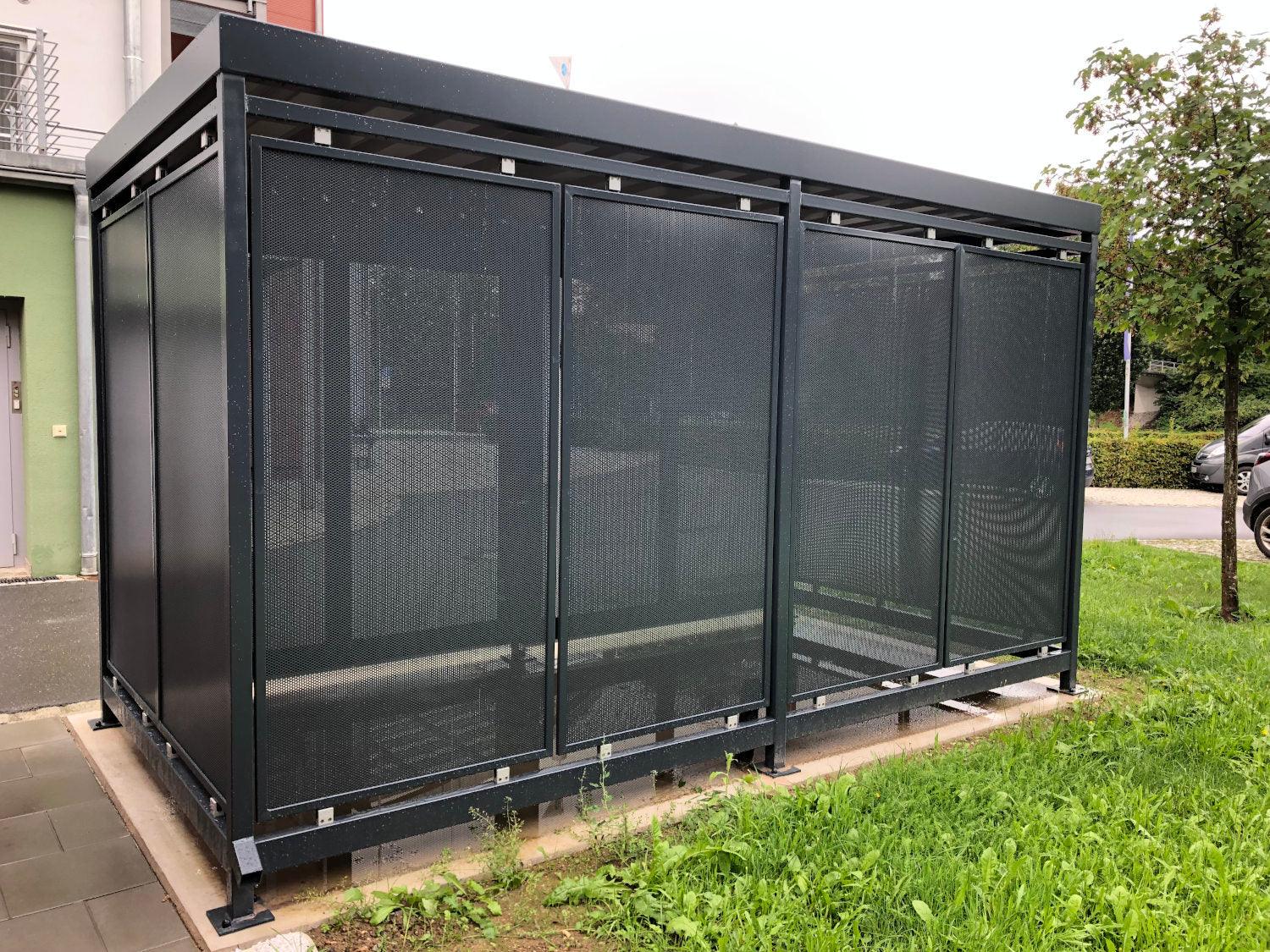

Moderne Fahrradhaus Überdachung aus Metall, wetterfest, freistehend im Außenbereich

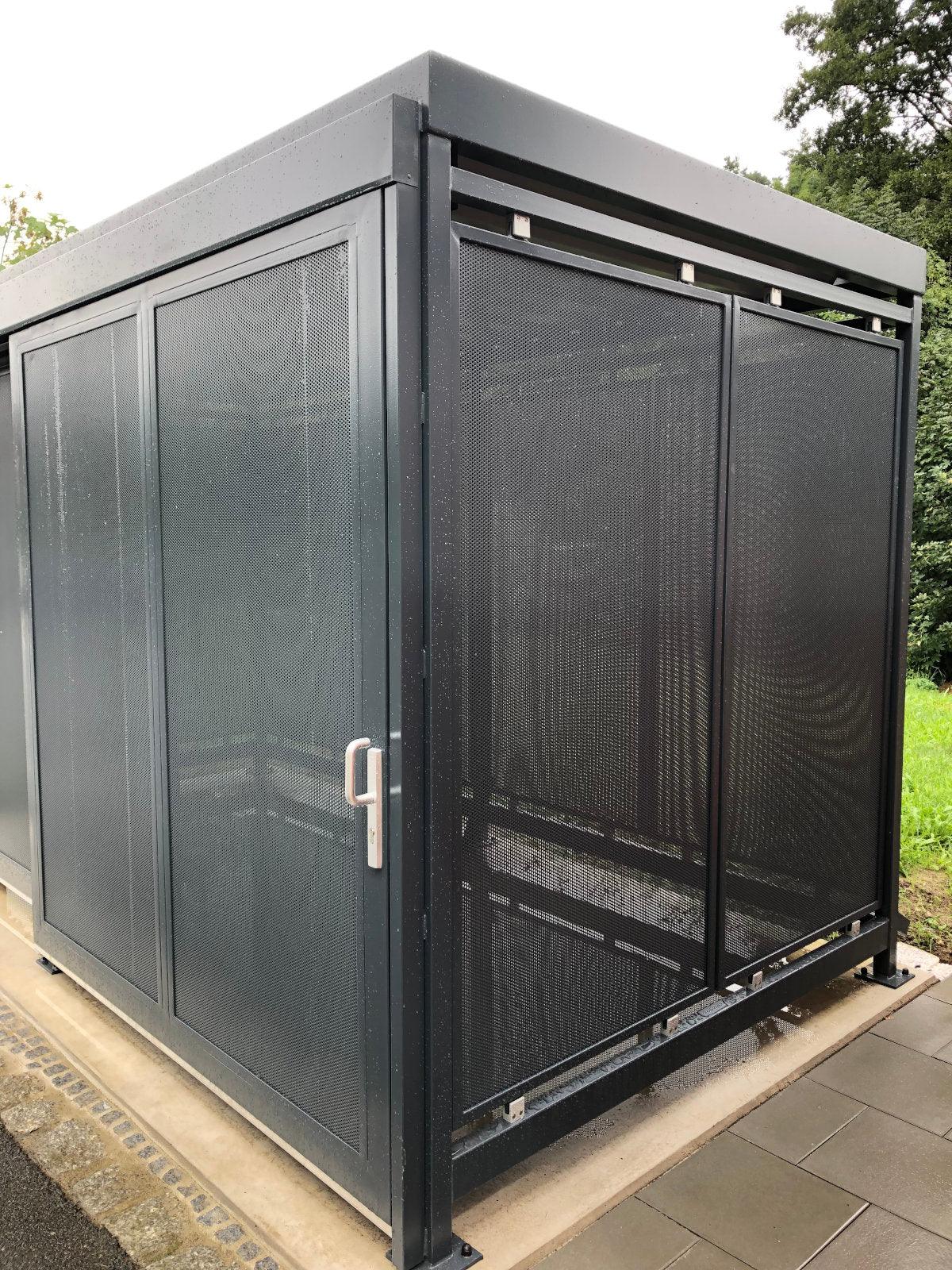

Moderne Metall Fahrradgarage und Mülltonnenbox mit Flachdach und Gitterwänden

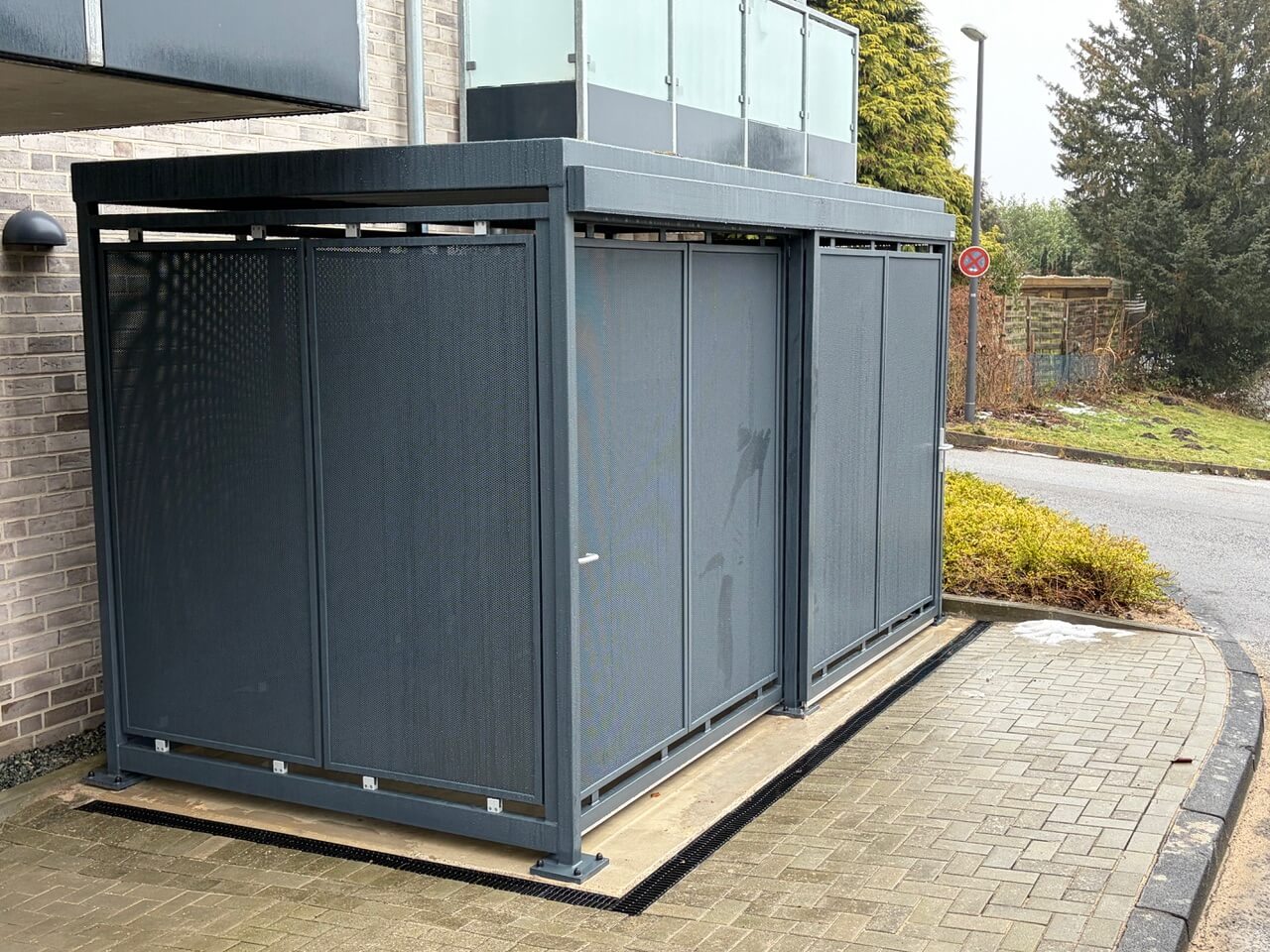

Überdachung für Mülltonnen und Fahrräder Modell K40 - Kundenreferenz Kiel

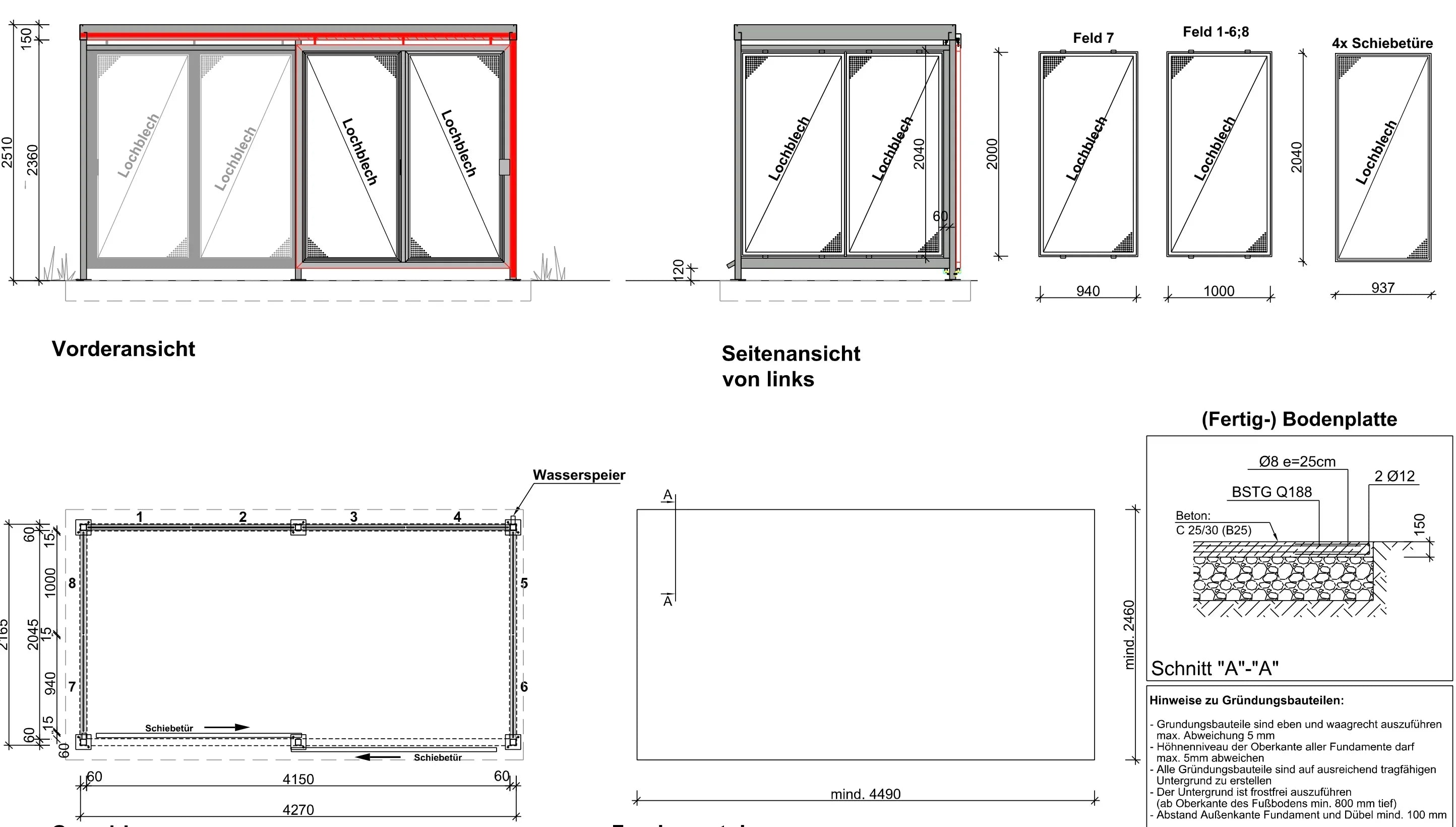

Grundriss und Ansichten eines modernen Mülltonnenhauses und Fahrradhauses aus Metall mit Schiebetüren und Lochblech-Elementen, inklusive Maße und Fundamentdetails.

Bike Garage Bike Shed Köln K40 4.2 × 2.2 m – Lockable

SKU: 80005-1

Universal canopy - waiting shelters, for smokers, waste bins or bicycles

High-quality industrial grade - Manufactured according to DIN 1090, type statics available

Cladding可选 in glass, perforated sheet or wood

Best Price Guarantee

5-year extended manufacturer's warranty!

Configure online - get price & offer immediately!

No risk - CAD plan/drawing for fine-tuning before production starts

Quantity:
15.990,00 € 17.200,00 €inkl. MwSt.
Save 7%

Kostenfreier Versand Versandinfos

Lieferzeit: 8 - 12 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Canopy Cologne K40 (4.2 x 2.2m)

with double sliding door

For smokers, waste bins, equipment

High-quality, stable flat-roof canopy. Universally applicable as a waiting area, smoking shelter, equipment shed, or waste bin enclosure.

Dimensions

  • Width: 4,180 mm
  • Depth: 2,160 mm
  • Height: 2,510 mm
  • Clearance height: 2,360 mm


Technical Data

  • Roof type: Trapezoidal sheet metal
  • Drainage: Via gargoyle on the rear corner post
  • Surface: Hot-dip galvanized and color-coated – RAL color of choice
  • Pipe diameter: 60 mm
  • Snow load: 1.90 kN/m² (kit Sk = 1.45 kN/m²)
  • Weight: approx. 600 kg
  • Wind load zone: Zone 1 to 3
  • Warranty: 5 years


Corrosion Protection

The entire structure is galvanized, primed, and color-coated or painted with environmentally friendly two-component paint.

  • Corrosivity category: C4 medium (in accordance with DIN EN ISO 12944-2)
  • Steel structure (frame): RAL or DB color of choice
  • Roof sheet (underside): RAL 9002 Grey White


Wind and Snow Load

  • Snow loads: Sk = 1.9 kN/m² (kit Sk = 1.45 kN/m²)
  • Suitable for wind load zones I–III, approved nationwide
  • Type statics available

Cladding

  • Perforated aluminum sheet, powder-coated in frame color (color of choice)

Foundation & Ground Anchoring

Two options for ground anchoring: - Please specify when ordering!

  • Attachment to existing foundation (OKF ± 0 cm)
  • Paved subsoil (OKF –20 cm): Post extension by 20 cm


Execution / Scope of delivery:

  • Fully assembled at the manufacturer's plant, freight, delivery, and positioning by crane truck.
  • Includes assembly, adjustment of sliding doors, and ground anchoring on site to foundations prepared by the customer.


Groundwork and foundations, customer-provided, not included in the scope of delivery:

  • Foundations are to be constructed by the customer according to our specifications
  • Foundation plan will be provided with the order confirmation
  • Dimensioning for normal soil conditions (2 kg/cm²)
  • Drilling depth at least 100 mm, reinforcement-free
  • No supply lines in the area of ground anchoring
  • No longitudinal or transverse slope considered in the offer
  • Slope adjustment possible on request at an extra charge
  • Foundations level, max. height difference ± 5 mm
  • No doweling on paved or asphalt surfaces permitted


Further options on request - not included in the offer:

Lighting: LED lighting InLight, incl. presence detector, vandal-proof and integrated into the roof structure. Optionally expandable with a VersoVolt photovoltaic system, for self-sufficient power supply without earthworks.

Alternative design of the cladding / side panels: Wooden cladding made of high-quality Douglas fir (European larch), toughened safety glass (ESG), clear transparent glass, toughened safety glass (ESG) with ceramic screen print, motif of choice

Delivery incl. finished concrete foundation slab. This eliminates complex foundation work. The base plate is laid at ground level on a sand or gravel bed prepared by the customer. Structured surface, slip resistance class R13, stone joint grid 300 × 300 mm, smooth formwork end faces, continuous edge chamfer, incl. statically required reinforcement up to 15 kg/m².

Questions and Answers

Footprint 4,180 × 2,160 mm (4.2 × 2.2 m), height 2,510 mm (clear height 2,360 mm). The K40 model is equipped with a double sliding door and aluminum perforated sheet cladding – ideal as a lockable bike or bin shed.

Universal: as a bike canopy or bike shed, smoking shelter, waiting shelter, bin storage, or tool shed. You choose the cladding to suit the intended use.

A hot-dip galvanized steel construction (60 mm tube), primed and color-coated in the RAL or DB color of your choice, with a trapezoidal sheet metal roof (underside in RAL 9002 gray white). Corrosion protection C4 medium in accordance with DIN EN ISO 12944-2, 5-year warranty.

A choice of clear tempered safety glass (ESG), tempered glass with ceramic screen printing (motif of your choice), aluminum perforated sheet in the frame color, or Douglas fir wood cladding.

Snow load Sk 1.90 kN/m² (1.45 kN/m² as a kit), suitable for wind load zones I–III and approved throughout Germany; type structural analysis is available.

Both are possible: fully pre-assembled at the factory and delivered/positioned by crane truck (on request including assembly and ground anchoring), or as a kit for self-assembly where access is restricted. Drainage is via a water spout on the rear corner post.

Mounting on an existing foundation (top of foundation ±0) or, on paved ground, with a 20 cm post extension (top of foundation −20). Optionally, we supply a precast concrete foundation slab (slip resistance class R13, joint grid 300×300 mm), eliminating extensive foundation work. The foundation plan comes with the order confirmation.

Yes, optionally: integrated InLight LED lighting with presence detector (vandal-protected), a self-sufficient VersoVolt photovoltaic system with no excavation work, and modular sedum green roofing.
