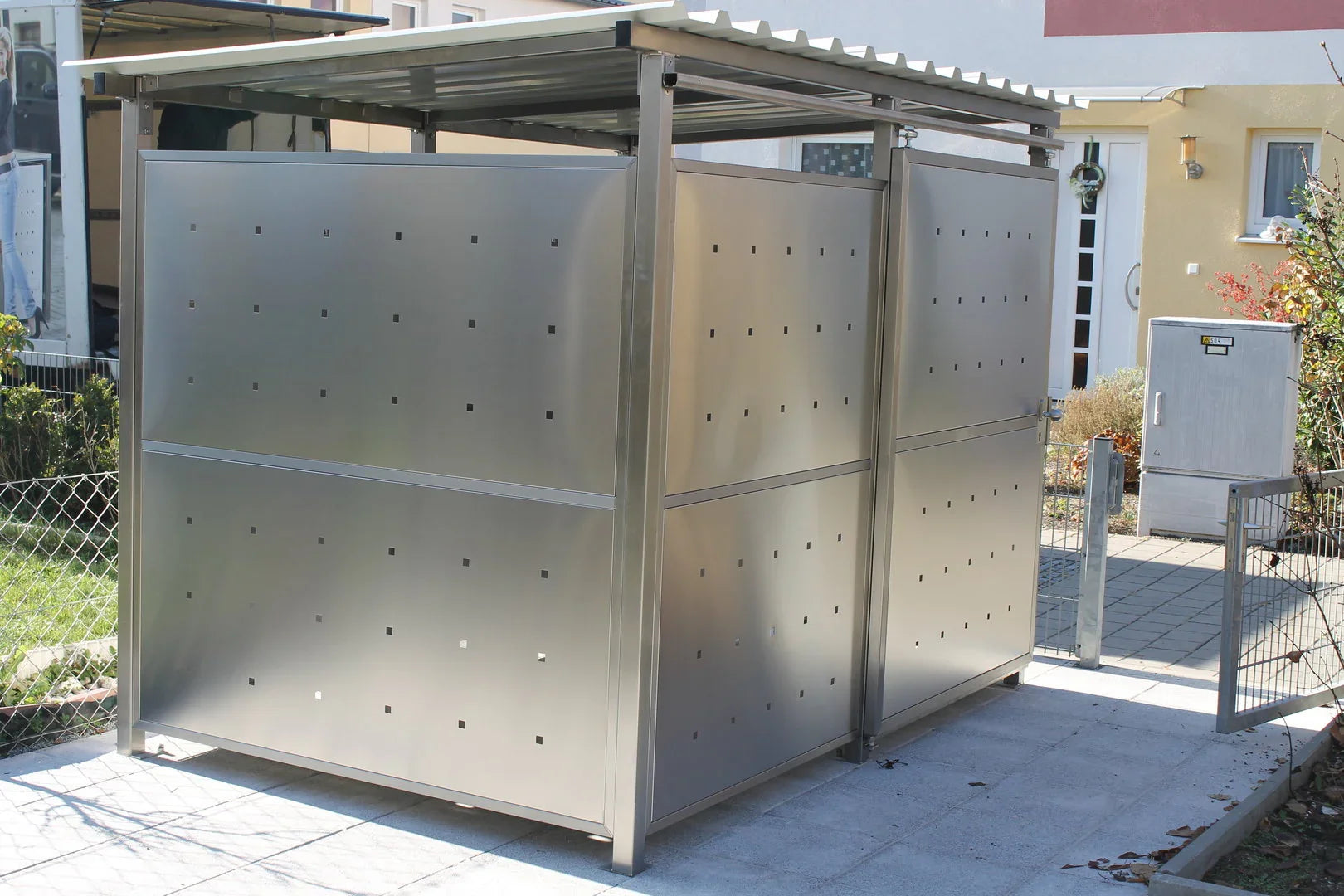

Bicycle garage, bicycle shed, bin shed, garden shed, size 1, 269 x 180 cm with stainless steel cladding

Bicycle garage, bin shed, garbage container, garden shed, size 1, made of stainless steel with stainless steel perforated sheet cladding

• Made in Germany.
• A rust-free stainless steel frame (material V2A, 1.4301) ensures stability.
• Roof consisting of galvanized, powder-coated trapezoidal sheet metal with a maximum snow load of up to 140 kg/m².
• High-quality, durable cladding made of brushed stainless steel perforated sheet metal
• Sturdy door with stainless steel frame
• Door lock with lever handle set, prepared for the installation of a 25/25 cylinder lock.
• Mounting kit, screws for ground anchoring to foundation included.

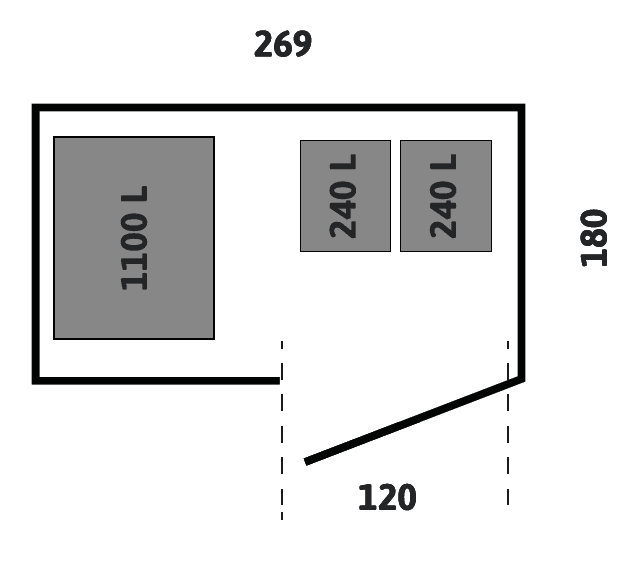

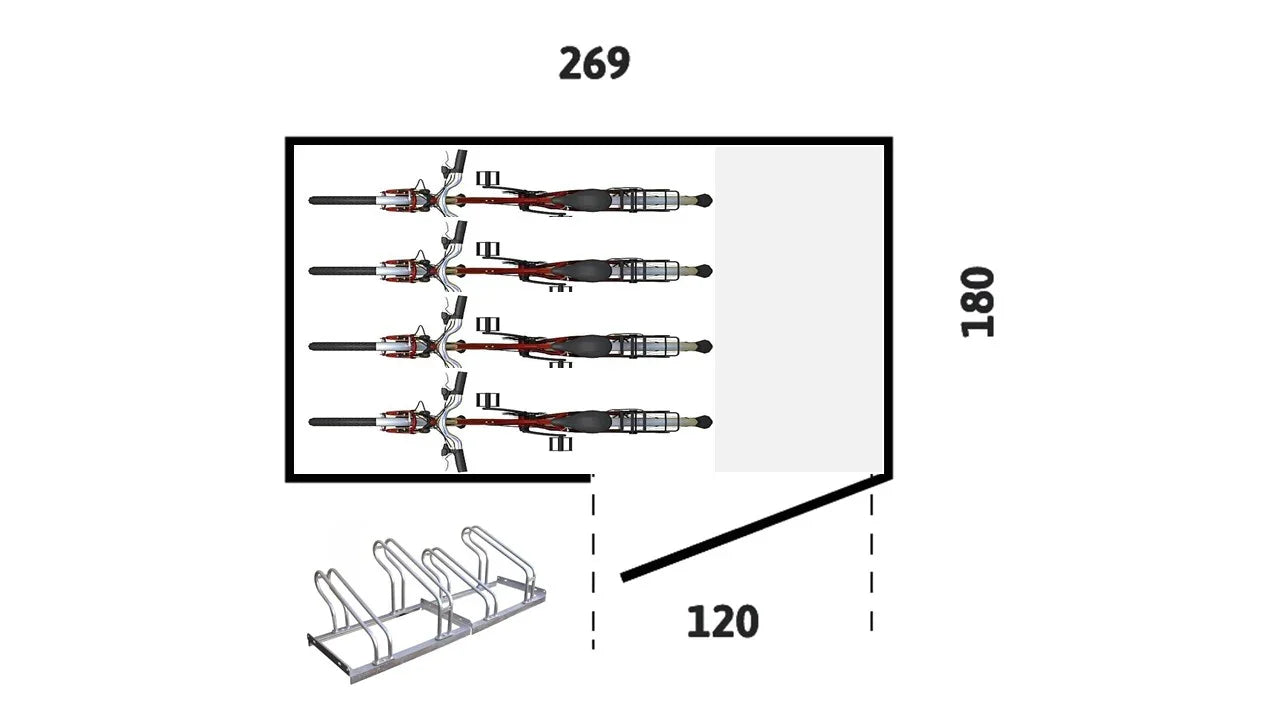

Mass:
Width: 269 cm
Depth: 180 cm
Height: front 200 cm, rear 190 cm

Door variant:
- Hinged door with stainless steel perforated sheet infill
- Sliding door with stainless steel perforated sheet infill

Standard door position: right panel - hinge DIN right
Do you require a different position or opening direction? - Please specify in the comments field.

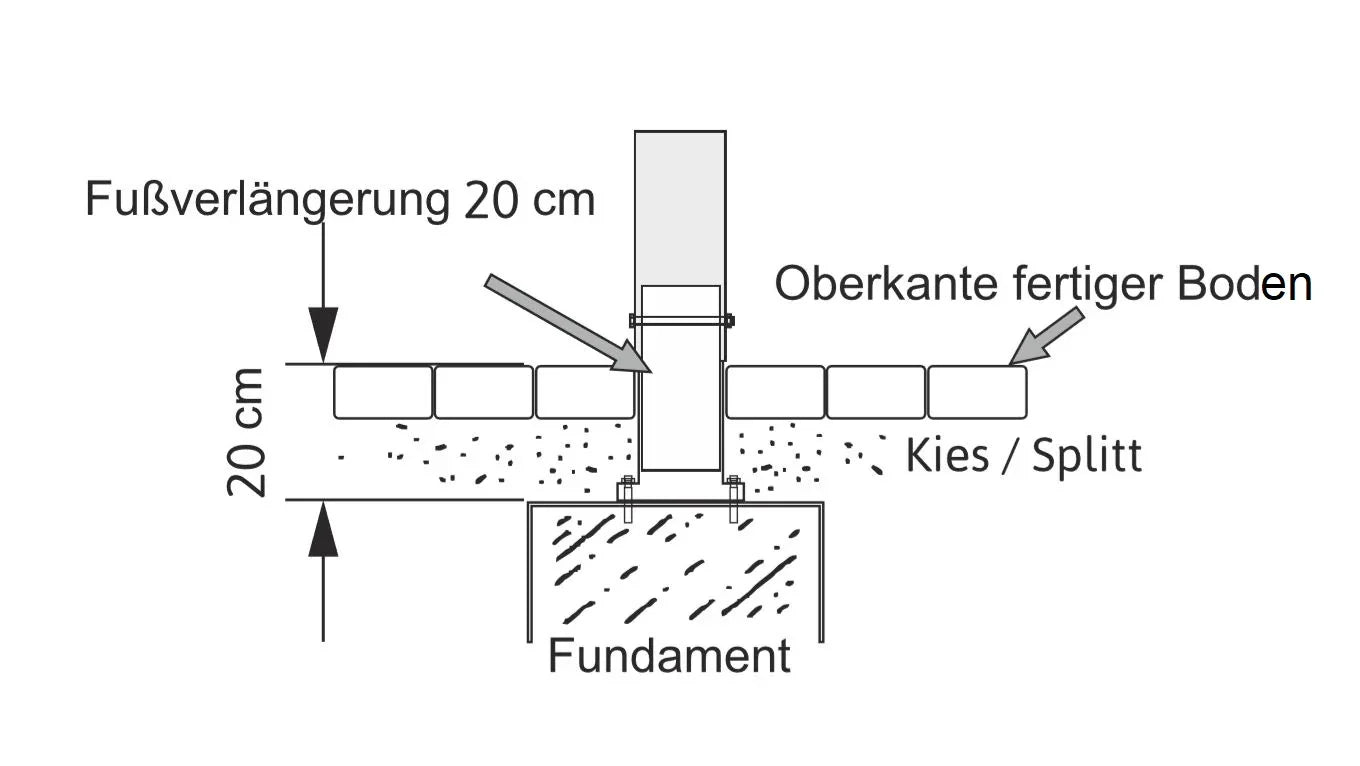

Variant: Ground anchoring support leg extension
- Standard OKF +/- 0cm, without support leg extension, ground-level mounting.
- Concealed OKF - 20cm, with support leg extension. For use if the foundation is paved over.

Rain gutter variant:
The rain gutter is riveted to the trapezoidal sheet metal from above during installation.
Delivery includes sheet metal rivets.

- without a rain gutter
- with rain gutter open on both sides
- with rain gutter closed on one side, open on the left (view from front)
- with rain gutter closed on one side, open on the right (view from front)
- with rain gutter including connector, downpipe 200cm, 3x bends, 2x wall clamps
The drain/downpipe can be placed in any position on the gutter during installation.
It is attached to the cladding using wall clamps.


Options and extensions available upon request:
The kit system can be designed very flexibly, and custom designs are also possible.
We would be happy to provide you with a free, no-obligation quote.

Common examples:

• Door on the side panel (short side)
• additional door
• Version without cladding, omission of individual cladding elements
• Open front without door
• Slope forwards, back becomes front
• Length extension by 131cm each (standard field width)

Information on scope of delivery, shipping and delivery:
- Delivery is as a kit
- Delivery without lock cylinder (A normal 25/25 cylinder lock can be used or a master key system can be integrated)
- Cladding elements are already pre-assembled. (no individual slats)
- A mounting kit for ground anchoring is included.
- Delivery via freight carrier with telephone appointment scheduling. Specific delivery date will be arranged approximately one week prior to delivery.

Foundation:
We cannot offer foundation work; this must be provided by the client.

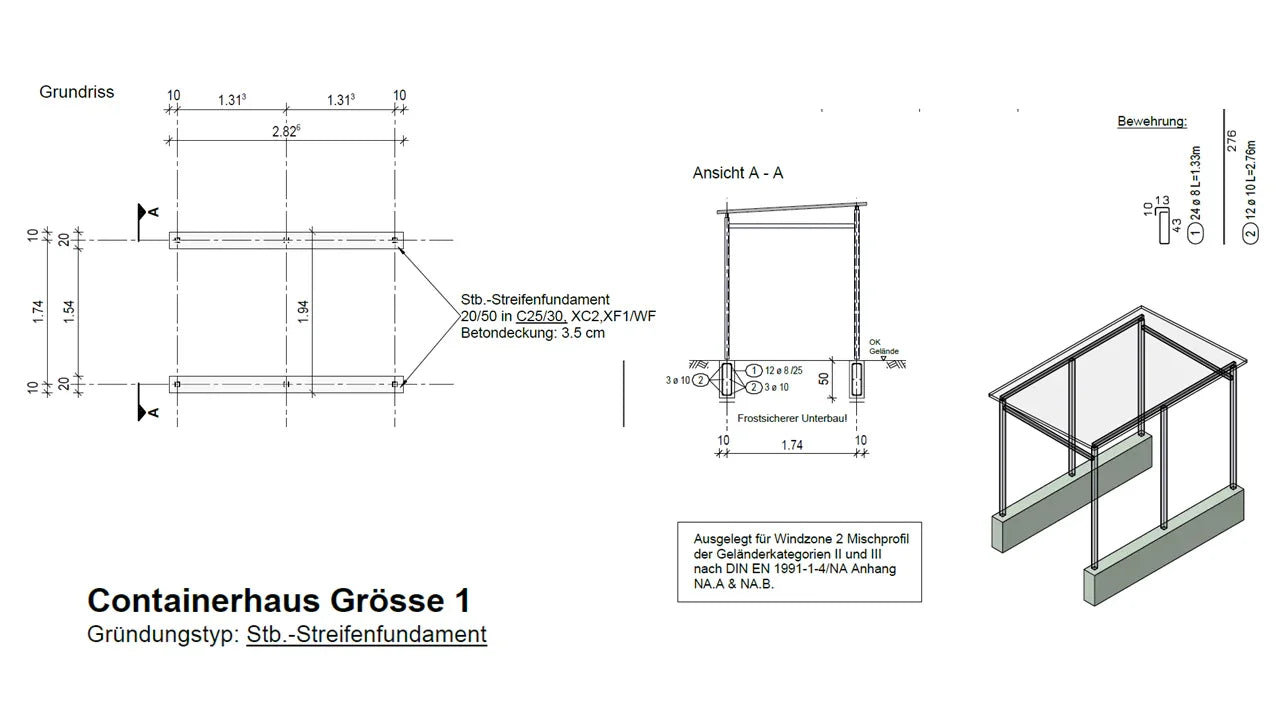

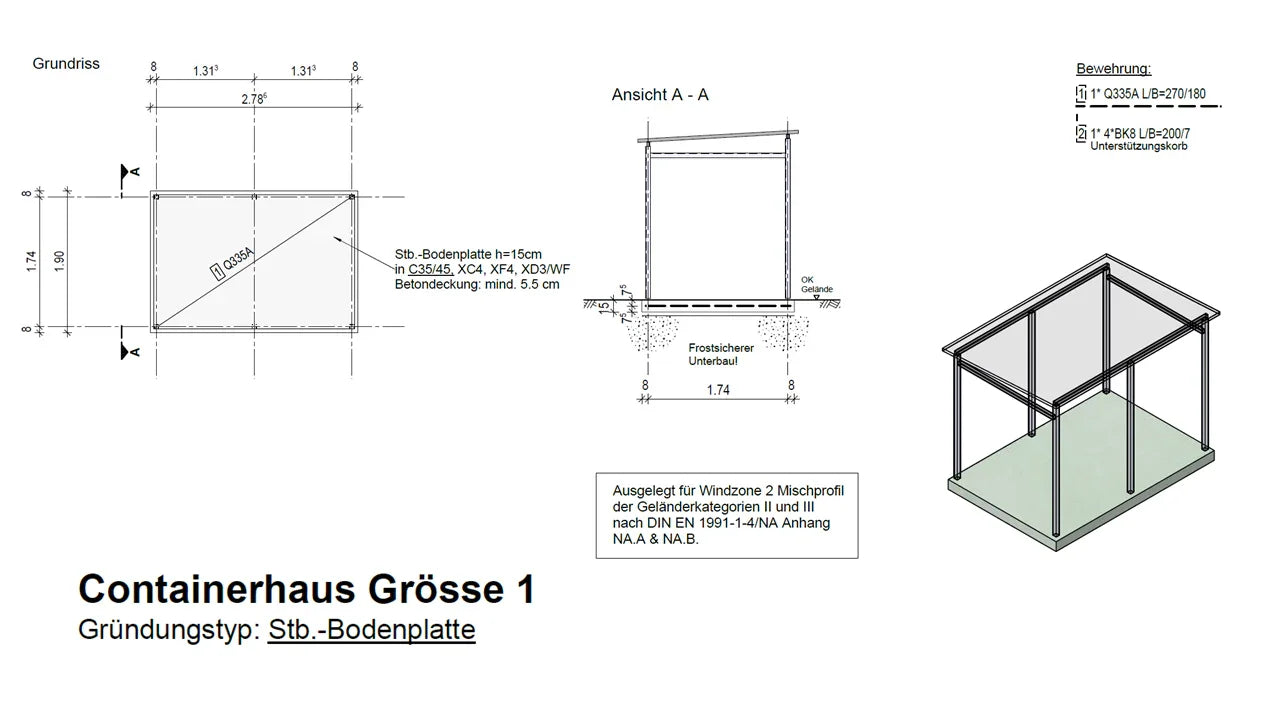

Concrete foundation:
You can place the roof on tried and tested conventional concrete foundations.
Three options are available: point foundation, strip foundation and concrete slab.
Foundation plans can be found below the product photos!

Screw foundation:
Alternatively, screw foundations with stainless steel adapter plates can be used.
Our screw foundations are a simple and inexpensive alternative to concrete foundations.
Simply pre-drill, screw the screw foundation into the ground and screw on the adapter plate.
During assembly, the base plates of the posts are drilled into the adapter plate and screwed to the adapter plate using an M10 screw and nut.
Each post requires a screw foundation. Refer to the foundation plan for the number of posts required.
Suitable screw foundations with adapter plate can be found here! (please click)

Construction:
Assembly service available upon request.
The assembly is relatively simple and can also be managed by a layperson with some manual skills.
Based on experience, assembly takes approximately 2 to 3 hours with 2 to 3 people.
You can find assembly instructions here (please click)

Complete the shelter with suitable bicycle racks:
Our bicycle racks and bicycle parking stands can be found here (please click)
