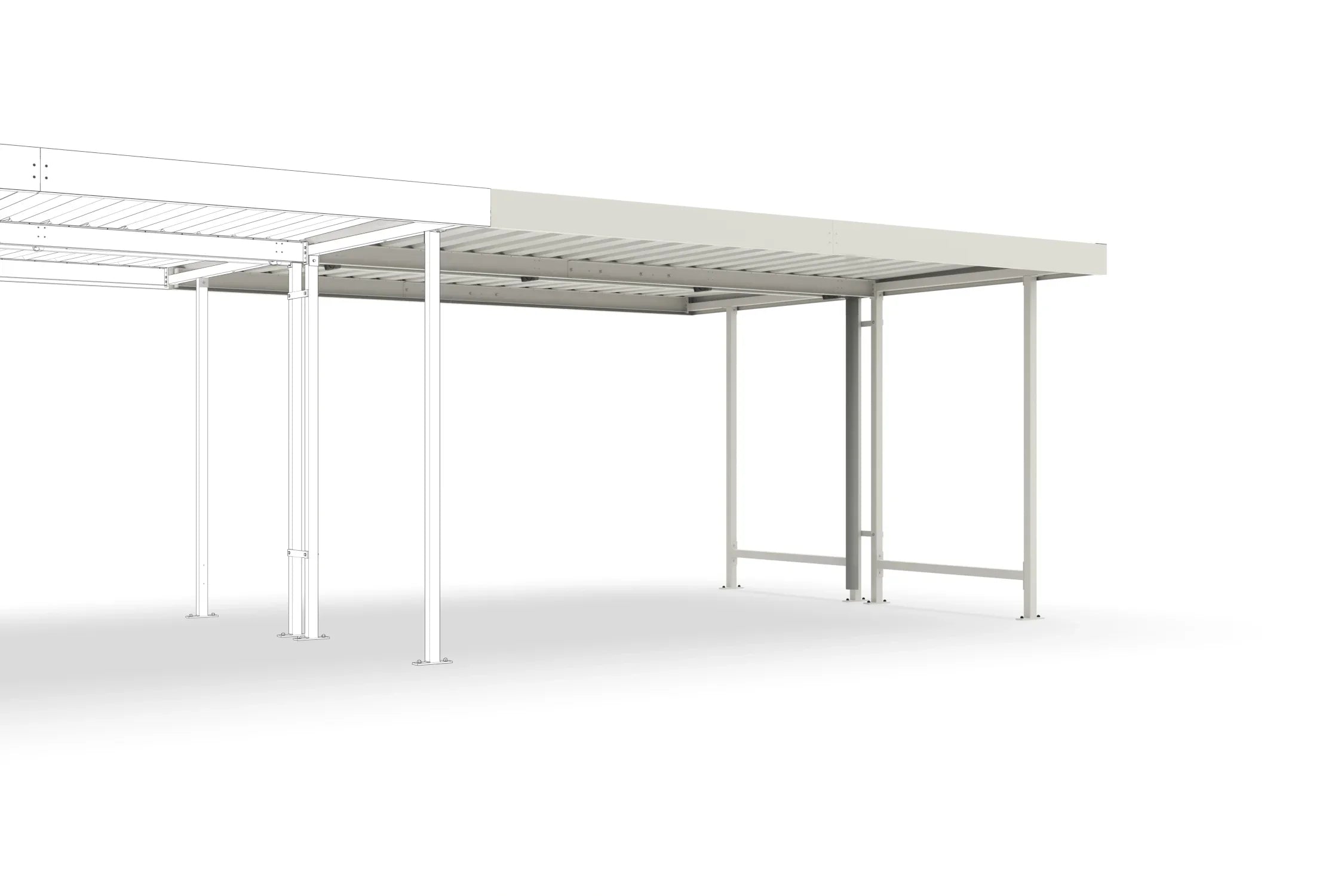

Extension unit L45 suitable for models Leipzig L40, L42, L44 - 430cm x 440cm - RAL 9002

L45 mounting unit suitable for Leipzig models L40, L42, L44 - RAL 9002

Kit with easy-to-understand assembly instructions for self-assembly from a standardized flat roof basic system with walls made of trapezoidal sheet metal.
The combination of basic and extension units, along with the option of using trapezoidal sheet metal for the back and side walls, results in a wide range of applications – open, semi-open, or closed. The practical profiled sheet metal roof features a three-sided, bolted fascia and directs rainwater to the rear. Gutters and downpipes are included.

Dimensions:
Width: 4,300 mm
Depth: 4,400 mm
Height: 2,360 mm
Clear height: 2,175 mm

Technical data:
Construction: Screwed together / Kit

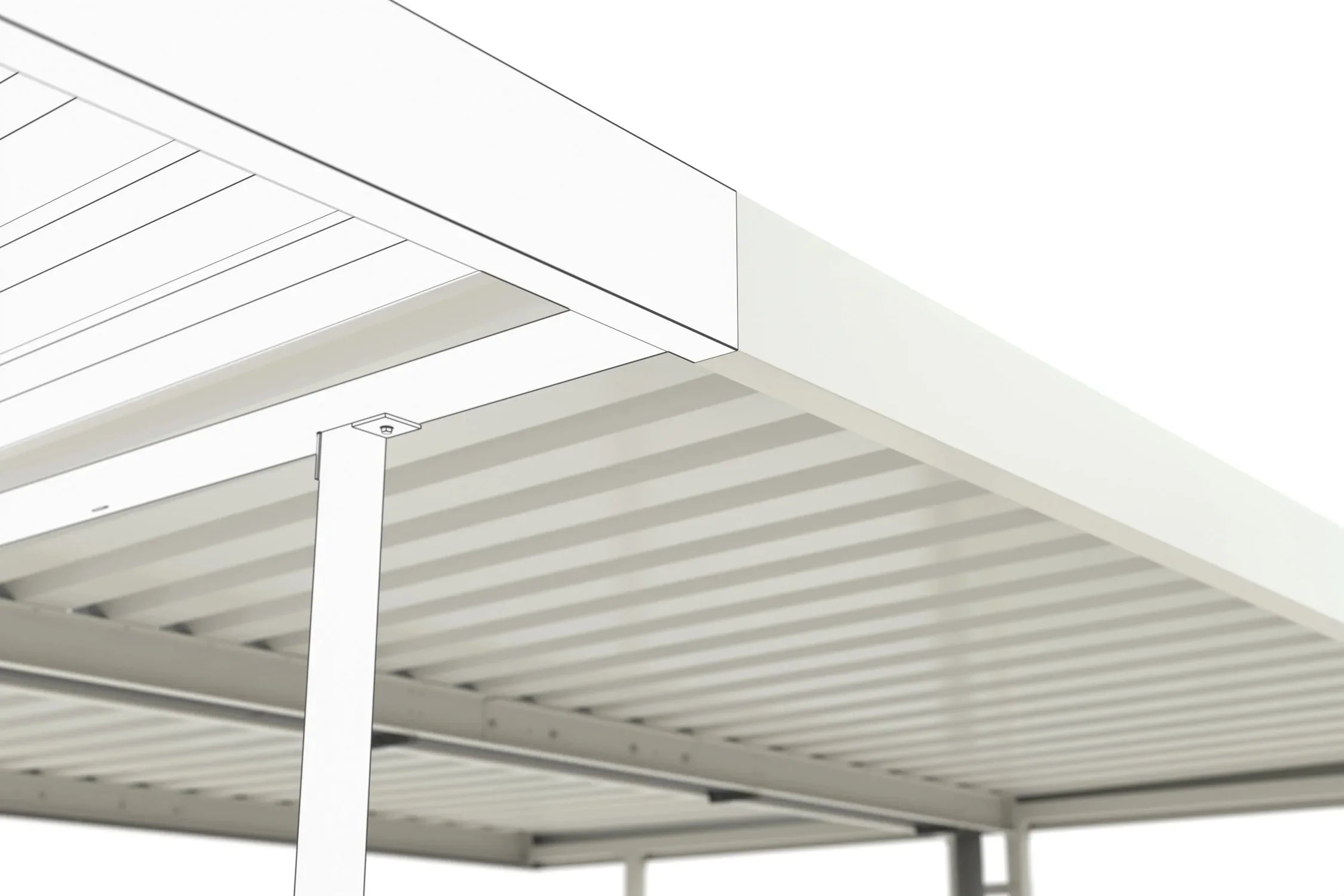

Roof type: Flat roof / Trapezoidal sheet metal
Drainage: Gutter and downpipe included
Surface: Hot-dip galvanized or additionally powder-coated - RAL 9002
Pipe diameter: 60 mm

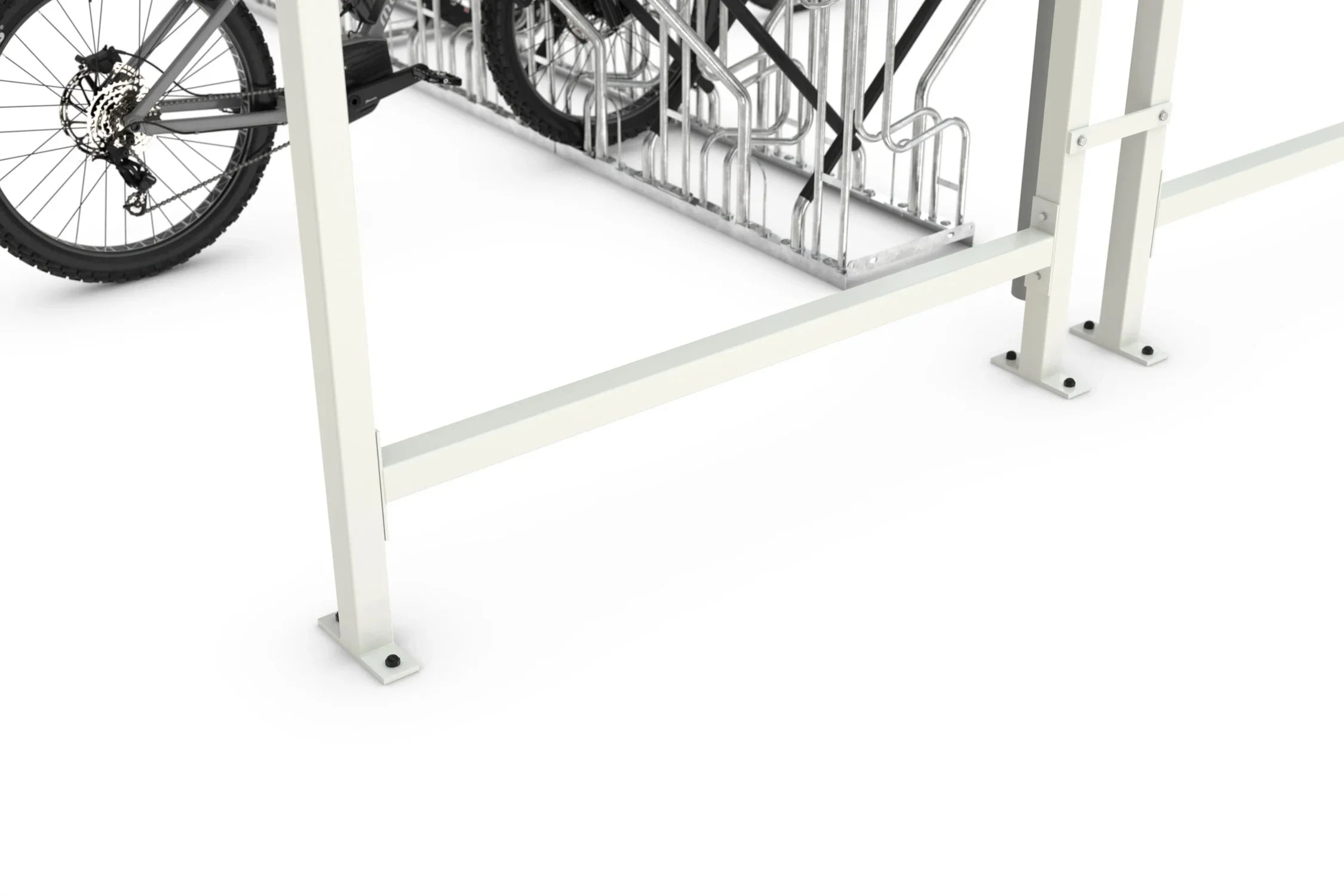

Rear/side wall: Support frame with trapezoidal sheet metal
Snow load: 0.75 kN/m²
Weight: 300 kg
Wind load zone : Zone 1 to 2
Warranty: 5 years

Intended uses:

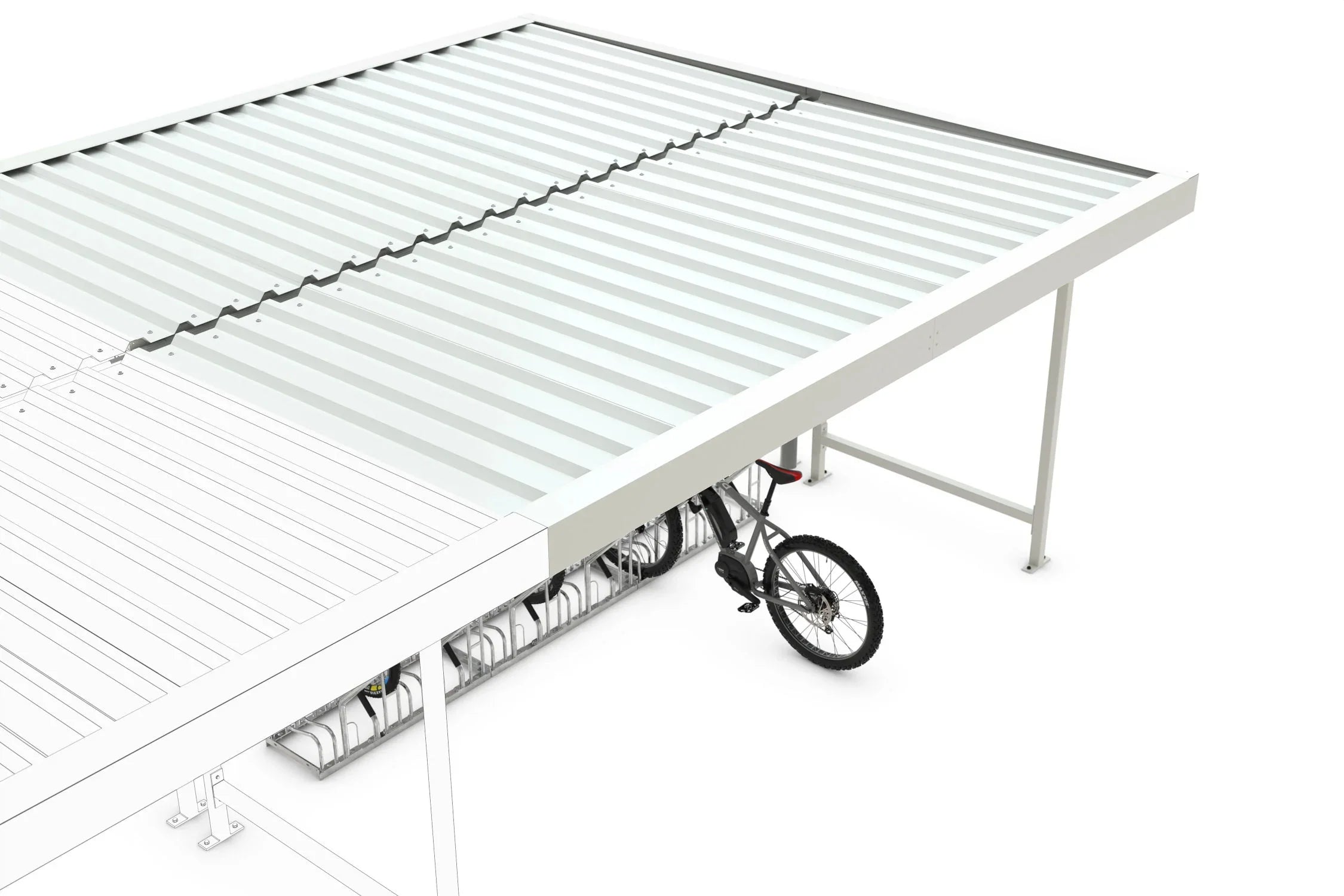

• Bicycle shelter
• Smoking cabin
• Storage area roof
• Material shelter
• Equipment shelter
• Empty container storage
• Waste disposal site enclosure
• Recycling shelter
• and much more.

Delivery:
The product is delivered as a kit including foundation and assembly instructions. Stainless steel floor anchors are also included.

Information on assembly and installation:
Assembly instructions Leipzig - Click on the link!

Manufacturer:
Kirchberger Metall Onlinevertrieb GmbH
Neunburger Str. 2c
92431 Neunburg v. W. / Seebarn
Germany

Contact:
Email: shop@kirchberger-metall.de
Telephone: +49 (0) 9672 9269110
