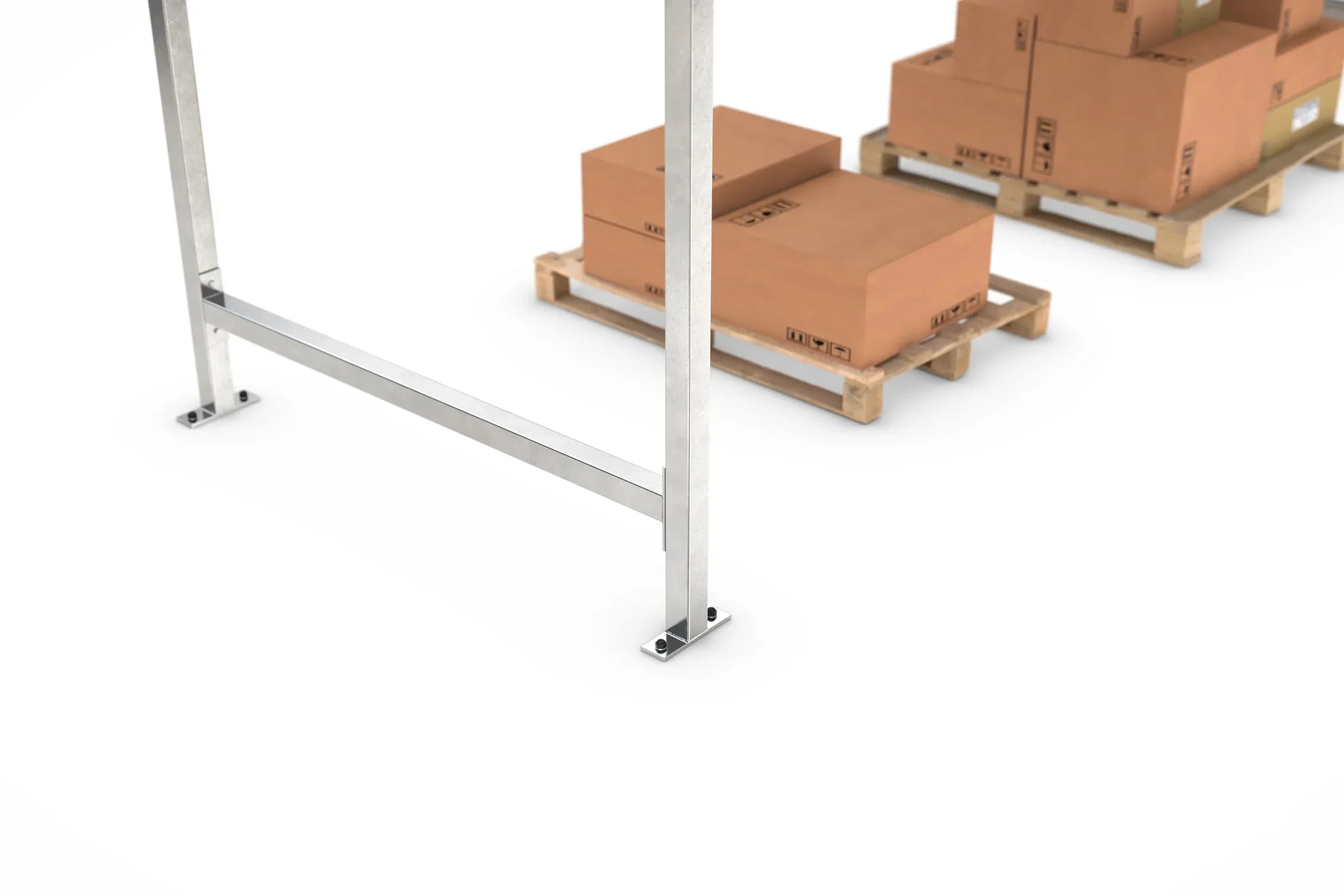

Detailaufnahme verzinkter Metallpfosten und Querträger eines Raucherunterstands auf weißem Hintergrund

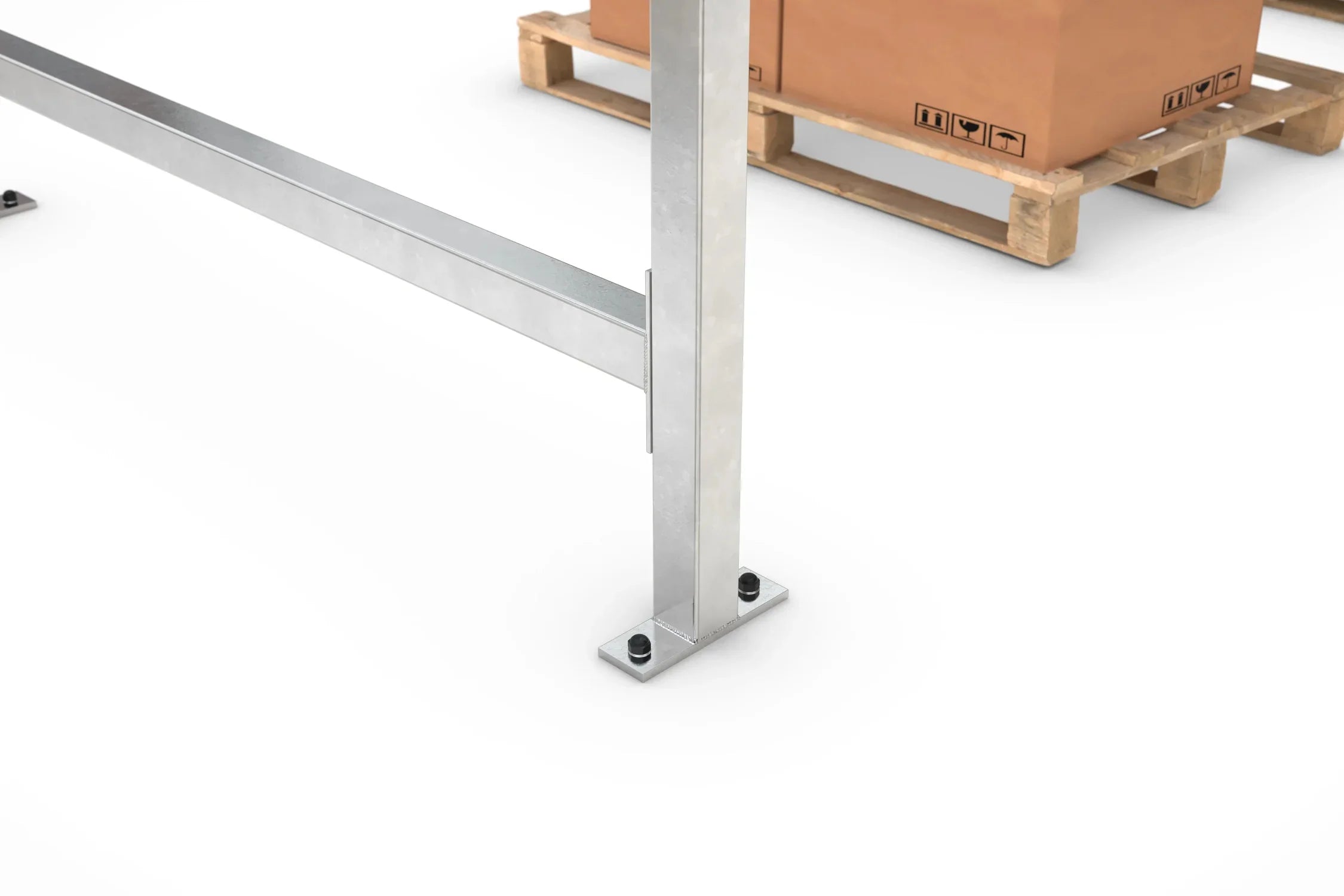

Detailansicht verzinktes Metallgestell eines Unterstands, Paletten mit Kartons im Hintergrund
Verzinkter Raucherunterstand mit Wellblechdach, Detailansicht, Paletten mit Kartons darunter

Extension unit L15 suitable for models Leipzig L10, L12, L14 - 430cm x 220cm - galvanized

✓ Robust steel construction – hot-dip galvanized & durable

✓ Versatile use as a bicycle or smoking shelter

✓ Modular kit system for easy self-assembly

✓ High stability up to 0.75 kN/m² snow load

✓ Free shipping directly to your home

SKU: 102000133-OHNE-OHNE-OHNE
additional side wall:

additional side wall
additional back panel:

additional back panel
rain gutter:

rain gutter
999,60 €

Tax included. Shipping calculated at checkout

Delivery time: 14 to 21 days

Quantity:

Add-on Unit L15 suitable for Leipzig Models L10, L12, L14 - Galvanized Steel

Assembly kit with easy-to-understand installation instructions for self-assembly from a standardized flat-roof basic system with trapezoidal sheet metal walls.
By combining basic and add-on units, as well as the option of using trapezoidal sheet metal back and side walls, a variety of uses are possible - open, semi-open, or closed. The practical profiled sheet metal roofing has a three-sided, bolted fascia and drains rainwater to the rear. Rain gutters and downpipes are available upon request.

Dimensions:
Width: 4,300 mm
Depth: 2,200 mm
Height: 2,360 mm
Clearance Height: 2,175 mm

Technical Data:
Construction: Bolted / Assembly kit
Roof Type: Flat roof / Trapezoidal sheet metal
Drainage: Free dripping at the rear, optional with rain gutter
Surface: Hot-dip galvanized or additionally color-coated - RAL 9002
Pipe Diameter: 60 mm
Back / Side Wall: Support frame with trapezoidal sheet metal
Snow Load: 0.75 kN/m²
Weight: 150 kg
Wind Load Zone: Zone 1 to 2
Warranty: 5 years

Applications:

  • Bicycle shelter
  • Smoking cabin
  • Storage area roofing
  • Material shelter
  • Equipment shelter
  • Empty container storage
  • Waste enclosure
  • Recycling shelter
  • and much more.


Add-on Unit L15 suitable for Leipzig Models L10, L12, L14 - 430cm x 220cm - galvanized - Kirchberger Metall Onlinevertrieb GmbH

Delivery:
Delivery as an assembly kit including foundation and assembly plan. Incl. stainless steel floor mounting material (dowels).

Information on Assembly and Installation:
Assembly instructions Leipzig - Click on the link!
