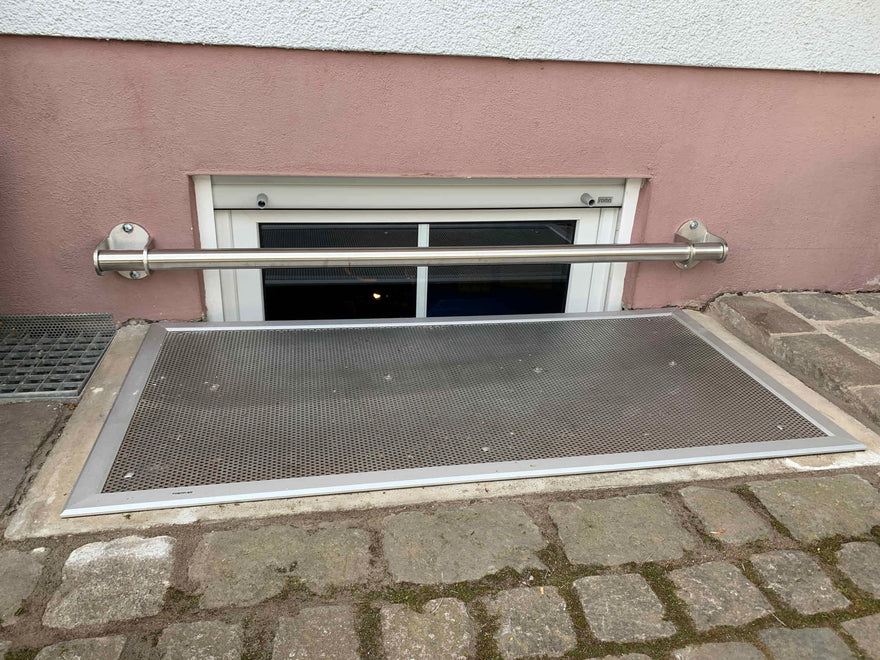

Fenstersicherung Edelstahl Stab, Fenstergitter und Lichtschachtabdeckung an Kellerfenster
Technische Zeichnung einer Fenstersicherung aus Edelstahl mit Bemaßung, Einbruchschutz, Montagebreite
Schnittzeichnung Rohr mit Stahlkern d12, Hinweis auf durchsägesicheren Fensterschutz, durchgestrichene Säge
Befestigungsset für Fenstergitter mit 4 Schrauben, 4 Dübeln und Montagematerial
Fenstersicherung Edelstahl Sicherheitsstange vor Kellerfenster, Einbruchschutz außen

Window security bar, window lock, security bar - Security Bar IV stainless steel

✔Certified manufacturing according to DIN 1090

✔Kirchberger weld quality

✔ Made in Germany, from our own production

✔ Solid rods

✔ Free shipping

✔ Quantity discount from 3 pieces

SKU: 9003
Ab
149,00 €

Tax included. Shipping calculated at checkout

Lieferzeit: 3 to 8 days
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt - Angebot anfordern
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

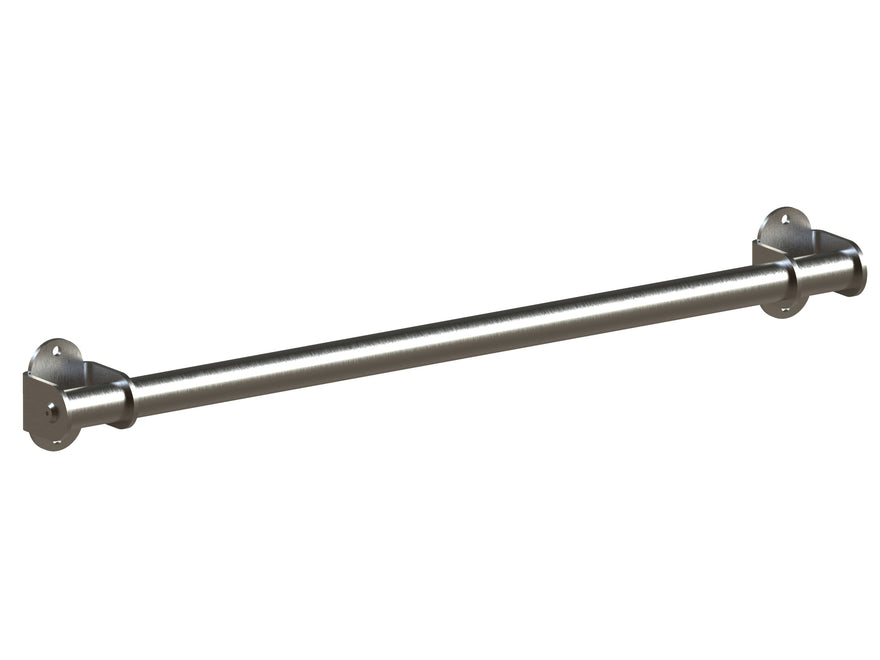

Window Security Bar Security Bar IV – Stainless Steel with Saw Protection

Effective mechanical burglary protection through a stainless steel window bar – the modern, subtle alternative to a window grille. Manufactured Made in Germany, directly from the manufacturer.

Maximum Burglary Protection with Saw Protection

An internal, solid rolling steel bar (Ø 12 mm) prevents sawing: When attempting to saw, the bar rotates away, making it impossible to cut through with a normal saw. Special Torx security screws with a drive-in star reliably prevent disassembly.

Details

  • Material: Stainless steel 1.4301 (V2A), ground K240
  • Outer tube: Ø 42.4 mm
  • Internal rolling bar: Ø 12 mm round, V2A
  • Stable wall connection bracket made of V2A

Length according to customer request

Please specify the exact mounting distance (hole spacing) in mm in the selection field.

Scope of delivery

  • 1× main tube
  • 1× rolling bar (internal)
  • 2× wall connection brackets

Mounting set for masonry (optional)

  • 4× Torx security screws AW40, galvanized (selectable 7×50 mm or 7×105 mm)
  • 4× anchors
  • 4× drive-in stars for Torx (protection against disassembly)
  • 1× insert bit TX40

Assembly

  1. Slide the main tube and internal rolling bar into the wall connection brackets and screw them together
  2. Measure, align with a spirit level, drill holes, insert anchors
  3. Screw everything together to the wall
  4. Hammer the drive-in stars into the screw heads

Questions and Answers

The Security Bar IV has an outer tube of Ø 42.4 mm with a sturdy wall-connection bracket and is bolted tamper-proof using Torx security screws with a knock-in star. The saw protection via the internal rolling bar (Ø 12 mm) is identical on both.

They serve as mechanical burglary protection for windows (especially on the ground floor and in basements) and at the same time as fall protection or a French balcony for floor-to-ceiling windows – a modern, discreet alternative to window grilles.

High-quality, rust-free 1.4301 (V2A) stainless steel, brushed. The wall-mounting elements are also made of stainless steel. Manufactured in Germany.

You specify the mounting distance in mm; we manufacture made to measure. The mounting distance corresponds to the exact reveal dimension of your window opening in mm – that is, the clear dimension between the two reveal walls on which the bar is mounted. Please measure precisely, as the Security Bar III is fitted into the reveal with an exact fit. The slip-on sleeves give us an installation clearance of 5 mm – so the bar can be inserted without any problem despite being made to measure.

The mounting kit is selected separately to match the wall: standard masonry (brick/aerated concrete), thermal insulation (ETICS, with thermal separation against cold bridges), or timber-frame construction.
