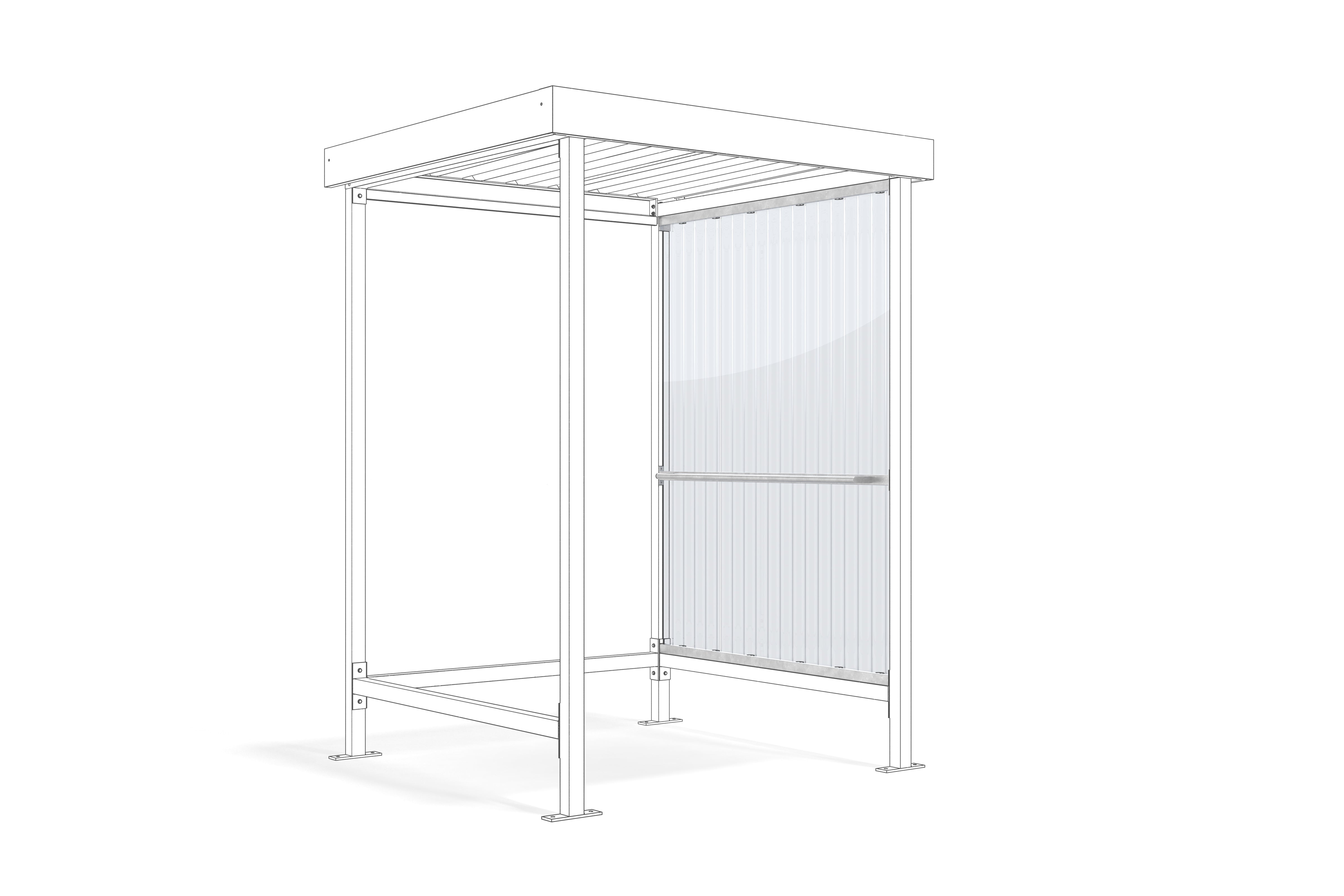

additional side wall:

additional side wall
2.034,90 €

Tax included. Shipping calculated at checkout

Delivery time: 3 to 8 days

Quantity:
5,0 82 Google-Bewertungen

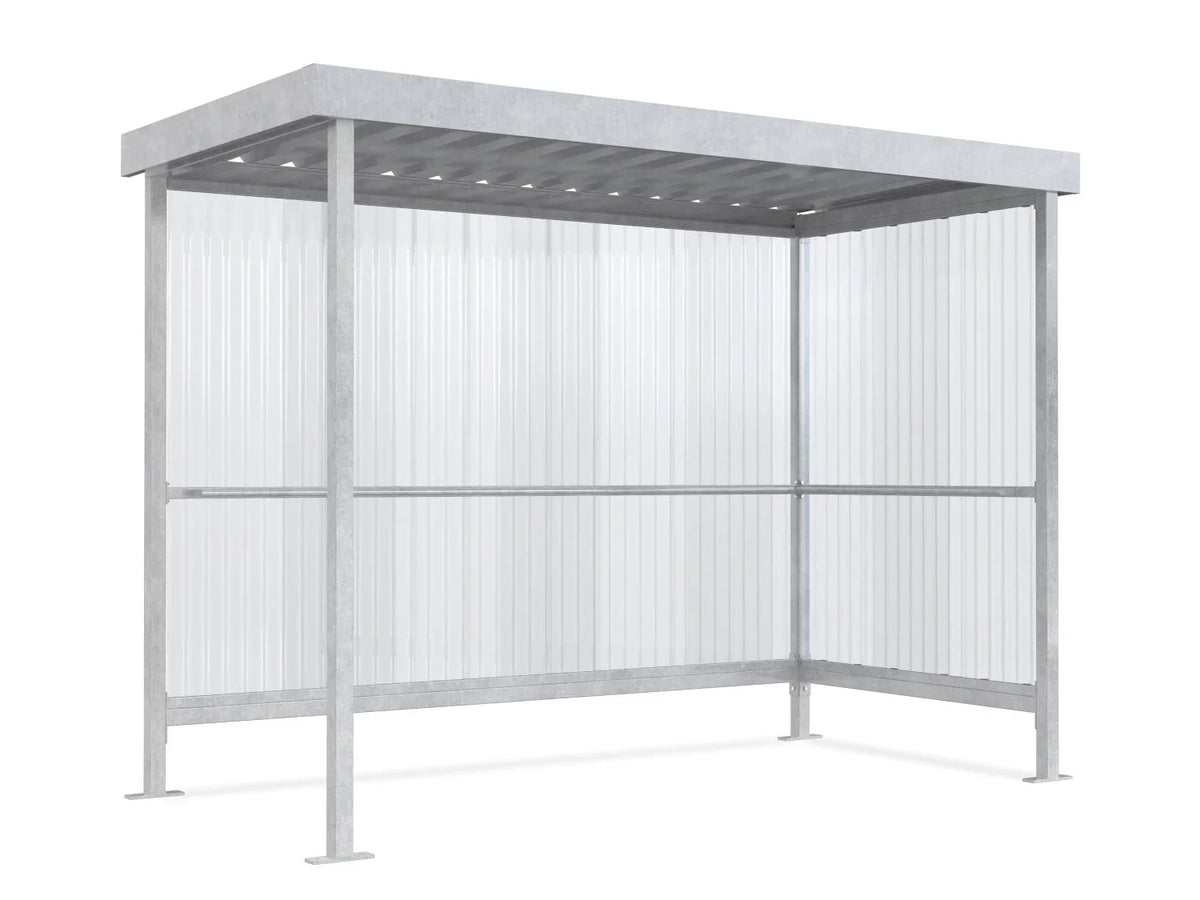

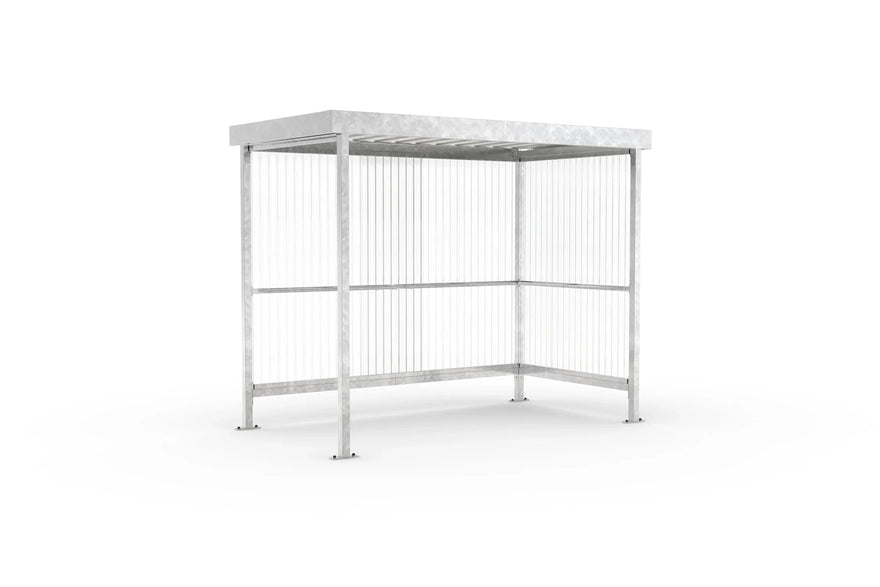

Canopy, Smoking Shelter, Smoking Cabin WSM Jena Maxi - Galvanized Steel

With the "Jena Maxi" canopy system, you get excellent protection from wind and weather on a 4.67 sqm footprint. Even for non-smokers, this smoking shelter provides protection in hospitals, public authorities, or businesses. The galvanized flat-roof steel construction is cost-effective, quickly deliverable, and features two or optionally three side panels. These are made from high-quality corrugated polycarbonate. The system also includes practical leaning rails.

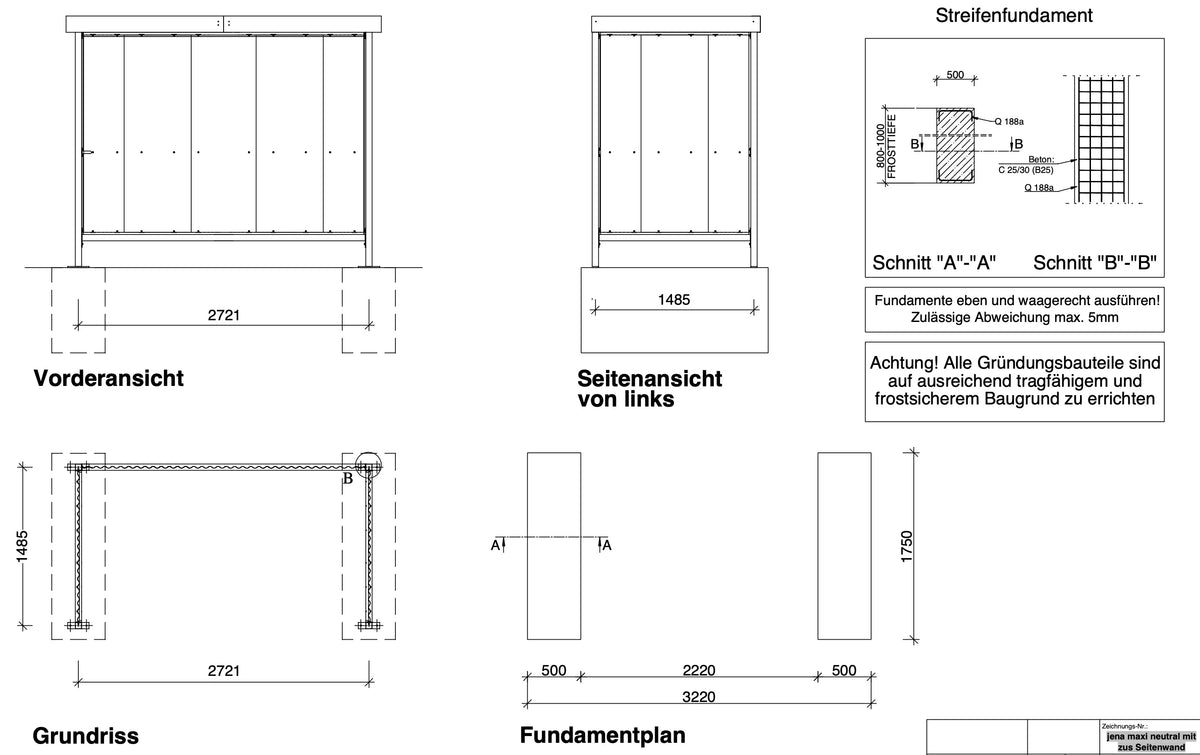

Delivery as a kit with assembly instructions and foundation plan.

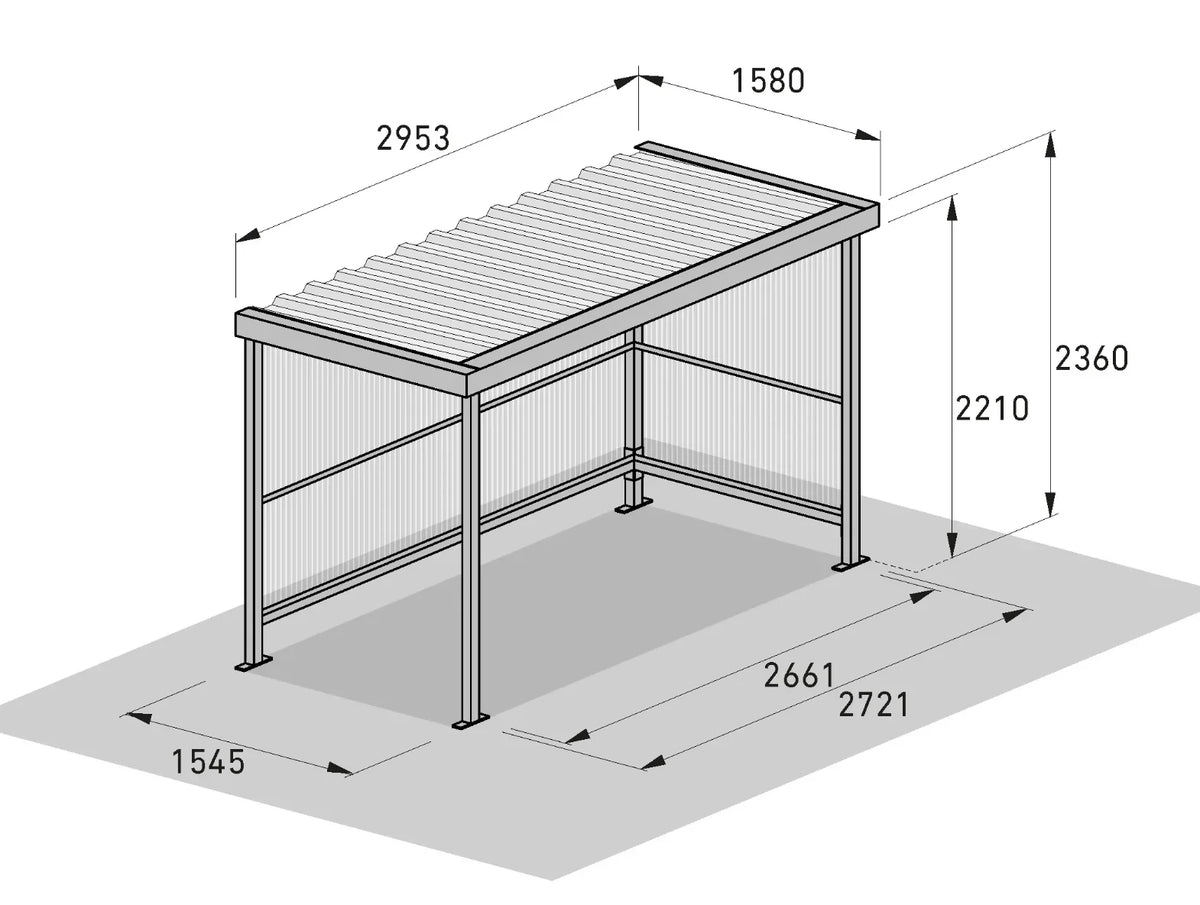

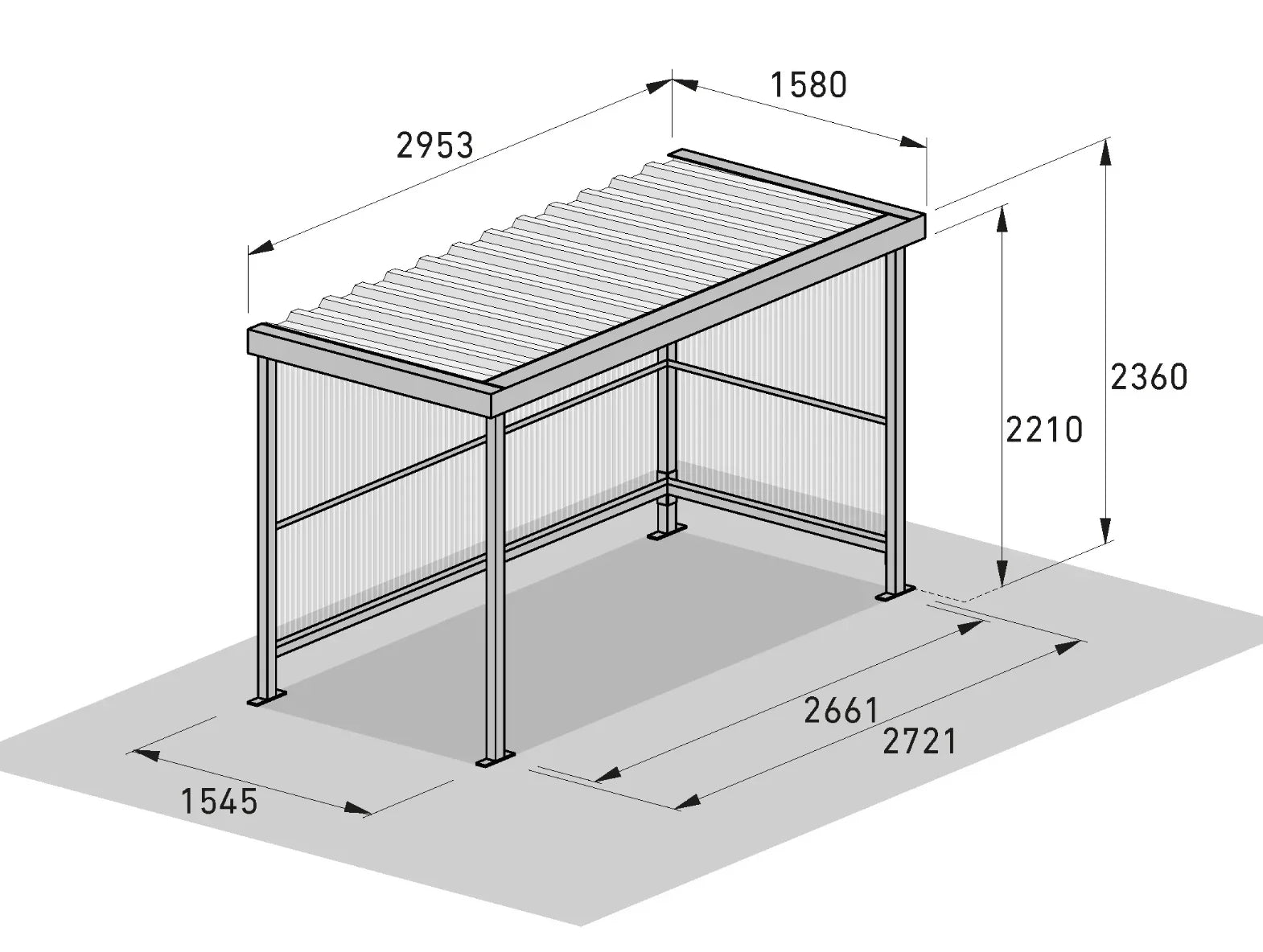

Dimensions:
Width: 2,960 mm
Depth: 1,580 mm
Height: 2,360 mm
Clearance height: 2,200 mm

Technical data:
Number of wall elements: 3 (optional 4)
Construction: screwed / kit
Roof type: Flat roof / trapezoidal sheet metal
Drainage: Free dripping
Surface: Hot-dip galvanized
Pipe diameter: 60 mm
Rear wall type: Corrugated polycarbonate
Side wall type: Corrugated polycarbonate
Snow load: 0.75 kN/m²
Weight: 262 kg
Wind load zone: Zone 1 to 2
Warranty: 5 years

Smoking Shelter Jena Example 2













Attention: Delivery is as a kit

Shipping and delivery free of charge!

Questions and Answers

A professional smoking shelter enables clean spatial separation in accordance with non-smoker protection laws without compromising the comfort of employees or guests. It also keeps the company premises clean, as it provides a central gathering point and minimizes uncontrolled littering.

The range extends from simple canopies open on one side to complex smoking pavilions or almost fully enclosed smoking cabins. The choice of the number of side walls directly affects the desired weather protection against wind, rain, or snow.

Yes, thanks to modular construction, the systems can be adapted flexibly. They can be optimally positioned on spacious open areas as well as in confined spaces such as courtyards or on roof terraces.

Functional components are available for the models (such as Modell K, Passau, or R). Combination ashtrays with an integrated waste bin are particularly space-saving and hygienic. To further increase comfort, we also offer weatherproof benches, standing tables, and integrated lighting systems.

From a technical standpoint, a level concrete foundation at the site is mandatory. The smoking shelter is professionally anchored to it using robust base plates to guarantee the necessary stability and structural safety under wind loads.

Yes, we assist you starting with the selection of the right size, taking maintenance and ease of cleaning into account. In addition to detailed documentation for efficient installation, we also offer a professional installation service for a code-compliant setup.

The optimal size depends on your desired site capacity and the required level of protection. In practice, around 0.5 to 1 square meter of space per person is usually calculated for a comfortable standing spot.

Systems such as Modell K, Passau, or R are based on modular constructions and are available in many sizes. The range extends from compact canopies open on one side for small teams to large, almost fully enclosed smoking pavilions or cabins. We are happy to help you select the right capacity for your premises.
