Noise Barrier Post eco 80 x 60 mm – 2600 or 3000 mm, for Setting in Concrete, Anthracite Grey

The manufacturer states a sound reduction index of approx. 18 dB for the eco panels. The panel contains rock wool, a polypropylene mesh and a polyethylene fleece. The back is a 5/5 mm double-rod mesh, the front a 5/5 mm 3D mesh.

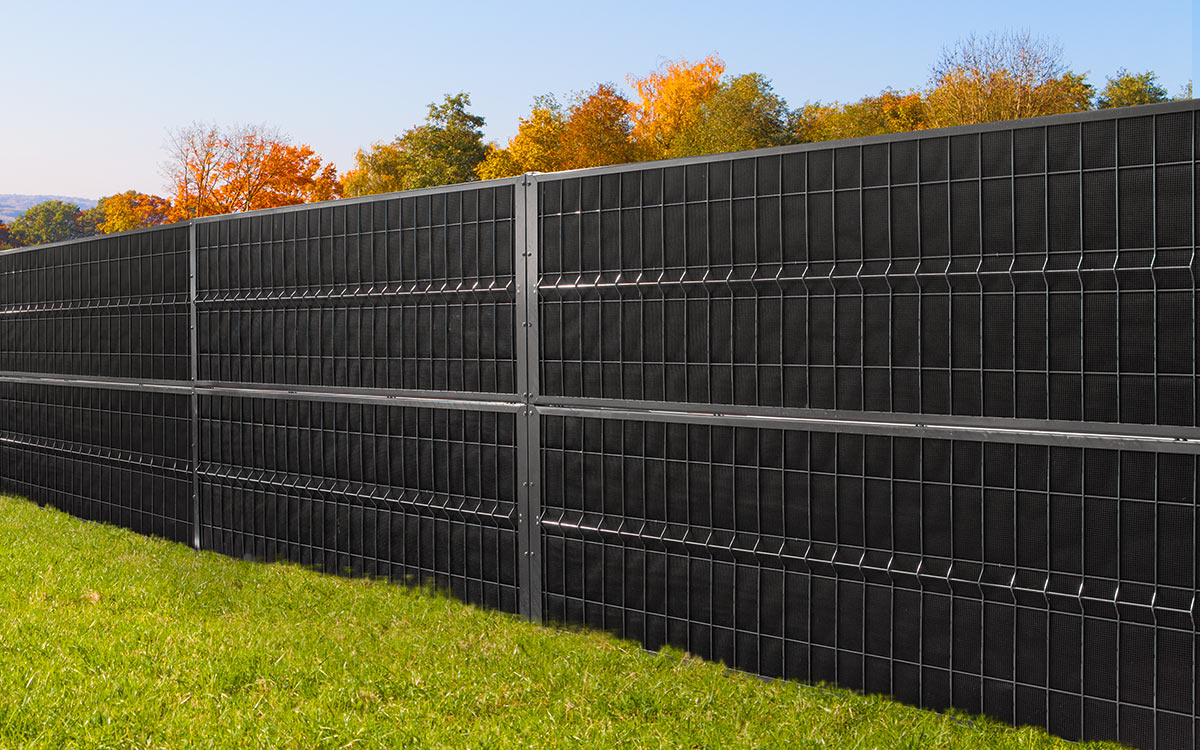

Two noise barrier panels, one eco noise barrier post, self-drilling screws for fastening and sealing tape. One set makes up a fence bay 2510 mm wide.

The panels are available in heights of 800 and 1000 mm. They make up the fence heights 1600, 1800 and 2000 mm.

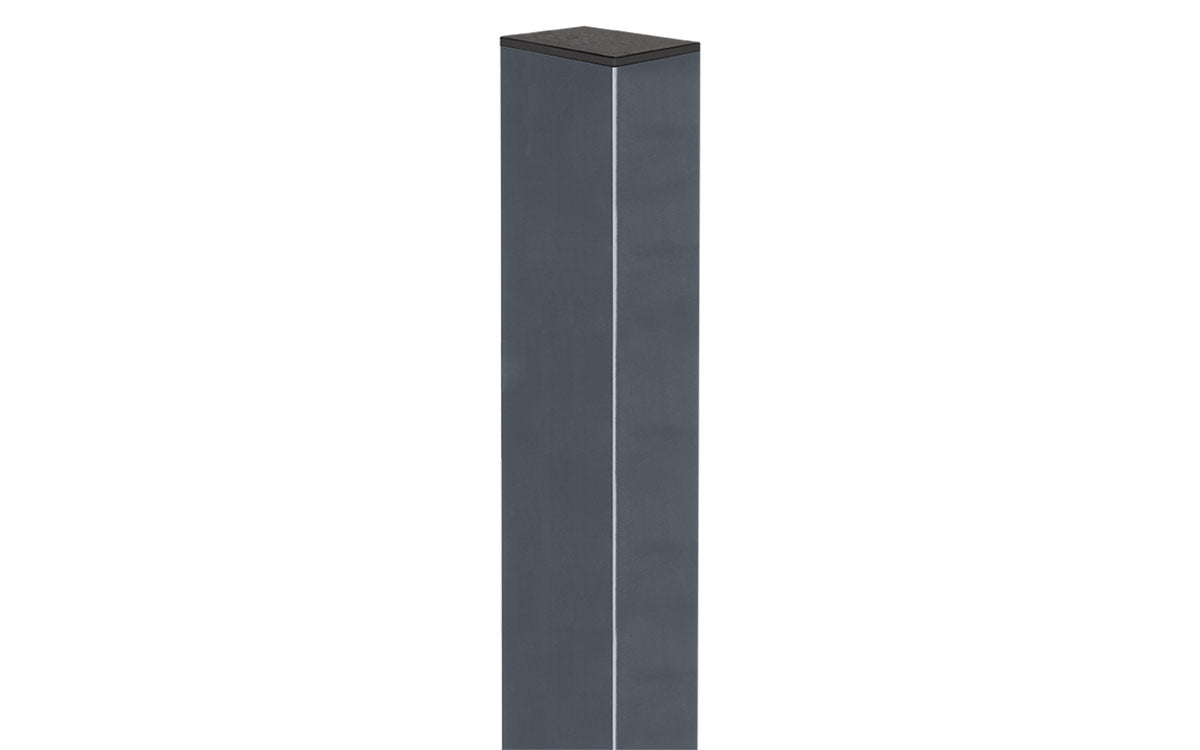

The eco posts have a profile of 80 x 60 x 3 mm and are concreted in. For fence heights of 1600 and 1800 mm they are 2600 mm long, for a fence height of 2000 mm 3000 mm. One post is included with each set. The posts are also available individually, for example for the start of the fence.

Yes. The front is a 5/5 mm 3D mesh with a depth of 95 mm, which the manufacturer designates as a climbing aid.

Yes. The single-leaf eco swing gate has a noise barrier panel as infill, a 60 x 60 mm frame, 80 x 80 mm posts and opens 90°. The gate is available in the heights 1800 and 2000 mm. We offer it on request.

Hot-dip galvanized and powder-coated in RAL 7016 anthracite grey. Hot-dip galvanized without coating is available on request. According to the manufacturer, the panels achieve fire class A1.
