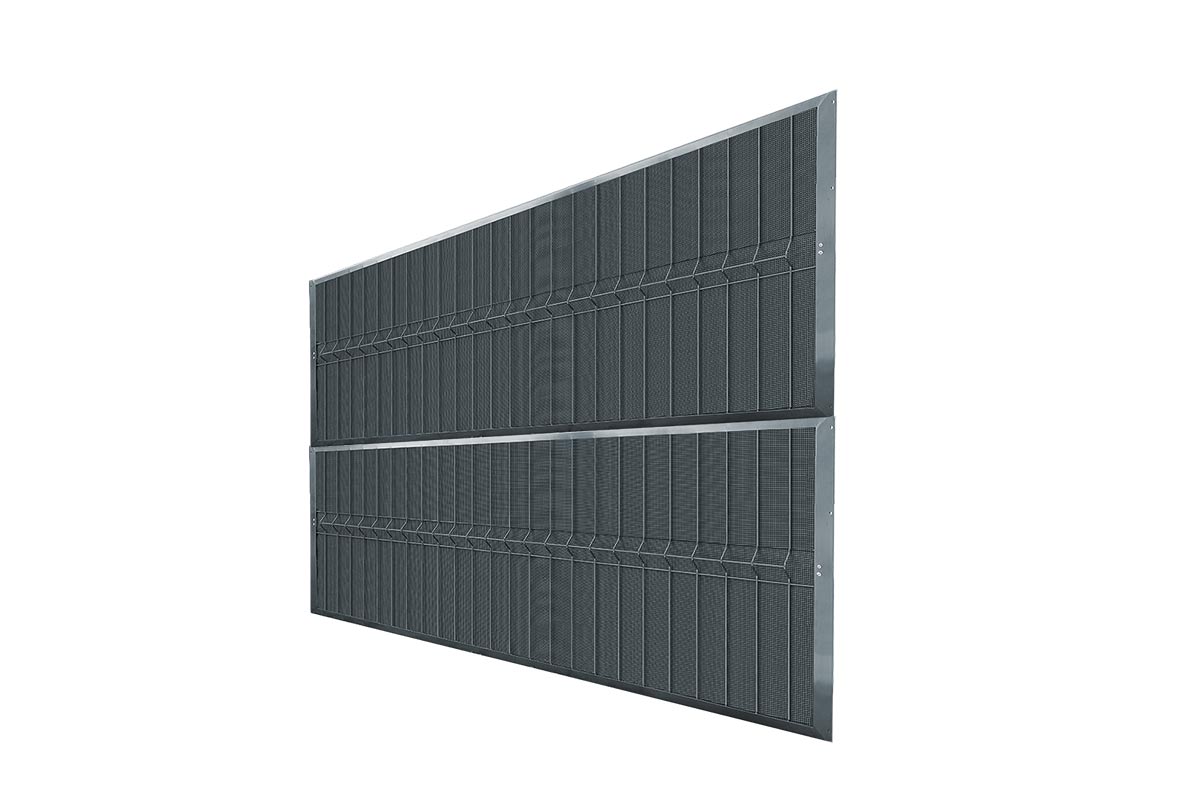

Lärmschutzpaneele eco in Anthrazitgrau, zwei Paneele übereinander

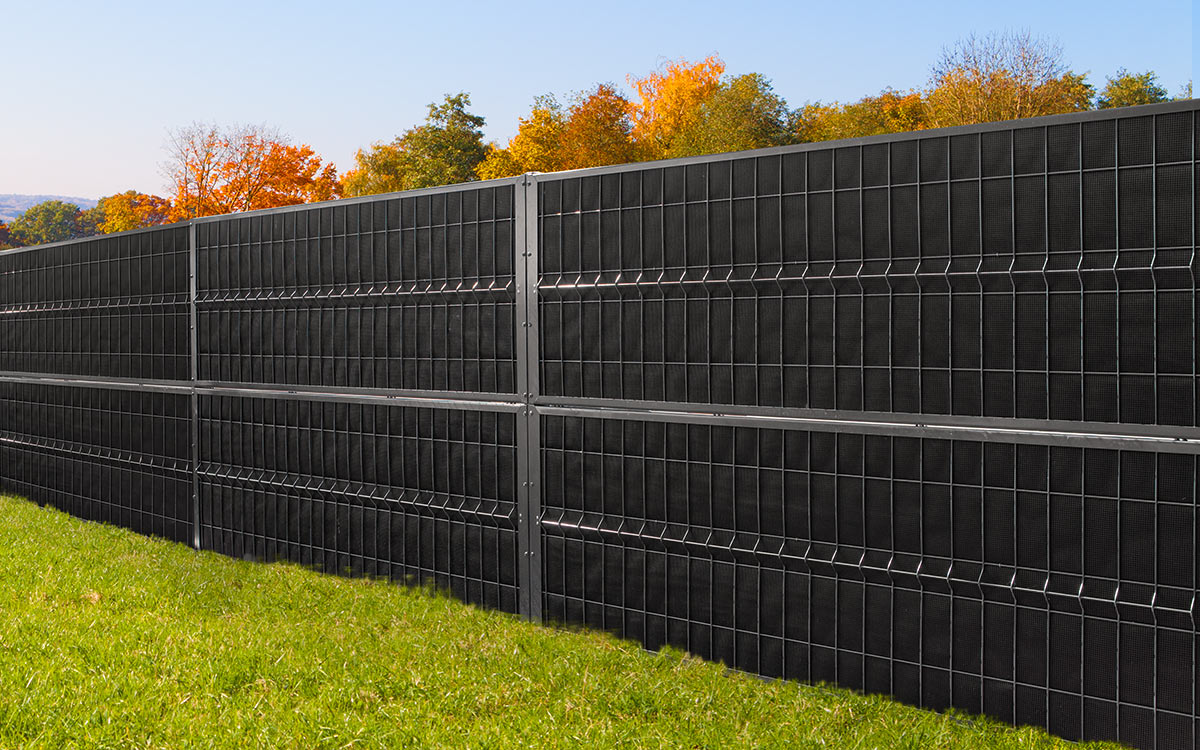

Lärmschutzzaun eco an einer Wiese, lange Zaunreihe

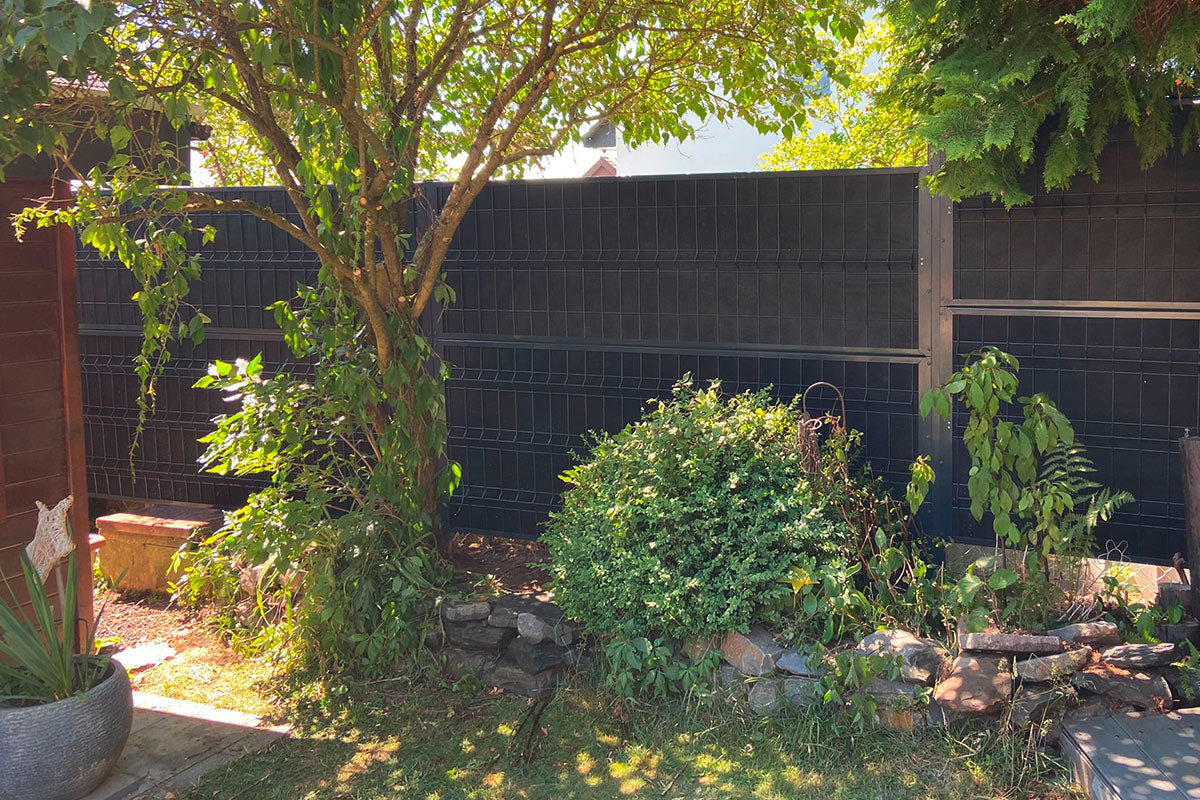

Lärmschutzzaun eco im Garten mit Pflanzen
Lärmschutzzaun eco als Sichtschutz an einem Badezuber

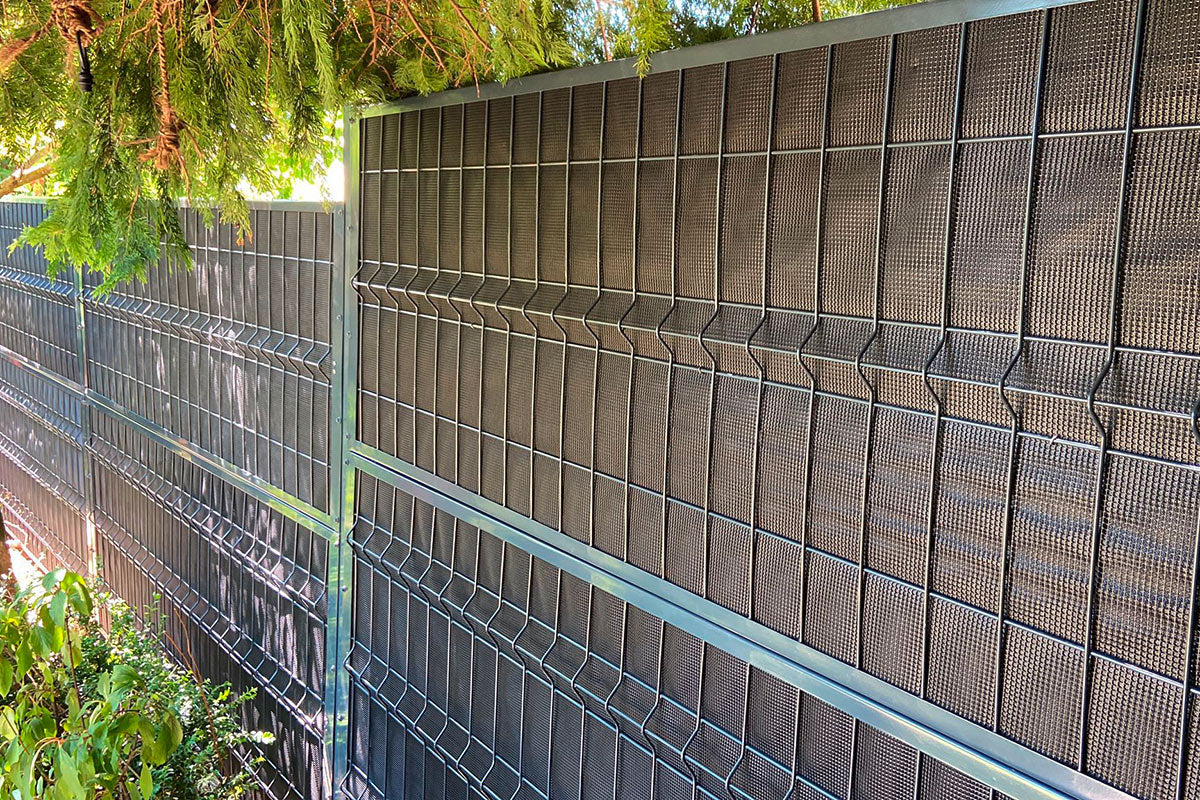

Lärmschutzzaun eco mit Pflanzen am 3D-Gitter

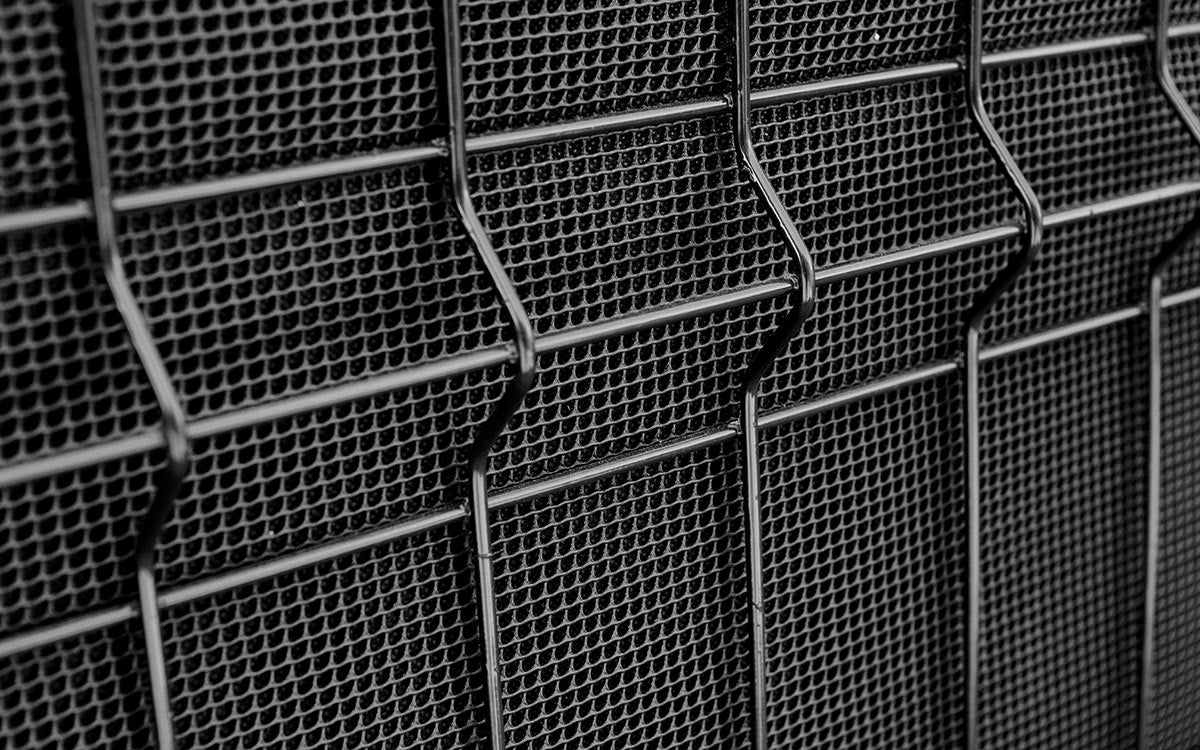

3D-Gitter 5/5 mm auf der Vorderseite des eco-Paneels, Nahansicht

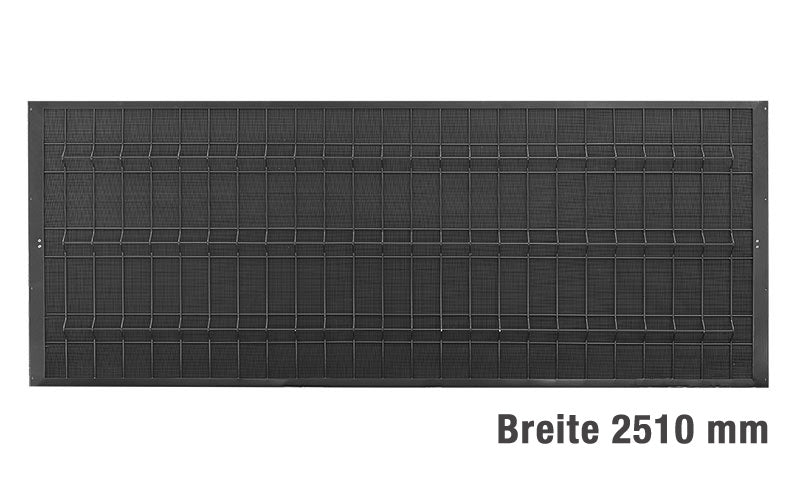

Lärmschutzpaneel eco, Breite 2510 mm

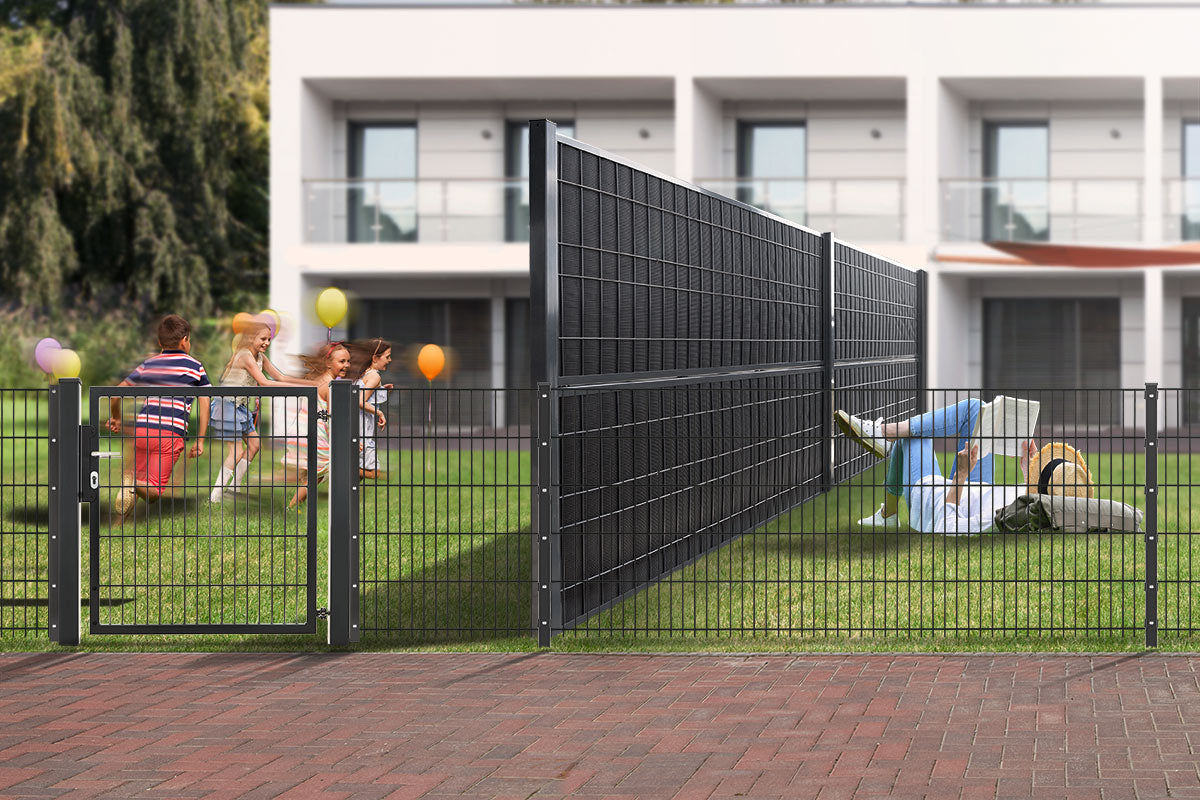

Lärmschutzzaun eco mit Tor vor einem Wohnhaus

Noise Barrier and Privacy Fence eco – Set 2510 mm Wide, Height 1600, 1800 or 2000 mm, Sound Insulation Approx. 18 dB, Anthracite Grey

Black Weeks bis 30.11.: bis zu 400 € Rabatt ab 500 € Warenwert Stufen
SKU: LS-LSPSECOS16B7016

Sound insulation approx. 18 dB

Panels with rock wool, fire class A1

3D grid as a climbing aid

Set with posts, screws and sealing tape

Gesetzliche Gewährleistung (EU-Hinweis) Ihr Europa

Für Gewerbe und Kommunen: Bis 18.12. bestellen – auf Wunsch stellen wir die Rechnung noch 2026. Eine kurze Nachricht an shop@kirchberger-metall.de genügt.

Height:

Height
Quantity:
931,06 €inkl. MwSt.

Parcel or freight item: plus shipping, free shipping within Germany from €1,000 Shipping info

Lieferzeit: 2 to 3 weeks
Spedition/Paketdienst mit Terminankündigung (Avis)
Frage zum Produkt
American Express Apple Pay EPS Google Pay Klarna Mastercard PayPal Satispay Visa Kauf auf Rechnung Vorkasse
5,0 82 Google-Bewertungen

Noise Barrier Fence eco: Quiet and Privacy in One Bay

Road, neighboring property or heat pump: where an ordinary privacy screen only blocks the view, the eco panel also dampens sound. The manufacturer states a sound reduction index of approx. 18 dB. The panel is filled with rock wool, and on the front there is a 3D mesh that plants can climb.

One bay is 2510 mm wide. The panels are available in heights of 800 and 1000 mm, which produce the fence heights 1600, 1800 and 2000 mm.

Scope of Delivery per Set

  • 2 noise barrier panels eco
  • 1 noise barrier post eco
  • Self-drilling screws for mounting and sealing tape

Technical Data

  • Width 2510 mm, height 1600, 1800 or 2000 mm
  • Sound reduction index approx. 18 dB
  • Back double-rod mesh 5/5 mm, front 3D mesh 5/5 mm as a climbing aid, 95 mm deep
  • Construction according to the manufacturer: metal frame, rock wool, polypropylene net 80 g/m², polyethylene fleece 300 g/m²
  • Frame depth 60 mm
  • Shape stability max. 1.25 kN/m², fire class A1
  • Hot-dip galvanized and powder-coated in anthracite grey RAL 7016, hot-dip galvanized without coating on request

Posts, End Finish and Gate

The noise barrier post eco is also available individually, for example for the start of the fence: 2600 mm long for fence heights 1600 and 1800 mm, 3000 mm long for 2000 mm. The end cover profile for the free end and a matching swing gate eco with a noise barrier panel as infill are available on request.

You will find more systems under Privacy Screen Fence Systems.

Questions and Answers

The manufacturer states a sound reduction index of approx. 18 dB for the eco panels. The panel contains rock wool, a polypropylene mesh and a polyethylene fleece. The back is a 5/5 mm double-rod mesh, the front a 5/5 mm 3D mesh.

Two noise barrier panels, one eco noise barrier post, self-drilling screws for fastening and sealing tape. One set makes up a fence bay 2510 mm wide.

The panels are available in heights of 800 and 1000 mm. They make up the fence heights 1600, 1800 and 2000 mm.

The eco posts have a profile of 80 x 60 x 3 mm and are concreted in. For fence heights of 1600 and 1800 mm they are 2600 mm long, for a fence height of 2000 mm 3000 mm. One post is included with each set. The posts are also available individually, for example for the start of the fence.

Yes. The front is a 5/5 mm 3D mesh with a depth of 95 mm, which the manufacturer designates as a climbing aid.

Yes. The single-leaf eco swing gate has a noise barrier panel as infill, a 60 x 60 mm frame, 80 x 80 mm posts and opens 90°. The gate is available in the heights 1800 and 2000 mm. We offer it on request.

Hot-dip galvanized and powder-coated in RAL 7016 anthracite grey. Hot-dip galvanized without coating is available on request. According to the manufacturer, the panels achieve fire class A1.
